GSENSE系列
The GSENSE series is a world leading scientific CMOS image sensor family, designed with correlated multiple sampling for extreme low noise, true HDR for high dynamic range and optional backside illumination technology for quantum efficiency of up to 95%. Primary applications include scientific imaging, medical imaging, spectroscopy, fluorescence imaging, astronomy, high energy physics, and high-end surveillance.
立即咨询
Large Format
BSI
High Dynamic
Low Noise
GSENSE4040BSI
16.8 MP 9 μm 3.3" ROLLING SHUTTER IMAGE SENSOR
The GSENSE400BSI sensor is a 4 Megapixels resolution BSI CMOS image sensor with 11μm pixel size. As the first backside illuminated scientific CMOS image sensor in the world, GSENSE400BSI features low readout noise of 1.6e¯, high dynamic range of 94dB, and low dark current of 0.27e¯/s/pix at deep cooling of -40℃. With special ARC, the sensor provides peak of 95% @ 570nm. This image sensor has two operation modes, STD mode in 48 fps or HDR mode which is optimized for high dynamic range (HDR) applications with half frame rate. In HDR mode, the sensor achieves a linear dynamic range of 95dB. These features make GSENSE400BSI ideal for high-end scientific imaging, corona detection, astronomy, spectroscopic, and forensic imaging applications.
  • Key features and Benefits

    Large format BSI scientific CMOS

    Low readout noise
  • Package Drawing
  • Block Diagram

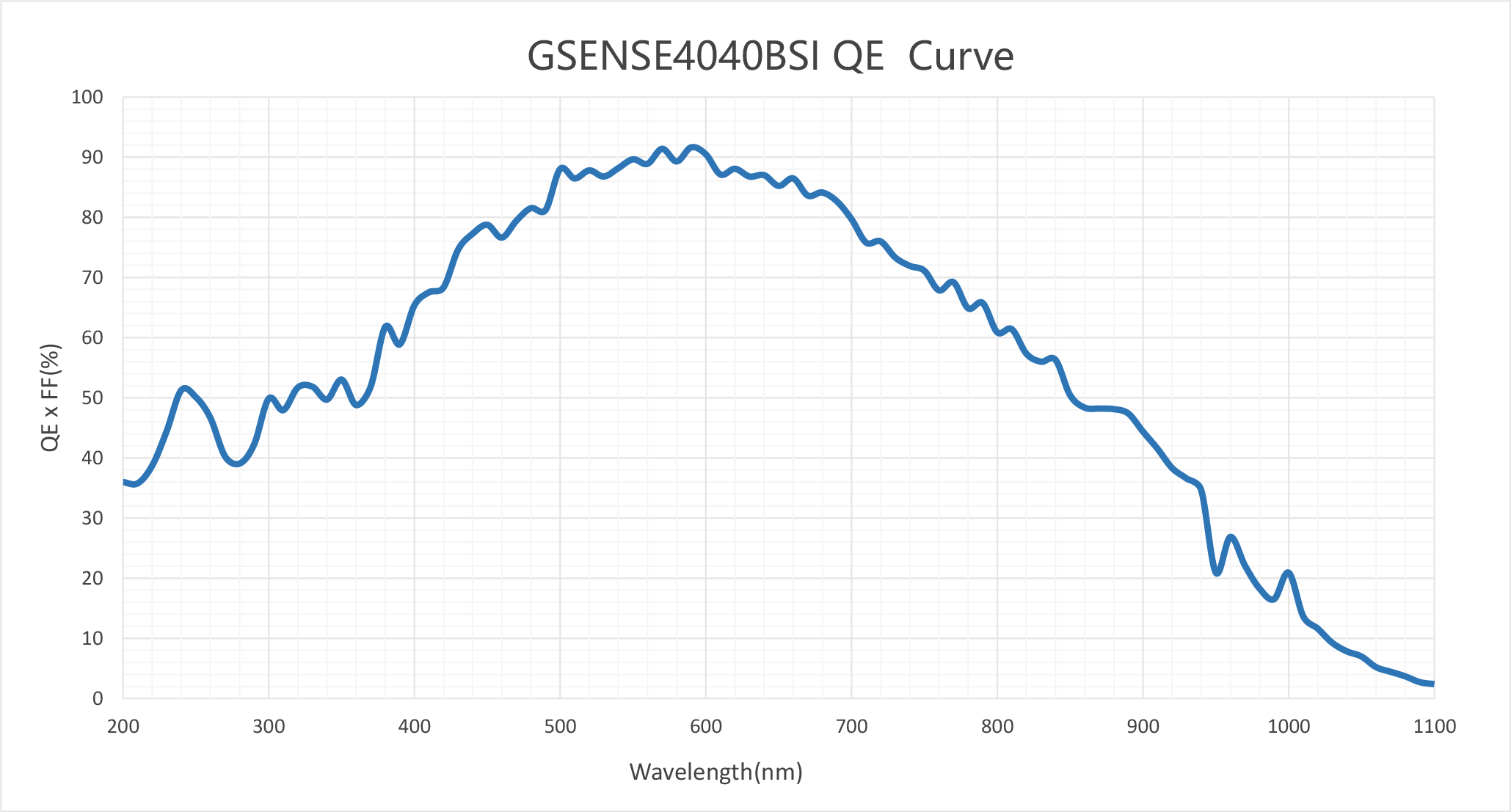

  • QE Curve
GSENSE4040BSI
GSENSE4040BSI
产品指标

  • Resolution

    16.8 MP

    Nr of Active Pixels

    4096 (H) x 4096 (V)

  • Optical format

    3.3"

    Pixel size

    9 μm x 9 μm

  • photosensitive area

    36.864 mm x 36.864 mm

    Shutter type

    Rolling Shutter

  • Peak QE

    90% @ 600 nm

    Full well capacity

    39.2 ke‾

  • Temporal noise

    2.3 e‾

    Dark Current

    0.04 e‾/pixel/sec @ -40 °C

  • Dynamic Range

    84.6 dB

    Max Frame rate

    24 fps

  • Max. SNR

    45.9 dB

    Parasitic Light Sensitivity

    -

  • Angular response

    -

    ADC

    12 bit

  • Output format

    18 ch LVDS

    Channel multiplexing

    -

  • Max. Data rate

    10.8 Gbps

    Chroma

    Mono

  • Supply voltage

    3.3V (analog)、1.8V(digital)

    Package

    140 pins PGA (51.5 mm x 53.0 mm)

  • Power consumption

    <1.4 W

    Availability

    Engineering Samples (ES)

产品编码
  • GSENSE4040BSI-BBM-NPN-AR0
    Monochrome, no microlens, Ceramic 140 pins PGA, Removable D 263® T eco glass with no AR coating, Grade 0
  • GSENSE4040BSI-BBM-NPN-AR2
    Monochrome, no microlens, Ceramic 140 pins PGA, Removable D 263® T eco glass with no AR coating, Grade 2
  • GSENSE4040BSI-BBM-NPN-BB1
    Monochrome no microlens, Ceramic 140 pins PGA, Sealed D 263® T eco glass with AR coating, Grade 1
  • GSENSE4040BSI-BBM-NPN-AR1
    Monochrome, no microlens, Ceramic 140 pins PGA, Removable D 263® T eco glass with no AR coating, Grade 1
  • GSENSE4040BSI-BBM-NPN-BB0
    Monochrome no microlens, Ceramic 140 pins PGA, Sealed D 263® T eco glass with AR coating, Grade 0
  • GSENSE4040BSI-BBM-NPN-BB2
    Monochrome no microlens, Ceramic 140 pins PGA, Sealed D 263® T eco glass with AR coating, Grade 2
  • EVA-4040B-RT12
    Evaluation board Operation mode: HDR mode Lens holder: T-mount Interface: Camera link MDR-MDR
