GL系列

The GL sensor family from Gpixel comprises a wide range of horizontal resolutions, ranging from 2k to 16k, with line rates of up to 200 kHz. These sensors feature pixel sizes of 3.5 µm, 5 µm, 7 µm, and 14 µm, providing a comprehensive selection to suit diverse line scan applications.

立即咨询

Global Shutter

High Speed

TDI

High Resolution

GL0402

4K 7 μm GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR

GL0402 is a 4096 x 2 resolution, 7 μm square pixel, global shutter linear image sensor that supports maximum 200 kHz line rate in single line mode and 100 kHz line rate in dual line mode. GL0402 offers low read noise of less than 5.2 e¯and 10 ke¯ FWC, leads to 65.6 dB intra-scene dynamic range.

GL0402 uses external clock and all required timing are generated by on chip sequencer, reducing the amount of external component needed; output channel multiplexing function enables flexibility on FPGA choice, suitable for cost-effective camera solution for demanding on line inspection applications. GL0402 is assembled with compact 76 pins CLCC package for fast heat dissipation and high robustness.

Key features and Benefits

High Speed

Low Noise

High Dynamic range
Package Drawing
Block Diagram

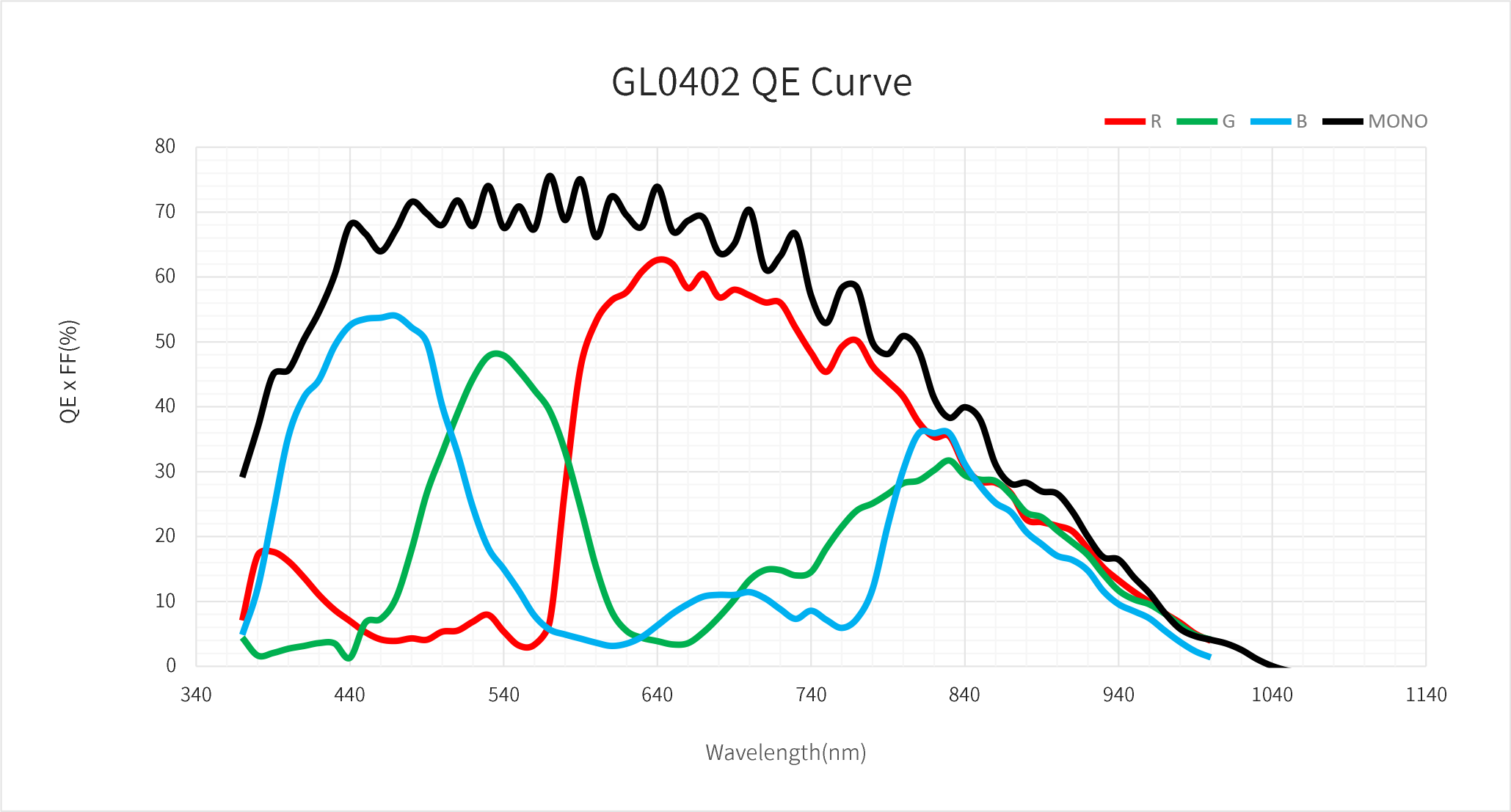

QE Curve

GL0402

产品指标

Resolution

4 K

Nr of Active Pixels

4096 (H) x 2 (V)
Optical format

28.67 mm

Pixel size

7 μm x 7 μm
Full well capacity

25.0 ke‾ @ low gain、10.0 ke‾ @ high gain

Temporal noise

5.2 e‾
Dynamic Range

65.6 dB @ high gain

Max Line rate

200k fps @ single line，100k fps @ dual line
Peak QE

76.0% @ 570 nm

Shutter type

Global shutter
Angular response

20° (85% response)

Photosensive area

28.67 mm
Parasitic Light Sensitivity

-

Dark Current

10 ke‾/pixel/sec @ 70℃
Max. SNR

43.9 dB

ADC

12 bit
Output format

12 ch Sub-LVDS

Channel multiplexing

12/6
Max. Data rate

10.944 Gbps

Chroma

Mono, RGB Color
Power consumption

< 2.25 W

Supply voltage

3.3V (analog), 2V (digital), 1.8V-3.3V (I/O)
Package

CLCC 76 pins (40.0 mm x 11.0 mm)

Availability

Mass Production (MP)
