GL3516

3.5μm 16K RESOLUTION GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR

GL3516 is a 16384 x 2 resolution, 3.5 μm square pixel, line scan CMOS image sensor that supports maximum 120 kHz line rate in single line mode and 60 kHz line rate in dual line mode.
GL3516 is pin and footprint compatible with Gpixel’s existing GL7008 8K line scan sensor its features makes is an ideal solution for industrial inspection applications benefitting from high-speed scanning and 16K resolution, including high end inspection production inspections for lithium battery testing, flat panel displays, PCBs, labels, and railway inspection.

GL3516 is offered in both color and monochrome versions. The monochrome sensor support single and dual line modes. The color sensor support dual line mode.GL3516 is assembled in a COB package with WCu heat sink for optimal heat dissipation and with connector for easy integration.

Key features and Benefits

High Speed

High Resolution

Low Power Consumption

Easy Integration
Package drawing
Block diagram

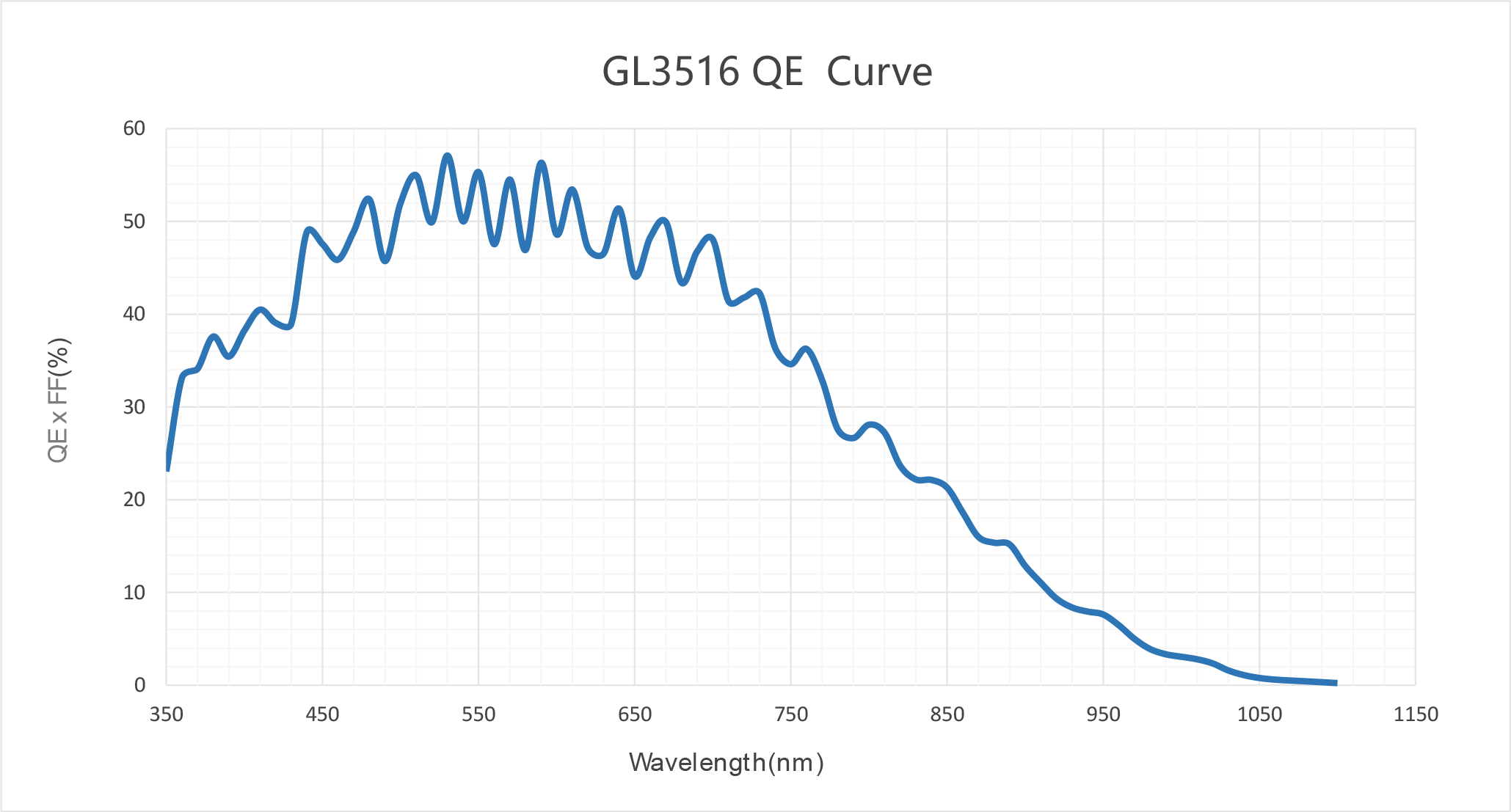

QE Curve

GL3516

产品指标

Resolution

16 K

Nr of Active Pixels

16384 (H) x 2 (V)
Optical format

57.344 mm

Pixel size

3.5μm x 3.5 μm
Full well capacity

5.6 ke‾

Temporal noise

8.2 e‾
Dynamic Range

56.6 dB

Max Line rate

120kHz @ single line、 60kHz @ dual line
Peak QE

57.0% @ 530 nm

Shutter type

Global Shutter
Angular response

20° (85% response)

Photosensive area

57.344 mm
Parasitic Light Sensitivity

Dark Current

0.8 ke‾/pix/s @ 10 bit
Max. SNR

37.4 dB

ADC

10 bit
Output format

25 ch sub-LVDS

Channel multiplexing

25/13/7/4
Max. Data rate

24 Gbps

Chroma

Mono, RGB Color
Power consumption

3.2 W

Supply voltage

3.3 V (analog)、1.8 V-3.3 V (IO)、1.8 V (digital)
Package

168 Pins COB (71.8 mm x 32.0 mm)

Availability

Engineering Samples (ES)
