GL1402

2K 14 μm RESOLUTION GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR

GL1402 is available in color and mono variants. GL1402 color features red, green, and blue rows with 14 µm gaps between each row to minimize color crosstalk. Readout speed is 27 kHz. GL1402 mono features a three row monochrome option with a readout speed of 27 kHz, or a one row monochrome option with a readout speed of 81 kHz.

GL1402 has a 28.7 ke‾ full well capacity and a dynamic range of 70 dB. The sensor has a 12 bit ADC and 4 sLVDS channels, with the option to run slower at 2 or 1 sLVDS channel.
GL1402 power consumption is less than 420 mW at maximum readout speed. The sensor is assembled into a 54 pin CLCC package with outer dimensions 38 x 7.4 mm.

Key features and Benefits

Cost Efficient

High Frame Rate

High Dynamic Range

Low Power Consumption
Package Drawing
Block Diagram

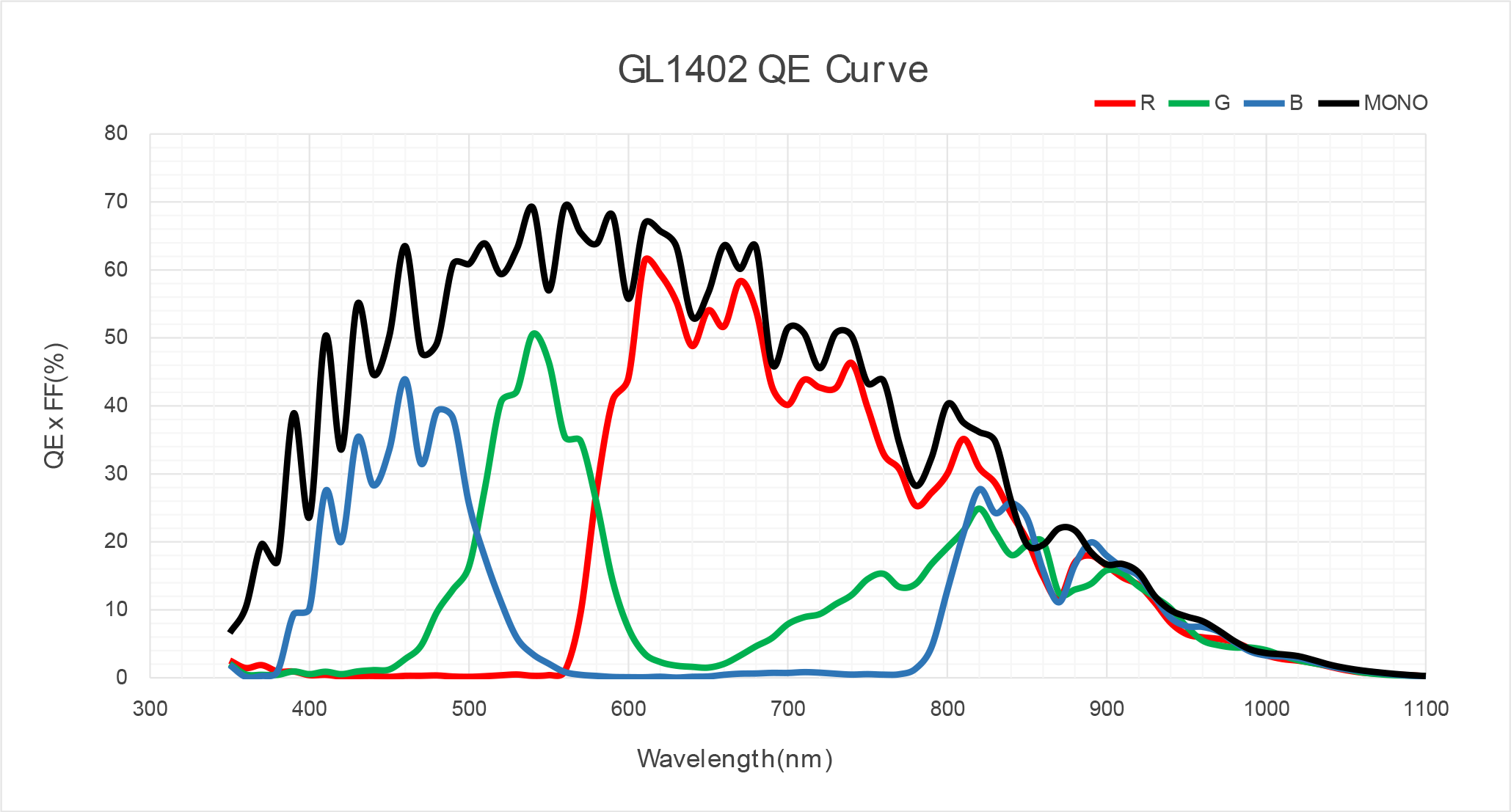

QE Curve

GL1402

产品指标

Resolution

2.0 K

Nr of Active Pixels

2048 (H) x 1 (V), 2048 (H) x 3 (V)
Optical format

28.896 mm

Pixel size

14 μm x 14 μm
Full well capacity

28.7 ke‾

Temporal noise

9.1 e‾
Max Line rate

81kHz @ single line

Peak QE

69% @ 560nm
Shutter type

Global shutter

Angular response

20°（85% QE）
Dynamic Range

70.0 dB

Photosensive area

28.896 mm
Parasitic Light Sensitivity

-

Dark Current

2000 e‾/pixel/s @ 40℃
Max. SNR

44.5 dB

ADC

12 bit
Output format

4 ch Sub-LVDS

Channel multiplexing

4/2/1
Max. Data rate

2.08 Gbps

Chroma

Mono, RGB color
Power consumption

<0.42 W

Supply voltage

3.6 V (analog),1.8 V-3.3 V (IO),1.5 V (digital)
Package

54-pins CLCC (38.0 mm x 7.4 mm)

Availability

Engineering Samples (ES)

产品编码

GL1402-BVC-TCN-AUD

Color, without microlens, ceramic 54-pin CLCC, sealed D263^® T eco glass without AR coating
GL1402-BVM-SCN-AUD

Monochrome, without microlens, ceramic 54-pin CLCC, sealed D263^® T eco glass without AR coating
