GMAX4416
16MP 4.4 μm 1.6" GLOBAL SHUTTER IMAGE SENSOR
GMAX4416 is a 1.6’’ (25.5 mm) optical format CMOS image sensor with 4096 x 4096 (16.7 MP) effective pixels. Using advanced processing technology, the 4.4 μm global shutter pixel achieves a max full well capacity of 14.5 ke‾ and min dark noise of 2.6 e‾, delivering max 74.9 dB linear dynamic range and 41.8 dB SNR. On-chip analog binning increases the sensor full well capacity to 60.7 ke‾ and 47.8 dB SNR. Peak quantum efficiency is 70.5% @ 530 nm and 30% @ 850 nm due to its optimized NIR process. GMAX4416 can reach 80 fps frame rate in 12-bit standard high-speed mode with 32 pairs 600Mbps sub-LVDS. It also supports 2x2 binning mode and a 2x2 binning HDR mode with frame rates of 42 fps and 80 fps respectively. GMAX4416 is housed in 152 pin ceramic μPGA package, 31.70 mm x 30.40 mm outer dimensions.
  • Key features and Benefits

    4.4 μm charge domain global shutter pixel

    16MP resolution

    1:1 aspect ratio

    Binning HDR mode

    Near infrared enhancement

    Maximum frame rate: 80 fps
  • Package Drawing

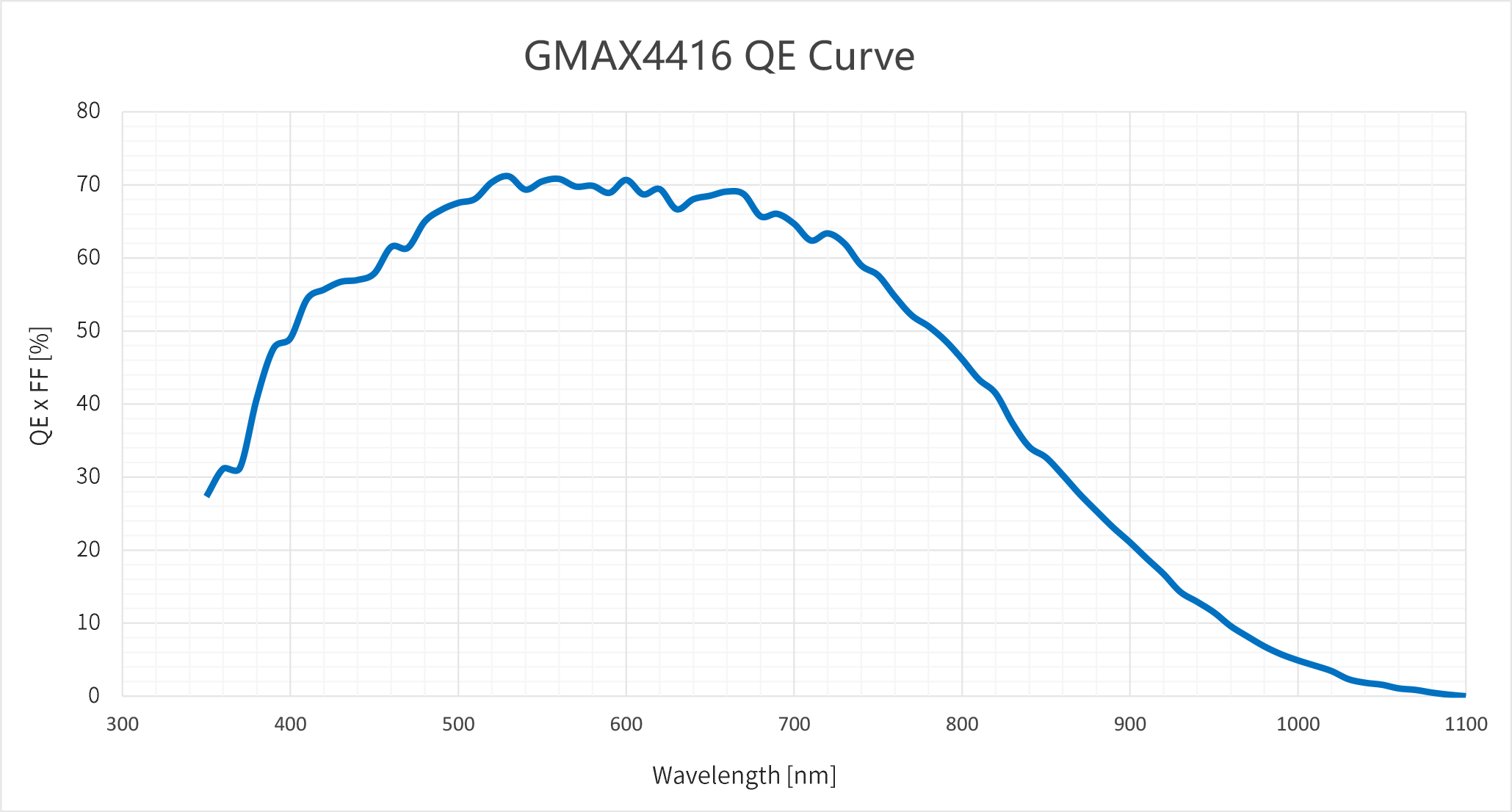

  • QE Curve
GMAX4416
GMAX4416
产品指标

  • Resolution

    16 MP

    Nr of Active Pixels

    4096 (H) x 4096 (V)

  • Optical format

    1.6 " (25.5 mm)

    Pixel size

    4.4 μm x 4.4 μm

  • photosensitive area

    18.0 mm x 18.0 mm

    Shutter type

    Global shutter

  • Peak QE

    70.5% @ 550 nm

    Full well capacity

    14.5 ke‾ @ STD & HDR, 60.0 ke‾ @ Binning HDR

  • Parasitic Light Sensitivity

    -91 dB

    Temporal noise

    2.9 e‾ @ STD, 2.6 e‾ @ HDR, 6.1 e‾ @ Binning HDR

  • Angular response

    > 15 ° (80% response)

    Dark Current

    6.2 e‾/pixel/s @ 35℃ @ STD & HDR, 24.7 e‾/pixel/s @ 35℃ @ Binning_HDR,

  • Max. SNR

    41.6 dB

    Dynamic Range

    68.1 dB @ STD, 74.9 dB @ HDR, 79.9 dB @Binning_HDR

  • Max Frame rate

    80 fps @ STD, 42 fps @ HDR, 80 fps @ Binning_HDR

    ADC

    12-bit

  • Output format

    16 pairs Sub-LVDS

    Channel multiplexing

    16/14/12/10/8/6/4/2/1

  • Max. Data rate

    19.2 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    <1.5 W

    Supply voltage

    3.3V (analog), 1.8V-3.3V (IO), 1.2V (digital)

  • Package

    152 pins μPGA (31.7 mm x 34.0 mm)

    Availability

    Demo grade samples

产品编码
  • GMAX4416-AVM-NUT-BUD
    Monochrome, with microlens, ceramic 152 pins μPGA, Sealed D 263® T eco glass with AR coating. 80 fps @ HS mode, 42 fps @HDR/Binning mode. Demo Grade.
  • GMAX4416-AVC-NUT-BUD
    Bayer color, with microlens, ceramic 152 pins μPGA, Sealed D 263® T eco glass with AR coating. 80 fps @ HS mode, 42 fps @HDR/Binning mode. Demo Grade.
资料下载
应用领域
Automation & Inspection
了解更多
订阅产品
您将即时收到我们关于产品发布、更新的最新信息
