GSENSE6510BSI

10.2MP 6.5 μm 1.9" SCIENTIFIC CMOS IMAGE SENSOR

GSENSE6510BSI is a 3200 x 3200 (10.2 MP) resolution image sensor with industry-standard 6.5 μm x 6.5  μm pixel and large 29.4 mm diagonal for increased throughput in microscopy applications compared to 19 mm sCMOS devices. With a peak QE of 95% and read noise of 0.7 e‾ median, the sensor achieves exceptional signal-to-noise in extreme low light applications.

The sensor offers five imaging modes. In 12-bit mode, the sensor delivers 62.3 dB of dynamic range with a read noise floor or 1.3 e‾ at 88 fps. In 11-bit HDR mode, the sensor uses dual-gain readout to achieve 78.8 dB of dynamic range with a read noise of 1.8 e‾ at the same 83 fps. Additionally, the sensor offers two high-speedmodes, an 8-bit mode reaching 500 fps and an 11-bit mode reaching 166fps. A 12-bit low noise mode achieves 0.7 e‾ read noise.

Key features and Benefits

BSI

High sensitivity

Low noise

Dual Gain HDR

High frame rate
Package Drawing

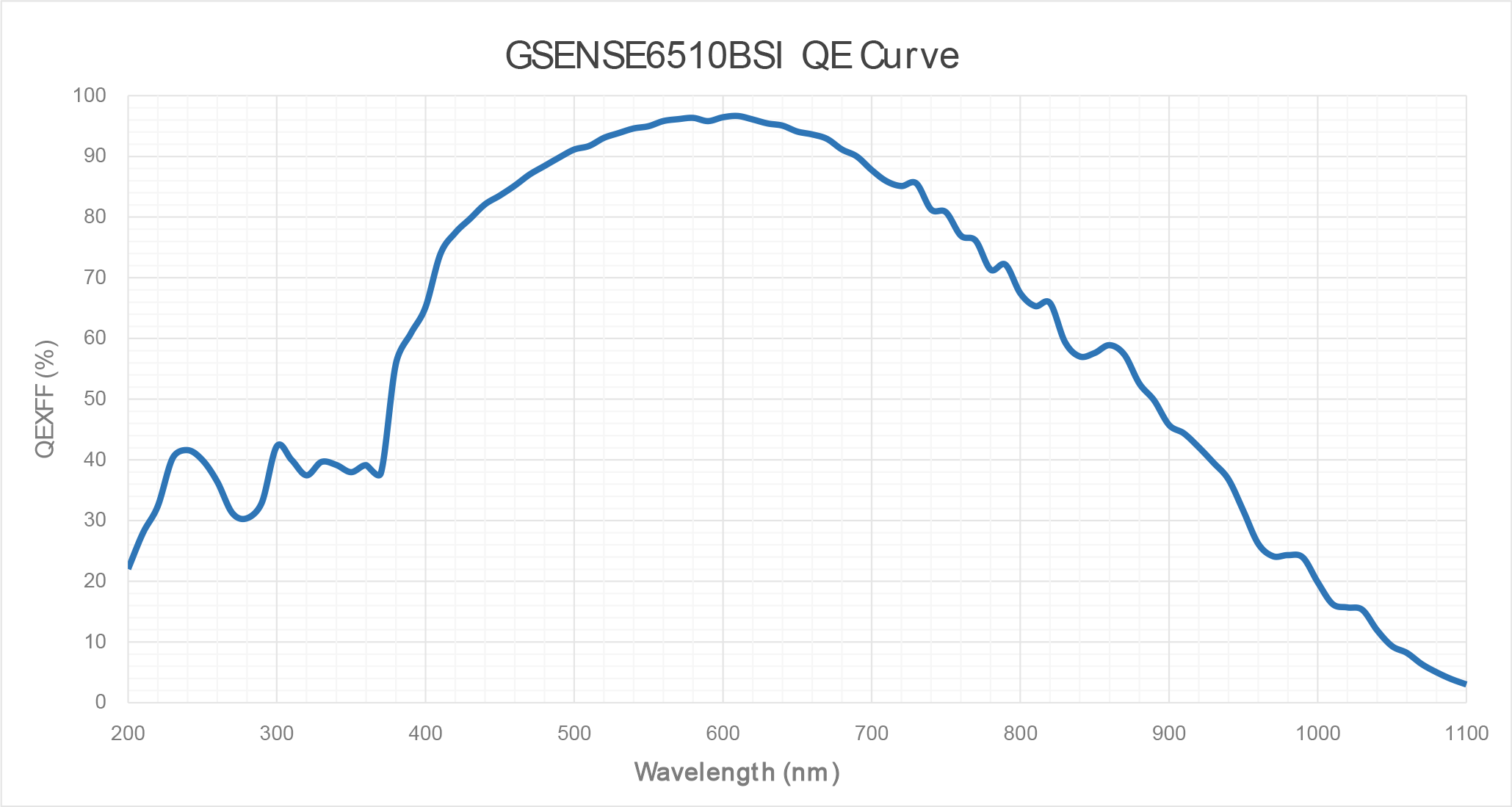

QE

GSENSE6510BSI

产品指标

Resolution

10.2 MP

Nr of Active Pixels

3200 (H) x 3200(V)
Optical format

1.83"

Pixel size

6.5 μm x 6.5 μm
photosensitive area

20.8 mm x 20.8 mm

Shutter type

Rolling Shutter
Peak QE

95% Peak QE @ 610nm

Full well capacity

21 ke‾
Temporal noise

0.7 e‾

Dark Current

0.2 e‾/pixel/s @ -10℃
Dynamic Range

78.8 dB

Max Frame rate

500 fps @ 8bit
Max. SNR

43 dB

Parasitic Light Sensitivity

-
Angular response

-

ADC

8/11/12 bit
Output format

72 pairs LVDS

Channel multiplexing

72/24/12
Max. Data rate

69.12 Gbps @ 8 bit

Chroma

Mono
Power consumption

<5 w @ 8 bit <2.7 w @ 12 bit

Supply voltage

3.6V (analog)、2V (digital)
Package

284 pins LGA (44.4 mm x 34.2 mm)

Availability

Engineering Samples (ES)
