GSPRINT5514BSI

5.5μm 14MP HIGH SPEED CMOS IMAGE SENSOR

GSPRINT5514BSI features 4608 x 3072 pixels, each 5.5 µm square – a 4/3 aspect ratio 4k sensor compatible with APS-C optics. With 10-bit output GSPRINT5514BSI achieves 670 frames per second. In 12-bit mode the sensor outputs 350 fps.
Using backside illumination technology, the sensor achieves 86% quantum efficiency at 510 nm and 17% at 200 nm for UV applications. The sensor offers dual gain HDR readout, maximizing 15 ke¯ full well capacity with a < 2.0 e¯ noise to achieve an outstanding 77.5 dB of dynamic range. Analog 1x2 binning increases the full well capacity to 30 ke¯.
Up to 8 vertically oriented regions of interest can be defined to operate the sensor at increased frame rates. The image data is output via 84 sub-LVDS channels at 1.2 Gbps. For applications in which the maximum frame rate is not required, multiplexing modes are available to reduce the number out output channels by any multiple of two.

Key features and Benefits

Back Side Illuminated (BSI) Global Shutter pixels

High Sensitivity

High Speed: up to 670 fps @ 10 bit

86% QE @ 510nm
Package Drawing

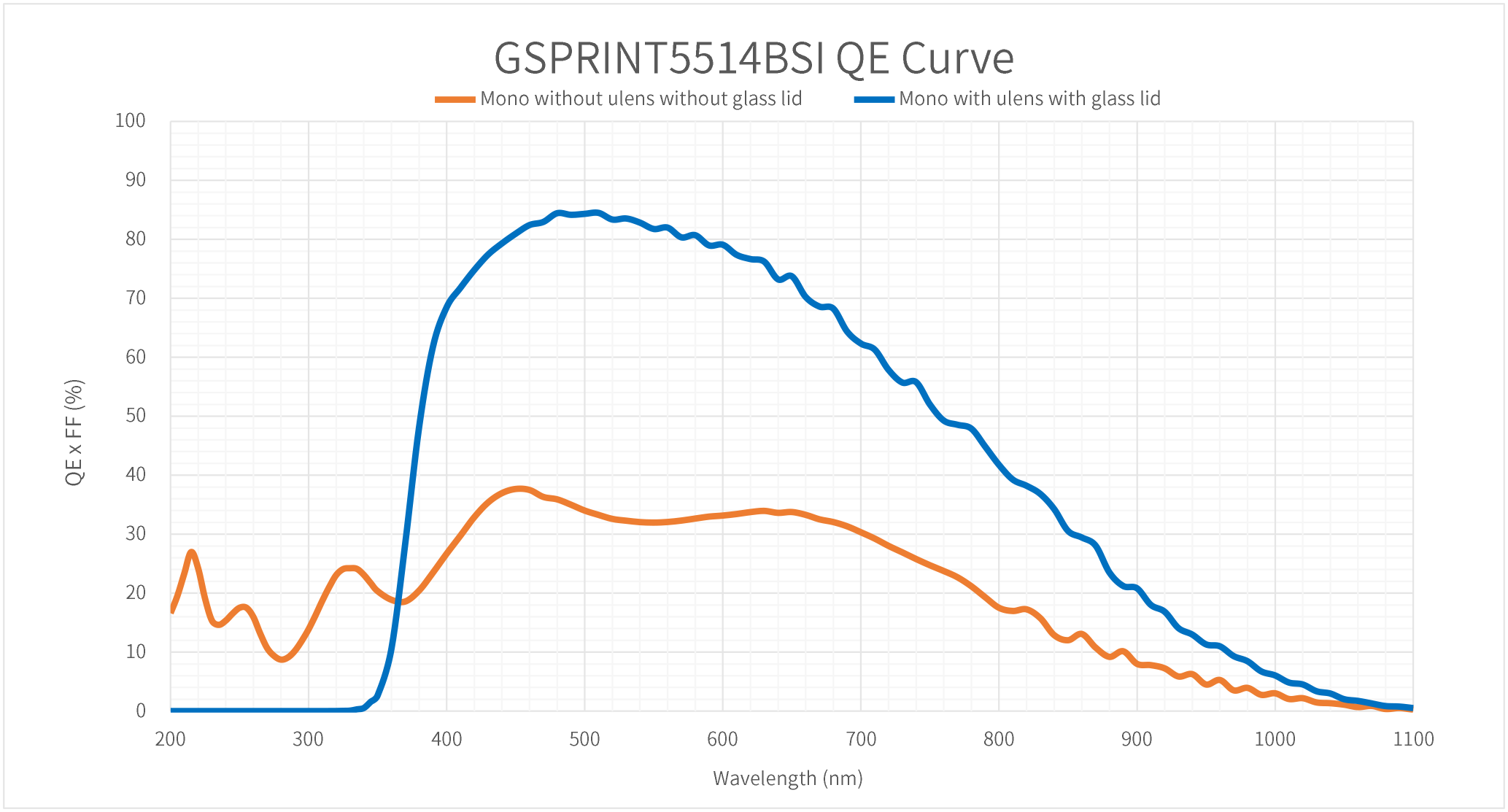

QE Curve
Spectral Response

GSPRINT5514BSI

产品指标

Resolution

14 MP

Nr of Active Pixels

4608 (H) x 3072(V)
Optical Format

APS (30.5 mm diagonal)

Pixel size

5.5 μm x 5.5μm
Photosensitive Area

25.3 mm x 16.9 mm

Shutter Type

Global shutter
Peak QE

>86 %

Full Well Capacity

15.0 ke‾ 30.0 ke‾ with binning
Parasitic Light Sensitivity

＜-80 dB

Temporal Noise

3.0 e‾ @ 10 bit, 1.9 e‾ @ 12 bit < 2e‾ @ 12 bit HDR
Angular Response

30°(80% response)

Dark Current

83 e‾/s @ 60⁰C die temperature
Max. SNR

41.79 dB (12-bit, gain 0)

Dynamic Range

77.5dB (Dual 12 bit), 66.4 dB (12 bit), 61.9 dB (10 bit)
Max Frame Rate

670fps @10bit, 350fps @12bit, 80fps @Dual-12bit

ADC

10 bit & 12 bit
Output Format

84 ch sub-LVDS

Channel Multiplexing

Yes (any multiple of 4)
Max. Data Rate

94.84 Gbps

Chroma

Mono, RGB Color, Mono without ulens
Power Consumption

4.7 W @ 10 bit, 4.5 W @ 12 bit, 3.9 W @ 12 bit HDR,

Supply Voltage

3.3V (analog), 1.8V (I/O), 1.2V (digital)
Package

454pins µPGA (42.0 mm x 38.0 mm)

Availability

Engineering Samples (ES)

产品编码

GSPRINT5514BSI-ABM-NUV-BU1

Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels
GSPRINT5514BSI-ABM-NUV-BUE

Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels
GSPRINT5514BSI-ABM-HUV-BU2

Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, Normal speed, 670 fps @ 10-bit 84 channels.

GSPRINT5514BSI-ABM-NUV-BU2

Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels
GSPRINT5514BSI-ABM-HUV-BU1

Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, Normal speed, 670 fps @ 10-bit 84 channels.
GSPRINT5514BSI-ABM-HUV-BUE

Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, Normal speed, 670 fps @ 10-bit 84 channels.

GSPRINT5514BSI-ABC-NUV-BU1

Color, with microlens, 454-pins uPGA package, dual sided ARC D263^®Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels.
GSPRINT5514BSI-ABC-NUV-BUE

Color, with microlens, 454-pins uPGA package, dual sided ARC D263^®Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels.
GSPRINT5514BSI-ABC-HUV-BU2

Color, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, High speed, 670 fps @ 10-bit 84 channels.

GSPRINT5514BSI-ABC-NUV-BU2

Color, with microlens, 454-pins uPGA package, dual sided ARC D263^®Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels.
GSPRINT5514BSI-ABC-HUV-BU1

Color, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, High speed, 670 fps @ 10-bit 84 channels.
GSPRINT5514BSI-ABC-HUV-BUE

Color, with microlens, 454-pins uPGA package, dual sided ARC D263^® Teco cover glass, High speed, 670 fps @ 10-bit 84 channels.

GSPRINT5514BSI-ABM-NUN-BR2

Monochrome, without microlens, 454-pins uPGA package, removable dual sided ARC D263^®Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels

GSPRINT5514BSI-ABM-NUN-BRE

Monochrome, without microlens, 454-pins uPGA package, removable dual sided ARC D263^®Teco cover glass, Normal speed, 350 fps @ 12-bit 56 channels, 356 fps @ 10-bit 44 channels
