GMAX4651
51MP 4.6 μm 2.7" GLOBAL SHUTTER IMAGE SENSOR
GMAX4651 is a 51 Megapixel (8424 x 6032) full frame (35mm) global shutter image sensor designed using the latest 4.6 μm charge domain global shutter pixel. Using the advanced 65nm CIS process, it provides 18 ke- FWC, 7.6 e‾ median dark noise and more than 65.5 dB intra-scene dynamic range. With the light pipe technology, sensor achieves >67% QE @510nm and 1/40,000 shutter efficiency. GMAX4651 delivers 30fps in single gain operation mode running at 864Mbps. GMAX4651 is assembled with 238 pins PGA ceramic package and the optical center is fully aligned with the package mechanical center. The unique features make it an ideal solution for demanding imaging applications like machine vision, 8K broadcasting and high-end industrial inspections.
  • Key features and Benefits

    4.6 um Global Shutter pixel

    35mm Full Frame of optical format

    High data throughput up to 21 Gbps

    Optical center = package mechanical center

    High speed and Good PLS
  • Package Drawing
  • Block Diagram

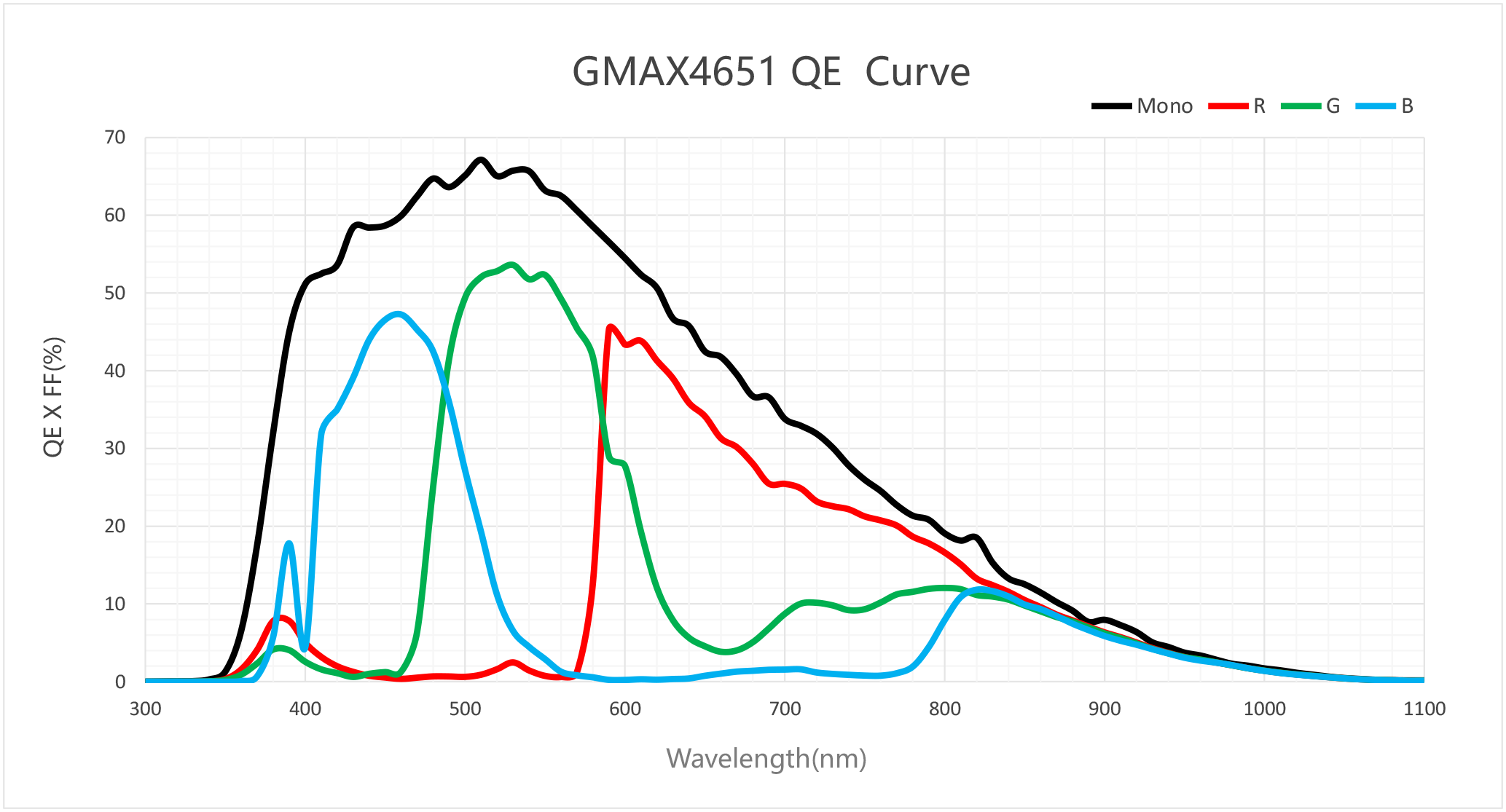

  • QE Curve
GMAX4651
GMAX4651
产品指标

  • Resolution

    51 MP

    Nr of Active Pixels

    8424 (H) x 6032 (V)

  • Optical format

    35mm Full Frame

    Pixel size

    4.6 μm x 4.6 μm

  • photosensitive area

    38.8 mm x 27.8 mm

    Shutter type

    Global shutter

  • Peak QE

    67.1% @ 510 nm

    Full well capacity

    18.0 ke‾

  • Parasitic Light Sensitivity

    -92 dB

    Temporal noise

    7.6 e‾

  • Angular response

    > 15 ⁰ (80% response)

    Dark Current

    6 e‾/pixel/s @ 45℃

  • Max. SNR

    65.5 dB

    Dynamic Range

    65.5 dB

  • Max Frame rate

    30 fps @ 12 bit

    ADC

    12 bit

  • Output format

    24 ch sub-LVDS

    Channel multiplexing

    24/14/8/6/4

  • Max. Data rate

    20.74 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    <2.8 W

    Supply voltage

    3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)

  • Package

    238 pins PGA (58.6 mm x 42.0 mm)

    Availability

    Mass Production (MP)

产品编码
  • GMAX4651-BVM-NPT-BU1
    Monochrome, with microlens, ceramic 238 pins PGA, Sealed D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 1
  • GMAX4651-BVC-NPT-BU1
    Bayer color, with microlens, ceramic 238 pins PGA, Sealed D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 1
  • EVA-4651-NF12
    Evaluation board Operation mode: 12 bit mode Lens holder: F-mount Interface: USB 3.0
  • GMAX4651-BVM-NPT-BU2
    Monochrome, with microlens, ceramic 238 pins PGA, Sealed D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 2
  • GMAX4651-BVM-NPT-BR2
    Monochrome, with microlens, ceramic 238 pins PGA, Removable D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 2
资料下载
应用领域
Automation & Inspection
了解更多
订阅产品
您将即时收到我们关于产品发布、更新的最新信息
注册个人信息后订阅
