Operation Mode – HDR Mode & Low Noise Mode
Optical Format: 1 inch
On–chip 12 bit Column–Parallel ADC
On–chip Sequencer
On–chip PLL
Slave and Master Modes
Vertical/Horizontal Image Flipping
Vertical ROI
Standby
Sub–LVDS
MIPI(CSI–2, D–PHY)
Nr of Active Pixels
800 (H) x 600 (V)
Optical Format
1″
Pixel Size
16 μm x 16 μm
Photosensitive Area
12.8 mm x 9.6 mm
Shutter Type
Rolling Shutter

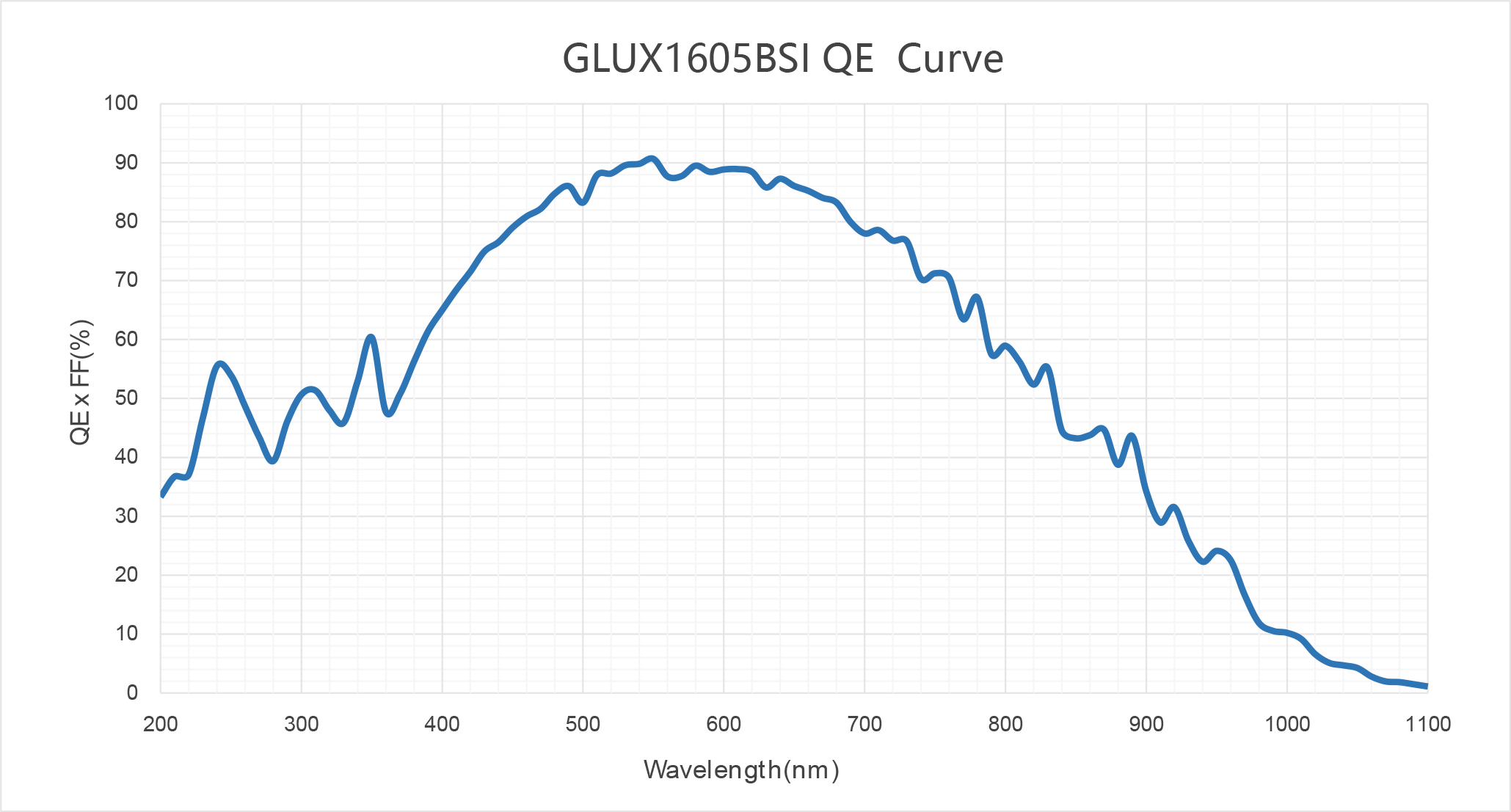

Peak QE
90.7% (550 nm)
Full Well Capacity
73.4 ke‾
Temporal Noise
0.9 e‾ (Low Noise)
Dark Current
39 e‾/pixel/s (20℃)
Dynamic Range
93 dB (HDR)
Max Frame Rate
60 fps
ADC
12 bit
Output Format
4 ch Sub-LVDS、4 ch MIPI
Max. Data Rate
1.782 Gbps
Chroma
Mono
Power Consumption
201 mW (HDR) 83 mW (Low Noise)
Supply voltage
3.3 V (Analog) 1.75 V (Digital)
Package
84 pins CLCC (22.0 mm x 22.0 mm)
