GMAX15271BSI is a state-of-the-art rolling shutter CMOS image sensor engineered for ultra-high-resolution imaging, delivering 19,376 (H) × 14,000 (V) pixel resolution on a compact 35.9 mm diagonal image format. Leveraging advanced 1.5 μm Back-Side Illuminated (BSI) pixel technology, GMAX15271BSI maximizes light sensitivity and spatial efficiency while maintaining exceptional image quality. It supports dual ADC modes for versatile operation. In 14 bit mode, the sensor achieves sub-electron readout noise (1.1 e⁻) and a high dynamic range of 73.8 dB with a frame rate of 4.8 fps, for precision imaging in challenging lighting conditions. The 12 bit mode prioritizes speed, boosting the frame rate to 8.5 fps for high-throughput applications. Binning is supported in both 14 bit and 12 bit modes, with on-chip charge-domain binning in the vertical direction and off-chip digital binning in the horizontal direction. Color and monochrome variants of the sensor are packaged in a 161 pins ceramic μPGA package (41.75 mm × 35.75 mm), combining high reliability with efficient thermal management ensuring stable performance in demanding environments. Designed for high-end industrial and scientific applications does GMAX15271BSI excel in tasks requiring extreme detail and dynamic range, including flat panel display (FPD) inspection, semiconductor and PCB defect detection, precision manufacturing quality control, document scanning and cultural heritage archiving, aerial mapping, pathology, and genomics.

GMAX4416 is a 1.6" (25.5 mm) optical format CMOS image sensor with 4096 x 4096 (16.7 MP) effective pixels. Using advanced processing technology, the 4.4 μm global shutter pixel achieves a max full well capacity of 14.5 ke‾ and min dark noise of 2.6 e‾, delivering max 74.9 dB linear dynamic range and 41.8 dB SNR. On-chip analog binning increases the sensor full well capacity to 60.7 ke‾ and 47.8 dB SNR. Peak quantum efficiency is 70.5% (530 nm) and 30% (850 nm) due to its optimized NIR process. GMAX4416 can reach 80 fps frame rate in 12 bit standard high-speed mode with 32 pairs 600 Mbps sub-LVDS. It also supports 2 x 2 binning mode and a 2 x 2 binning HDR mode with frame rates of 42 fps and 80 fps respectively. GMAX4416 is housed in 152 pins ceramic μPGA package, 31.70 mm x 30.40 mm outer dimensions.

GMAX3413 12.7 MP resolution into a 4/3" image format in a wide aspect ratio offering an optimal coverage of the field of view of interest in the intended applications such as Intelligent Traffic System (ITS) and logistics and parcel sorting. Like other GMAX products, the advanced low noise global shutter technology and generous pixel achieves a full well capacity of 8.6 ke¯ and noise of 2.3 e¯ which delivers more than 71.4 dB linear dynamic range. Gpixel’s Red Fox technology is employed to deliver a NIR-enhanced QE of 30% at 850 nm for excellent performance in intelligent traffic systems. GMAX3413 is configurable through SPI or I2C and supports on-chip color offset calibration, LED flicker mitigation, multiple region HDR and OTP functions. GMAX3413 is housed in a 163-pin ceramic LGA package with outer dimensions of 32.7 mm x 17.9 mm and an LGA pad pattern optimized for reliable solder connections.

GMAX3405 is a 2/3’’ optical format CMOS image sensor with 2448 x 2048 effective pixels with frame rates up to 164/100 fps in 10/12-bit mode with sub LVDS interface and 73 fps over the 4 alternative MIPI D-PHY channels. Based on a high-performance 3.4 µm charge domain global shutter pixel, GMAX3405 achieves a max full well capacity of 8.5 ke‾ and min dark noise of 1.6 e‾, delivering max 66.9 dB linear dynamic range. Red Fox technology delivers QE of 75% @ 540 nm, and a NIR QE of 33% @850 nm. GMAX3405 is housed in 176 pin ceramic LGA package, 17.6 mm x 15.8 mm outer dimensions, and pin-compatible to GMAX3412. GMAX3405 is configurable through I2C or SPI, and supports features such as multislope HDR and short exposure time modes making it an ideal solution for an easy integration into cost-sensitive applications in machine vision, industrial bar code reading, logistics, and traffic.

GMAX3412 is a 1.1" optical format CMOS image sensor with 4096 x 3072 effective pixels with frame rates up to 128/60 fps in 10/12-bit mode with sub LVDS interface and 30 fps over the alternative 4 MIPI D-PHY channels. Based on a high-performance 3.4 µm charge domain global shutter pixel, GMAX3412 achieves a max full well capacity of 9 ke‾ and min dark noise of 1.8 e‾, delivering max 67.9 dB linear dynamic range. Red Fox technology delivers QE of 75% (540 nm), and a NIR QE of 33% (850 nm). GMAX3412 is housed in 176 pins ceramic LGA package, 22.93 mm x 19.39 mm outer dimensions, and pin-compatible to GMAX3405. GMAX3412 is configurable through I2C or SPI, and supports features such as multislope HDR and short exposure time modes making it an ideal solution for an easy integration into cost-sensitive applications in machine vision, industrial bar code reading, logistics, and traffic.

GMAX4002 is a 1/1.7" optical format image sensor with 2048 x 1200 effective pixels. Featuring an advanced charge domain global shutter pixel, GMAX4002 operates with true CDS for low noise and high dynamic range. Gpixel’s Red Fox technology is employed to deliver enhanced QE for NIR applications. GMAX4002 is configurable through I2C. It integrates both Sub-LVDS and MIPI interfaces, for frame rates of 344 fps and 166 fps respectively. GMAX4002 supports 2×2 on-chip binning to achieve higher sensitivity and faster frame rate. It includes an on-chip sequencer and OTP functions.Assembled with 74-pin CLCC package, GMAX4002 enables a cost-effective camera solution, easy integration and high-reliability mass production.

GMAX3809 fits 4096(H) x 2160(V) (8.8 MP) resolution into a 1.1" image format with low noise, charge domain Global Shutter pixels running at 65 fps at 12 bit ADC resolution per pixel. GMAX3809’s 3.8 μm pixel achieves a full well capacity of 10.5 ke¯ and noise of 3.3 e¯, delivering over 70 dB linear dynamic range. Similar to other GMAX products, the advanced pixel technology brings a Parasitic Light Sensitivity of -92 dB and excellent angular response (>15° @ 80% response). Gpixel’s Red Fox technology is employed to deliver a NIR-enhanced QE of 30% at 850 nm for excellent performance in intelligent traffic systems. GMAX3809 is configurable through SPI or I2C and supports on-chip color offset calibration, LED flicker mitigation, multiple region HDR and OTP functions. GMAX3809 is housed in a 163-pin ceramic LGA package with outer dimensions of 27.1 mm x 17.9 mm and an LGA pad pattern optimized for reliable solder connections. The sensor assembly includes a double side AR coated cover glass lid.

GMAX32152 is an ultra-high resolution global shutter CMOS image sensor in medium format. Using a state-of-the-art charge domain pixel architecture, this sensor delivers an attractive combination of high frame rate and high dynamic range. A native 12-bit performance pixel achieves 67.3 dB dynamic range, combined with a high speed sub-LVDS delivering 16 fps. Pixel data is read out over serial differential pairs, with source synchronous clock and control channel. Its medium format image area and wide aspect ratio make it well suited for aerial mapping and surveying applications and cultural heritage digitization.

GMAX32103 is a 103 Megapixel (11276 x 9200) medium-sized (46.6mm) ultra-high resolution, global shutter image sensor designed with the latest 3.2 μm charge domain global shutter pixel. It achieves more than 9k e- FWC at low gain and 2.8 e‾ read noise at high gain separately with 66.4 dB intra-scene dynamic range. Using advanced 65nm CIS process and light pipe technology, sensor achieves 66.9% peak QE @ 500nm and more than 1/15,000 shutter efficiency. The full speed version sensor consists of 52 pairs sub-LVDS channels running at 960 Mbps which delivers a 24 fps in 12-bit operation at full resolution. The unique features make it an ideal solution for demanding imaging high end applications such as high-resolution inspection, aerial imaging and many more.

GMAX2518 has an optical format of 1” and features 18 MegaPixel (4508 × 4096) Global Shutter pixels based on the proven GMAX 2.5 μm architecture, operating with true correlated double sampling (CDS) for low read noise and high dynamic range. In addition, the dual light pipe technology provides excellent PLS and angular response, with 32pair of sub-LVDS each run at 960MHz, the sensor output with maximum 30.72 Gbps data, achieving maximum frame rate of 150 fps in 10-bit output and 64 fps in 12-bit output. The sensor integrates an on-chip sequencer, programmable through SPI, and is designed to be fully pin compatible with GMAX0505, GMAX2509 and GMAX2505 to significantly shorten time to market for camera manufactures. GMAX2518 will be assembled in a 19.5 x 20.8 mm 226-pins LGA ceramic package, which is mechanically compatible to fit into an industry standard 29 mm x 29 mm camera housing.

Featured with world smallest charge domain global shutter pixel, GMAX2505 is the new member of GMAX series C mount line up after GMAX2505. It offers 5MP (2600 x 2160) resolution in 1/2’’ optical format, operates with true CDS for low noise and high dynamic range. In addition, it has excellent PLS and angular response thanks to the light pipe technology. GMAX2505 supports 10 bit and 12 bit output and is offered in two speed variances matching industrial standard camera interface speeds. The full speed version consists of 20 sub-LVDS data output channels each running at maximum 960MHz, offering full resolution frame rate of 290 fps at 10 bit output and a total data throughput of 19.2 Gbps. The high frame rate increases system throughput for industrial inline inspections and enables precise operation at high speed.

Featured with world smallest charge domain global shutter pixel, GMAX2509 is the new member of GMAX series C mount line up after GMAX0505. It offers 4K(4200 x 2160) resolution in 2/3’’ optical format, operates with true CDS for low noise and high dynamic range. In addition, it has excellent PLS and angular response thanks to the light pipe technology. GMAX2509 supports 10 bit and 12 bit output and is offered in two speed variances matching industrial standard camera interface speeds. The full speed version consists of 32 sub-LVDS data output channels and each runs at maximum 960MHz, offering frame rate of 290 fps at 10 bit. The global shutter and high frame rate limits image blur for 4K video applications and intelligent traffic system and increases throughput for industrial inline inspections.

Designed with small 2.5 μm charge domain global shutter pixel, GMAX0505 offers the high resolution of 25 Megapixels within 1.1” optical format. Despite its small pixel pitch, GMAX0505 achieves more than 65% peak QE and excellent angular response thanks to the latest light pipe technology. In addition, with optimized tungsten shielding structure on top of the pixel’s memory node, the sensor’s shutter efficiency is more than 80dB. GMAX0505 supports 10bit and 12bit output, and the frame rate is up to 150fps. The sensor is assembled in a ceramic Land Grid Array (LGA) package, allowing easy integration and mass production. The superior performance and the cost-effective packaging of GMAX0505 offer camera manufactures great advantage over various applications.

GMAX4651 is a 51 Megapixel (8424 x 6032) full frame (35mm) global shutter image sensor designed using the latest 4.6 μm charge domain global shutter pixel. Using the advanced 65nm CIS process, it provides 18 ke- FWC, 7.6 e‾ median dark noise and more than 65.5 dB intra-scene dynamic range. With the light pipe technology, sensor achieves >67% QE @510nm and 1/40,000 shutter efficiency. GMAX4651 delivers 30fps in single gain operation mode running at 864Mbps. GMAX4651 is assembled with 238 pins PGA ceramic package and the optical center is fully aligned with the package mechanical center. The unique features make it an ideal solution for demanding imaging applications like machine vision, 8K broadcasting and high-end industrial inspections.

Featured with the latest generation 3.2μm charge-domain global shutter pixel and 65MP (9344x7000) resolution, GMAX3265 is the leading-edge image sensor with 37.4mm diagonal for high resolution machine vision and industrial inspection applications. This new generation pixel operates with true correlated double sampling (CDS), allowing low read noise and high dynamic range. In addition, the dual light pipe technology provides excellent PLS and angular response. GMAX3265 is offered in high speed version and normal speed version. High speed version delivers 71fps at 10 bit output, normal speed version delivers 31fps at 12 bit output. The superior resolution and frame rate significantly increases the system throughput for industrial inspection applications, such as semiconductor, PCB, AOI or display inspection. The sensor integrates an on-chip sequencer, programmable through SPI, shortening time-to-market for camera manufactures. GMAX3265 is assembled with 239-pin micro-PGA ceramic package for reliability and good heat dissipation and a double-sided ARC D263®T glass lid.

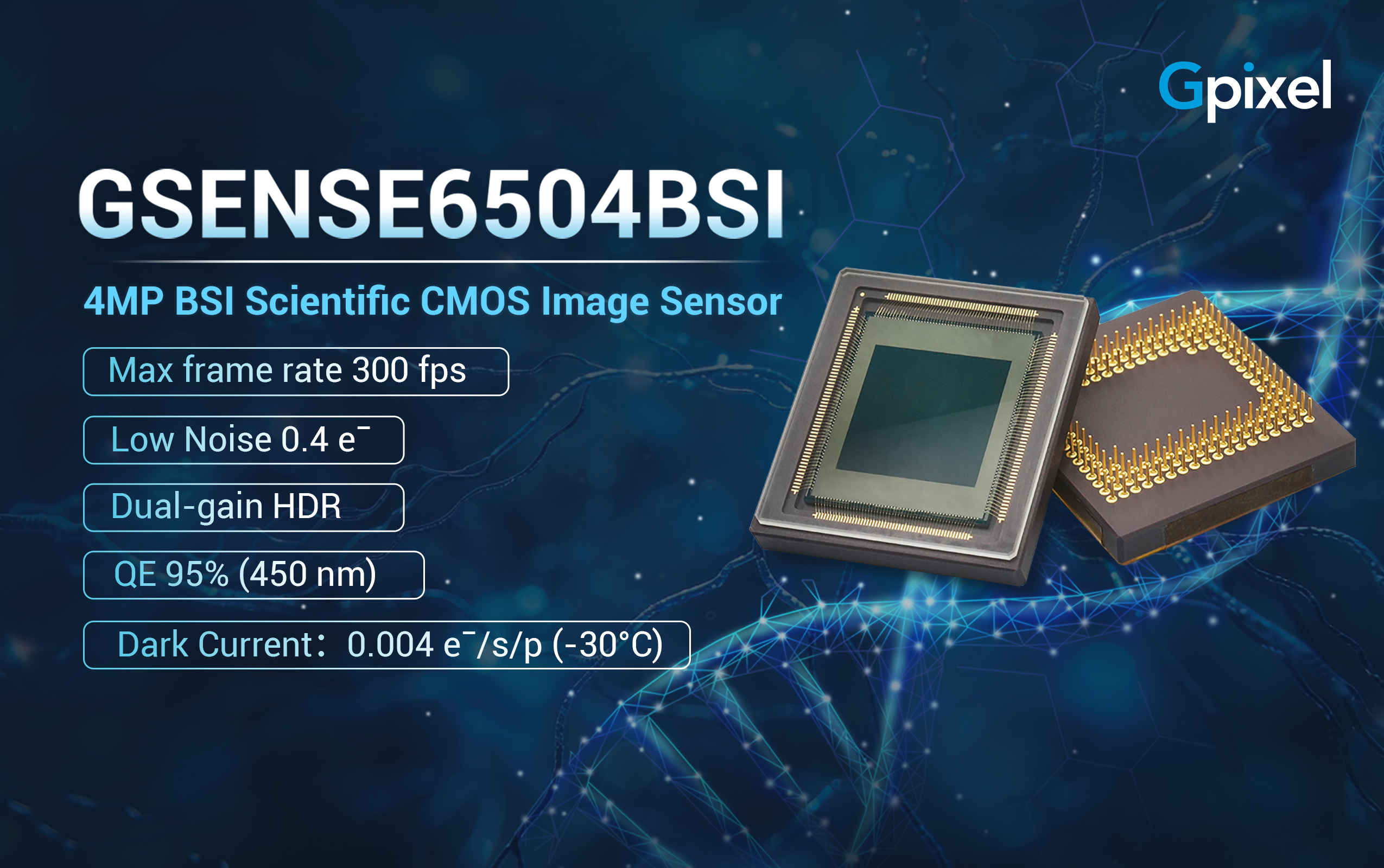

GSENSE6504BSI is a 2048 x 2048 (4.2 MP) resolution backside-illuminated scientific CMOS image sensor with industry-standard 6.5 μm x 6.5 μm rolling shutter pixels, 18.8 mm diagonal, and peak QE of 95%. In low-noise mode, the sensor achieves a read noise floor of 0.43 e‾ rms at 100 fps while delivering 91 dB of dynamic range using the on-chip dual-gain output. With a noise histogram peak of 0.28 e‾, the sensor enables single photon detection in low-noise mode. In high-speed mode, the sensor delivers a read noise of 0.7 e‾ at its maximum frame rate of 300 fps. At -30℃ die temperature, sensor dark current is only 0.004 e‾/s/p. The sensor package is mechanically identical to GSENSE2020BSI for easy integration into existing camera platforms.

GSENSE6510BSI is a 3200 x 3200 (10.2 MP) resolution image sensor with industry-standard 6.5 μm x 6.5 μm pixel and large 29.4 mm diagonal for increased throughput in microscopy applications compared to 19 mm sCMOS devices. With a peak QE of 95% and read noise of 0.7 e‾ median, the sensor achieves exceptional signal-to-noise in extreme low light applications. The sensor offers five imaging modes. In 12-bit mode, the sensor delivers 62.3 dB of dynamic range with a read noise floor or 1.3 e‾ at 88 fps. In 11-bit HDR mode, the sensor uses dual-gain readout to achieve 78.8 dB of dynamic range with a read noise of 1.8 e‾ at the same 83 fps. Additionally, the sensor offers two high-speedmodes, an 8-bit mode reaching 500 fps and an 11-bit mode reaching 166fps. A 12-bit low noise mode achieves 0.7 e‾ read noise.

GSENSE3243BSI is a 31-mm diagonal stacked BSI image sensor designed with 3.2 μm pixels. The full resolution of the sensor can be read out at a bit depth of 14 bits and a maximum frame rate of 100 fps using an on-chip high speed serial interface or at 50 fps over 32 sub LVDS channels operating at 1.05 Gbps/channel. The image sensor has a peak quantum efficiency over 80%, a wide angle response, read noise of 3.3 e‾ at full speed, and a dark current less than 1 e‾/pixel/second at 0℃. The sensor incorporates multiple features to enhance dynamic range including the dual-gain output, on-chip compression HDR function and digitally programmable piecewise linear HDR feature. The sensor achieves a dynamic range of 75 dB in dual gain mode and up to 104 dB using the more advanced HDR features.

GSENSE1081BSI is designed with large imaging area for demanding scientific imaging applications. Sensor provides active resolution of 8900(H) x 9120(V) with 10μm x 10μm pixel size. An inter-scene dynamic range is 84.5dB combined from maximum full well capacity of 90.68ke¯and readout noise of 5.35e¯. Sensor supports on-chip 16bit ADC, with LVDS channel running up to 250MHz, providing frame rate up to 0.34fps. GSENSE1081BSI is assembled in high-end SiC package with one flexi-cable, by this design, the dead space at 3x package sides is minimized and makes sensor well fit for applications require a mosaic sensor array. The thermal expansion of SiC is close to silicon die which is suitable for deep cooling applications.

The GSENSE400BSI sensor is a 4 Megapixels resolution BSI CMOS image sensor with 11μm pixel size. As the first backside illuminated scientific CMOS image sensor in the world, GSENSE400BSI features low readout noise of 1.6e¯, high dynamic range of 94dB, and low dark current of 0.27e¯/s/pix at deep cooling of -40℃. With special ARC, the sensor provides peak of 95% @ 570nm. This image sensor has two operation modes, STD mode in 48 fps or HDR mode which is optimized for high dynamic range (HDR) applications with half frame rate. In HDR mode, the sensor achieves a linear dynamic range of 95dB. These features make GSENSE400BSI ideal for high-end scientific imaging, corona detection, astronomy, spectroscopic, and forensic imaging applications.

GSENSE4040 is a 16.8Mega pixel resolution CMOS image sensor. Featured with five transistor (5T) HDR pixel design on a 9 μm pitch, the sensor could achieve 3.7 e‾ dark noise and 74.2 ke‾ FWC simultaneously in HDR mode. GSENSE4040’s maximum frame rate (will full resolution) is 24 fps in HDR mode. It supports 2 x 2 charge binning mode in which x 4 frame rate is achieved. These features make GSENSE4040 an ideal image sensor for various applications. GSENSE4040 is offered in two variations: CMN and CMT. CMN is a monochrome sensor without microlens array and protected by a removable glass lid, which is ideal for X-ray imaging, charged particle detection, and micro-CT application; while CMT is a monochrome sensor with microlens array and sealed with D263<sup class="xiao">®</sup> T lids with anti-reflective coating on both sides, ideal for medical imaging and astronomy applications.

GSENSE6060, and its pin-compatible back-thinned version GSENSE6060BSI, are designed with a large imaging area for demanding astronomical and scientific imaging applications. With its top and bottom readout chains consisting of 2×25 LVDS pairs running up to 630MHz, GSENSE6060’s frame rate is up to 44 fps with 12bit ADC, allowing scientists to observe with the never-achieved temporal resolution of large format imagers. The two readout chains also provide the possibility for HDR combination up to 89dB. GSENSE6060 supports up to 4 times correlated multiple sampling (CMS). In CMS mode, both the reset and signal levels of pixel output are sampled for multiple times and summed up for pixel-related noise suppression. The Aluminum Nitride package of GSENSE6060 provides 10x thermal conductivity than the traditional Alumina package, as well as excellent flatness both at the room temperature and deep-cooled temperatures.

GSENSE6060BSI is designed with a large imaging area for demanding astronomical and scientific imaging applications. With its top and bottom readout chains consisting of 2×25 LVDS pairs running up to 420 MHz, GSENSE6060BSI’s frame rate is up to 26 fps with 12bit ADC, allowing scientists to observe with the never-achieved temporal resolution of large format imagers. The two readout chains also provide the possibility for HDR combination up to 90 dB. GSENSE6060BSI supports up to 4 times correlated multiple sampling (CMS). In CMS mode, the reset and pixel output are sampled for multiple times and summed up for pixel-related noise suppression. The Aluminum Nitride package of GSENSE6060BSI provides 10x thermal conductivity than the traditional Alumina package, as well as excellent flatness both at the room temperature and deep-cooled temperatures. GSENSE6060BSI is equipped with removable glass lids.

The GSENSE400BSI sensor is a 4 Megapixels resolution BSI CMOS image sensor with 11μm pixel size. As the first backside illuminated scientific CMOS image sensor in the world, GSENSE400BSI features low readout noise of 1.6e‾ , high dynamic range of 94dB, and low dark current of 0.27e‾ /s/pix at deep cooling of -40℃. With special ARC, the sensor provides peak of 95% @ 570nm. This image sensor has two operation modes, STD mode in 48 fps or HDR mode which is optimized for high dynamic range (HDR) applications with half frame rate. In HDR mode, the sensor achieves a linear dynamic range of 95dB. These features make GSENSE400BSI ideal for high-end scientific imaging, corona detection, astronomy, spectroscopic, and forensic imaging applications.

GSENSE2020BSI is a backside illuminated (BSI) scientific CMOS image sensor, with 4MP resolution and 6.5 μm pixel size. With six-transistor (6T) pixel architecture, GSENSE2020BSI features readout noise of 1.6 e¯, full well of 55 ke¯, as well as peak QE of 95%. In addition, the sensor supports correlated multiple sampling (CMS), the read noise can be further reduced to 1.2 e¯ with 2-CMS operation. GSENSE2020BSI’s max. frame rate is 74 fps with 11bit HDR mode. The frame rate, as well as the global reset function, make GSENSE2020BSI the best solution for industrial inspection requiring superior UV sensitivity. In addition, GSENSE2020BSI is pin-compatible with GSENSE2020 and GSENSE2011, allowing easy hardware integration with minimized development, and fast time-to-market.

GSENSE2020 is a 4MP resolution scientific CMOS image sensor, capable of operating with either global or rolling shutter. Featured with six transistor (6T) pixel design on a 6.5 μm pitch, the sensor has a very low readout noise of 2.1 e¯ in rolling shutter HDR mode with maximum frame rate of 45 fps / 370 fps. Sensor’s HDR mode is based on dual gain HDR, meaning sensor outputs two images with Low gain setting and High gain setting after each exposure, combining the two images off chip with HDR construction algorithm allow up to 86.6dB dynamic range. Sensor also supports global shutter mode with maximum frame rate of 370fps.

GSENSE2011 is a 2Mega pixel resolution scientific CMOS image sensor, capable of operating with either global or rolling shutter. Featured with six transistor (6T) pixel design on a 6.5 μm pitch, the sensor has a very low readout noise of 2.1 e¯ in rolling shutter HDR mode with max. frame rate is 81 fps in 12bit rolling HDR mode. Sensor’s HDR mode is based on dual gain HDR, meaning sensor outputs two images with Low gain setting and High gain setting after each exposure, combining the two images off-chip with HDR construction algorithm allow up to 87 dB dynamic range. The sensor also supports 653 fps Global DDS mode with trade-off on readout noise. These features make GSENSE2011 an ideal sensor for various applications.

GLUX1605BSI is a 0.5 Megapixel resolution BSI CMOS image sensor with 16 μm x 16 μm pixel size. The sensor operates in electronic rolling shutter in two operation modes: low noise mode, and HDR mode. User can choose which to operate in camera based on practical application’s requirement on full well capacity, noise, dynamic range, etc. It integrates two types of output channels(sub-LVDS and MIPI) and on-chip sequencer, which enables the sensor development less effort and hardware resource. GLUX1605BSI is pin compatible with GLUX9701BSI (1inch SXGA of GLUX image sensor family), users can operate both sensors with one set of PCB design.

GLUX9701BSI, a 1" sized, high sensitivity BSI sCMOS image sensor with a resolution of 1.3 MP (1280 x 1024) and large 9.76 μm x 9.76 μm pixels. Sensor supports a dual-gain HDR mode, achieving dynamic range of 89.5 dB by combining 1.6 e‾ readout noise. A dedicated low noise mode further optimizes imaging performance with read noise of 0.85 e‾ and power consumption of only 122 mW.

The sensor features 2048 (H) x 1152 (V) pixels, each 6.5 µm square, providing a wide format ideal for 3D laser profilers, and compatibility with 1” optics. With 10 bit output and 32 pairs of sub-LVDS outputs each operating at 1.2 Gbps, the GSPRINT6502BSI achieves 1498 frames per second. Up to 8 vertically oriented regions of interest can be defined to operate the sensor at increased frame rates. For applications in which the maximum frame rate is not required, multiplexing modes are available to reduce the number out output channels by any multiple of 2. Backside illumination technology ensures that the image sensor is sensitive to light across a wide range. At 1x PGA gain, the sensor’s full well capacity is 10.6 ke‾ and the dynamic range is 53.9 dB. The analog gain can be adjusted from 1x up to 4x. On-chip 2x vertical binning can be used to increase the full well capacity, dynamic range, and frame rate. A vertical sub-sampling mode is also available for increased frame rate while maintaining the full field of view.

GSPRINT4502 is a 2 MP (2048 x 1216) 2/3 sized (10.7 mm) high speed, global shutter image sensor designed with the latest 4.5 μm charge domain global shutter pixel. It achieves more than 30k e‾ FWC, less than 4 e‾ rms read noise and > 68 dB dynamic range, optionally to be increased with multi-slope HDR mode. Using an advanced 65 nm CIS process and light pipe technology, the sensor achieves > 65% QE and more than 1/40,000 shutter efficiency. With on-chip charge binning, FWC can be further increased to > 120 ke‾ and frame rate is quadrupled. GSPRINT4502 consists of 64 pairs sub-LVDS channels running at 1.2 Gbps which delivers a stunning 3300 fps at 8 bit per pixel and full resolution and over 10000 fps with binning mode. These unique features make it an ideal solution for demanding imaging in applications such as 3D laser profiling, industrial inspection, motion analysis and high speed imaging.

GSPRINT4510 is a 10 MP (4608 x 2176) 4/3” (22.9 mm) high speed image sensor designed with the latest 4.5 µm charge domain global shutter pixel. It achieves more than 30 ke‾ charge capacity and less than 3 e‾ rms read noise. Using an advanced 65 nm CIS process with light pipe technology, the sensor achieves > 67% QE and more than 1/40,000 shutter efficiency. With on-chip charge binning, full well capacity can be further increased and frame rate is almost quadrupled. GSPRINT4510 will be offered in two variants to support in the most optimal way different end-use use cases. One version is dedicated to 3D laser profiling and supports 144 pairs sub-LVDS channels running at 1.2 Gbps each, which delivers a stunning 2000 fps in 8 bit operation at 2048 rows and > 3500 fps with an ROI of 1024 rows in combination with several HDR modes. Incorporating unique, tailored features such as a thinner glass lid to reduce stray light reflection, the option to have no micro lenses, and either a sealed or removable glass lid makes GSPRINT4510 the ideal solution for 3D laser scanning applications. For other applications including high-speed industrial inspection, life science imaging and 4K video applications, the sensor is offered in monochrome, color sensor configuration, and achieve up to 500 fps (12 bit),1008 fps (10 bit) and 1928 fps (8 bit) with full resolution. On-chip 2 × 2 charge binning can boost frame rates more than x3 with a full well charge increase to 120 ke‾. Flexible output channel multiplex modes make it possible to reduce frame and data rate to make it compatible with all available camera interface options. This version of the sensor incorporates micro lenses on top of the pixels and a sealed glass lid making GSPRINT4510 the ultimate choice for many applications such as 4/3”(Micro Four Thirds) format global shutter cameras in slow motion capture or drone-mounted videography.

GSPRINT4521 is a 21 MP (5120 x 4096) APS sized (29.5 mm diameter) high speed, global shutter image sensor designed with the latest 4.5 μm charge domain global shutter pixel. It achieves 32 ke‾, less than 3 e‾ rms read noise and > 69 dB dynamic range, optionally increased to 81 dB with a dual gain HDR mode. Its state-of-the-art 65 nm CIS process allows the sensor to use on-chip charge binning, further increasing FWC and almost quadrupling frame rate. GSPRINT4521 will be offered in two speed variants. The full speed variant consists of 160 pairs sub-LVDS channels running at 1.2 Gbps which delivers a stunning 1000 fps in single gain operation at 8 bit per pixel and full resolution, and more than 3500 fps with a ROI of 1024 rows in a dedicated 3D laser profiling mode. These unique features make it an ideal solution for demanding imaging in high-end applications such as high speed 4K video, industrial inspection, motion analysis and life science imaging.

GCINE4349 is a 49MP (35.2 x 25.8 mm) full frame image sensor with a 4.3 μm BSI pixels designed specifically for the demands and performance of high-end video imaging. With a maximum resolution of 8192 x 6000 pixels, several readout modes are supported to readout 8K or binned 4K video with maximum frame rates of up to 120 fps at 8K resolution and up to 240 fps at binned 4K resolutions, all with a pixel bit depth of up to 16 bit/pixel interfaced over 64 sub LVDS channels @ 1.2 Gbps/channel. GCINE4349 is developed using a 2-wafer level stacked BSI architecture. The top layer consists of a BSI pixel array with 49M 4.3 um pixels achieving a maximum QE of up to 85% at 525 nm. The bottom digital CMOS layer consists of an array of core cells each including 16-bit ADC blocks and SRAM memory blocks which are used to sum and store up to 4 subsequent sub-frames with seamless exposure, enabling an in-pixel full well charge of up to 152k e‾ for a dynamic range of 80 dB. GCINE4349 architecture also supports two additional HDR modes. Firstly, a proprietary Variable Slope High Dynamic Range method achieving an exceptionally high 110 dB of Dynamic Range. Secondly, a classic dual gain readout achieving up to 87 dB of Dynamic Range. An additional Digital Still Camera (DSC) mode can be enabled for low noise readout down to 1.7 e¯ and dedicated shutter control for DSC operation. GCINE4349 is packaged in a 431-pin LGA ceramic package and comes with a double side AR coated glass lid.

GCINE3243 is a 43MP 26.2 x 16.7 mm² sized APS-style image sensor with a 3.2 μm² BSI pixel size designed specifically for the demands of high-end video imaging. With a resolution of 8192 x 5232 pixels and highly configurable read out, 8K video at 60 fps or binned 4K video at 120 fps is supported, all at an impressive bit depth of up to 14 bits per pixel. Readout of the image data occurs over 32 sub LVDS channels @ 1.05 Gbps/channel. The stacking technology used in the GCINE3243 sensor enables excellent optical performance and readout speeds. Sensor also support a variety of operation modes tailored for specific applications. A dedicated Digital Still Camera (DSC) mode is supported, improving the readout noise and offering global reset shutter control. Additional HDR features, like dual gain readout, on-chip digital compression and multi-slope pixel response are all available.

GTOF0503 is a VGA sensor featuring a 5 μm 3-tap state-of-the-art iTof pixel incorporating a pixel array with a resolution of 640 x 480 pixels. The BSI technology provides excellent sensitivity at NIR wavelengths. In addition, the wafer stacking enables very high modulation frequencies of up to up to 3ns pulse width and 30 depth frames per second which results in industry-leading depth accuracy at short, mid and long-range distances even in challenging ambient light conditions by using pulse modulation iToF technique. Advanced features such as multiple acquisition modes, depth with single and dual-frequency, low-power standby modes and an industry standard MIPI CSI-2 interface, allow very versatile and flexible operation.

GLT5009BSI is a Backside illuminated (BSI), Time delay integration (TDI), charge domain CMOS image sensor with 5 μm pixels and 9k resolutions. The sensor has two photosensitive bands, 256 stages and 32 stages respectively, enabling a high dynamic range (HDR) imaging mode. GLT5009BSI is designed to meet the needs of high speed and low light applications by maximizing sensitivity from the ultraviolet to the near infrared with state-of-art BSI scientific CMOS technology and up to 256 true TDI stages. It supports line rates up to 608 kHz using 10-bit single band mode and 300 kHz using 12-bit single band mode. The sensor also supports 10bit dual band HDR mode, employing both 256 stages and 32 stages for HDR image construction. The sensor integrates several features to ease camera integration including an internal sequencer, channel multiplexing, and selectable 2 scan directions. GLT5009BSI is assembled in a 269-pin μPGA ceramic package. GLT5009BSI comes in 2 spectrum variants: a standard variant with a broad spectral response and a dedicated DUV version.

GL7004 is a 4096 x 4 resolution, 7 μm square pixel, global shutter linear image sensor that supports maximum 250 kHz line rate in single line mode and 76.9 kHz line rate in Quad line mode.

GLR1205BSI-S is a single-line linear image sensor with rectangular pixels and analog output designed for use in displacement sensors. The sensor’s 512 pixels are each 12.5 μm (H) x 250 μm (V) and provide a full well capacity of 2.8 million electrons and a maximum signal-to-noise ratio of 71.1 dB. The large pixel also increases the photosensitive area and facilitates easy alignment of the laser spot. Backside thinning technology enables a peak quantum efficiency of 95%, and almost 50% at 650 nm. A charge transfer time of only 2.5 μs ensures excellent lag performance. The single analog output allows image processing using an MCU module, and the small CSP package enables the design of a compact displacement sensor. The GLR1205BSI-S image sensor is designed for the accurate detection of surfaces and precise distance measurement under a variety of lighting conditions.

GL1402 is available in color and mono variants. GL1402 color features red, green, and blue rows with 14 µm gaps between each row to minimize color crosstalk. Readout speed is 27 kHz. GL1402 mono features a three row monochrome option with a readout speed of 27 kHz, or a one row monochrome option with a readout speed of 81 kHz. GL1402 has a 28.7 ke‾ full well capacity and a dynamic range of 70 dB. The sensor has a 12 bit ADC and 4 sLVDS channels, with the option to run slower at 2 or 1 sLVDS channel. GL1402 power consumption is less than 420 mW at maximum readout speed. The sensor is assembled into a 54 pin CLCC package with outer dimensions 38 x 7.4 mm.

GL3516 is a 16384 x 2 resolution, 3.5 μm square pixel, line scan CMOS image sensor that supports maximum 120 kHz line rate in single line mode and 60 kHz line rate in dual line mode. GL3516 is pin and footprint compatible with Gpixel’s existing GL7008 8K line scan sensor its features makes is an ideal solution for industrial inspection applications benefitting from high-speed scanning and 16K resolution, including high end inspection production inspections for lithium battery testing, flat panel displays, PCBs, labels, and railway inspection. GL3516 is offered in both color and monochrome versions. The monochrome sensor support single and dual line modes. The color sensor support dual line mode.GL3516 is assembled in a COB package with WCu heat sink for optimal heat dissipation and with connector for easy integration.

GL7008 is a global shutter line scan image sensor with 7 μm square pixel and 8192 horizontal pixels resolutions. The sensor’s 12-bit ADC transmits data over 25 pairs of Sub-LVDS at line rate up to 200 kHz. GL7008 is offered in both color and monochrome versions. The monochrome sensor supports single and dual line modes with optimal sensitivity. The color sensor supports 3-line true color and 4-line RGBW multispectral output. The exposure time of each line can be individually adjusted by an external trigger. The line spacing of the sensor is equivalent to the pixel size to satisfy the requirements of line frequency matching. At full speed, the power consumption of GL7008 is around 4.4 W. The sensor adopts a COB package with WCu heat sink for optimal heat dissipation during high-speed scanning.

GL3504 is a line scan image sensor suitable for small format camera integration with C mount lens, the sensor contains two lines with 3.5um pixel and four lines with 7um pixel. GL3504 could run up to 172kHz with 7um pixel line and 84kHz with 3.5um pixel line at 12bit output with single line readout. GL3504 uses on-chip PLL and all required timing is generated by the on-chip sequencer, reducing the amount of external components needed. Output channel multiplexing enables flexibility in FPGA selection. GL3504 enables a cost effective camera solution for demanding inspection applications. GL3504 is assembled with a compact 58-pin CLCC package for fast heat dissipation and high robustness. Both mono and color variances are offered. For color variance, 7um lines are with RGB true color coating and 3.5um lines are with Bayer pattern.

GL0402 is a 4096 x 2 resolution, 7 μm square pixel, global shutter linear image sensor that supports maximum 200 kHz line rate in single line mode and 100 kHz line rate in dual line mode. GL0402 offers low read noise of less than 5.2 e¯and 10 ke¯ FWC, leads to 65.6 dB intra-scene dynamic range. GL0402 uses external clock and all required timing are generated by on chip sequencer, reducing the amount of external component needed; output channel multiplexing function enables flexibility on FPGA choice, suitable for cost-effective camera solution for demanding on line inspection applications. GL0402 is assembled with compact 76 pins CLCC package for fast heat dissipation and high robustness.

Designed for high speed industrial inspection, GL0816 is a line scan CMOS image sensor which consists of 16 lines of 8322 pixels with 5 μm pixel size and 5 μm inter-line space. It supports dual line, 4-line readout and max 8-line with 2-stage on-chip TDI. The maximum line rate of GL0816 is 200 kHz @ 11bit dual-line mode and 100 kHz @ 10bit 4-line mode. GL0816 is manufactured with Mono or RGBW 4-band CFA which is customized with extremely low color crosstalk to enable accurate image reproduction.

GXS1508 is a compact 4-pin CSP-format image sensor featuring a 400×400 resolution with 1.5 μm rolling shutter pixels. Its back-side illuminated (BSI) pixel architecture, combined with a specialized CSP package design, ensures maximum sensitivity. The sensor delivers analog signal output at up to 30 frames per second and is compatible with mainstream ISPs for analog-to-digital conversion. Its physical dimensions are just 0.961 × 0.961 × 0.55 mm. For integrated optical solutions, GXSM1508 offers the GXS1508 sensor in a wafer-level optics (WLO) cube module, measuring 1.04 × 1.04 × 2.082 mm. The WLO stack includes three surface lenses with an F-number of 5.0, balancing light throughput and image quality. With a 120° diagonal field of view, it enables wide-angle observation even in confined spaces. Both GXS1508 and GXSM1508 are ideal for applications such as disposable endoscopy, position sensing, smart appliances, and toys.

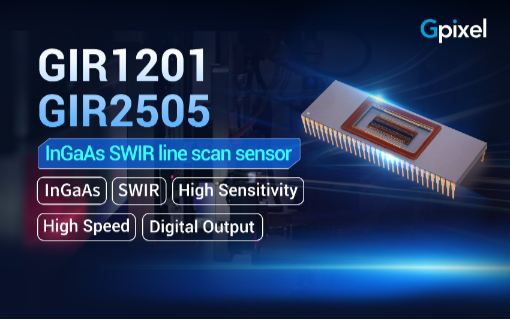

GIR2505 is a 512(H) x 2(V) InGaAs line scan image sensor with 25 μm square global shutter pixel. The sensor integrates a 12 bit ADC and provides 70 dB of dynamic range. Both high-gain (HG) and low-gain (LG) modes are supported. In LG mode, GIR2505 has a maximum full well capacity of 1.6 Me- with readout noise of 450 e‾. In HG mode, the maximum full well capacity is 85 ke‾ with readout noise of 116 e‾. It utilizes 2 pairs of Sub-LVDS interfaces with a maximum data rate of 1.68 Gbps, for a maximum line frequency of 40.4 kHz. GIR2505 also consumes less than 450 mW at the highest line frequency and is packaged in a 64-pin DIP with a package size of 57.4 x 18.9 mm.

GIR1201 is a 1024(H) x 1(V) InGaAs line scan image sensor with 12.5 μm square global shutter pixel. The sensor integrates a 12 bit ADC and delivers a dynamic range of 72dB. Both high-gain (HG) and low-gain (LG) modes are supported. In LG mode, GIR1201 has a maximum full well capacity of 1.6 Me‾ with readout noise of 400 e‾. In HG mode, the maximum full well capacity is 120 ke‾ with readout noise of 88 e‾. It utilizes 4 pairs of Sub-LVDS interfaces with a maximum data rate of 1.68 Gbps for a maximum line frequency of 71.9 kHz. GIR1201 consumes less than 450 mW at the highest line frequency and is packaged in a 64-pin DIP with a package size of 57.4 x 18.9 mm.
