GMAX3405
5 MP 3.4 μm 2/3" GLOBAL SHUTTER CMOS IMAGE SENSOR
GMAX3405 is a 2/3" optical format CMOS image sensor with 2448 x 2048 effective pixels with frame rates up to 164/100 fps in 10/12-bit mode with sub LVDS interface and 73 fps over the 4 alternative MIPI D-PHY channels. Based on a high-performance 3.4 µm charge domain global shutter pixel, GMAX3405 achieves a max full well capacity of 8.5 ke‾ and min dark noise of 1.6 e‾, delivering max 66.9 dB linear dynamic range. Red Fox technology delivers QE of 75% (540 nm), and a NIR QE of 33% (850 nm). GMAX3405 is housed in 176 pins ceramic LGA package, 17.6 mm x 15.8 mm outer dimensions, and pin-compatible to GMAX3412. GMAX3405 is configurable through I²C or SPI, and supports features such as multislope HDR and short exposure time modes making it an ideal solution for an easy integration into cost-sensitive applications in machine vision, industrial bar code reading, logistics, and traffic.
  • Key Features and Benefits

    5 MP Resolution

    Charge Domain Electronic Global Shutter

    High Speed and Good PLS and Angular Response

    NIR Enhance

    Multi-Slope HDR

    Ultra-Short Exposure Time (1us)

    One Time Programmable(OTP) Memory
  • Package Drawing

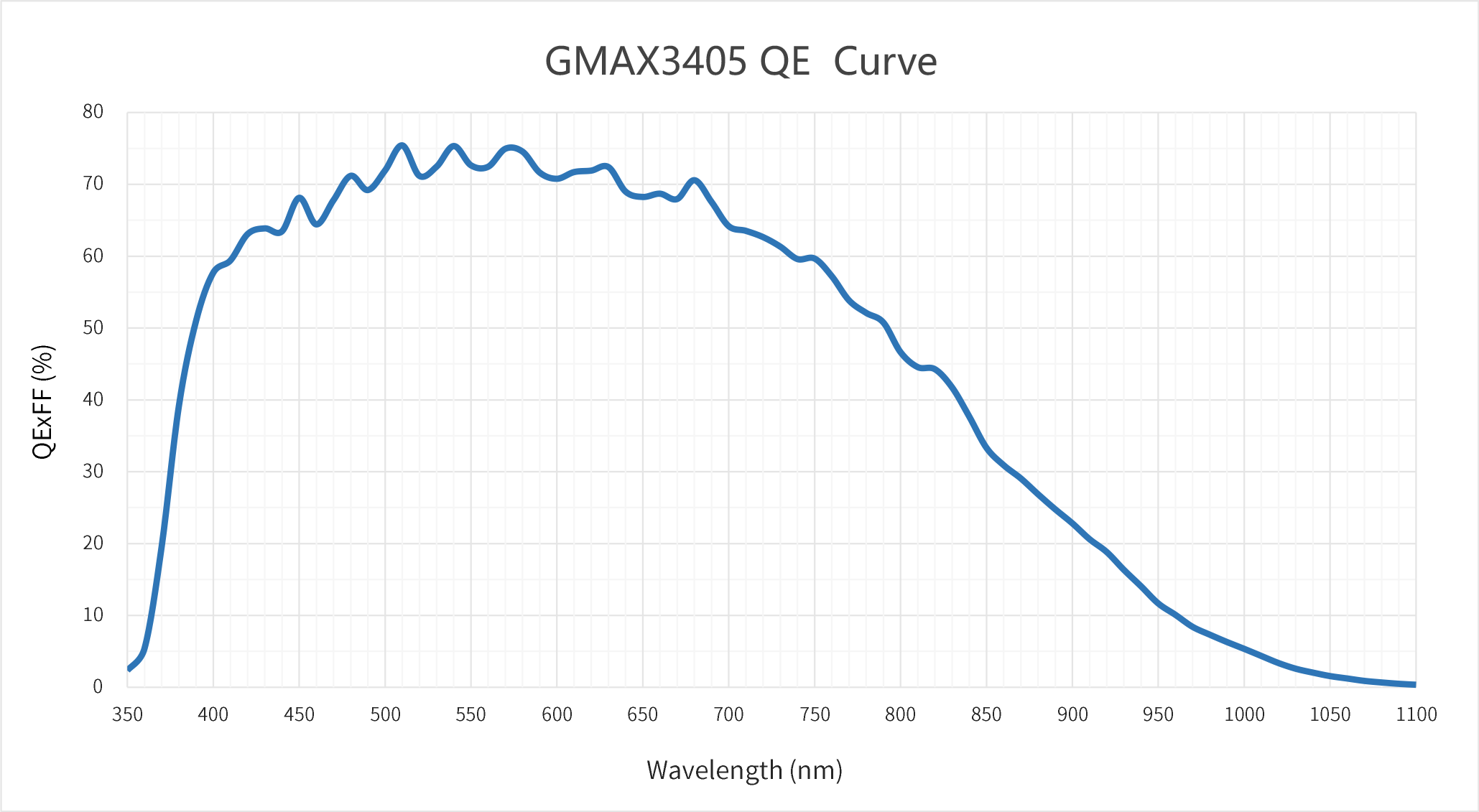

  • QE Curve
GMAX3405
GMAX3405
Specifications

  • Resolution

    5 MP

    Nr of Active Pixels

    2448 (H) x 2048 (V)

  • Optical Format

    2/3″

    Pixel Size

    3.4 μm x 3.4 μm

  • Photosensitive Area

    8.3 mm x 7.0 mm

    Shutter Type

    Global Shutter

  • Peak QE

    75% (540 nm)

    Full Well Capacity

    8.7 ke‾ (12 bit) 8.4 ke‾ (10 bit)

  • Parasitic Light Sensitivity

    -88 dB

    Temporal Noise

    1.6 e‾ (12 bit) 3.0 e‾ (10 bit)

  • Angular Response

    > 15 ⁰(80% response)

    Dark Current

    6.5 e‾ /s (35°C)

  • Max. SNR

    39.3 dB

    Dynamic Range

    66.9 dB

  • Max Frame Rate

    264 fps

    ADC

    10/12 bit

  • Output Format

    12 pairs of Sub-LVDS 4 lanes of MIPI

    Channel Multiplexing

    12/10/8/6/4/2/1 (Sub-LVDS) 4 (MIPI)

  • Max. Data Rate

    14.4 Gbps

    Chroma

    Mono (NIR enhanced), RGB Color

  • Power Consumption

    < 1.0 W

    Supply Voltage

    3.6 V (pixel), 3.3 V (analog), 1.8 V – 3.3 V (IO), 1.2 V (digital)

  • Package

    176 pins LGA (17.6 mm x 15.8 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX3405-AVM-HLV-BU1
    Monochrome, High speed, 264 fps (10 bit,12 x Sub-LVDS), 151 fps (12 bit,12 x Sub-LVDS), 73 fps (12 bit,4 x MIPI), Grade 1.
  • GMAX3405-AVM-NLV-BU1
    Monochrome, Normal speed, 164 fps (10 bit,12 x Sub-LVDS), 100 fps (12 bit ,12 x Sub-LVDS), 73 fps (12 bit ,4 x MIPI), Grade 1.
  • GMAX3405-AVC-HLV-BU1
    Bayer RGB, High speed, 264 fps (10 bit,12 x Sub-LVDS), 151 fps (12 bit,12 x Sub-LVDS), 73 fps (12 bit,4 x MIPI), Grade 1.
  • GMAX3405-AVC-NLV-BU1
    Bayer RGB, Normal speed, 164 fps (10 bit,12 x Sub-LVDS), 100 fps (12 bit,12 x Sub-LVDS), 73 fps (12 bit,4 x MIPI), Grade 1.
