GSENSE Series
The GSENSE series is a world leading scientific CMOS image sensor family, designed with correlated multiple sampling for extreme low noise, true HDR for high dynamic range and optional backside illumination technology for quantum efficiency of up to 97%. Primary applications include scientific imaging, medical imaging, spectroscopy, fluorescence imaging, astronomy, high energy physics, and high-end surveillance.
Contact us
Large Format
BSI
High Dynamic
Low Noise

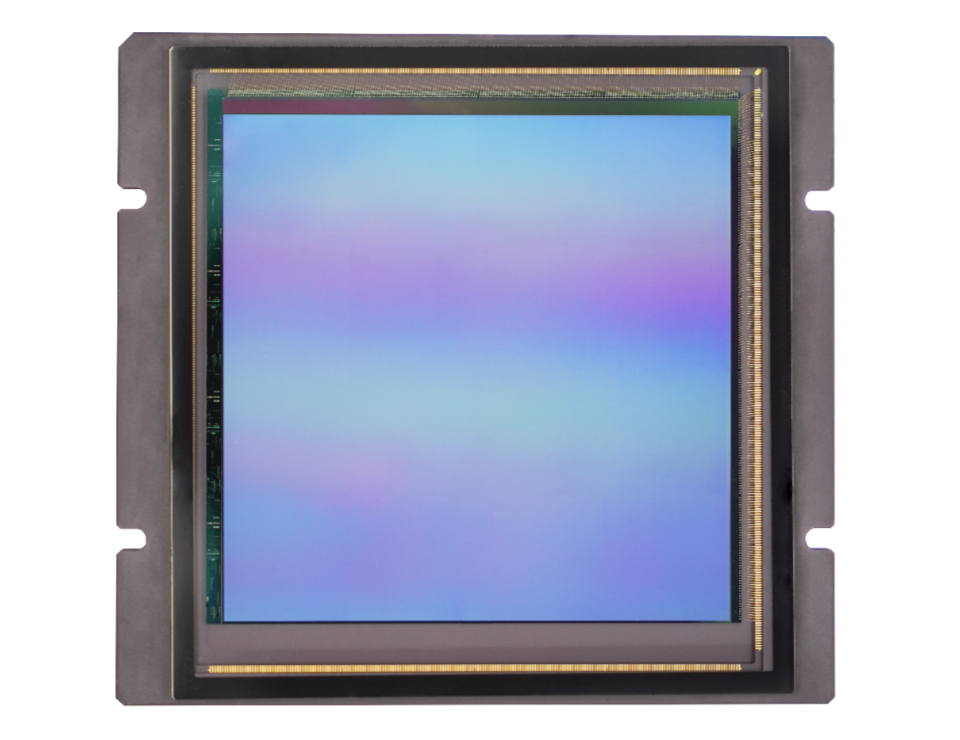

GSENSE64105BSI
105 MP 6.4 μm SCIENTIFIC CMOS IMAGE SENSOR
The GSENSE64105BSI is a 104.8‑megapixel large‑format scientific CMOS image sensor featuring a 6.4 μm pixel pitch and a 65.5 mm × 65.5 mm square photosensitive area, enabling exceptionally wide field capture. Designed for the most demanding scientific applications, GSENSE64105BSI offers ultra‑low read noise of 1.25 e‾, high intra‑scene dynamic range of 98.8 dB, and a peak quantum efficiency of 75% (550 nm), providing excellent sensitivity for faint‑signal detection. Its dual‑gain HDR architecture delivers stable linearity across bright and dim regions, while the sensor’s super‑high resolution enables enhanced reconstruction of fine spatial. With a dark current of just 6.28 e‾/s/pix(20 °C), 24‑lane high‑speed LVDS output, and a power‑efficient <1.6 W design, GSENSE64105BSI is ideally suited for wide‑field astronomy, precision photometry, large‑area spectroscopy, and advanced scientific instrumentation that requires both extreme sensitivity and large‑format fidelity.
  • Key Features and Benefits

    High Resolution of 104.8M with 6.4 μm Rolling Shutter Pixel

    75% Peak QE (550 nm)

    Low noise with 1.25 e‾

    FWC up to 110 ke‾

    Support HDR Mode

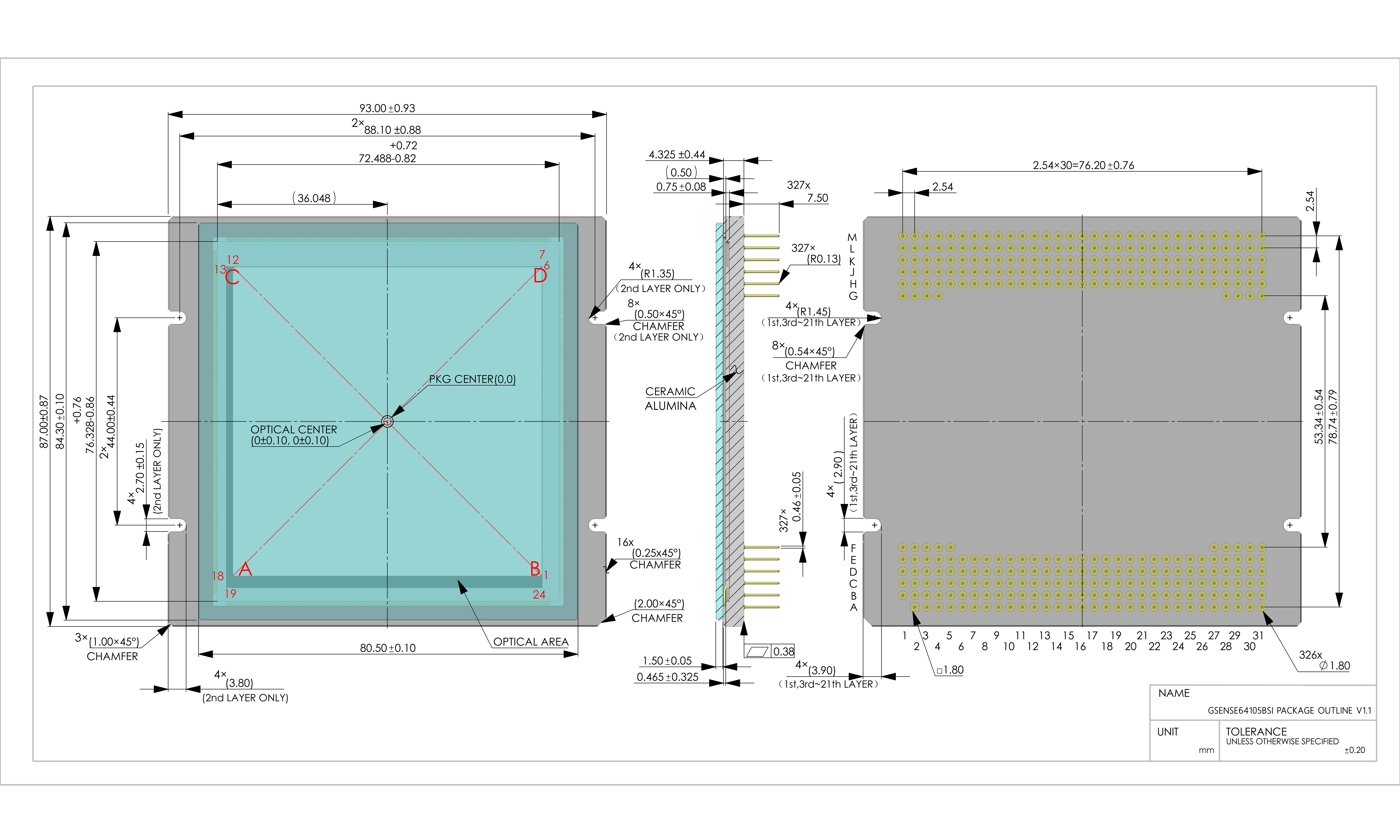

  • Package Drawing

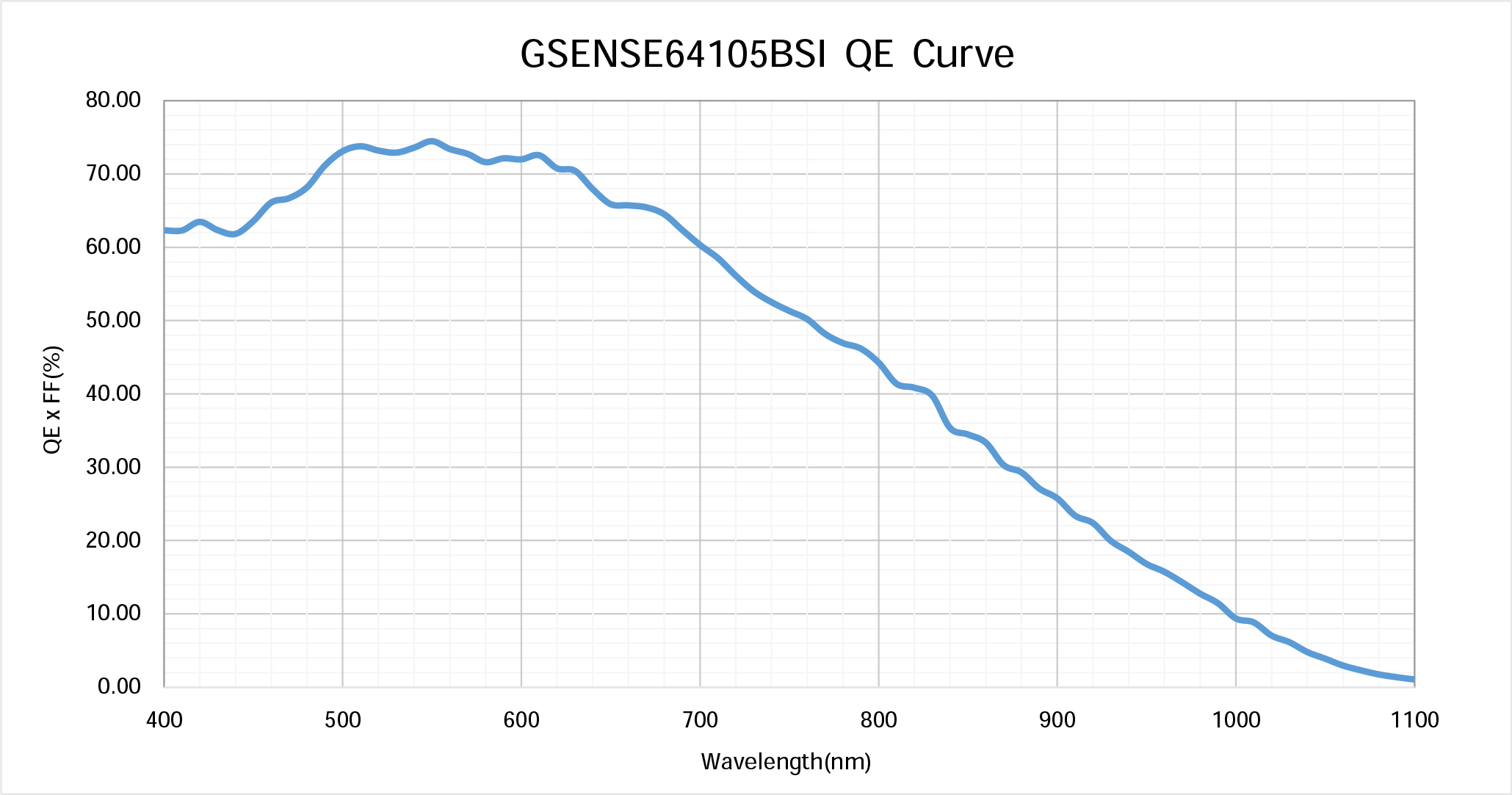

  • QE Curve
GSENSE64105BSI
GSENSE64105BSI
Specifications

  • Resolution

    105 MP

    Nr of Active Pixels

    10240 (H) × 10240 (V)

  • Pixel Size

    6.4 μm x 6.4 μm

    Photosensitive Area

    65.536 mm x 65.536 mm

  • Shutter Type

    Rolling Shutter

    Peak QE

    75% (550 nm)

  • Full Well Capacity

    110 ke‾ (12 bit HDR,13 bit LG) 11.5 ke‾ (13 bit HG)

    Temporal Noise

    1.25 e⁻ (12 bit HDR) 16 e⁻ (13 bit LG) 1.7 e⁻ (13 bit HG)

  • Dark Current

    6.28 e‾/pixel/s (20 ℃)

    Dynamic Range

    98.8 dB (12 bit HDR) 76.9 dB (13 bit LG) 76.6 dB (13 bit HG)

  • Max Frame Rate

    1.25 fps

    ADC

    12/13 bit

  • Output Format

    24 pairs of LVDS

    Channel Multiplexing

    -

  • Max. Data Rate

    6.72 Gbps

    Chroma

    Mono

  • Power Consumption

    <1.6 W

    Supply Voltage

    3.3 V (analog) 1.5 V (digital) 3.3 V (IO)

  • Package

    327 pins PGA (93.0 mm x 87.0 mm)

    Availability

    Engineering Sample

Ordering Information
  • GSENSE64105BSI-ABM-NPN-SBD
    BSI Image Sensor, monochrome without microlens on die. 327 pins PGA ceramic package.Fixed sapphire glass lid with AR coating on both side,Demo grade.
  • GSENSE64105BSI-ABM-NPN-SBE
    BSI Image Sensor, monochrome without microlens on die. 327 pins PGA ceramic package.Fixed sapphire glass lid with AR coating on both side,Engineering sample.
Download
Flyer
Application
Life Sciences
Learn more
Astronomy
Learn more
