Nr of Active Pixels

6016 (H) x 4096 (V)

Optical Format

1.1″

Pixel Size

2.4 μm x 2.4 μm

Photosensitive Area

14.4 mm x 9.8 mm

Shutter Type

Rolling Shutter

Angular Response

> 20 ⁰(90% response)

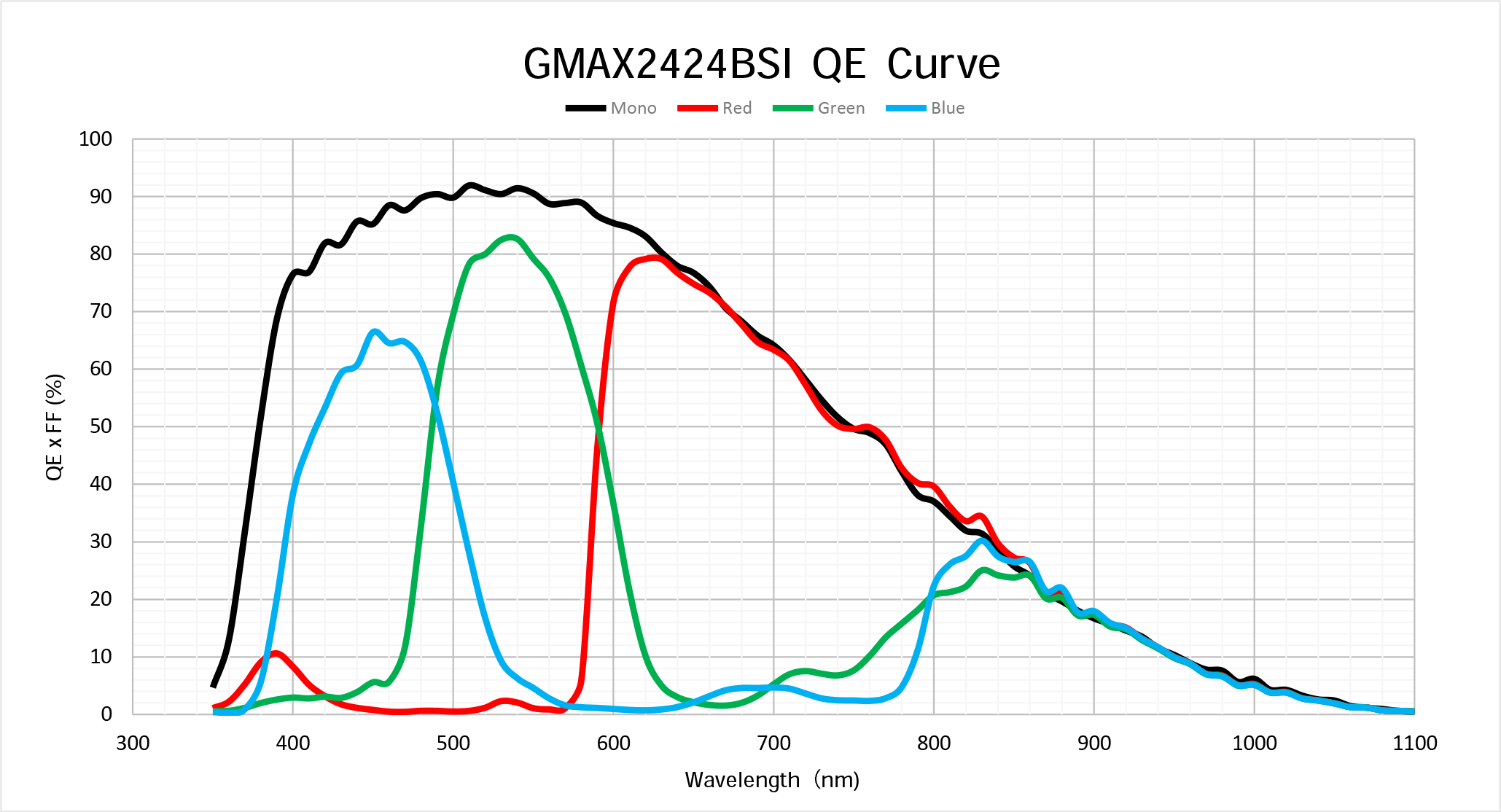

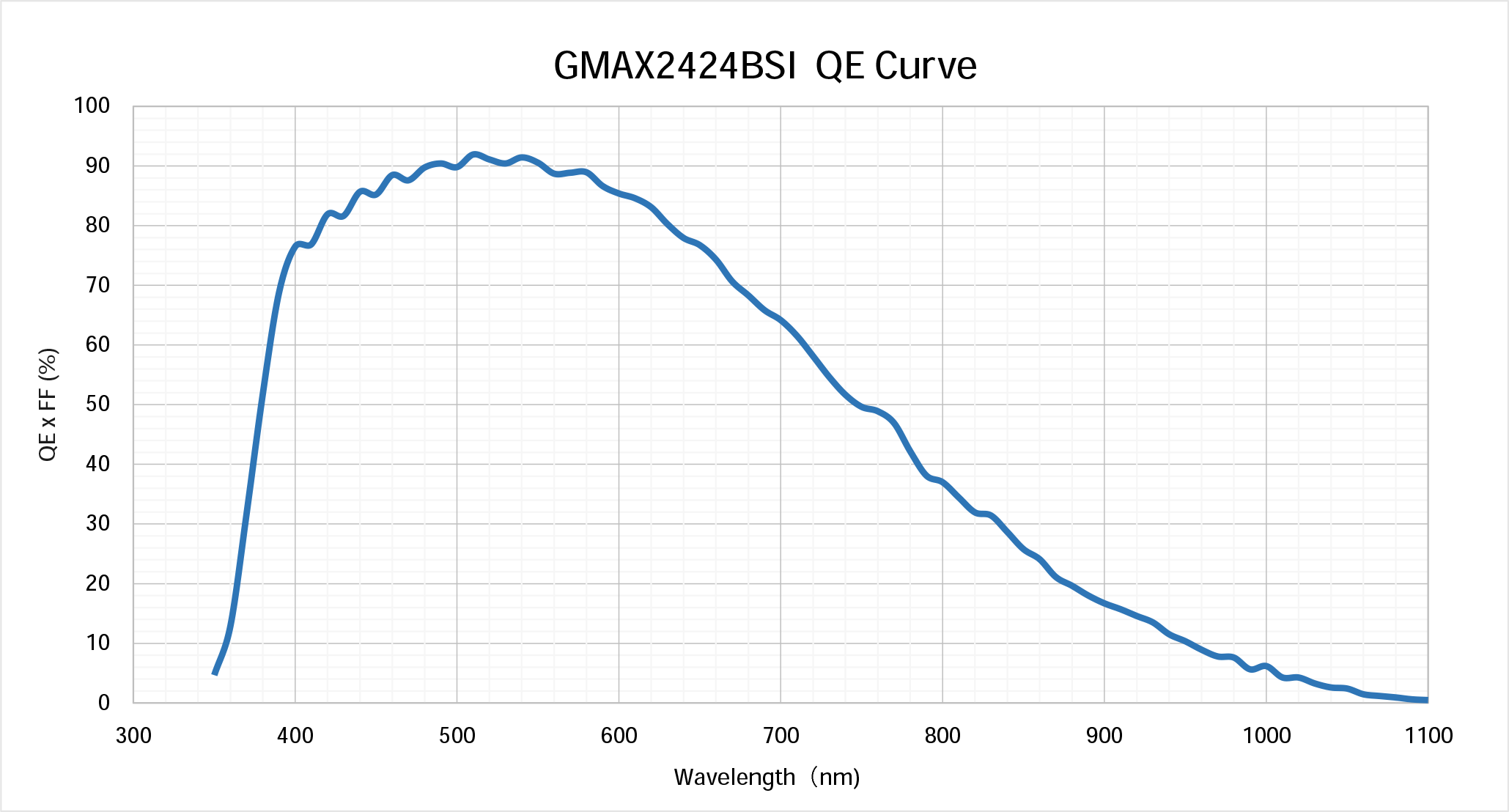

Peak QE

91.9% (510 nm)

Full Well Capacity

12.1 ke⁻(12 bit,Analog gain 1.0x) 12.1 ke⁻(10 bit,Analog gain 1.0x)

Temporal Noise

1.3 e‾ (12 bit, Analog gain 16.0x) 2.0 e‾ (10 bit, Analog gain 8.0x)

Max. SNR

40.8 dB

Dynamic Range

73 dB (12 bit, Analog gain 1.0x) 67 dB (10 bit, Analog gain 1.0x)

ADC

10/12 bit

Max Frame Rate

60 fps (STD, Sub-LVDS, 10 bit) 30 fps (STD, Sub-LVDS, 12 bit) 17 fps (STD, MIPI, 10 bit)

Channel Multiplexing

14/12/10/8/6/4 (Sub-LVDS) 4/2 (MIPI)

Output Format

14 pairs of Sub-LVDS 4 lanes of MIPI

Max. Data Rate

16.8 Gbps

Chroma

Bayer RGB or Mono

Power Consumption

< 0.61 W

Supply Voltage

2.9 V and 3.3 V (pixel),2.9 V (analog) 1.8 V – 3.3 V (IO),1.2 V (digital)

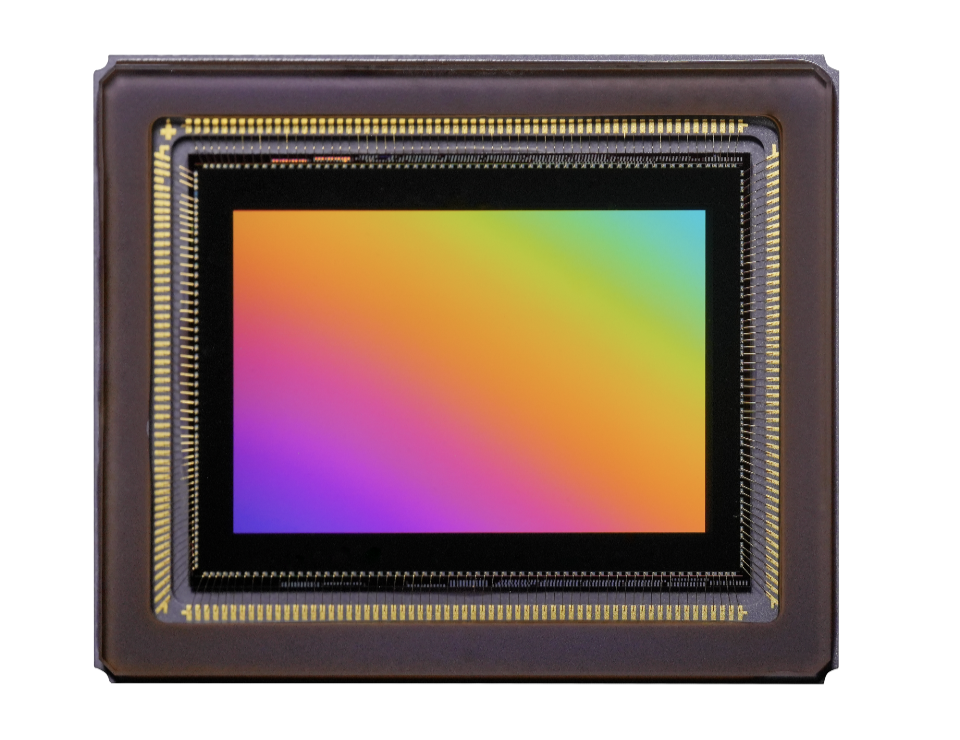

Package

176 pins LGA (22.93 mm x 19.39 mm)
