GSPRINT6502BSI
6.5μm 2MP GLOBAL SHUTTER CMOS IMAGE SENSOR
The sensor features 2048 (H) x 1152 (V) pixels, each 6.5µm square, providing a wide format ideal for 3D laser profilers, and compatibility with 1” optics. With 10-bit output and 32 pairs of sub-LVDS outputs each operating at 1.2Gbps, the GSPRINT6502BSI achieves 1498 frames per second. Up to 8 vertically oriented regions of interest can be defined to operate the sensor at increased frame rates. For applications in which the maximum frame rate is not required, multiplexing modes are available to reduce the number out output channels by any multiple of 2. Backside illumination technology ensures that the image sensor is sensitive to light across a wide range. At 1x PGA gain, the sensor’s full well capacity is 10.6 ke¯ and the dynamic range is 53.9 dB. The analog gain can be adjusted from 1x up to 4x. On-chip 2x vertical binning can be used to increase the full well capacity, dynamic range, and frame rate. A vertical sub-sampling mode is also available for increased frame rate while maintaining the full field of view.
  • Key features and Benefits

    BSI

    Multi-slope HDR

    High frame rate

    Broad AR
  • Package Drawing
  • QE Curve

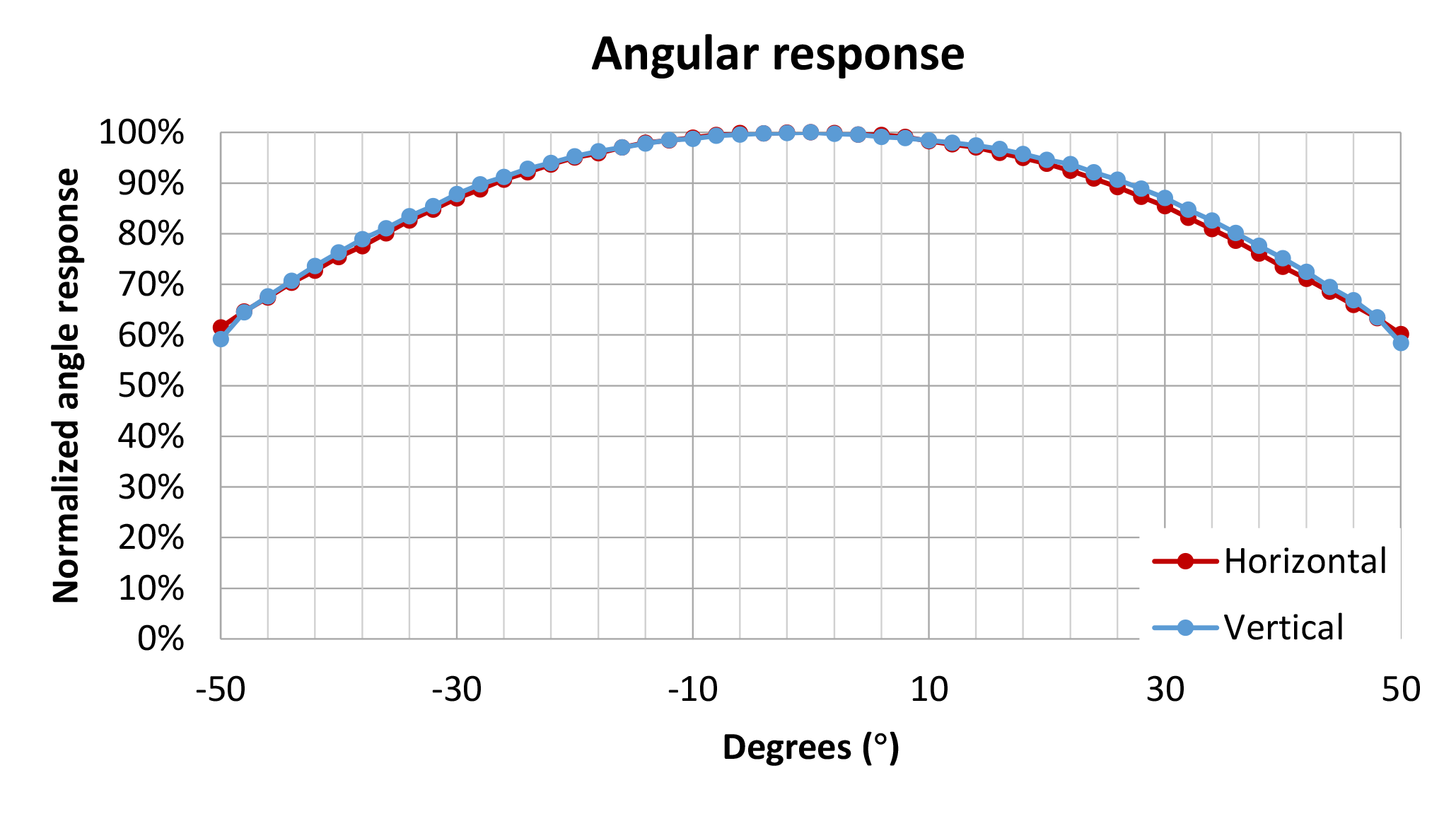

  • Angular Response
GSPRINT6502BSI
GSPRINT6502BSI
Specifications

  • Resolution

    2 MP

    Nr of Active Pixels

    2048 (H) x 1152(V)

  • Optical Format

    1" (15.3 mm)

    Pixel size

    6.5 μm x 6.5μm

  • Photosensitive Area

    13.3 mm x 7.5 mm

    Shutter Type

    Global shutter

  • Peak QE

    >85 %

    Full Well Capacity

    10.6 ke‾ @ 10-bit

  • Parasitic Light Sensitivity

    <-80dB

    Temporal Noise

    21.3 e‾ @ 10-bit

  • Angular Response

    35 ° (80% response)

    Dark Current

    691.0 e‾/pixel/s

  • Max. SNR

    40.4 dB

    Dynamic Range

    53.9 dB @ 10-bit

  • Max Frame Rate

    >1498 fps @ 10-bit, 2941 fps @ 10-bit (1x2 binning)

    ADC

    10 bit

  • Output Format

    32 pair of Sub-LVDS data output(16 pair/side), 2 pair of Sub-LVDS clock output(1 pair/side)

    Channel Multiplexing

    Yes (any multiple of 2)

  • Max. Data Rate

    38.4 Gbps

    Chroma

    Mono

  • Power Consumption

    <1.5 W

    Supply Voltage

    3.6V & 3.3V (analog), 1.8V & 3.3V (I/O), 1.5V (digital)

  • Package

    130pins LGA (25.66 mm x 22.05 mm)

    Availability

    Engineering Samples (ES) & Demo grade samples

Product Number
  • GSPRINT6502BSI-ABM-NLN-BR1
    Monochrome, without ulens, taped D263®T glass with dual-ARC, 130 pin LGA, Normal speed version, 732fps @ 10-bit 16 channels
  • GSPRINT6502BSI-ABM-HLN-BR1
    Monochrome, without ulens, taped D263®T glass with dual-ARC, 130 pin LGA, High speed version, 1498fps @ 10-bit 32 channels
  • GSPRINT6502BSI-ABM-NLN-BU1
    Monochrome, without ulens, sealed D263®T glass with dual-ARC, 130 pin LGA, Normal speed version,732fps @ 10-bit 16 channels
  • GSPRINT6502BSI-ABM-NLN-BRE
    Monochrome, without ulens, taped D263®T glass with dual-ARC, 130 pin LGA, Normal speed version, 732fps @ 10-bit 16 channels
  • GSPRINT6502BSI-ABM-HLN-BRE
    Monochrome, without ulens, taped D263®T glass with dual-ARC, 130 pin LGA, High speed version, 1498fps @ 10-bit 32 channels
  • GSPRINT6502BSI-ABM-NLN-BUE
    Monochrome, without ulens, sealed D263®T glass with dual-ARC, 130 pin LGA, Normal speed version,732fps @ 10-bit 16 channels
  • GSPRINT6502BSI-ABM-HLN-BU1
    Monochrome, without ulens, sealed D263®T glass dual- ARC, 130pin LGA, High speed version, 1498fps @ 10-bit 32 channels
  • GSPRINT6502BSI-ABM-HLN-BUE
    Monochrome, without ulens, sealed D263®T glass dual- ARC, 130pin LGA, High speed version, 1498fps @ 10-bit 32 channels
