Operation mode – HDR mode & Low noise mode
Optical Format: 1 inch
On–chip 12–bit column–parallel ADC
On–chip sequencer
On–chip PLL
Slave and Master modes
Vertical/Horizontal image flipping
Vertical ROI
Standby
Sub–LVDS
MIPI(CSI–2, D–PHY)
Resolution
0.5MP
Nr of Active Pixels
800 (H) x 600 (V)
Optical format
1″
Pixel size
16 μm x 16 μm
photosensitive area
12.8 mm x 9.6 mm
Shutter type
Rolling Shutter

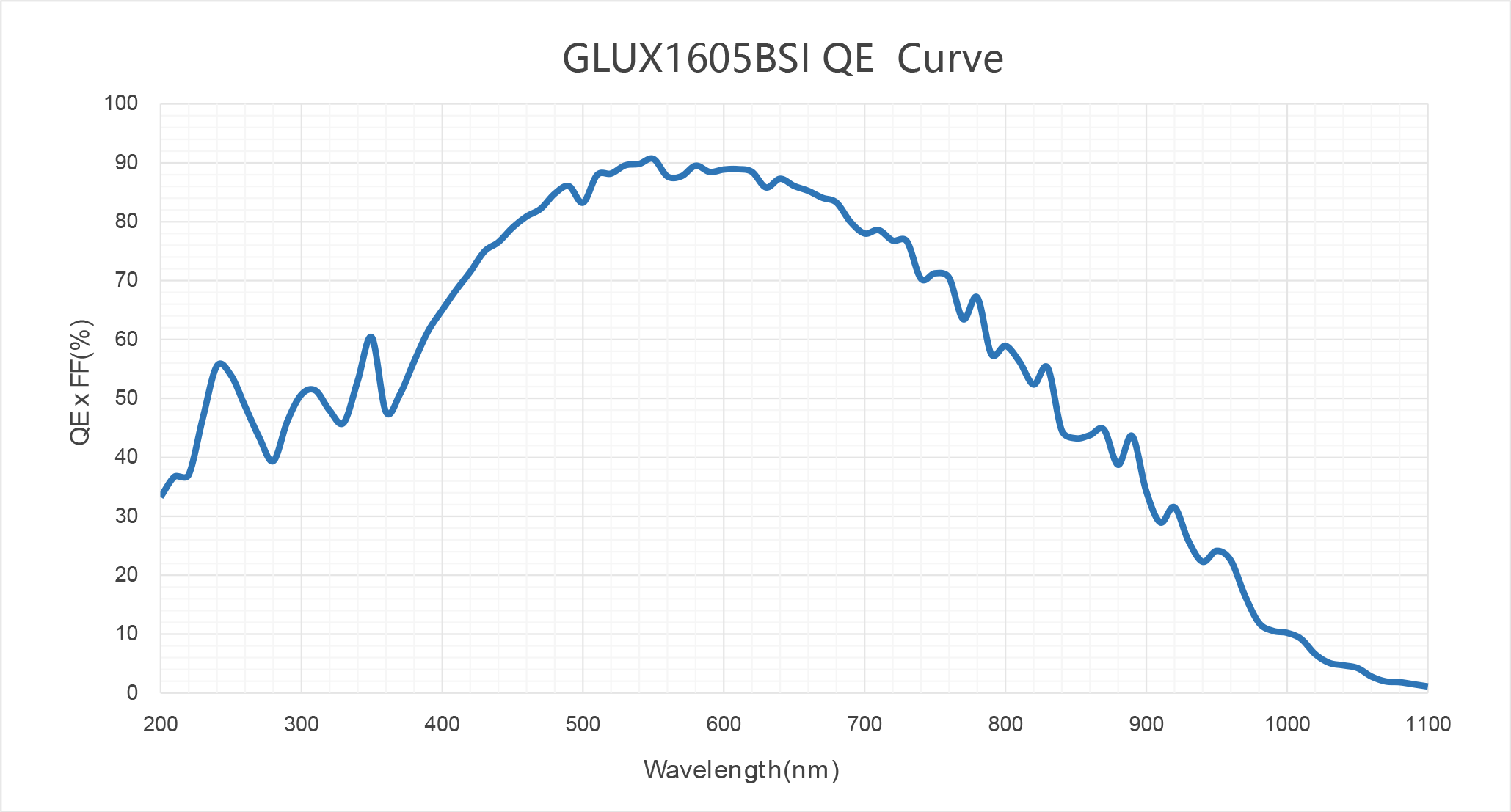

Peak QE
90.7% @ 550 nm
Full well capacity
73.4 ke‾
Parasitic Light Sensitivity
-
Temporal noise
0.9 e‾ @ low noise mode
Dark Current
39 e‾/pixel/s @ 20℃
Dynamic Range
93 dB @ HDR
Max Frame rate
60 fps
Angular response
-
Max. SNR
48.7 dB
ADC
12 bit
Output format
4 ch sub-LVDS、4 ch MIPI
Channel multiplexing
-
Max. Data rate
1.782 Gbps
Chroma
Mono
Power consumption
201 mW @HDR , 83 mW @Low noise
Supply voltage
3.3V (analog)、1.75V (digital)
Package
84 pins CLCC (22.0 mm x 22.0 mm)
Availability
Mass Production (MP)
