GSENSE Series
The GSENSE series is a world leading scientific CMOS image sensor family, designed with correlated multiple sampling for extreme low noise, true HDR for high dynamic range and optional backside illumination technology for quantum efficiency of up to 95%. Primary applications include scientific imaging, medical imaging, spectroscopy, fluorescence imaging, astronomy, high energy physics, and high-end surveillance.
Contact us
Large area design
BSI
HDR
Low noise

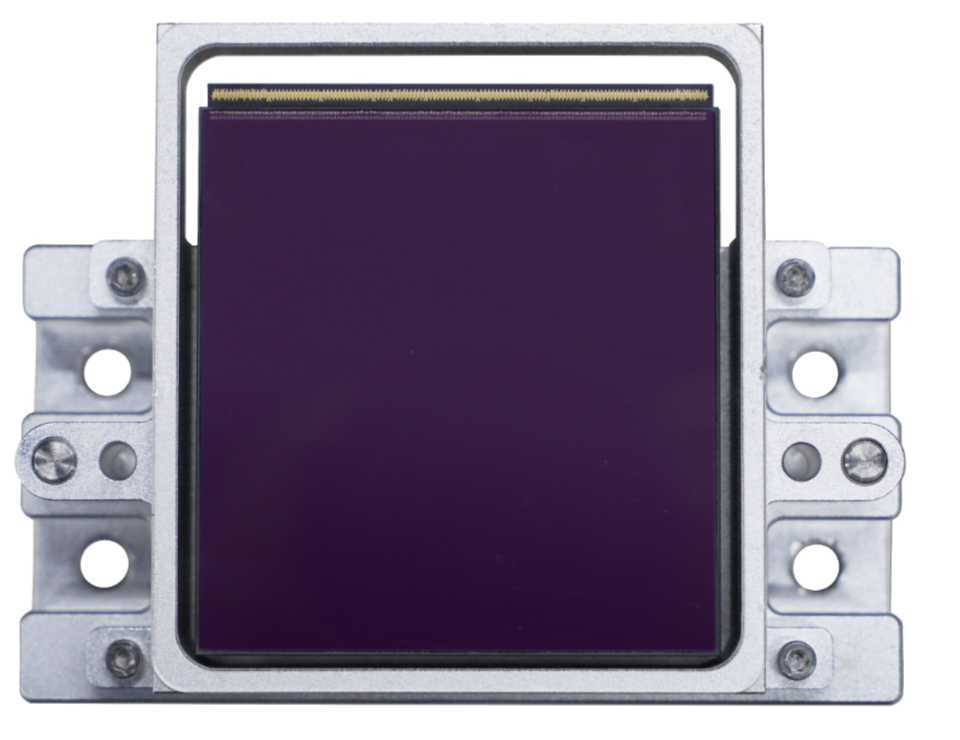

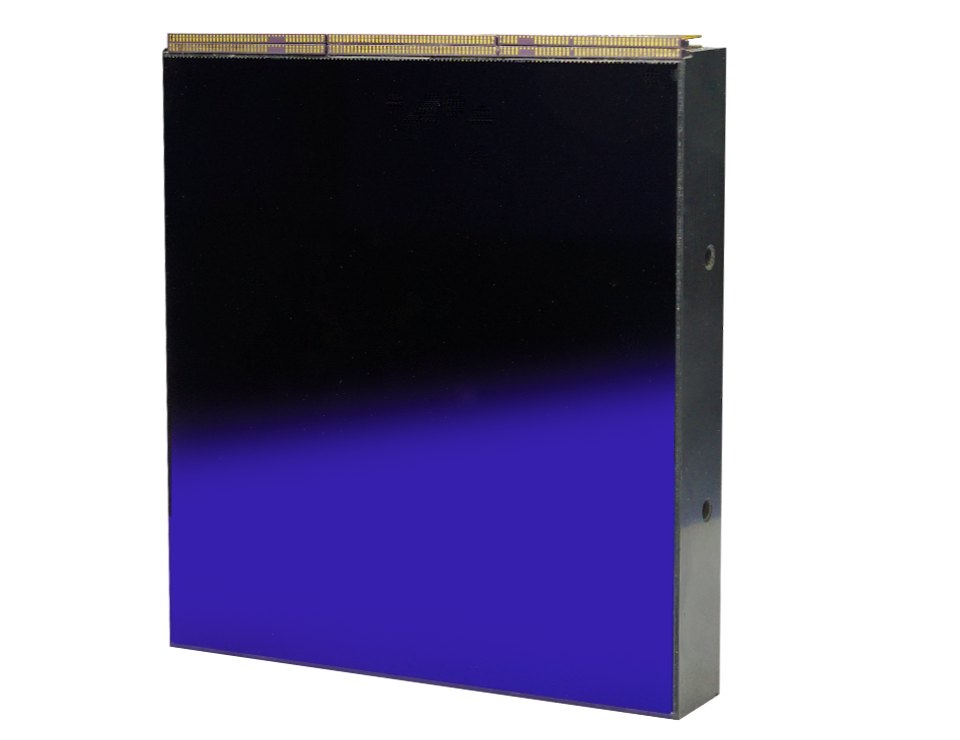

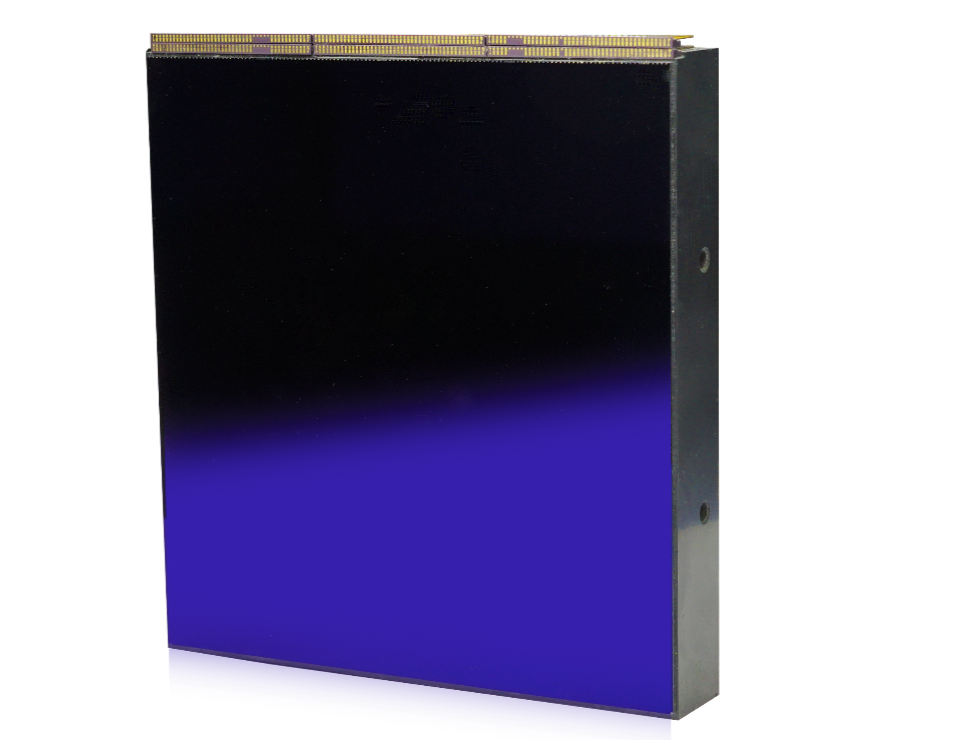

GSENSE1081BSI
81MP 10 μm 7.96" SCIENTIFIC CMOS IMAGE SENSOR
GSENSE1081BSI is designed with large imaging area for demanding scientific imaging applications. Sensor provides active resolution of 8900(H) x 9120(V) with 10μm x 10μm pixel size. An inter-scene dynamic range is 84.5dB combined from maximum full well capacity of 90ke¯and readout noise of 5.35e¯. Sensor supports on-chip 16bit ADC, with LVDS channel running up to 250MHz, providing frame rate up to 0.34fps. GSENSE1081BSI is assembled in high-end SiC package with one flexi-cable, by this design, the dead space at 3x package sides is minimized and makes sensor well fit for applications require a mosaic sensor array. The thermal expansion of SiC is close to silicon die which is suitable for deep cooling applications.
  • Key features and Benefits

    97% Peak QE@610nm

    Anti-glowing

    On-chip 16-bit column-parallel ADC

    Silicon carbide with one flexi-cable

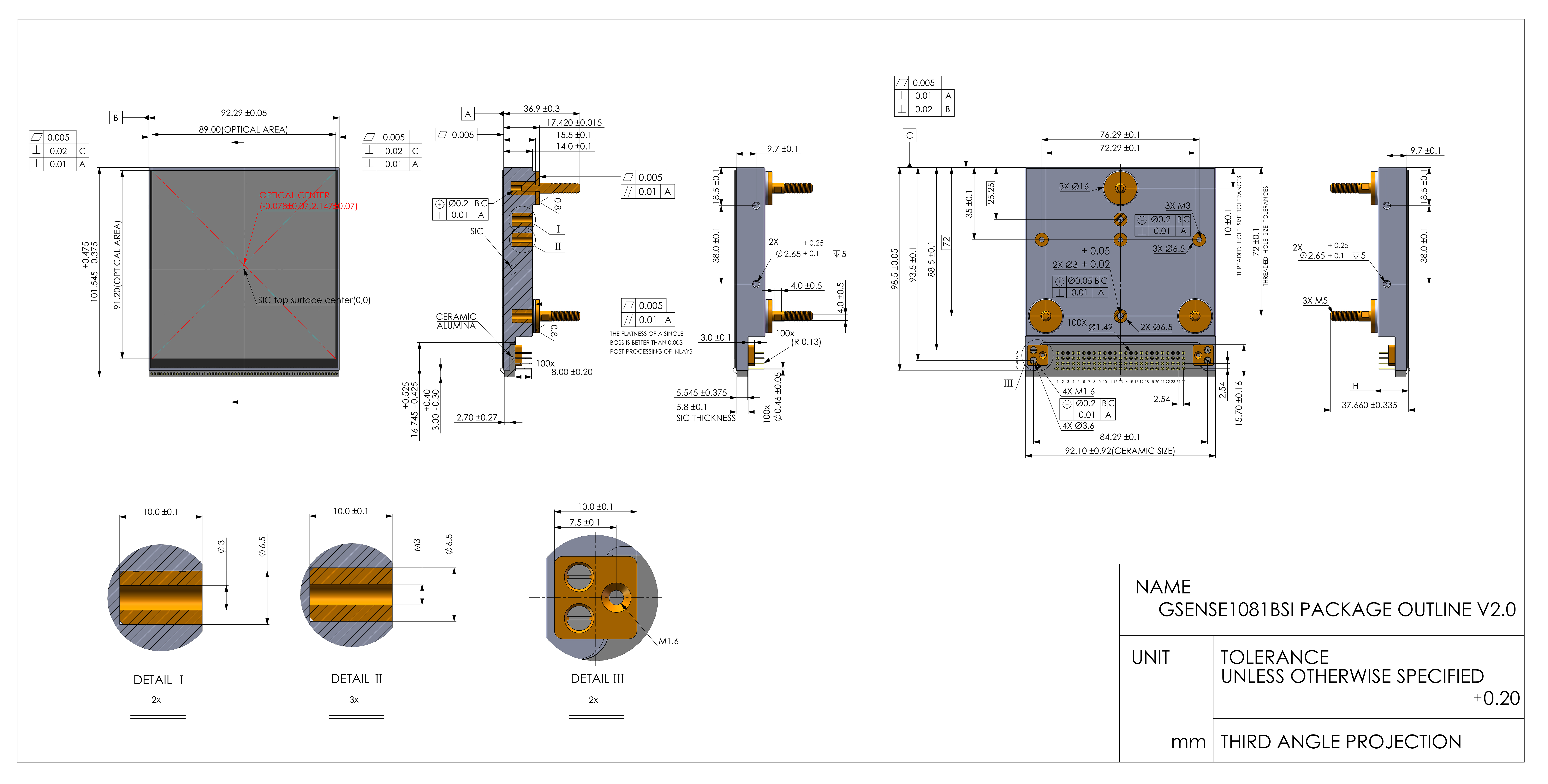

  • Package drawing
  • Block diagram

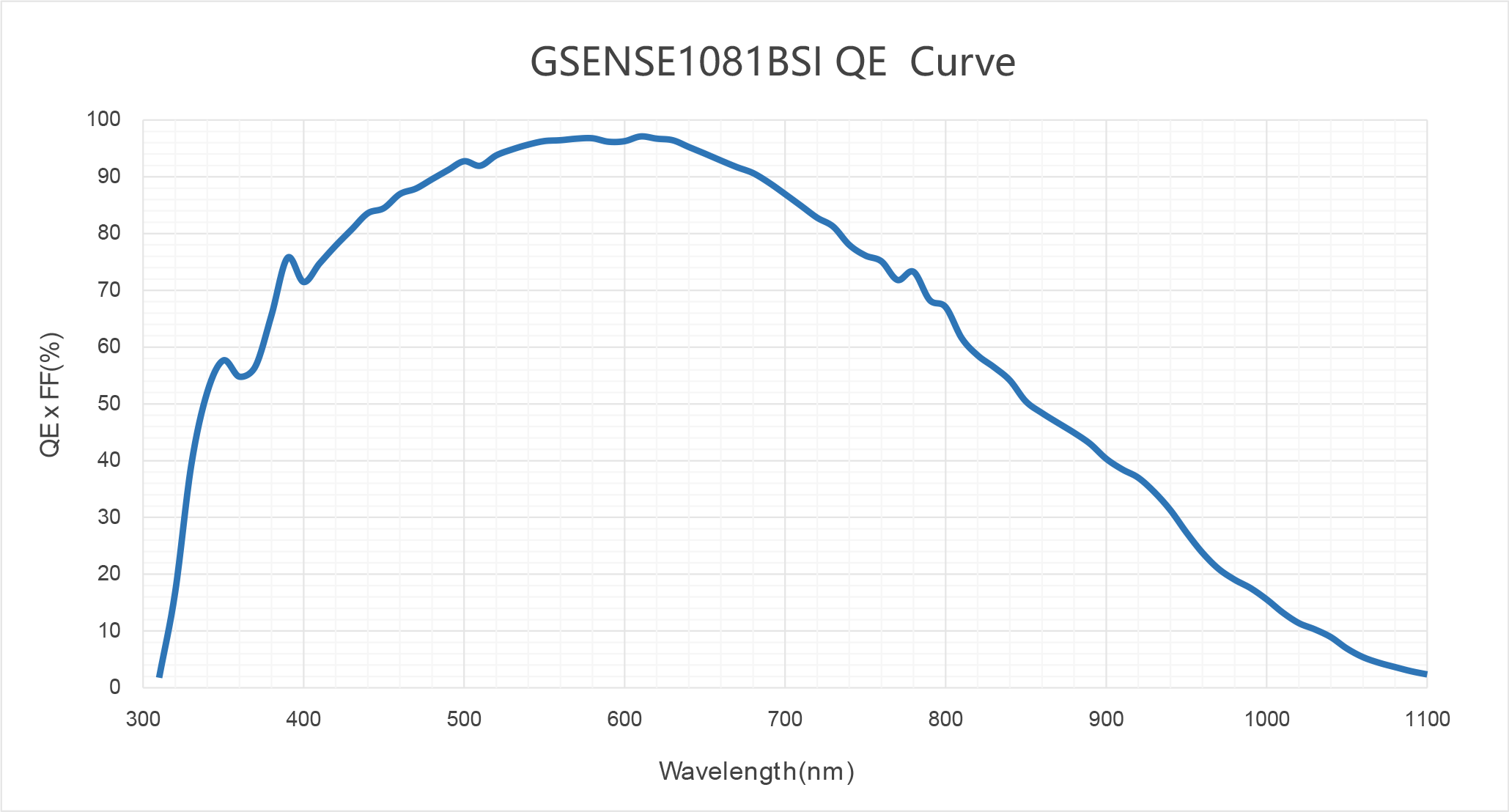

  • QE Curve
GSENSE1081BSI
GSENSE1081BSI
Specifications

  • Resolution

    81 MP

    Nr of Active Pixels

    8900 (H) x 9120 (V)

  • Optical format

    7.96"

    Pixel size

    10 μm x 10 μm

  • photosensitive area

    89.00 mm x 91.20 mm

    Shutter type

    Rolling Shutter

  • Peak QE

    97% Peak QE @ 610nm

    Full well capacity

    90.68 ke‾

  • Temporal noise

    5.35 e‾

    Dark Current

    0.00373 e‾/pixel/s @ -70℃

  • Dynamic Range

    84.5 dB

    Max Frame rate

    0.34fps @ 16-bit ADC , 0.94fps @ 15-bit ADC

  • Max. SNR

    50 dB

    Parasitic Light Sensitivity

    -

  • Angular response

    -

    ADC

    15/16 bit

  • Output format

    5 ch LVDS

    Channel multiplexing

    -

  • Max. Data rate

    Max.500Mbps @ 16-bit ADC, Max.1.6Gbps @ 15-bit ADC

    Chroma

    Mono

  • Power consumption

    1.4 W

    Supply voltage

    5V (analog)、1.8V (digital)

  • Package

    100-pin SiC package (92.3 mm x 98.4 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GSENSE1081BSI-ABM-NFN-NN0
    RevB BSI Image Sensor. Monochrome without micro lens on die. 100-pin Silicon carbide ceramic package. Without glass lid. - Grade 0
  • GSENSE1081BSI-ABM-NFN-NN2
    RevB BSI Image Sensor. Monochrome without micro lens on die. 100-pin Silicon carbide ceramic package. Without glass lid. - Grade 2
  • GSENSE1081BSI-ABM-NFN-NN1
    RevB BSI Image Sensor. Monochrome without micro lens on die. 100-pin Silicon carbide ceramic package. Without glass lid. - Grade 1
Download
Product Flyer
Datasheet
