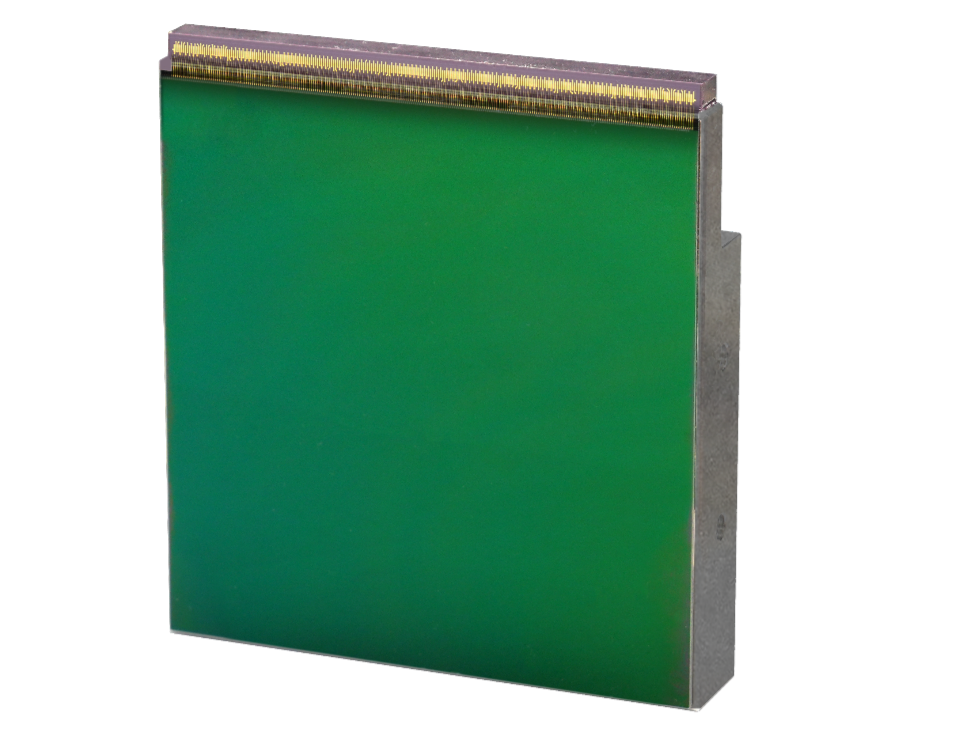

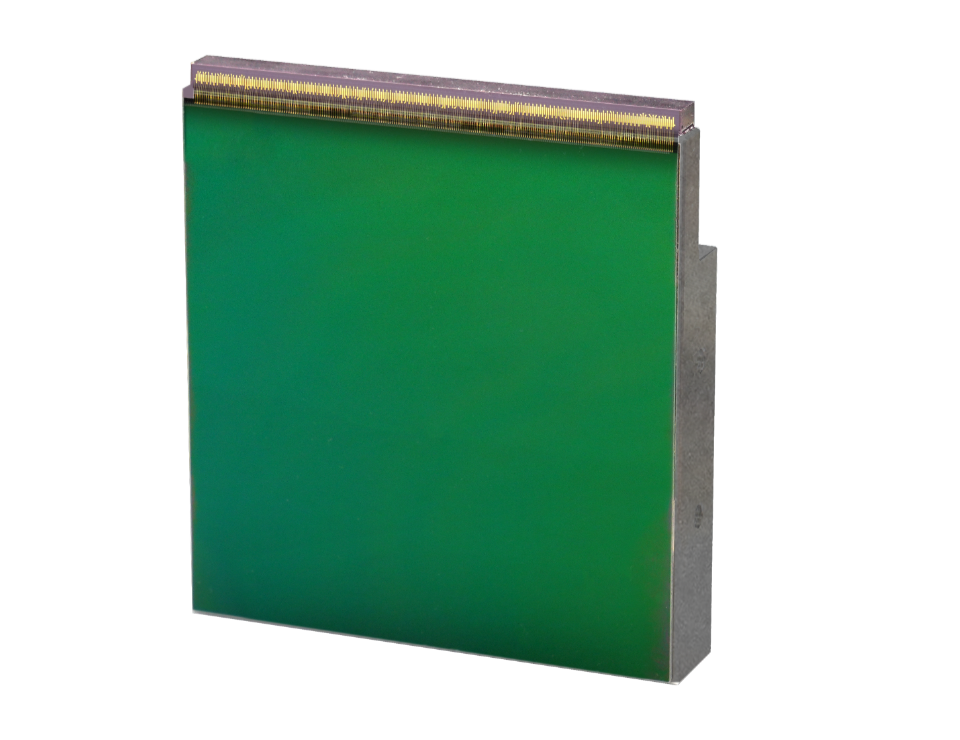

GSENSE1517BSI
16.8 MP 15 μm SCIENTIFIC CMOS IMAGE SENSOR
GSENSE1517BSI is a 4116 x 4100 (16.8 MP) resolution scientific image sensor with high-performance 15 μm x 15 μm pixels, a large 61.74 mm x 61.50 mm imaging area, peak QE of 92% and minimum read noise 1.2 e‾. The sensor utilizes 12 bit dual-gain HDR, and both 12 bit and 14 bit single gain and 16 bit single gain ADCs to achieve a variety of imaging modes. Both 12 bit HDR and 14 bit STD are supported at up to 4 fps utilizing 10 pairs of LVDS working at 420 Mbps each. For 16 bit STD mode, only 3 pairs of LVDS is utilized. In 12 bit dual-gain HDR mode, an intra-scene dynamic range over 95.3 dB is achieved with 70 ke‾ full well capacity and 1.2 e‾ readout noise. In 14 bit STD mode, either the LG or HG signal can be utilized. Using the HG signal, read noise is 1.5 e‾ and a dynamic range of 79.6 dB is achieved. Using the LG signal, the maximum full well capacity of 70 ke‾. In 16 bit STD mode, with the maximum full well capacity of 70 ke‾ and the readout noise of 5.8 e‾, it can achieve a dynamic range of 81.5 dB. GSENSE1517BSI is assembled in a high-end SiC package designed such that the dead space at 3x package sides is minimized for mosaic tiling. The thermal expansion of SiC is close to that of the silicon die, providing mechanical stability over the sensor’s full operating range. The sensor’s 144 pins Al₂O₃ IPGA ceramic package is offered with removable cover glass for easy assembly into cooled camera systems.
  • Key Features and Benefits

    92% Peak QE (450 nm)

    Low Noise with 1.2 e‾

    On-chip 16 bit Column-Parallel ADC

    Low Dark Current: < 0.008 e‾/s/pix (-70 ℃)

    Anti-Glowing

    3-Side Buttable with SiC Package

    61 mm SQ. Large Format Sensor with Frame Rate up to 4 fps

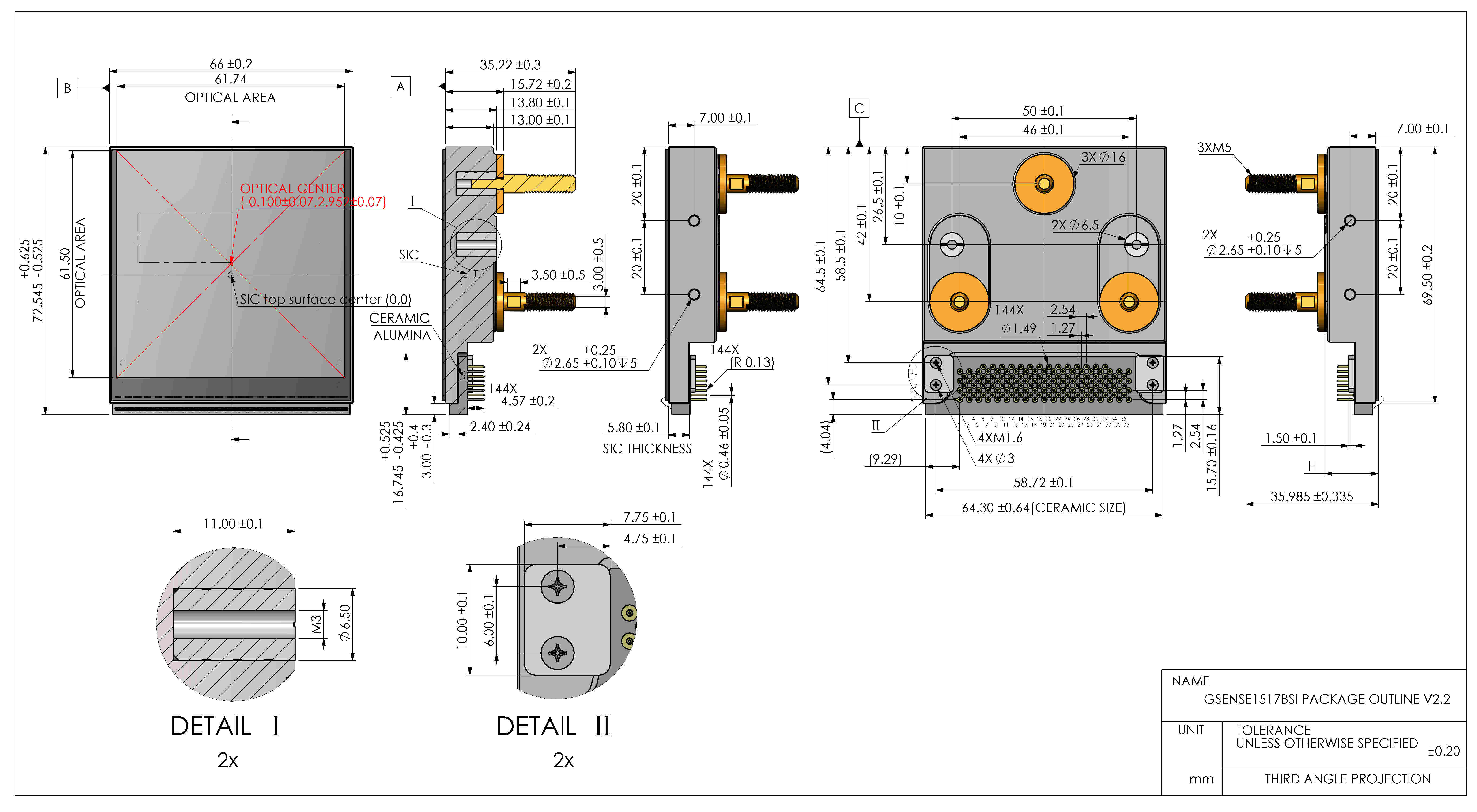

  • Package Drawing

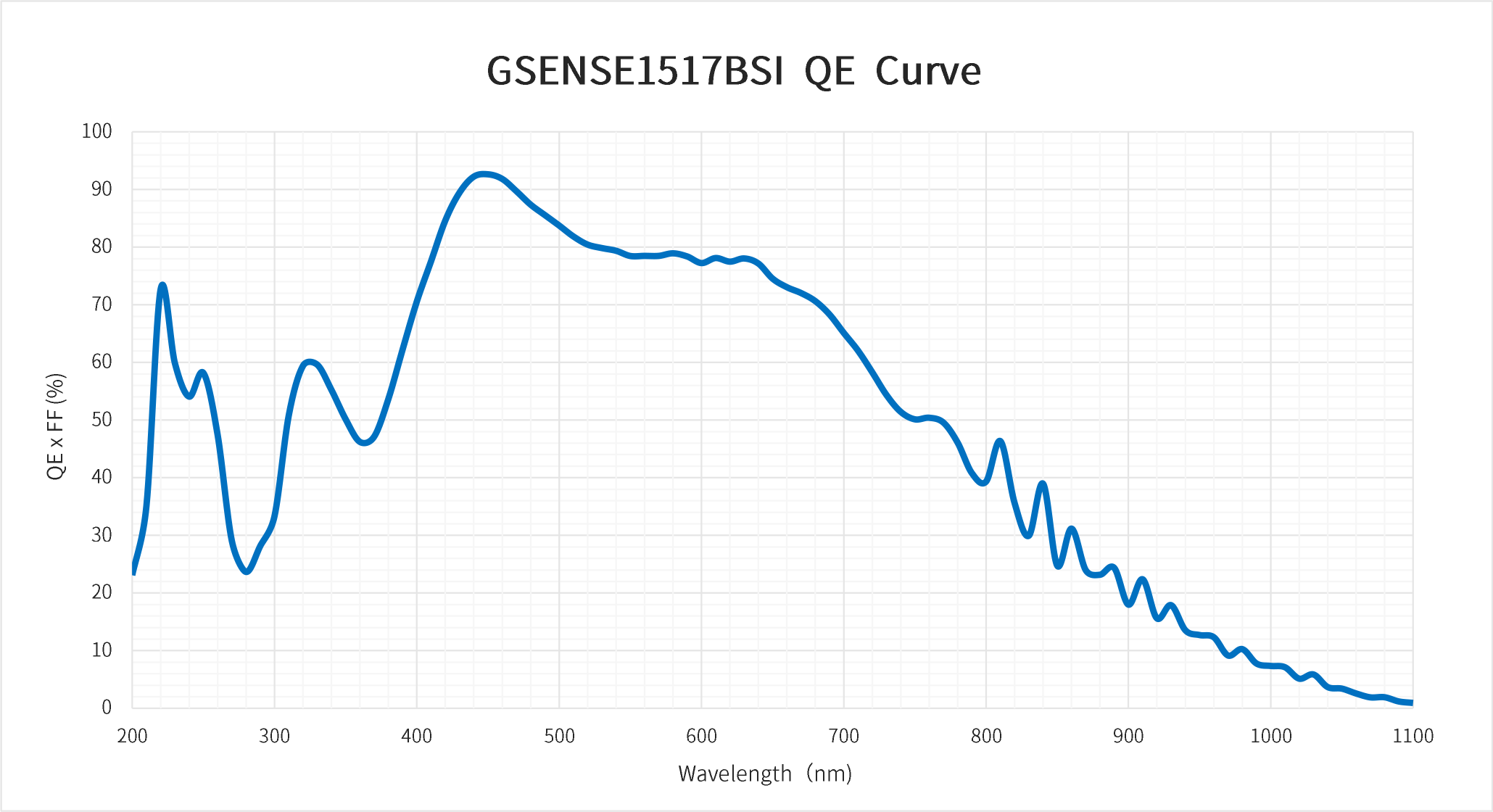

  • QE
GSENSE1517BSI
GSENSE1517BSI
Specifications
  • Nr of Active Pixels

    4116 (H) x 4100 (V)

    Photosensitive Area

    61.74 mm x 61.50 mm

  • Pixel Size

    15 μm x 15 μm

    Dark Current

    < 0.008 e‾/pixel/s (-70 ℃)

  • Shutter Type

    Rolling Shutter

    Peak QE

    92% (450 nm)

  • Full Well Capacity

    70 ke‾ (12 bit HDR ,14 bit & 16 bit LG) 14.4 ke‾ (14 bit, HG)

    Temporal Noise

    1.2 e‾ (12 bit, HDR) 10.9 e‾ (14 bit, LG) 1.5 e‾ (14 bit, HG) 5.8 e‾ (16 bit LG)

  • ADC

    16 bit

    Dynamic Range

    95.3 dB (12 bit, HDR) 76.1 dB (14 bit, LG) 79.6 dB (14 bit, HG) 81.5 dB (16 bit, LG)

  • Max Frame Rate

    4 fps (12 bit, HDR &14 bit) 1.1 fps (16 bit)

    Output Format

    10 pairs LVDS

  • Max. Data Rate

    4.2 Gbps

    Power Consumption

    < 1 W

  • Chroma

    Mono

    Operation Temperature

    -70 ℃~50 ℃

  • Supply Voltage

    3.3 V (Analog) 1.55 V (Digital) 1.8 V (IO)

    Package

    SiC with 144 pins Al₂O₃ IPGA ceramic package (66.2 mm x 72.545 mm)

  • Availability

    Engineering Samples (ES)

Product Number
  • GSENSE1517BSI-ABM-NFN-NN0
    BSI Image Sensor, monochrome without microlens on die.Silicon carbide with 144 pins AI₂O₃ IPGA ceramic package.Without glass lid.Grade 0.
  • GSENSE1517BSI-ABM-NFN-NN1
    BSI Image Sensor, monochrome without microlens on die.Silicon carbide with 144 pins AI₂O₃ IPGA ceramic package.Without glass lid.Grade 1.
