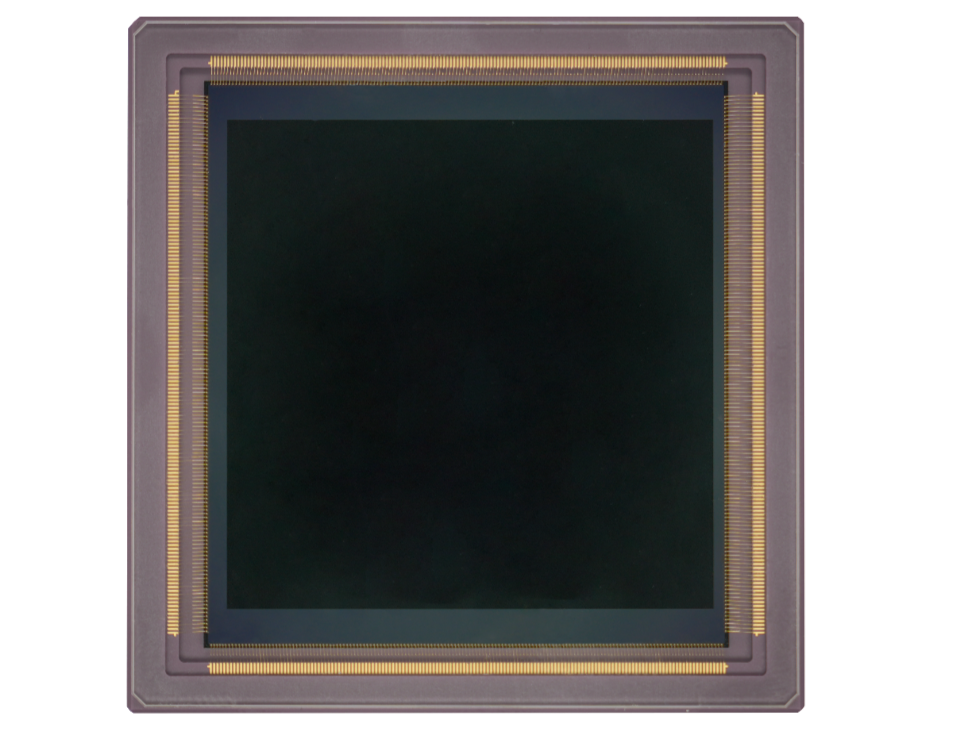

BSI
Low Noise 0.7 e‾
High Speed 44 fps
Peak QE 95%
14/12 bit ADC
Resolution
16.7 MP
Nr of Active Pixels
4096 (H) x 4096 (V)
Optical Format
3.3 "
Pixel Size
9 μm x 9 μm
Photosensitive Area
36.8 mm x 36.8 mm
Shutter Type
Rolling Shutter

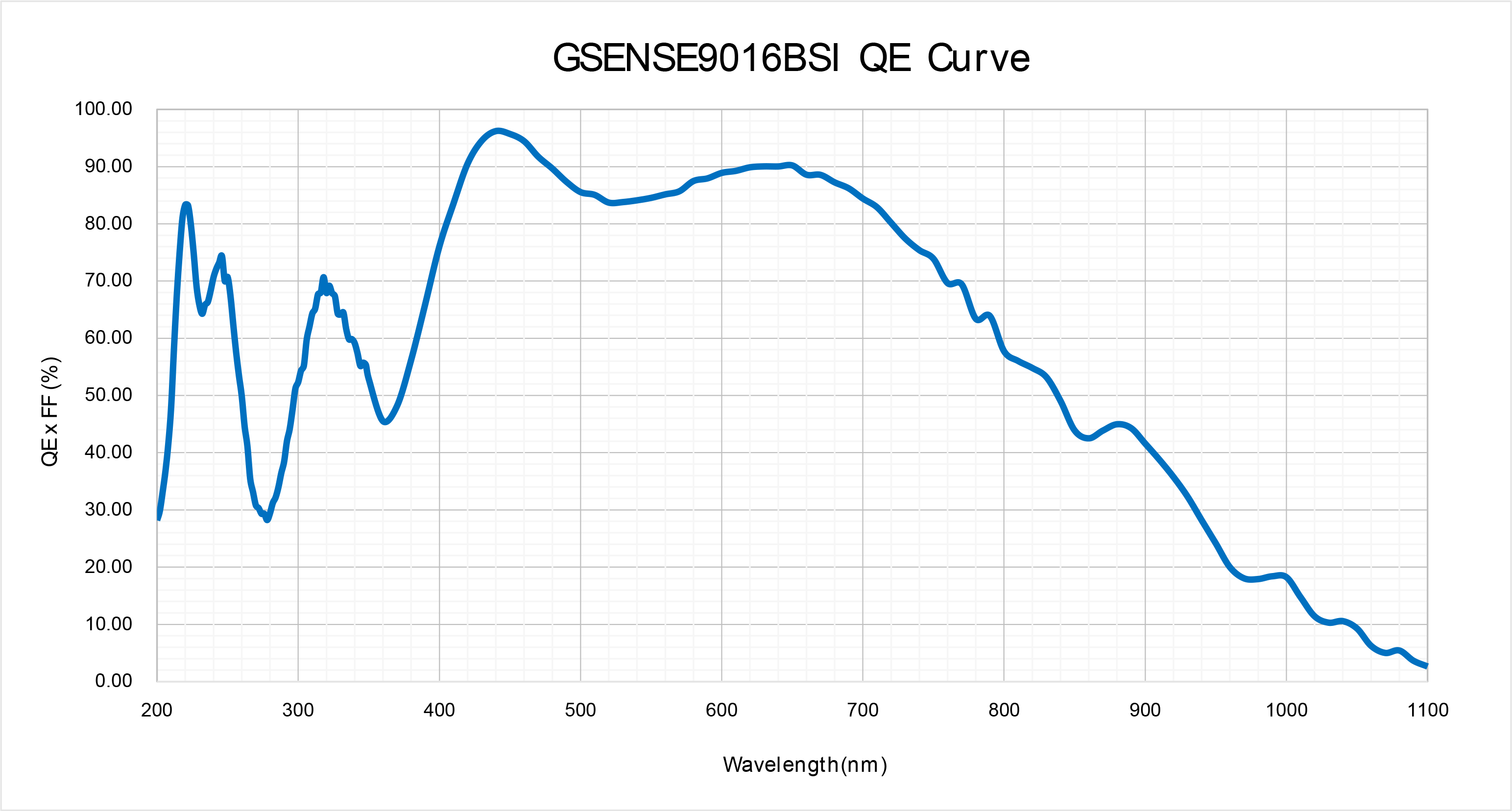

Peak QE
95% (450 nm)
Full Well Capacity
118 ke‾
Temporal Noise
0.7 e⁻
Dark Current
0.04 e‾/pixel/s (-30 ℃)
Dynamic Range
104 dB (12 bit HDR)
Max Frame Rate
13 fps (14 bit STD) 26 fps (12 bit HDR) 44 fps (12 bit STD)
ADC
14/12 bit
Output Format
18 x sub-LVDS
Max. Data Rate
0.96 Gbps
Chroma
Mono
Supply Voltage
3.3 V (analog) 1.5 V (digital) 1.8-3.3 V (IO)
Power Consumption
< 2 W
Package
140 pins PGA (51.5 mm x 53 mm)
Availability
Engineering Sample
