GSPRINT4521
21MP 4.5 μm 1.84" GLOBAL SHUTTER HIGH SPEED IMAGE SENSOR

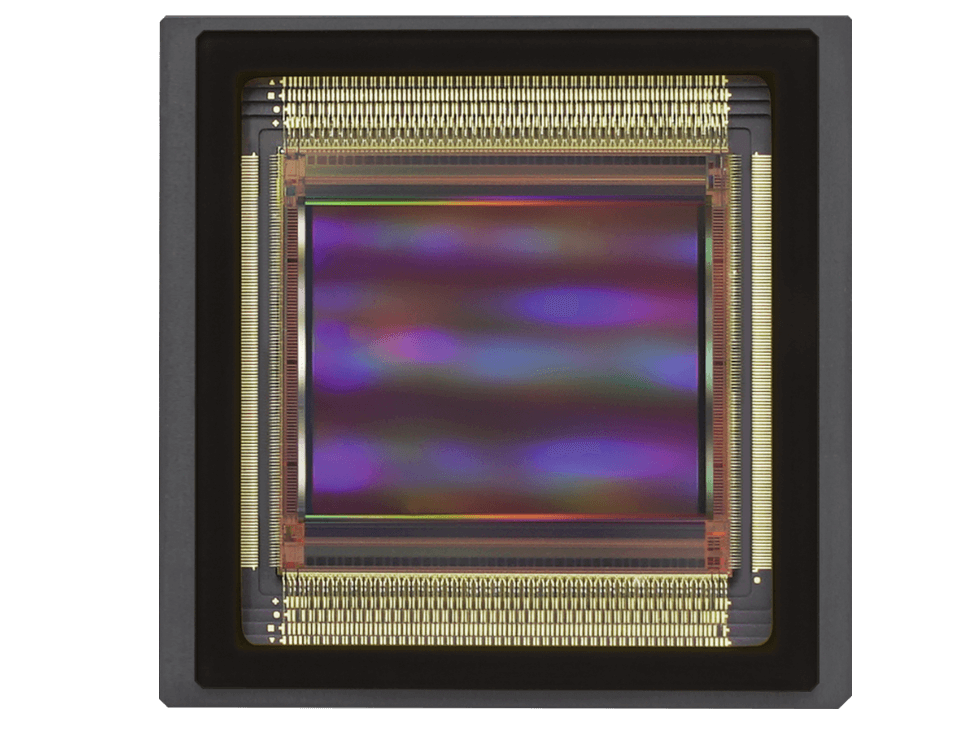

GSPRINT4521 is a 21 MP (5120 x 4096) APS sized (29.5mm diameter) high speed, global shutter image sensor designed with the latest 4.5 μm charge domain global shutter pixel. It achieves 32 ke¯, less than 3 e¯ rms read noise and > 69 dB dynamic range, optionally increased to 81 dB with a dual gain HDR mode. Its state-of-the-art 65nm CIS process allows the sensor to use on-chip charge binning, further increasing FWC and almost quadrupling frame rate. GSPRINT4521 will be offered in two speed variants. The full speed variant consists of 160 pairs sub-LVDS channels running at 1.2Gbps which delivers a stunning 1000 fps in single gain operation at 8 bit per pixel and full resolution, and more than 3500 fps with a ROI of 1024 rows in a dedicated 3D laser profiling mode. These unique features make it an ideal solution for demanding imaging in high-end applications such as high speed 4K video, industrial inspection, motion analysis and life science imaging.
  • Key features and Benefits

    High Frame Rate

    Low noise Global Shutter

    dual gain HDR mode
  • Package Drawing
  • Block Diagram

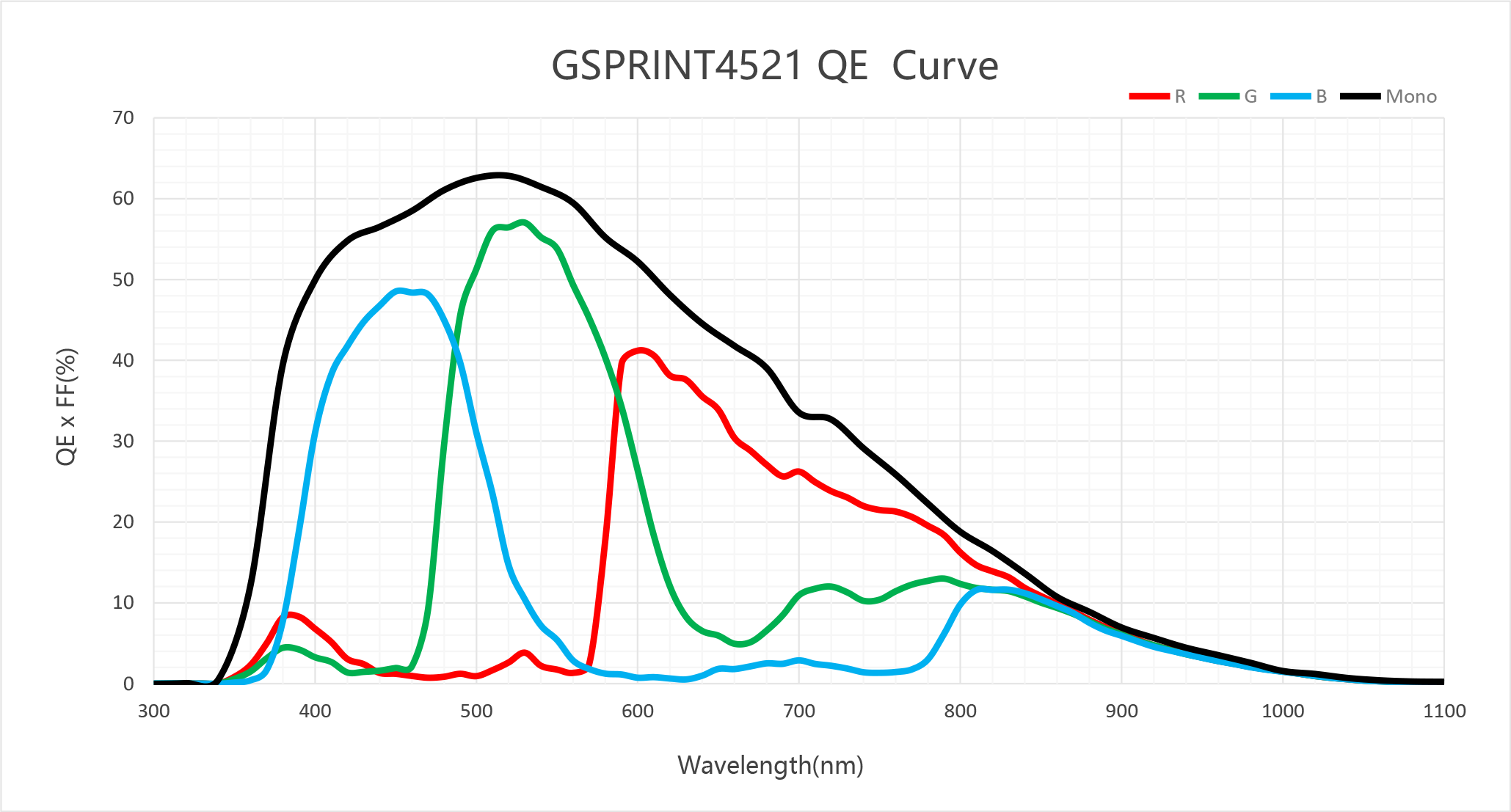

  • QE Curve
GSPRINT4521
GSPRINT4521
Specifications

  • Resolution

    21 MP

    Nr of Active Pixels

    5120 (H) x 4096 (V)

  • Optical format

    1.84" (APS-C)

    Pixel size

    4.5 μm x 4.5μm

  • photosensitive area

    23.04 mm x 18.43 mm

    Shutter type

    Global shutter

  • Peak QE

    ＞63% @ 500 nm

    Full well capacity

    32 ke‾

  • Parasitic Light Sensitivity

    ＜-86 dB

    Temporal noise

    3.5 e‾

  • Angular response

    17°(80% response)

    Dark Current

    11.4 e‾/pixel/s @ 50℃

  • Max. SNR

    45 dB

    Dynamic Range

    68 dB @ 12 bit

  • Max Frame rate

    1000 fps @ 8 bit 500 fps @ 10-bit 250 (975) fps @ 12-bit

    ADC

    8/10/12 bit

  • Output format

    160 ch sub-LVDS

    Channel multiplexing

    160/156/152/…/4 (any multiple of 4)

  • Max. Data rate

    192 Gbps

    Chroma

    Mono,RGB Color

  • Power consumption

    6 W

    Supply voltage

    3.3V (analog), 1.8V (I/O), 1.2V (digital)

  • Package

    454 pins μPGA (42.0 mm x 42.0 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GSPRINT4521-AVM-NUT-BU1
    Grade 1 - Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps @ 12-bit 56 channels & 500 fps @ 10-bit 96 channels - GSPRINT4521-AM
  • GSPRINT4521-AVM-HUT-BU1
    Grade 1 - Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000fps @ 8-bit 160 channels, 500 fps @ 10-bit 96 channels, 250 fps @ 12-bit 56 channel - GSPRINT4521-AM H
  • GSPRINT4521-AVC-NUT-BU1
    Grade 1 - Color, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps @ 12-bit 56 channels & 500 fps @ 10-bit 96 channels - GSPRINT4521-AC
  • GSPRINT4521-AVM-NUT-BU2
    Grade 2 - Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps @ 12-bit 56 channels & 500 fps @ 10-bit 96 channels - GSPRINT4521-AM
  • GSPRINT4521-AVM-HUT-BU2
    Grade 2 - Monochrome, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000fps @ 8-bit 160 channels, 500 fps @ 10-bit 96 channels, 250 fps @ 12-bit 56 channel - GSPRINT4521-AM H
  • GSPRINT4521-AVC-NUT-BU2
    Grade 2 - Color, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps @ 12-bit 56 channels & 500 fps @ 10-bit 96 channels - GSPRINT4521-AC
  • GSPRINT4521-AVC-HUT-BU1
    Grade 1 - Color, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000fps @ 8-bit 160 channels, 500 fps @ 10-bit 96 channels, 250 fps @ 12-bit 56 channel - GSPRINT4521-AC H
  • GSPRINT4521-AVM-NUT-BR2
    Grade 2 - Monochrome, with microlens, 454-pins uPGA package, removable dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps @ 12-bit 56 channels& 500 fps @ 10-bit 96 channels - GSPRINT4521-AM-R
  • GSPRINT4521-AVC-HUT-BU2
    Grade 2 - Color, with microlens, 454-pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000fps @ 8-bit 160 channels, 500 fps @ 10-bit 96 channels, 250 fps @ 12-bit 56 channel - GSPRINT4521-AC H
