GMAX3413
12.7MP 3.4 μm 4/3" GLOBAL SHUTTER CMOS IMAGE SENSOR
GMAX3413 12.7 MP resolution into a 4/3" image format in a wide aspect ratio offering an optimal coverage of the field of view of interest in the intended applications such as Intelligent Traffic System (ITS) and logistics and parcel sorting. Like other GMAX products, the advanced low noise global shutter technology and generous pixel achieves a full well capacity of 8.6 ke¯ and noise of 2.3 e¯ which delivers more than 71.4 dB linear dynamic range. Gpixel’s Red Fox technology is employed to deliver a NIR-enhanced QE of 30% at 850 nm for excellent performance in intelligent traffic systems. GMAX3413 is configurable through SPI or I2C and supports on-chip color offset calibration, LED flicker mitigation, multiple region HDR and OTP functions. GMAX3413 is housed in a 163-pin ceramic LGA package with outer dimensions of 32.7 mm x 17.9 mm and an LGA pad pattern optimized for reliable solder connections.
  • Key features and Benefits

    Low noise, large size global shutter pixel provided optimal SNR

    Wide aspect ratio

    LED flicker mitigation

    Multiple region HDR

    Vertical and horizontal ROI

    Vertical and horizontal image flipping

    Excellent PLS and angular response

    On-chip color offset calibration
  • Package Drawing

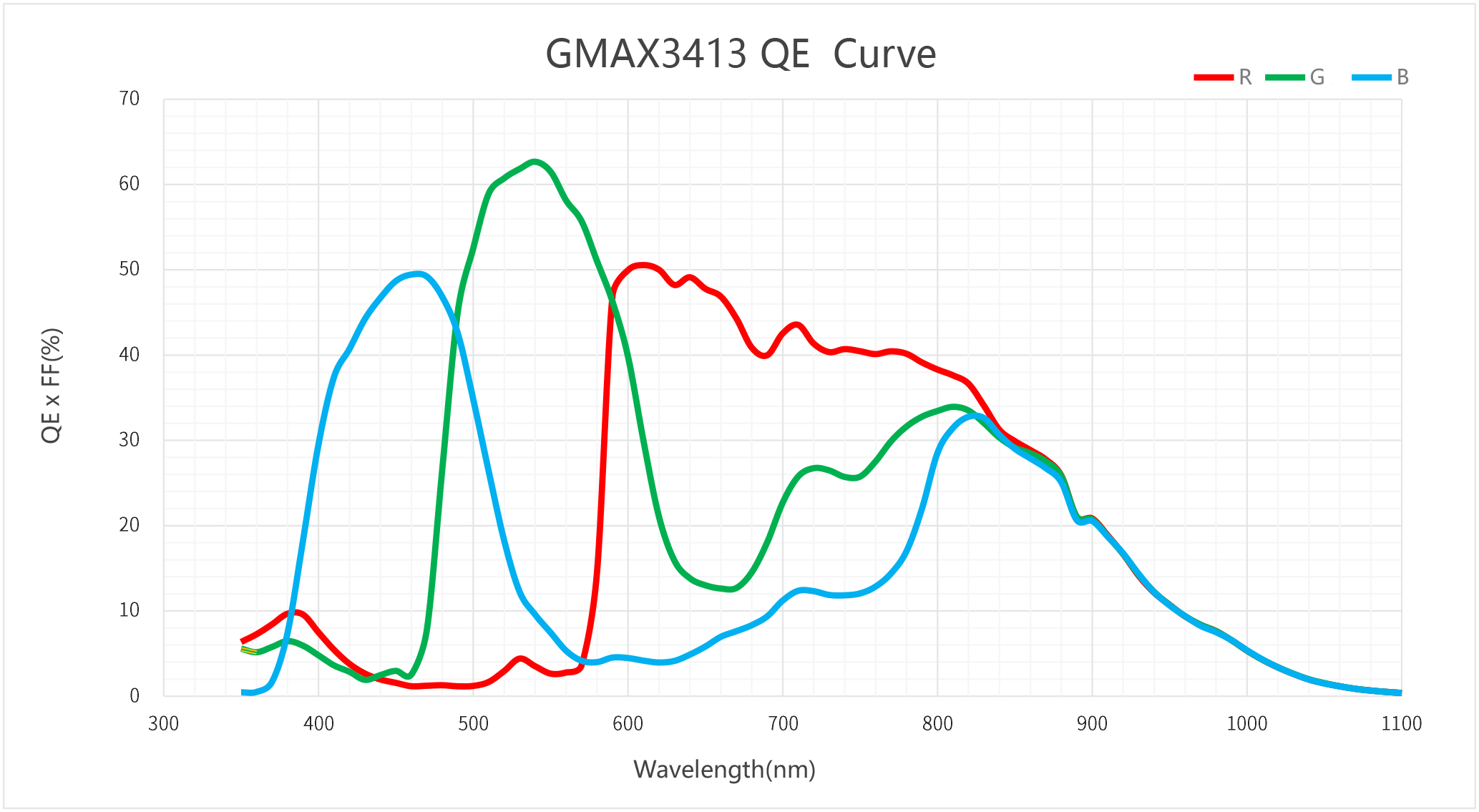

  • QE Curve
GMAX3413
GMAX3413
Specifications

  • Resolution

    12.7 MP

    Nr of Active Pixels

    5900 (H) x 2160 (V)

  • Optical format

    4/3″

    Pixel size

    3.4 μm x 3.4 μm

  • photosensitive area

    20.1 mm x 7.3 mm

    Shutter type

    Global shutter

  • Peak QE

    62.7% @ 540 nm

    Full well capacity

    8.6 ke‾

  • Parasitic Light Sensitivity

    < -92.0 dB

    Temporal noise

    2.1 e‾

  • Angular response

    > 15 (80% response)

    Dark Current

    81 e‾/pixel/s @ 35℃

  • Max. SNR

    39.3 dB

    Dynamic Range

    71.4 dB

  • Max Frame rate

    32 fps

    ADC

    12 bit

  • Output format

    8 ch sub-LVDS

    Channel multiplexing

    8/4

  • Max. Data rate

    7.68 Gbps

    Chroma

    Mono (NIR enhanced),RGB Color

  • Power consumption

    ＜1.2 W

    Supply voltage

    3.3V/3.6V (analog), 1.8V-3.3V (IO), 1.3V (digital)

  • Package

    163 pins LGA (32.7 mm x 17.9 mm)

    Availability

    Demo grade samples & Engineering Samples (ES)

Product Number
  • GMAX3413-AVC-NLT-BUD
    Bayer RGB, with microlens, ceramic 163 pinsLGA, Sealed D 263® T eco glass with AR coating, 32fps@ 12bit,Demo Grade.
  • GMAX3413-AVC-NLT-BUE
    Bayer RGB, with microlens, ceramic 163 pins LGA, Sealed D 263® T eco glass with AR coating, 32fps@ 12bit,ES Grade.
Download
Product Flyer
Datasheet
Rohs & Reach
Application
Automation & Inspection
Learn more
Intelligent Transport Systems
Learn more
