GCINE3243
43MP 3.2μm ROLLING SHUTTER CMOS IMAGE SENSOR
GCINE3243 is a 43MP 26.2 x 16.7 mm² sized APS-style image sensor with a 3.2 μm² BSI pixel size designed specifically for the demands of high-end video imaging. With a resolution of 8192 x 5232 pixels and highly configurable read out, 8K video at 60 fps or binned 4K video at 120 fps is supported, all at an impressive bit depth of up to 14 bits per pixel. Readout of the image data occurs over 32 sub LVDS channels @ 1.05 Gbps/channel. The stacking technology used in the GCINE3243 sensor enables excellent optical performance and readout speeds. Sensor also support a variety of operation modes tailored for specific applications. A dedicated Digital Still Camera (DSC) mode is supported, improving the readout noise and offering global reset shutter control. Additional HDR features, like dual gain readout, on-chip digital compression and multi-slope pixel response are all available.
  • Key features and Benefits

    Stacked BSI architecture

    High Full Well Charge

    High Dynamic Range

    Low noise

    Multi-slope HDR

    Dual Gain HDR

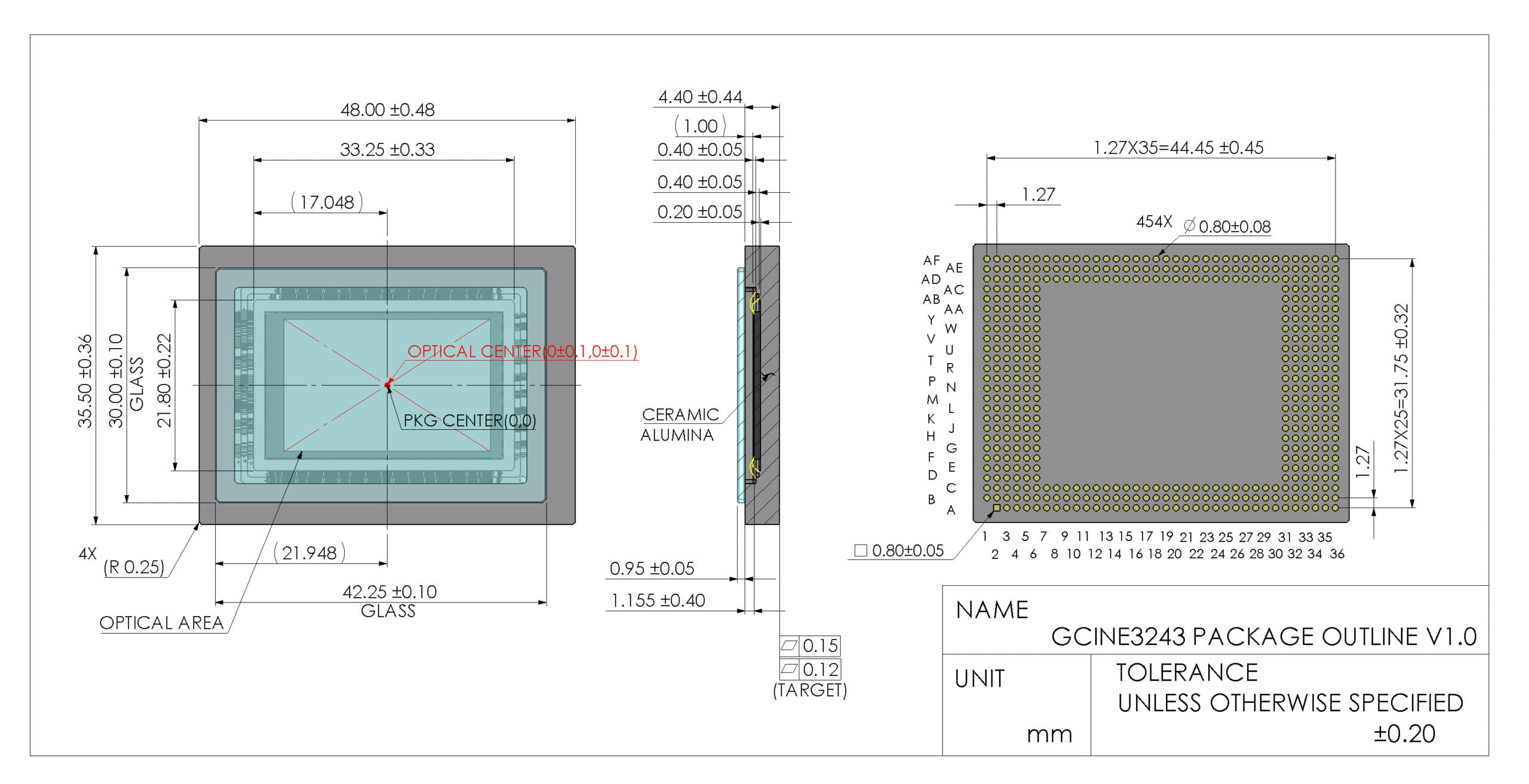

  • Package Drawing
  • Block Diagram
GCINE3243
GCINE3243
Specifications

  • Resolution

    43 MP

    Nr of Active Pixels

    8192 (H) x 5232(V)

  • Optical format

    APS-C

    Pixel size

    3.2 μm x 3.2 μm

  • photosensitive area

    26.2 mm x 16.7 mm

    Shutter type

    Rolling Shutter

  • Peak QE

    80% @ 520nm

    Full well capacity

    96ke‾ @ Multi-exposure Mode

  • Parasitic Light Sensitivity

    -

    Temporal noise

    2.5 e‾@ DSC High Gain Mode

  • Max. SNR

    50 dB

    Dynamic Range

    81dB @ 8K HDR mode

  • Max Frame rate

    60fps @ 8K, 120fps @ 4K

    Angular response

    -

  • Dark Current

    -

    ADC

    14 bit

  • Output format

    32 ch sub-LVDS

    Channel multiplexing

    32/16/8 channels

  • Max. Data rate

    33.6 Gbps

    Chroma

    RGB

  • Power consumption

    2W – 4W

    Supply voltage

    3.3V / 1.8V / 1.25V -2.2V / 4.5V

  • Package

    455 pins LGA (48.0 mm x 35.5 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GCINE3243-AVC-HLT-BUD
    RGB Bayer, microlens, ceramic 455 pins LGA,Sealed D263® T glass with AR coating, Multi-EXP based mode supported, Demo Grade
  • GCINE3243-AVC-NLT-BUD
    RGB Bayer, microlens, ceramic 455 pins LGA,Sealed D263® T glass with AR coating, 1EXP based mode supported, Demo Grade
  • GCINE3243-AVC-HLT-BUE
    RGB Bayer, microlens, ceramic 455 pins LGA,Sealed D263® T glass with AR coating, Multi-EXP based mode supported, ES
  • GCINE3243-AVC-NLT-BUE
    RGB Bayer, microlens, ceramic 455 pins LGA,Sealed D263® T glass with AR coating, 1EXP based mode supported, ES
