Automation & Inspection

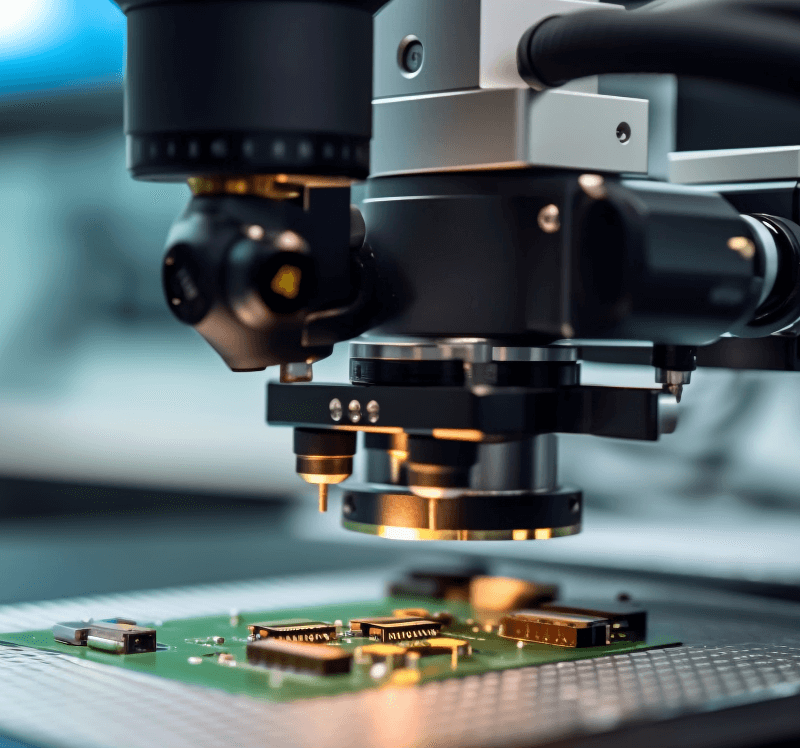

When it comes to automation and inspection, vision-based systems are increasingly the go-to system. From computer vision in robots to high-speed automated optical inspection and scanning barcodes there are a wide range of camera systems each with their own specific resolution and frame rate requirements. A high-resolution sensor enables more accurate inspection work while high frame rates improve throughput and efficiency. Gpixel's industrial portfolio offers a wide range of sensors to meet your exacting requirements.
Flat Panel Display Inspection Semiconductor Inspection PCB and AOI Inspection Food and packaging Inspection Print Inspection Railway Inspection Solar Panel Inspection
Recommended Products
GLT5009BSI
GLT5009BSI is a Backside illuminated (BSI), Time delay integration (TDI), charge domain CMOS image sensor with 5 μm pixels and 9k resolutions. The sensor has two photosensitive bands, 256 stages and 32 stages respectively, enabling a high dynamic range (HDR) imaging mode. GLT5009BSI is designed to meet the needs of high speed and low light applications by maximizing sensitivity from the ultraviolet to the near infrared with state-of-art BSI scientific CMOS technology and up to 256 true TDI stages. It supports line rates up to 608 kHz using 10-bit single band mode and 300 kHz using 12-bit single band mode. The sensor also supports 10bit dual band HDR mode, employing both 256 stages and 32 stages for HDR image construction. The sensor integrates several features to ease camera integration including an internal sequencer, channel multiplexing, and selectable 2 scan directions. GLT5009BSI is assembled in a 269-pin μPGA ceramic package. GLT5009BSI comes in 2 spectrum variants: a standard variant with a broad spectral response and a dedicated DUV version.
GL1402
GL1402 is available in color and mono variants. GL1402 color features red, green, and blue rows with 14 µm gaps between each row to minimize color crosstalk. Readout speed is 27 kHz. GL1402 mono features a three row monochrome option with a readout speed of 27 kHz, or a one row monochrome option with a readout speed of 81 kHz. GL1402 has a 28.7 ke‾ full well capacity and a dynamic range of 70 dB. The sensor has a 12 bit ADC and 4 sLVDS channels, with the option to run slower at 2 or 1 sLVDS channel. GL1402 power consumption is less than 420 mW at maximum readout speed. The sensor is assembled into a 54 pin CLCC package with outer dimensions 38 x 7.4 mm.
GL3516
GL3516 is a 16384 x 2 resolution, 3.5 μm square pixel, line scan CMOS image sensor that supports maximum 120 kHz line rate in single line mode and 60 kHz line rate in dual line mode. GL3516 is pin and footprint compatible with Gpixel’s existing GL7008 8K line scan sensor its features makes is an ideal solution for industrial inspection applications benefitting from high-speed scanning and 16K resolution, including high end inspection production inspections for lithium battery testing, flat panel displays, PCBs, labels, and railway inspection. GL3516 is offered in both color and monochrome versions. The monochrome sensor support single and dual line modes. The color sensor support dual line mode.GL3516 is assembled in a COB package with WCu heat sink for optimal heat dissipation and with connector for easy integration.
GMAX4002
GMAX4002 is a 1/1.7" optical format image sensor with 2048 x 1200 effective pixels. Featuring an advanced charge domain global shutter pixel, GMAX4002 operates with true CDS for low noise and high dynamic range. Gpixel’s Red Fox technology is employed to deliver enhanced QE for NIR applications. GMAX4002 is configurable through I2C. It integrates both Sub-LVDS and MIPI interfaces, for frame rates of 344 fps and 166 fps respectively. GMAX4002 supports 2×2 on-chip binning to achieve higher sensitivity and faster frame rate. It includes an on-chip sequencer and OTP functions.Assembled with 74-pin CLCC package, GMAX4002 enables a cost-effective camera solution, easy integration and high-reliability mass production.
GMAX3809
GMAX3809 fits 4096(H) x 2160(V) (8.8 MP) resolution into a 1.1" image format with low noise, charge domain Global Shutter pixels running at 65 fps at 12 bit ADC resolution per pixel. GMAX3809’s 3.8 μm pixel achieves a full well capacity of 10.5 ke¯ and noise of 3.3 e¯, delivering over 70 dB linear dynamic range. Similar to other GMAX products, the advanced pixel technology brings a Parasitic Light Sensitivity of -92 dB and excellent angular response (>15° @ 80% response). Gpixel’s Red Fox technology is employed to deliver a NIR-enhanced QE of 30% at 850 nm for excellent performance in intelligent traffic systems. GMAX3809 is configurable through SPI or I2C and supports on-chip color offset calibration, LED flicker mitigation, multiple region HDR and OTP functions. GMAX3809 is housed in a 163-pin ceramic LGA package with outer dimensions of 27.1 mm x 17.9 mm and an LGA pad pattern optimized for reliable solder connections. The sensor assembly includes a double side AR coated cover glass lid.
GL7008
GL7008 is a global shutter line scan image sensor with 7 μm square pixel and 8192 horizontal pixels resolutions. The sensor’s 12-bit ADC transmits data over 25 pairs of Sub-LVDS at line rate up to 200 kHz. GL7008 is offered in both color and monochrome versions. The monochrome sensor supports single and dual line modes with optimal sensitivity. The color sensor supports 3-line true color and 4-line RGBW multispectral output. The exposure time of each line can be individually adjusted by an external trigger. The line spacing of the sensor is equivalent to the pixel size to satisfy the requirements of line frequency matching. At full speed, the power consumption of GL7008 is around 4.4 W. The sensor adopts a COB package with WCu heat sink for optimal heat dissipation during high-speed scanning.
GMAX32152
GMAX32152 is an ultra-high resolution global shutter CMOS image sensor in medium format. Using a state-of-the-art charge domain pixel architecture, this sensor delivers an attractive combination of high frame rate and high dynamic range. A native 12-bit performance pixel achieves 67.3 dB dynamic range, combined with a high speed sub-LVDS delivering 16 fps. Pixel data is read out over serial differential pairs, with source synchronous clock and control channel. Its medium format image area and wide aspect ratio make it well suited for aerial mapping and surveying applications and cultural heritage digitization.
GL3504
GL3504 is a line scan image sensor suitable for small format camera integration with C mount lens, the sensor contains two lines with 3.5um pixel and four lines with 7um pixel. GL3504 could run up to 172kHz with 7um pixel line and 84kHz with 3.5um pixel line at 12bit output with single line readout. GL3504 uses on-chip PLL and all required timing is generated by the on-chip sequencer, reducing the amount of external components needed. Output channel multiplexing enables flexibility in FPGA selection. GL3504 enables a cost effective camera solution for demanding inspection applications. GL3504 is assembled with a compact 58-pin CLCC package for fast heat dissipation and high robustness. Both mono and color variances are offered. For color variance, 7um lines are with RGB true color coating and 3.5um lines are with Bayer pattern.
GTOF0503
GTOF0503 is a VGA sensor featuring a 5 μm 3-tap state-of-the-art iTof pixel incorporating a pixel array with a resolution of 640 x 480 pixels. The BSI technology provides excellent sensitivity at NIR wavelengths. In addition, the wafer stacking enables very high modulation frequencies of up to up to 3ns pulse width and 30 depth frames per second which results in industry-leading depth accuracy at short, mid and long-range distances even in challenging ambient light conditions by using pulse modulation iToF technique. Advanced features such as multiple acquisition modes, depth with single and dual-frequency, low-power standby modes and an industry standard MIPI CSI-2 interface, allow very versatile and flexible operation.
GMAX32103
GMAX32103 is a 103 Megapixel (11276 x 9200) medium-sized (46.6mm) ultra-high resolution, global shutter image sensor designed with the latest 3.2 μm charge domain global shutter pixel. It achieves more than 9k e- FWC at low gain and 2.8 e‾ read noise at high gain separately with 66.4 dB intra-scene dynamic range. Using advanced 65nm CIS process and light pipe technology, sensor achieves 66.9% peak QE @ 500nm and more than 1/15,000 shutter efficiency. The full speed version sensor consists of 52 pairs sub-LVDS channels running at 960 Mbps which delivers a 24 fps in 12-bit operation at full resolution. The unique features make it an ideal solution for demanding imaging high end applications such as high-resolution inspection, aerial imaging and many more.
GL0402
GL0402 is a 4096 x 2 resolution, 7 μm square pixel, global shutter linear image sensor that supports maximum 200 kHz line rate in single line mode and 100 kHz line rate in dual line mode. GL0402 offers low read noise of less than 5.2 e¯and 10 ke¯ FWC, leads to 65.6 dB intra-scene dynamic range. GL0402 uses external clock and all required timing are generated by on chip sequencer, reducing the amount of external component needed; output channel multiplexing function enables flexibility on FPGA choice, suitable for cost-effective camera solution for demanding on line inspection applications. GL0402 is assembled with compact 76 pins CLCC package for fast heat dissipation and high robustness.
GMAX2518
GMAX2518 has an optical format of 1” and features 18 MegaPixel (4508 × 4096) Global Shutter pixels based on the proven GMAX 2.5 μm architecture, operating with true correlated double sampling (CDS) for low read noise and high dynamic range. In addition, the dual light pipe technology provides excellent PLS and angular response, with 32pair of sub-LVDS each run at 960MHz, the sensor output with maximum 30.72 Gbps data, achieving maximum frame rate of 150 fps in 10-bit output and 64 fps in 12-bit output. The sensor integrates an on-chip sequencer, programmable through SPI, and is designed to be fully pin compatible with GMAX0505, GMAX2509 and GMAX2505 to significantly shorten time to market for camera manufactures. GMAX2518 will be assembled in a 19.5 x 20.8 mm 226-pins LGA ceramic package, which is mechanically compatible to fit into an industry standard 29 mm x 29 mm camera housing.
GL0816
Designed for high speed industrial inspection, GL0816 is a line scan CMOS image sensor which consists of 16 lines of 8322 pixels with 5 μm pixel size and 5 μm inter-line space. It supports dual line, 4-line readout and max 8-line with 2-stage on-chip TDI. The maximum line rate of GL0816 is 200 kHz @ 11bit dual-line mode and 100 kHz @ 10bit 4-line mode. GL0816 is manufactured with Mono or RGBW 4-band CFA which is customized with extremely low color crosstalk to enable accurate image reproduction.
GMAX2505
Featured with world smallest charge domain global shutter pixel, GMAX2505 is the new member of GMAX series C mount line up after GMAX2505. It offers 5MP (2600 x 2160) resolution in 1/2’’ optical format, operates with true CDS for low noise and high dynamic range. In addition, it has excellent PLS and angular response thanks to the light pipe technology. GMAX2505 supports 10 bit and 12 bit output and is offered in two speed variances matching industrial standard camera interface speeds. The full speed version consists of 20 sub-LVDS data output channels each running at maximum 960MHz, offering full resolution frame rate of 290 fps at 10 bit output and a total data throughput of 19.2 Gbps. The high frame rate increases system throughput for industrial inline inspections and enables precise operation at high speed.
GMAX2509
Featured with world smallest charge domain global shutter pixel, GMAX2509 is the new member of GMAX series C mount line up after GMAX0505. It offers 4K(4200 x 2160) resolution in 2/3’’ optical format, operates with true CDS for low noise and high dynamic range. In addition, it has excellent PLS and angular response thanks to the light pipe technology. GMAX2509 supports 10 bit and 12 bit output and is offered in two speed variances matching industrial standard camera interface speeds. The full speed version consists of 32 sub-LVDS data output channels and each runs at maximum 960MHz, offering frame rate of 290 fps at 10 bit. The global shutter and high frame rate limits image blur for 4K video applications and intelligent traffic system and increases throughput for industrial inline inspections.
GMAX0505
Designed with small 2.5 μm charge domain global shutter pixel, GMAX0505 offers the high resolution of 25 Megapixels within 1.1” optical format. Despite its small pixel pitch, GMAX0505 achieves more than 65% peak QE and excellent angular response thanks to the latest light pipe technology. In addition, with optimized tungsten shielding structure on top of the pixel’s memory node, the sensor’s shutter efficiency is more than 80dB. GMAX0505 supports 10bit and 12bit output, and the frame rate is up to 150fps. The sensor is assembled in a ceramic Land Grid Array (LGA) package, allowing easy integration and mass production. The superior performance and the cost-effective packaging of GMAX0505 offer camera manufactures great advantage over various applications.
GMAX0806
The 43MP GMAX0806 delivers high resolution global shutter images at 17 fps in a cost-effective APS-C optical format, making it ideal for a broad range of inspection applications. In standard imaging mode the sensor provides 66 dB of dynamic range. With its low 1.6 e- read noise and low, highly uniform dark current, the GMAX0806 is also well matched for low light imaging applications like DNA sequencing. At full resolution and full speed, the power dissipated is less than 1 W. 12bit data is delivered via 18 pairs of sLVDS channels. The sensor is assembled in a 183-pin micro-PGA package for excellent reliability and heat dissipation and is available in both monochrome and Bayer versions.
GMAX4651
GMAX4651 is a 51 Megapixel (8424 x 6032) full frame (35mm) global shutter image sensor designed using the latest 4.6 μm charge domain global shutter pixel. Using the advanced 65nm CIS process, it provides 18 ke- FWC, 7.6 e‾ median dark noise and more than 65.5 dB intra-scene dynamic range. With the light pipe technology, sensor achieves >67% QE @510nm and 1/40,000 shutter efficiency. GMAX4651 delivers 30fps in single gain operation mode running at 864Mbps. GMAX4651 is assembled with 238 pins PGA ceramic package and the optical center is fully aligned with the package mechanical center. The unique features make it an ideal solution for demanding imaging applications like machine vision, 8K broadcasting and high-end industrial inspections.
GMAX3265
Featured with the latest generation 3.2μm charge-domain global shutter pixel and 65MP (9344x7000) resolution, GMAX3265 is the leading-edge image sensor with 37.4mm diagonal for high resolution machine vision and industrial inspection applications. This new generation pixel operates with true correlated double sampling (CDS), allowing low read noise and high dynamic range. In addition, the dual light pipe technology provides excellent PLS and angular response. GMAX3265 is offered in high speed version and normal speed version. High speed version delivers 71fps at 10 bit output, normal speed version delivers 31fps at 12 bit output. The superior resolution and frame rate significantly increases the system throughput for industrial inspection applications, such as semiconductor, PCB, AOI or display inspection. The sensor integrates an on-chip sequencer, programmable through SPI, shortening time-to-market for camera manufactures. GMAX3265 is assembled with 239-pin micro-PGA ceramic package for reliability and good heat dissipation and a double-sided ARC D263®T glass lid.
