GMAX Series
GMAX is Gpixel's global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Contact us
Global Shutter
1/1.7"-Medium
2.4MP-152MP
High Speed
GMAX4651
51MP 4.6 μm 2.7" GLOBAL SHUTTER IMAGE SENSOR
The 51MP GMAX4651 delivers 8k video at 30 fps in a 35 mm optical format, making it ideal for applications in broadcast imaging, surveillance, aerial mapping and biometrics. It’s large 4.6 μm pixel easily provides 65.5 dB of dynamic range, excellent sensitivity with a peak QE of 67%, and exceptional PLS at <-92 dB. At full resolution and full speed, the power dissipated is less than 2.8 W. 12bit data is delivered via 24 pairs of sLVDS channels, and channel multiplexing allows operation of the sensor through 14, 8, 6 or 4 channels. The sensor is assembled in a 238-pin PGA package for excellent reliability and heat dissipation. Available in both monochrome and Bayer versions, the GMAX4651 can provide excellent 8k video or high resolution stills for traditional and non-traditional video and photography applications.
  • Key features and Benefits

    High resolution in standard optical format

    Large, high sensitive pixels

    Low noise global shutter
  • Package Drawing

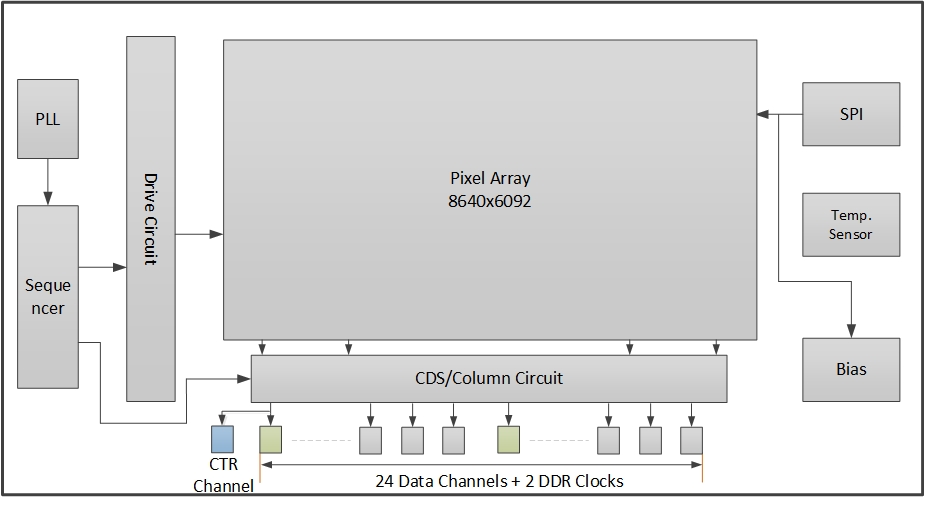

  • Block Diagram

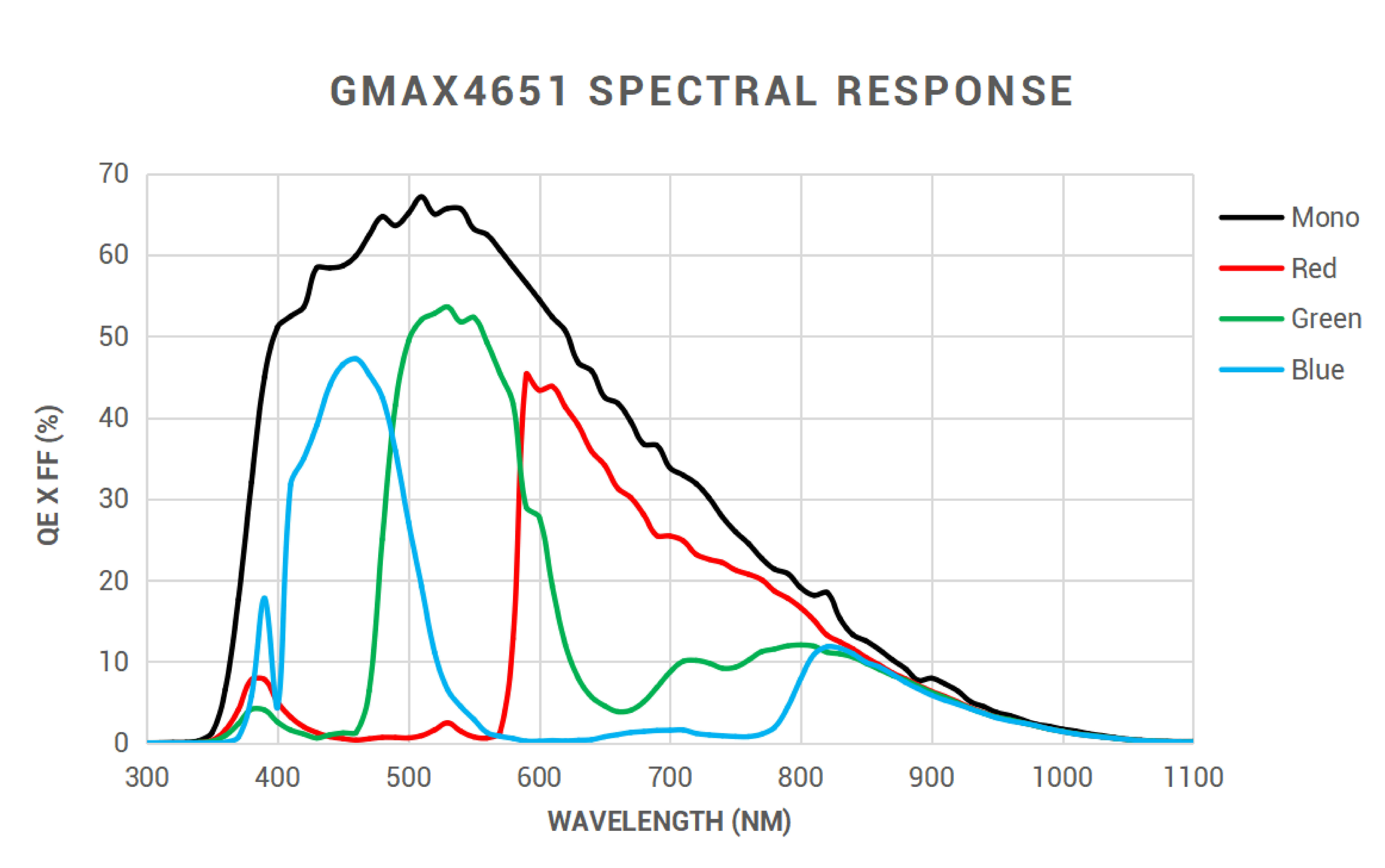

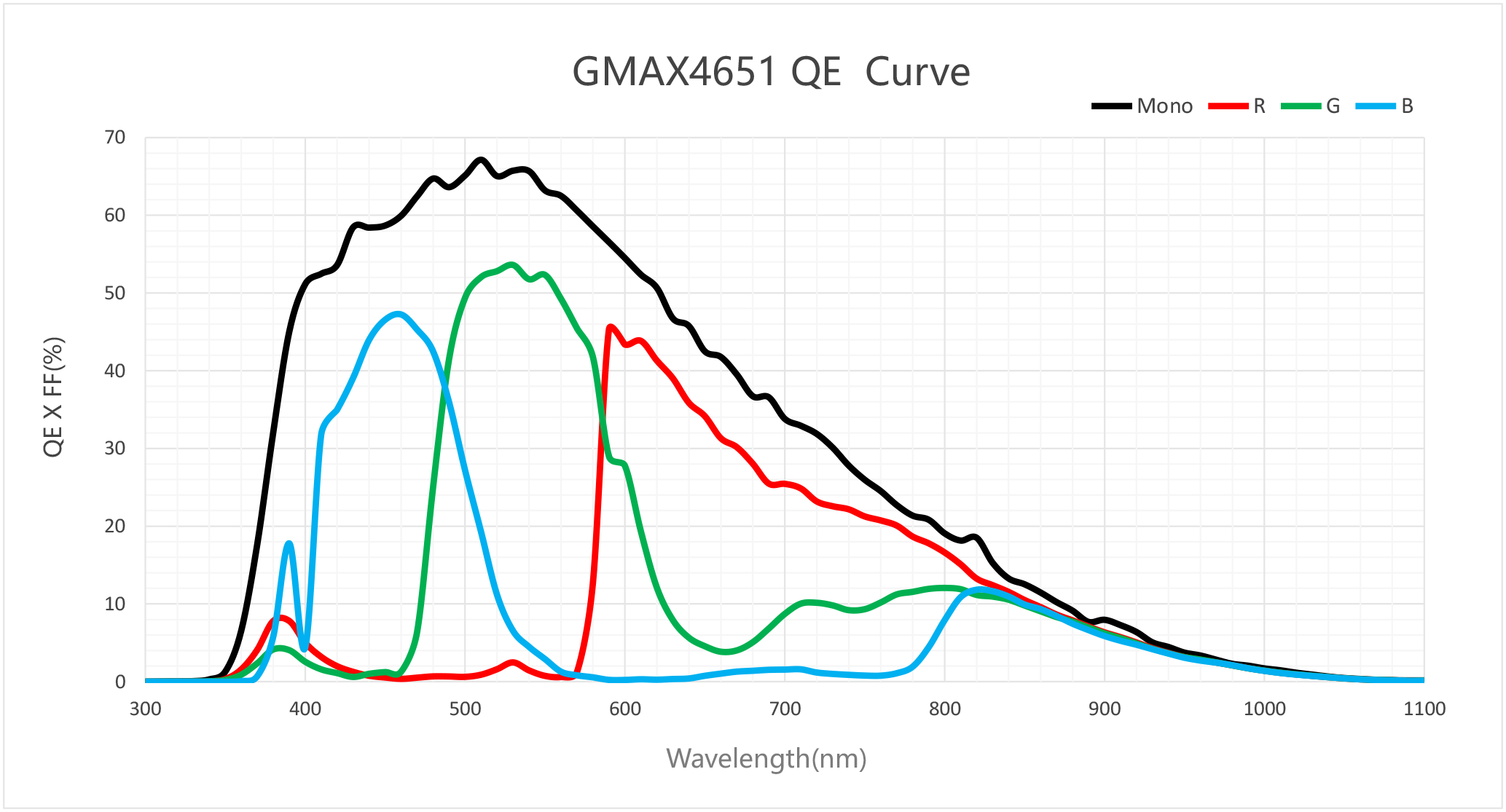

  • QE Curve
GMAX4651
GMAX4651
Specifications

  • Resolution

    50.8 MP

    Nr of Active Pixels

    8424 (H) x 6032 (V)

  • Optical format

    35mm Full Frame

    Pixel size

    4.6 μm x 4.6 μm

  • photosensitive area

    38.8 mm x 27.8 mm

    Shutter type

    Global shutter

  • Peak QE

    67.1% @ 510 nm

    Full well capacity

    18 ke‾

  • Parasitic Light Sensitivity

    -92 dB

    Temporal noise

    7.6 e‾

  • Angular response

    > 15 (80% response)

    Dark Current

    6 e‾/pixel/s @ 45℃

  • Max. SNR

    42.5 dB

    Dynamic Range

    65.5 dB

  • Max Frame rate

    30 fps @ 12 bit

    ADC

    12 bit

  • Output format

    24 ch sub-LVDS

    Channel multiplexing

    24/14/8/6/4

  • Max. Data rate

    20.74 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    <2.8 W

    Supply voltage

    3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)

  • Package

    238 pins PGA (58.6 mm x 42.0 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX4651-BVM-NPT-BU1
    Monochrome, with microlens, ceramic 238 pins PGA, Sealed D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 1
  • GMAX4651-BVC-NPT-BU1
    Bayer color, with microlens, ceramic 238 pins PGA, Sealed D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 1
  • EVA-4651-NF12
    Evaluation board Operation mode: 12 bit mode Lens holder: F-mount Interface: USB 3.0
  • GMAX4651-BVM-NPT-BU2
    Monochrome, with microlens, ceramic 238 pins PGA, Sealed D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 2
  • GMAX4651-BVM-NPT-BR2
    Monochrome, with microlens, ceramic 238 pins PGA, Removable D 263® T eco glass with AR coating. 30 fps @ 12 bit 24 x LVDS, Grade 2
Download
Product Flyer
Datasheet
Application
Automation & Inspection
Learn more
Subscribe
You will instantly receive the latest information about this product's update.
Subscribe after registering your personal information
