GMAX3265
65 MP 3.2 μm 2.3" GLOBAL SHUTTER IMAGE SENSOR
The 65MP GMAX3265 is sized to fit comfortably behind a 35 mm lens, making it a cost-effective solution for applications ranging from high end surveillance to high resolution inspection. Using advanced processing technology the 3.2 μm global shutter pixel achieves 65% peak QE, excellent angular response, and a parasitic light sensitivity less than -83.5 dB. The sensor supports both 10bit operation for a maximum full-resolution frame rate of 71 fps, and 12bit operation for a dynamic range over 66 dB at 31 fps and <2.1W. Multiplexing of the 56 pairs of sub-LVDS channels allows for optimization between speed and dynamic range to suit the application. The sensor is available in both monochrome and Bayer versions to support use in a variety of applications including machine vision, QA inspection, surveillance, biometrics, document imaging and flat panel inspection.
  • Key features and Benefits

    High resolution in compact optical format

    Low noise global shutter

    High speed and good PLS
  • Package Drawing
  • Block Diagram

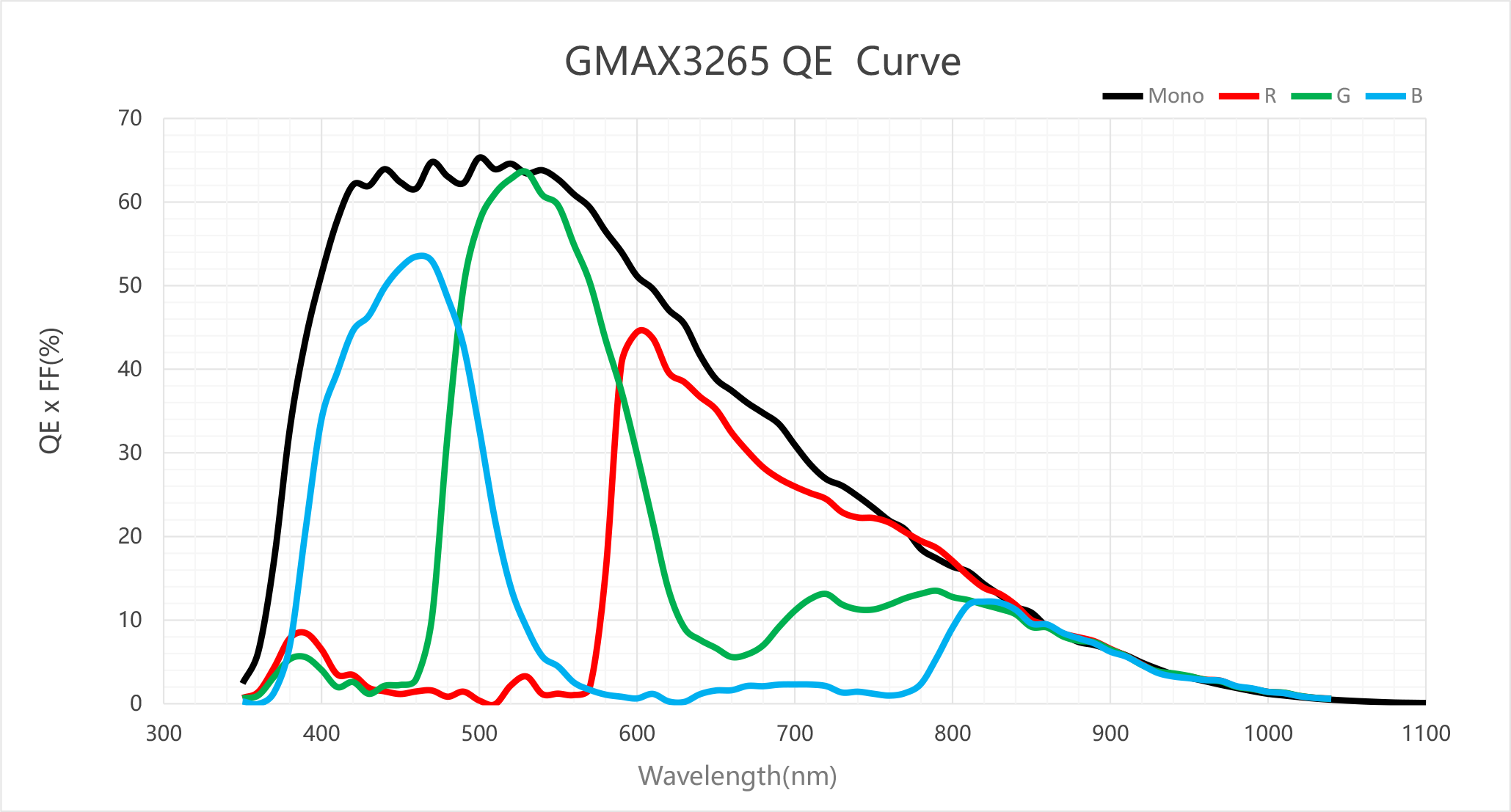

  • QE Curve
GMAX3265
GMAX3265
Specifications

  • Resolution

    65MP

    Nr of Active Pixels

    9344 (H) x 7000 (V)

  • Optical format

    2.3″

    Pixel size

    3.2 μm x 3.2 μm

  • photosensitive area

    29.9 mm x 22.4 mm

    Shutter type

    Global shutter

  • Peak QE

    65.3% @ 500 nm

    Full well capacity

    10.9 ke‾

  • Parasitic Light Sensitivity

    -83.5 dB

    Temporal noise

    1.9 e‾

  • Angular response

    > 15 (80% response)

    Dark Current

    5.3 e‾/pixel/s @ 40℃

  • Max. SNR

    40.3 dB

    Dynamic Range

    66.0 dB @12 bit, 62.3 dB @10 bit

  • Max Frame rate

    71 fps@10 bit

    ADC

    10/12 bit

  • Output format

    56 ch sub-LVDS

    Channel multiplexing

    56/28/14/8/7/4/2/1

  • Max. Data rate

    50.40 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    <2.1 W @ 12 bit、<2.3 W @ 10 bit

    Supply voltage

    3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)

  • Package

    239 pins uPGA (41.8 mm x 35.8 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX3265-BVM-HUT-BU1
    Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. High speed version, 71fps @ 10bit 56 x LVDS, Grade 1
  • GMAX3265-BVM-HUT-BU3
    Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. High speed version, 71fps @ 10bit 56 x LVDS, Grade 3
  • GMAX3265-BVM-NUT-BU2
    Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. Normal speed version, 31fps @ 12bit 28 x LVDS, Grade 2
  • GMAX3265-BVM-HUT-BU2
    Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. High speed version, 71fps @ 10bit 56 x LVDS, Grade 2
  • GMAX3265-BVM-NUT-BU1
    Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. Normal speed version, 31fps @ 12bit 28 x LVDS, Grade 1
  • GMAX3265-BVM-NUT-BU3
    Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. Normal speed version, 31fps @ 12bit 28 x LVDS, Grade 3
  • GMAX3265-BVC-HUT-BU1
    Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. High speed version, 71fps @ 10bit 56 x LVDS, Grade 1
  • GMAX3265-BVC-NUT-BU1
    Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. Normal speed version, 31fps @ 12bit 28 x LVDS, Grade 1
  • GMAX3265-BVM-HUT-BR2
    Monochrome, with microlens, ceramic 239 pins μPGA, Removable D 263® T eco glass with AR coating. High speed version, 71fps @ 10bit 56 x LVDS, Grade 2
  • GMAX3265-BVC-HUT-BU2
    Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. High speed version, 71fps @ 10bit 56 x LVDS, Grade 2
  • GMAX3265-BVC-NUT-BU2
    Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263® T eco glass with AR coating. Normal speed version, 31fps @ 12bit 28 x LVDS, Grade 2
  • GMAX3265-BVM-NUT-BR2
    Monochrome, with microlens, ceramic 239 pins μPGA, Removable D 263® T eco glass with AR coating. Normal speed version, 31fps @ 12bit 28 x LVDS, Grade 2
  • EVA-3265-HT10
    Evaluation board Operation mode: 10 bit mode; Lens holder: T-mount Interface: USB 3.0
  • EVA-3265-NT12
    Evaluation board Operation mode: 12 bit mode; Lens holder: T-mount Interface: USB 3.0
Download
Product Flyer
Datasheet
Appnote
Rohs & Reach
Reliability Report
PCN
