GL7004
4K 7μm RESOLUTION GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR
GL7004 is a 4096 x 4 resolution, 7 μm square pixel, global shutter linear image sensor that supports maximum 250 kHz line rate in single line mode and 76.9 kHz line rate in Quad line mode.
  • Key features and Benefits

    Individual exposure control for each color line

    External Trigger

    High Frame Rate

    Low Power Consumption

    Cost Efficient

  • Package Drawing

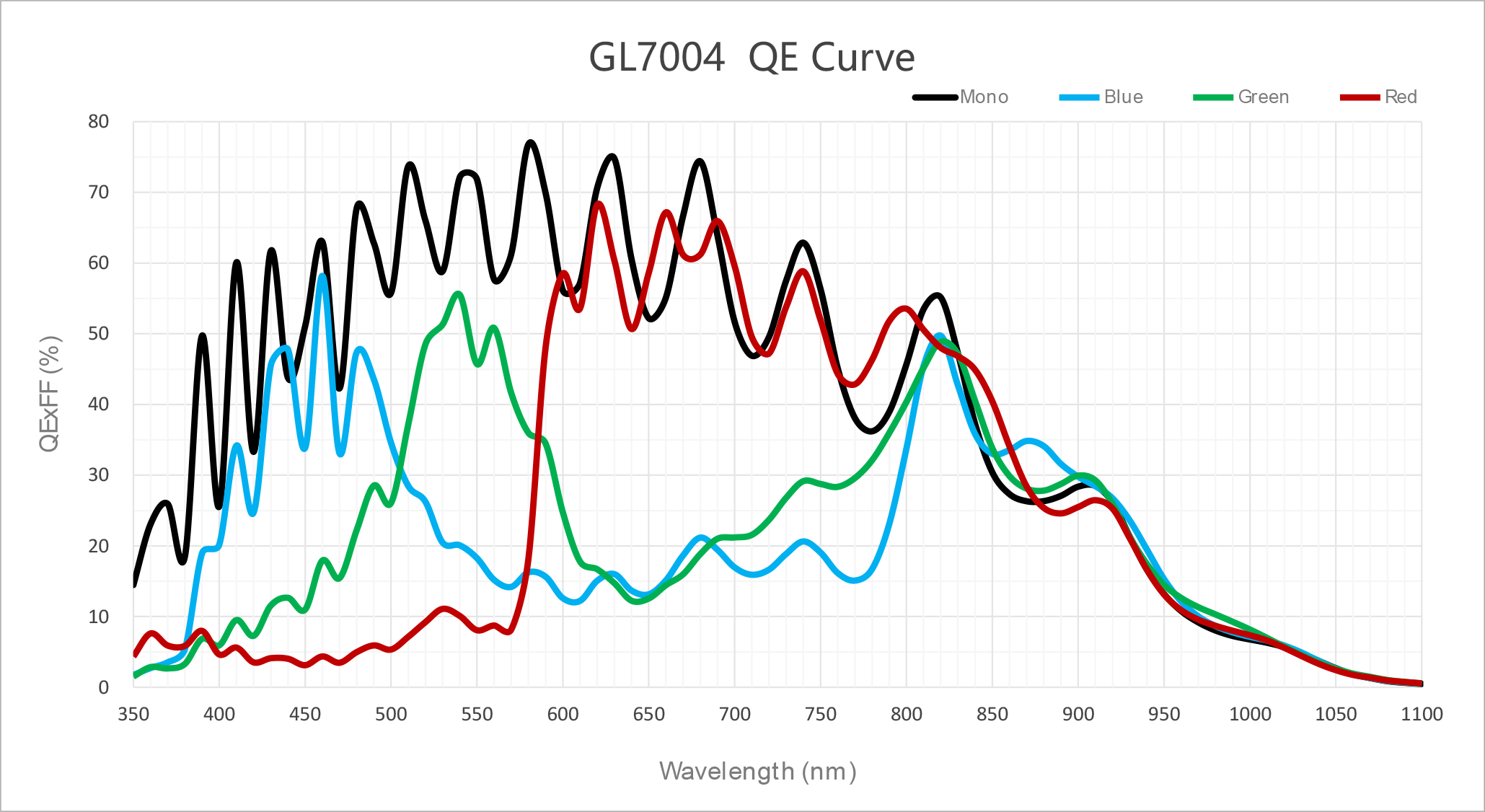

  • QE Curve
GL7004
GL7004
Specifications
  • Resolution

    4.0 K

    Nr of Active Pixels

    4096(H) x 4 (V)

  • Optical format

    1.8"

    Pixel size

    7 μm x 7 μm

  • Full well capacity

    10.5 ke‾

    Temporal noise

    8.8 e‾

  • Max Line rate

    250 kHz @ single-line,76.9 kHz @ quad-line

    Peak QE

    76.8% @ 580 nm

  • Shutter type

    Global shutter

    Angular response

    >20°(91% response)

  • Dynamic Range

    61.5 dB

    Photosensive area

    28.67 mm x 49 μm

  • Parasitic Light Sensitivity

    -

    Dark Current

    1.1 ke‾/s @ 44.7℃

  • Max. SNR

    40.2 dB

    ADC

    10 bit

  • Output format

    12 ch Sub-LVDS

    Channel multiplexing

    -

  • Max. Data rate

    14.4 Gbps

    Chroma

    Mono, RGB color

  • Power consumption

    1.05 W

    Supply voltage

    3.6 V (analog),1.5 V (digital),1.8 V-3.3 V (IO).

  • Package

    72-pins CLCC (38.0 mm x 7.4 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GL7004-BVM-NCN-AUD
    Mono, no microlens, ceramic 72 pins CLCC, sealed D263® T eco glass without AR coating
  • GL7004-CVC-NCN-AUD
    Color, no microlens, ceramic 72 pins CLCC, sealed D263® T eco glass without AR coating
