Resolution

1.3 MP

Nr of Active Pixels

1280 (H) x 1024 (V)

Optical format

1″

Pixel size

9.76 μm x 9.76 μm

photosensitive area

12.493 mm x 9.994 mm

Shutter type

Rolling Shutter

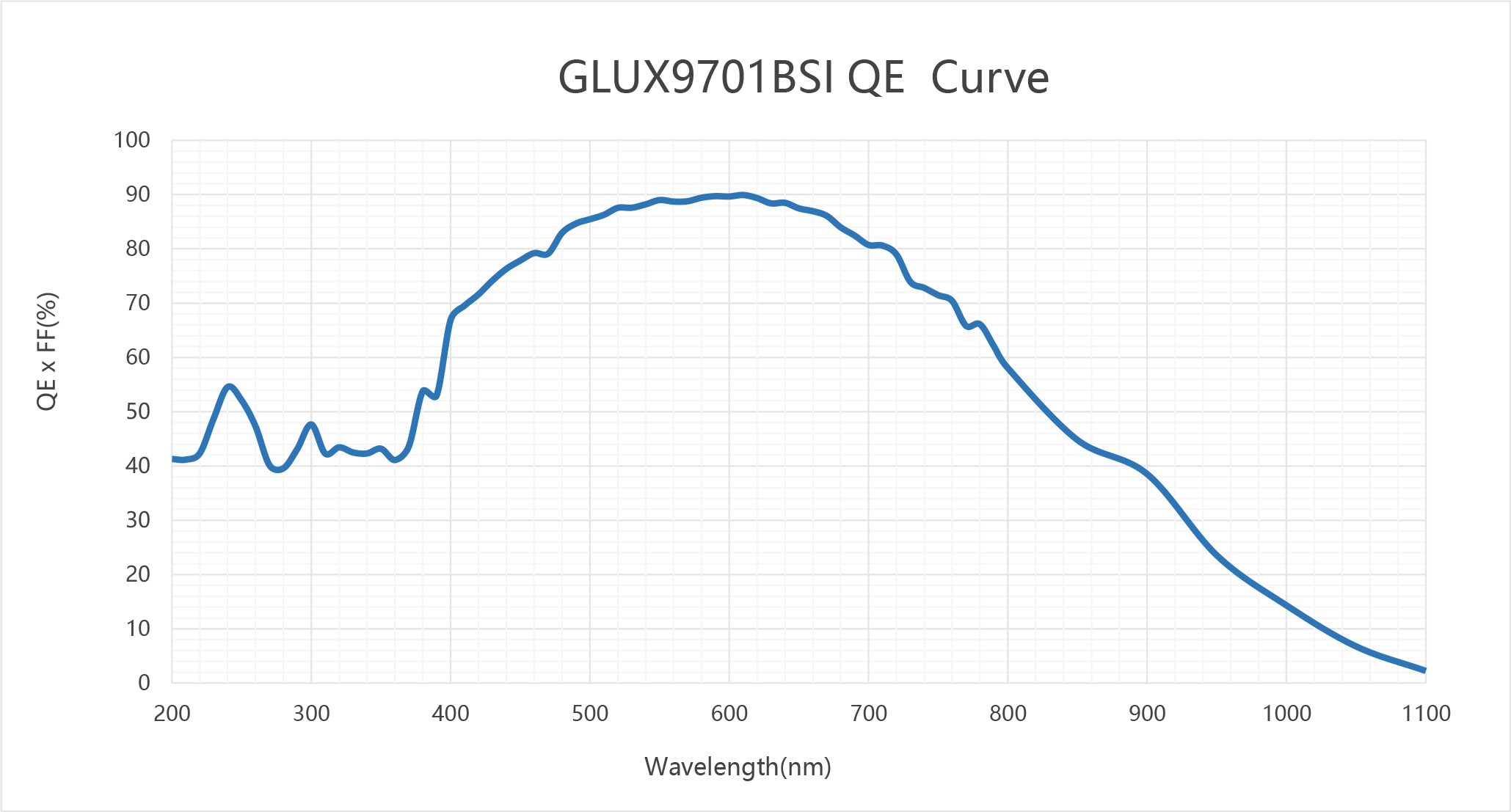

Peak QE

89% @ 610 nm

Full well capacity

48 ke‾

Parasitic Light Sensitivity

-

Temporal noise

0.85 e‾

Dynamic Range

89.5 dB@HDR

Max Frame rate

30 fps

Angular response

-

Dark Current

0.08 e‾/pixel/s @ -28°C

Max. SNR

46.8 dB

ADC

-

Output format

4 ch sub-LVDS、4 ch MIPI

Max. Data rate

1.782 Gbps

Chroma

Mono

Power consumption

200 mW @ HDR、122 mW @ low noise

Supply voltage

3.3V (analog)、1.8V (digital)

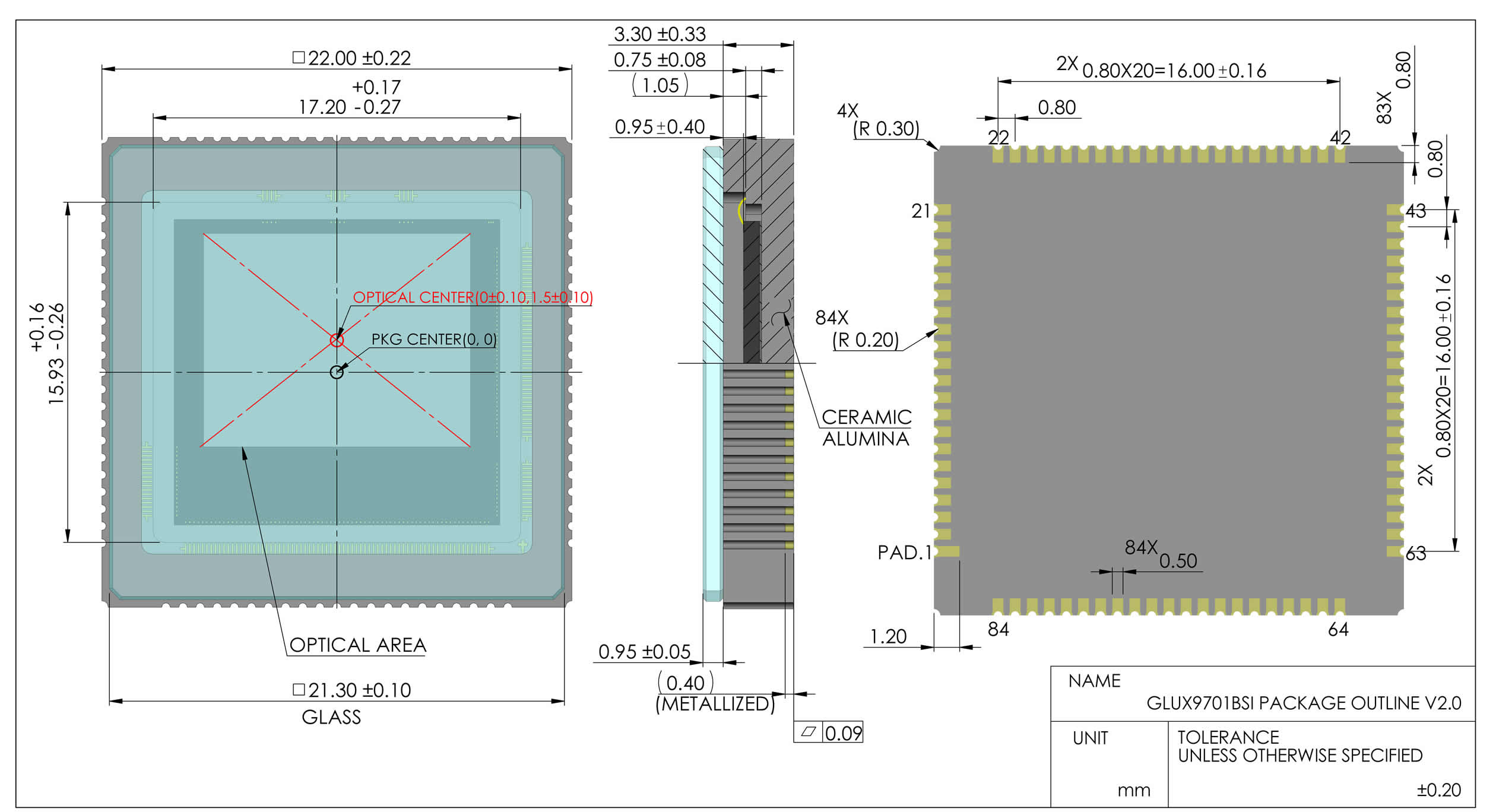

Package

84 pins CLCC (22.0 mm x 22.0 mm)

Availability

Mass Production (MP)
