The GXS series is a family of CMOS image sensors and modules specifically designed for medical endoscopy devices. Utilizing advanced wafer-level chip packaging technology, these sensors offer extreme compactness, a critical feature for the space-constrained environments of endoscopic applications. This innovative design allows for the development of smaller, more maneuverable endoscopes, ultimately enhancing diagnostic and therapeutic procedures.
Contact us

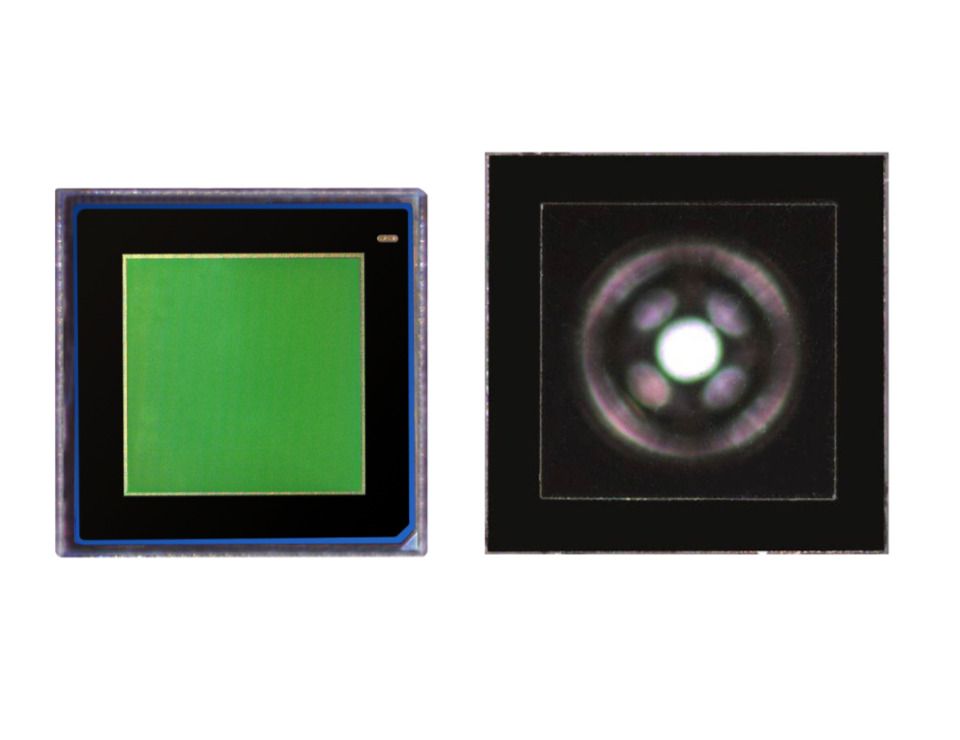

GXS1508/ GXSM1508
1.5 μm 0.16 MP ROLLING SHUTTER CMOS IMAGE SENSOR
GXS1508 is a 0.16 (400 x 400) Megapixel backsideillumination image sensor designed with 1.5 µm charge domain rolling shutter pixels. It can achieve 7 ke‾ FWC and 6e‾ rms read noise. GXS1508 is smaller than 1mm, consumes less than 20mW and can capture images and video up to 30 frames per second. GXSM1508 is wafer level optics (WLO) integratedmodule based on GXS1508 sensor, The WLO consist of 3-surface lens with F number of 5.0, the diagonal FOV is 120°.Its unique features make it an ideal solution for medical endoscopy’s disposable devices. For integrated optical solutions, GXSM1508 offers the GXS1508 sensor in a wafer-level optics (WLO) cube module, measuring 1.04 × 1.04 × 2.082 mm. The WLO stack includes three surface lenses with an F-number of 5.0, balancing light throughput and image quality. With a 120° diagonal field of view, it enables wide-angle observation even in confined spaces. Both GXS1508 and GXSM1508 are ideal for applications such as disposable endoscopy, position sensing, smart appliances, and toys.
  • Key Features and Benefits

    WLO

    High Sensitivity

    Compact CSP Packaging
  • Package Drawing (GXS1508)
  • Package Drawing (GXSM1508)

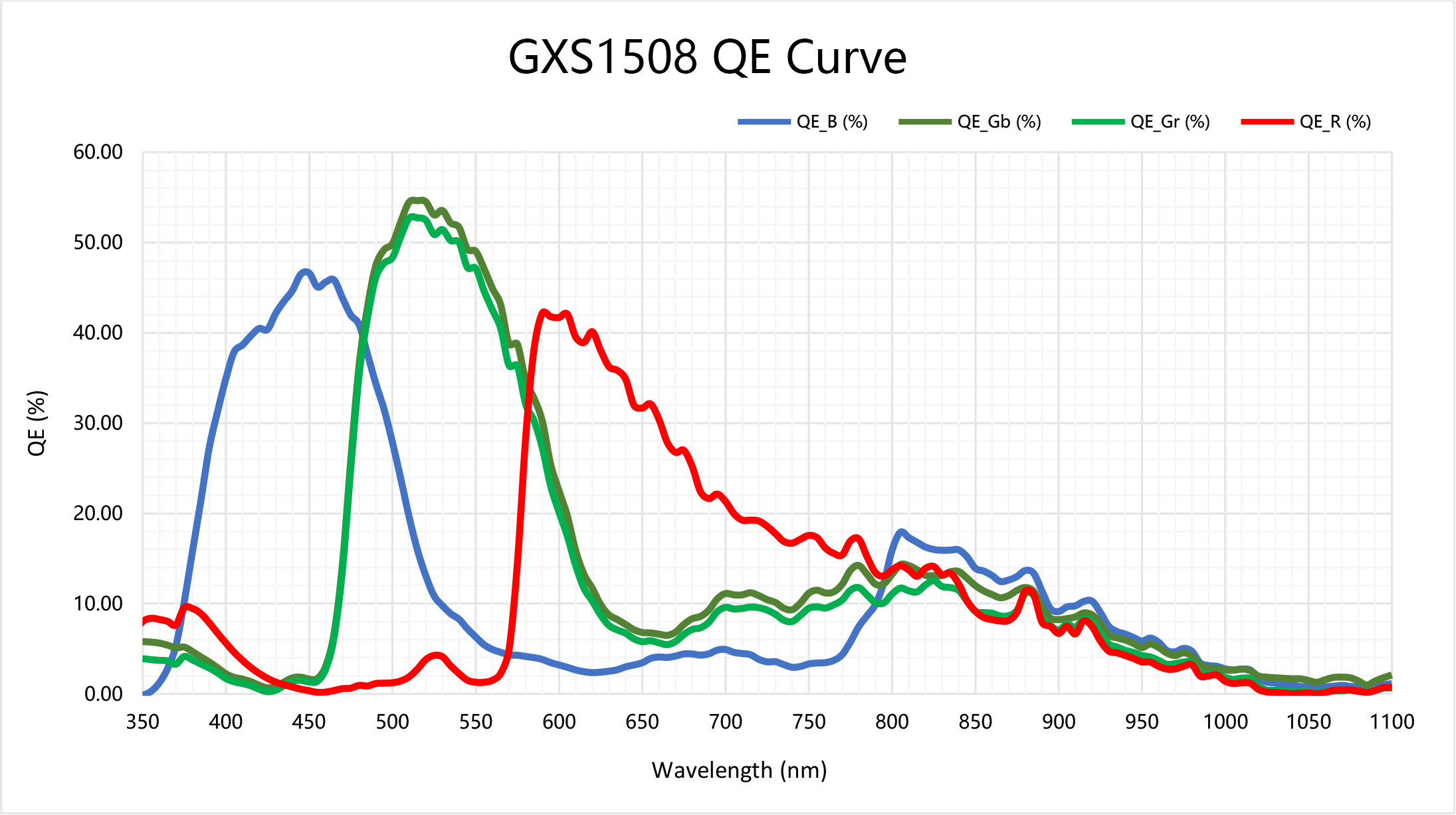

  • QE Curve (GXS1508)

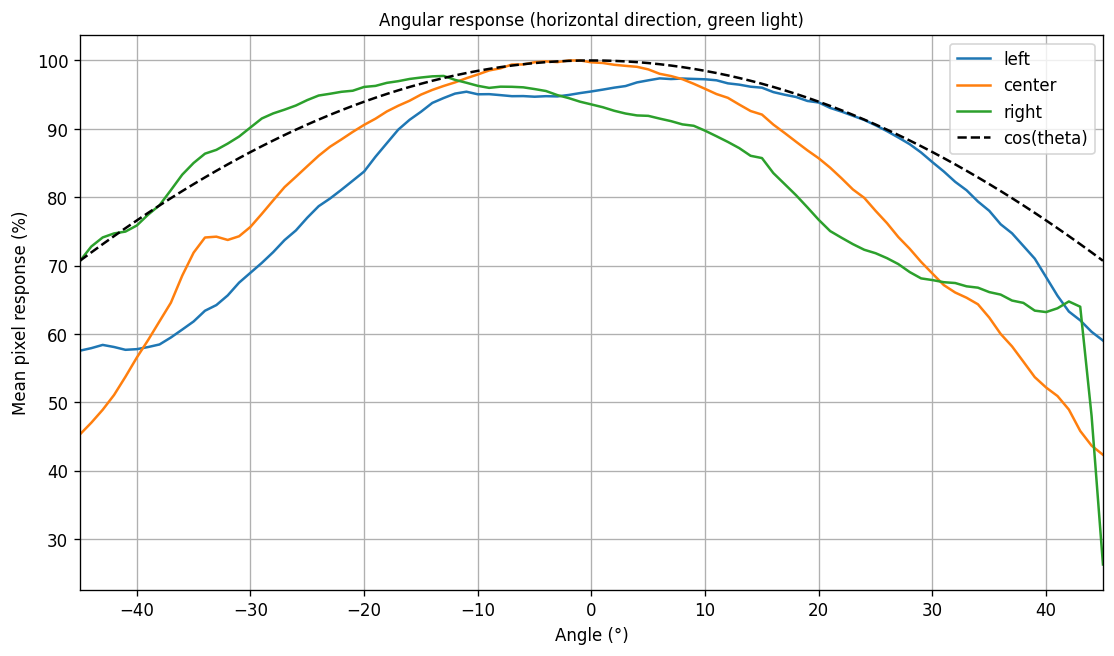

  • Angular Response (GXS1508)
GXS1508/ GXSM1508
GXS1508/ GXSM1508
Specifications

  • Resolution

    0.16 MP

    Nr of Active Pixels

    400 (H) x 400 (V)

  • Optical Format

    1/19"

    Pixel Size

    1.5 μm x 1.5 μm

  • Photosensitive Area

    0.6 mm x 0.6 mm

    Shutter Type

    Rolling Shutter

  • Peak QE

    54.7% (515 nm)

    Full Well Capacity

    7 ke‾

  • Temporal Noise

    6.1 e‾

    CRA

    25.6°± 3°

  • Dark Current

    T.B.D

    Dynamic Range

    61.2 dB

  • Max Frame Rate

    30 fps

    Output Format

    Analog

  • DSNU

    T.B.D

    Chroma

    RGB Color

  • Power Consumption

    17 mW

    Supply Voltage

    3.3 V

  • Package

    4 pins CSP (0.961 mm x 0.961 mm x 0.55 mm)

  • WLO Specification

    -

    -

  • Field of View (FOV)

    Horizontal 83° Diagonal 120°

    F Number

    5

  • Focal Length

    0.36 mm

    Optical Layout

    3-surface lens

  • TV Distortion

    12.20%

    DOF

    4-50 mm

  • IR Filter

    665 nm ± 10 nm

Ordering Information
  • GXS1508-BBC-NQT-AUD
    Demo Sample - Bayer CFA version with 4 pins CSP package
  • GXSM1508-BBC-NQT-AUD
    Demo Sample - Bayer CFA version with 4 pins CSP package and 3-surface WLO integrated
Download
Flyer
Datasheet
Rohs & Reach
