GMAX Series
GMAX is Gpixel's global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Contact us

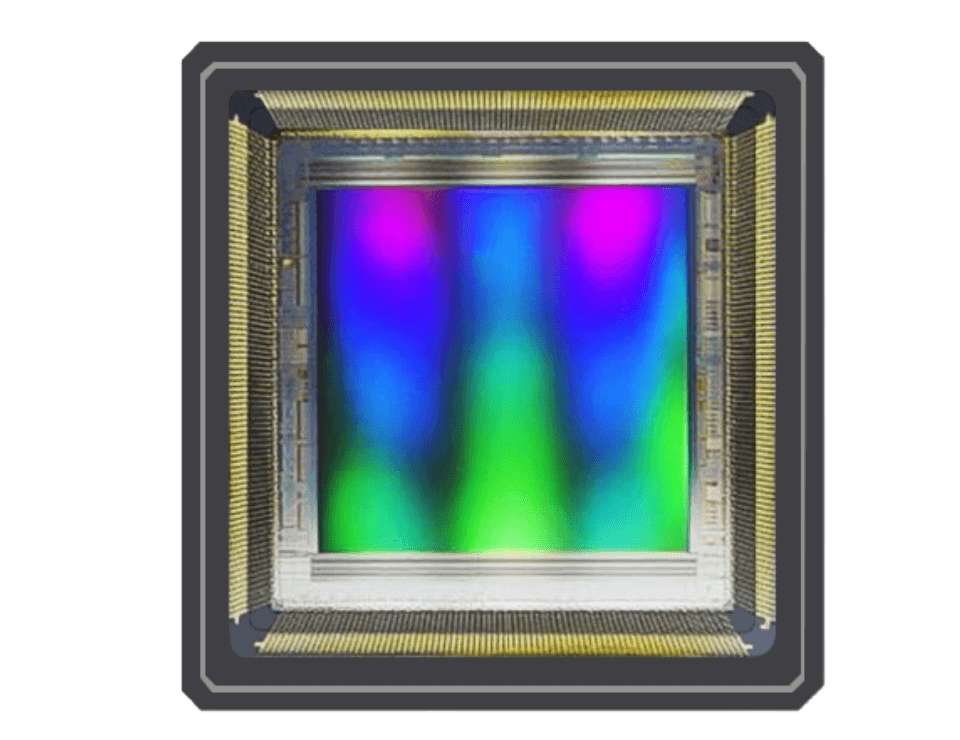

GMAX0505
25 MP 2.5 μm 1.1" GLOBAL SHUTTER CMOS IMAGE SENSOR
Designed with small 2.5 μm charge domain global shutter pixel, GMAX0505 offers the high resolution of 25 Megapixels within 1.1” optical format. Despite its small pixel pitch, GMAX0505 achieves more than 65% peak QE and excellent angular response thanks to the latest light pipe technology. In addition, with optimized tungsten shielding structure on top of the pixel’s memory node, the sensor’s shutter efficiency is more than 80dB. GMAX0505 supports 10bit and 12bit output, and the frame rate is up to 150fps. The sensor is assembled in a ceramic Land Grid Array (LGA) package, allowing easy integration and mass production. The superior performance and the cost-effective packaging of GMAX0505 offer camera manufactures great advantage over various applications.
  • Key features and Benefits

    2.5 μm Global Shutter pixel

    High resolution GS in 1.1"optical format

    Optimized tungsten shielding structure

    NIR enhanced – Red Fox

    High speed and Good PLS

    Pin-compatible with GMAX2505, GMAX2509 and GMAX2518
  • Package Drawing
  • Block Diagram

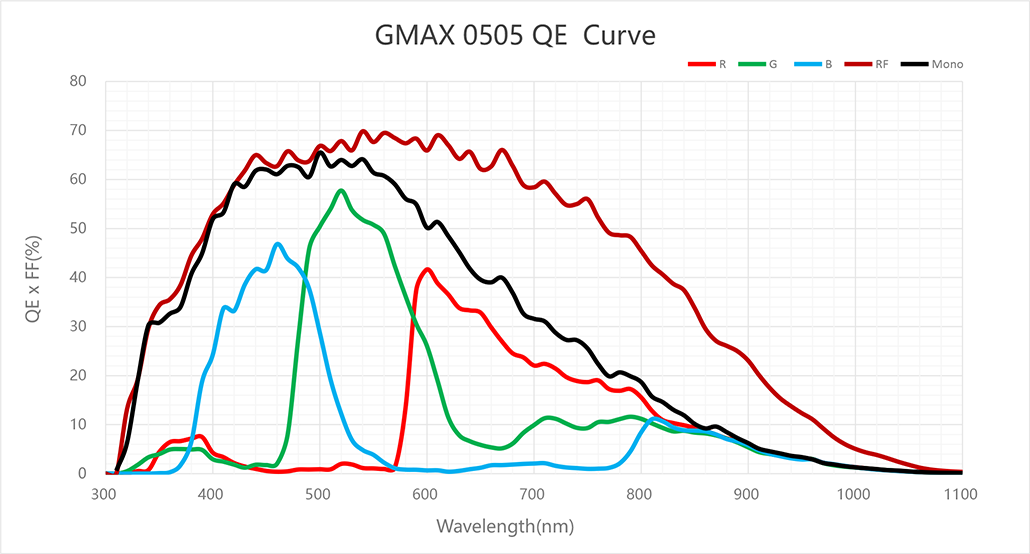

  • QE Curve
GMAX0505
GMAX0505
Specifications

  • Resolution

    26 MP

    Nr of Active Pixels

    5120 (H) x 5120 (V)

  • Optical format

    1.1″

    Pixel size

    2.5 μm x 2.5 μm

  • photosensitive area

    12.8 mm x 12.8 mm

    Shutter type

    Global shutter

  • Peak QE

    65.5% @ 500 nm

    Full well capacity

    6.5 ke‾

  • Parasitic Light Sensitivity

    -80 dB

    Temporal noise

    1.6 e‾ @ 12-bit, 3.4 e‾ @ 10-bit

  • Angular response

    > 13 ⁰ (80% response)

    Dark Current

    1.0 e‾/pixel/s @30℃

  • Max. SNR

    38.1 dB

    Dynamic Range

    65.8 dB @ 12 bit、61.4 dB @ 10 bit

  • Max Frame rate

    150 fps @ 10 bit

    ADC

    10/12 bit

  • Output format

    48 ch sub-LVDS

    Channel multiplexing

    48/24/16/12/8/6/4/2

  • Max. Data rate

    46.08 Gbps

    Chroma

    Mono,Mono (NIR enhanced), RGB Color

  • Power consumption

    <1.1W @ 12bit, <1.5 W @ 10 bit

    Supply voltage

    3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)

  • Package

    226 pins LGA (22.3 mm x 23.4 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX0505-DVM-HLT-AU1
    Monochrome, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 1
  • GMAX0505-DVM-HLT-AU3
    RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating, High speed version, 150 fps @ 10bit 48 x LVDS
  • GMAX0505-DVM-NLT-AU2
    Monochrome, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 2
  • GMAX0505-DVM-HLT-AU2
    Monochrome, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 2
  • GMAX0505-DVM-NLT-AU1
    Monochrome, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 1
  • GMAX0505-DVM-NLT-AU3
    Monochrome, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 3
  • GMAX0505-DVM-HLT-AR2
    Monochrome, microlens, ceramic 226 pins LGA, Removable D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 2
  • GMAX0505-DVC-HLT-AU1
    Bayer color, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 1
  • GMAX0505-DVC-NLT-AU1
    Bayer color, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 1
  • GMAX0505-DVM-NLT-AR2
    Monochrome, microlens, ceramic 226 pins LGA, Removable D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 2
  • GMAX0505-DVC-HLT-AU2
    Bayer color, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 2
  • GMAX0505-DVC-NLT-AU2
    Bayer color, microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 2
  • GMAX0505RF-DNM-NLT-AU1
    Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 1
  • GMAX0505RF-DNM-NLT-AU3
    Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 3
  • GMAX0505RF-DNM-HLT-AU2
    Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 2
  • GMAX0505RF-DNM-NLT-AU2
    Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 42fps @ 12bit 16 x LVDS, Grade 2
  • GMAX0505RF-DNM-HLT-AU1
    Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 1
  • GMAX0505RF-DNM-HLT-AU3
    Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 150fps @ 10bit 48 x LVDS, Grade 3
