GMAX Series
GMAX is Gpixel's global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Global Shutter
1/1.7"-Medium
2.4MP-152MP
High Speed
GMAX32152
152 MP 3.2 μm 3.7" GLOBAL SHUTTER IMAGE SENSOR
Featured with the latest generation 3.2 μm charge-domain global shutter pixel and 152 MP resolution, GMAX32152 is the leading-edge image sensor offering a large image plane of 60.6 mm diagonal which ideally for high resolution industrial inspection applications. The state of art pixel operates with true correlated double sampling (CDS), allowing low read noise and high dynamic range. In addition, the light pipe technology provides excellent PLS and angular response. GMAX32152 delivers 16 fps with 38 pairs of sub-LVDS channels running at max. 960 Mbps. It provides high throughput and high quality images for demanding imaging applications such as flat panel display inspection. GMAX32152 is assembled using 183-pin micro-PGA ceramic package for reliability and good heat dissipation.
  • Key features and Benefits

    Highest resolution global shutter

    Low noise global shutter

    1.8:1 wide aspect ratio

  • Package Drawing
  • Block Diagram

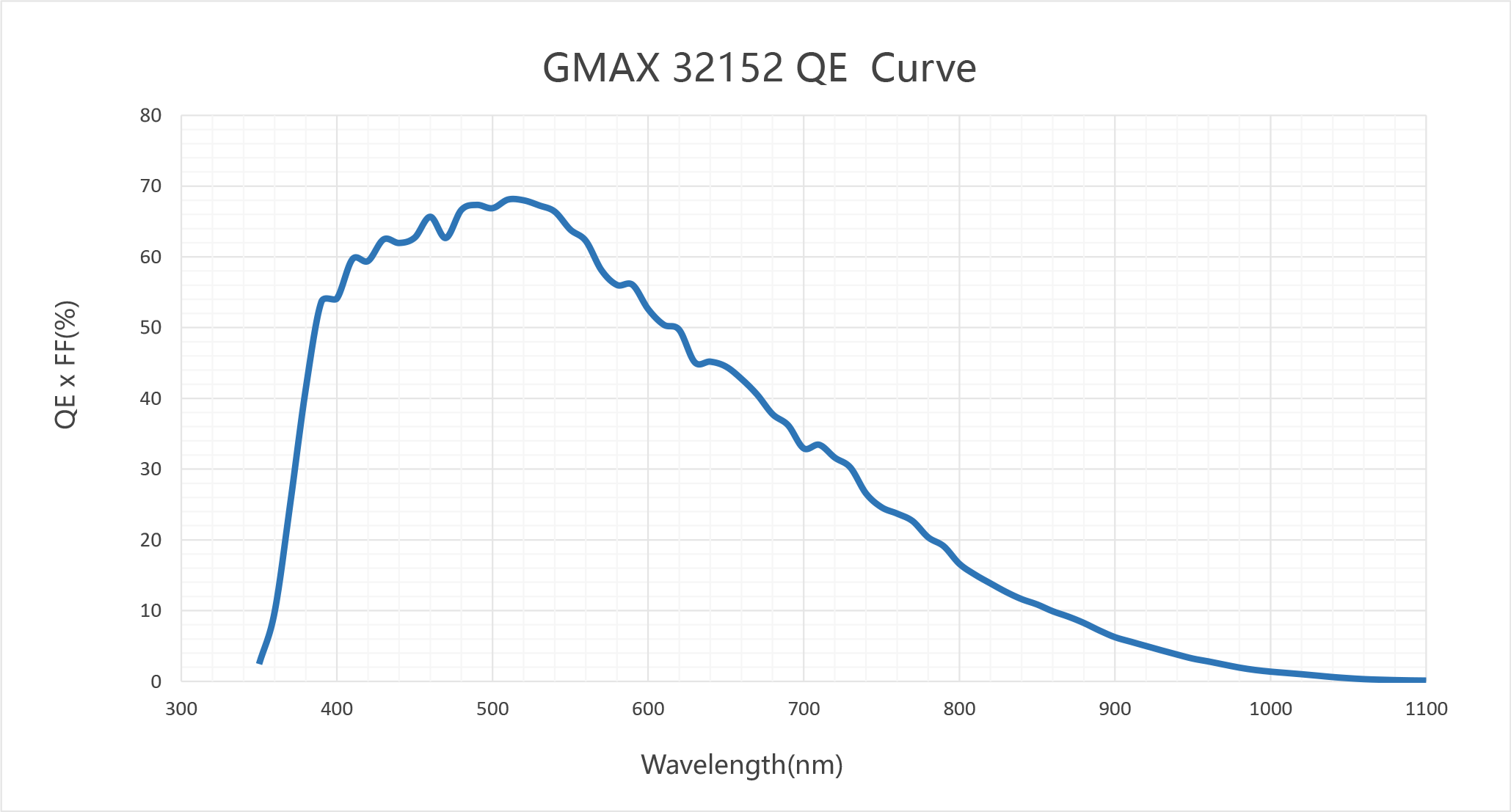

  • QE Curve
GMAX32152
GMAX32152
Specifications
  • Resolution

    152.3 MP

    Nr of Active Pixels

    16556 (H) x 9200 (V)

  • Optical format

    3.7″

    Pixel size

    3.2 μm x 3.2 μm

  • photosensitive area

    53.0 mm x 29.4 mm

    Shutter type

    Global shutter

  • Peak QE

    67% @ 500 nm

    Full well capacity

    9.3 ke‾

  • Parasitic Light Sensitivity

    -83.5 dB

    Temporal noise

    4.0 e‾

  • Angular response

    > 15 (80% response)

    Dark Current

    1.4 e‾/pixel/s @ 30℃

  • Max. SNR

    39.6 dB

    Dynamic Range

    67.3 dB

  • Max Frame rate

    16 fps @ 12 bit

    ADC

    12 bit

  • Output format

    38 ch sub-LVDS

    Channel multiplexing

    38/20/14/11/8/5

  • Max. Data rate

    36.48 Gbps

    Chroma

    Mono&RGB Color

  • Power consumption

    <2.8 W

    Supply voltage

    3.3V/1.3V (analog), 2.5V – 3.3V (IO), 1.2V (digital)

  • Package

    183 pins μPGA (68.2 mm x 52.0 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX32152-CVM-NUT-BU1
    Monochrome, with microlens, ceramic 183 pins uPGA, Sealed D 263® T eco glass with AR coating. 16fps@12bit – Grade 1
  • GMAX32152-CVM-NUT-BU3
    Monochrome, with microlens, ceramic 183 pins uPGA, Sealed D 263® T eco glass with AR coating. 16fps@12bit – Grade 3
  • GMAX32152-CVC-NUT-BU2
    Color, with microlens, ceramic 183 pins uPGA, Sealed D 263® T eco glass with AR coating. 16fps@12bit – Grade 1
  • GMAX32152-CVM-NUT-BU2
    Monochrome, with microlens, ceramic 183 pins uPGA, Sealed D 263® T eco glass with AR coating. 16fps@12bit – Grade 2
  • GMAX32152-CVC-NUT-BU1
    Color, with microlens, ceramic 183 pins uPGA, Sealed D 263® T eco glass with AR coating. 16fps@12bit – Grade 1
  • GMAX32152-CVC-NUT-BU3
    Color, with microlens, ceramic 183 pins uPGA, Sealed D 263® T eco glass with AR coating. 16fps@12bit – Grade 1
