GMAX3809
8.8 MP 3.8 μm 1.1" GLOBAL SHUTTER CMOS IMAGE SENSOR
GMAX3809 fits 4096(H) x 2160(V) (8.8 MP) resolution into a 1.1" image format with low noise, charge domain Global Shutter pixels running at 65 fps at 12 bit ADC resolution per pixel. GMAX3809’s 3.8 μm pixel achieves a full well capacity of 10.5 ke¯ and noise of 3.3 e¯, delivering over 70 dB linear dynamic range. Similar to other GMAX products, the advanced pixel technology brings a Parasitic Light Sensitivity of -92 dB and excellent angular response (>15° @ 80% response). Gpixel’s Red Fox technology is employed to deliver a NIR-enhanced QE of 30% at 850 nm for excellent performance in intelligent traffic systems. GMAX3809 is configurable through SPI or I2C and supports on-chip color offset calibration, LED flicker mitigation, multiple region HDR and OTP functions. GMAX3809 is housed in a 163-pin ceramic LGA package with outer dimensions of 27.1 mm x 17.9 mm and an LGA pad pattern optimized for reliable solder connections. The sensor assembly includes a double side AR coated cover glass lid.
  • Key features and Benefits

    Low noise global shutter

    Excellent PLS and angular response

    On-chip color offset calibration
  • Package Drawing
  • Block Diagram

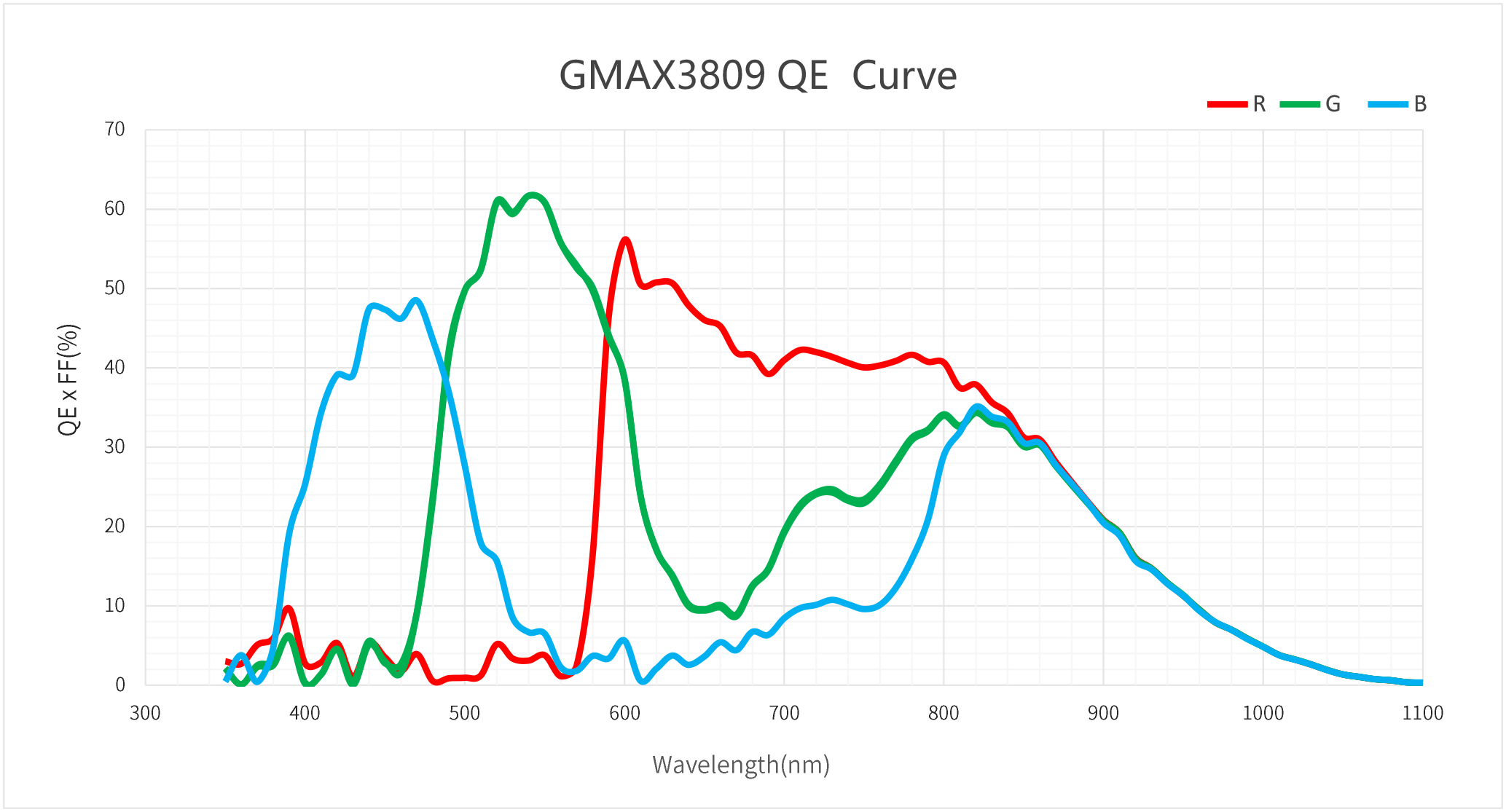

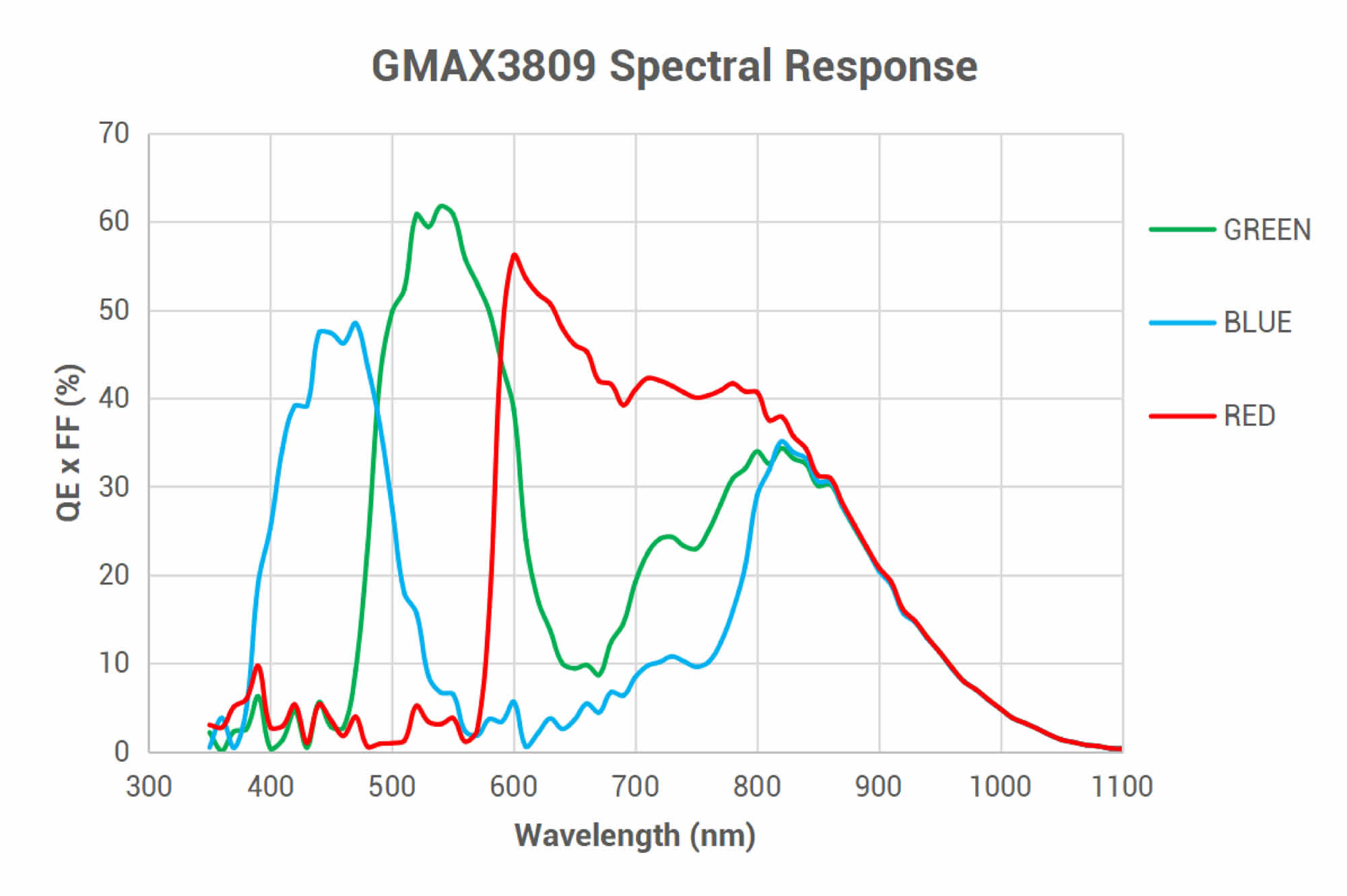

  • QE Curve
GMAX3809
GMAX3809
Specifications

  • Resolution

    8.8 MP

    Nr of Active Pixels

    4096 (H) x 2160 (V)

  • Optical format

    1.1″

    Pixel size

    3.8 μm x 3.8 μm

  • photosensitive area

    15.6 mm x 8.2 mm

    Shutter type

    Global shutter

  • Peak QE

    61.7% @ 540 nm

    Full well capacity

    10.5 ke‾

  • Parasitic Light Sensitivity

    -92.0 dB

    Temporal noise

    3.3 e‾

  • Angular response

    > 15 (80% response)

    Dark Current

    31.5 e‾/pixel/s @ 41℃

  • Max. SNR

    40.5 dB

    Dynamic Range

    70.7 dB

  • Max Frame rate

    54 fps @ 12bit

    ADC

    12 bit

  • Output format

    8 ch sub-LVDS

    Channel multiplexing

    8/4

  • Max. Data rate

    7.68 Gbps

    Chroma

    Mono (NIR enhanced),RGB Color

  • Power consumption

    ＜1.0 W

    Supply voltage

    3.3V/3.6V (analog), 1.8V-3.3V (IO), 1.2V (digital)

  • Package

    163 pins LGA (27.1 mm x 17.9 mm)

    Availability

    Demo grade samples

Product Number
  • GMAX3809-BVC-NLT-BUD
    Bayer RGB, with microlens, ceramic 163 pins LGA, Sealed D 263® T eco glass with AR coating. 50 fps @ 12 bit 8 x LVDS, Demo Grade
  • EVA-3809-NC12
    Evaluation board Operation mode: 12 bit mode Lens holder: C-mount Interface: USB 3.0
