GSENSE Series
The GSENSE series is a world leading scientific CMOS image sensor family, designed with correlated multiple sampling for extreme low noise, true HDR for high dynamic range and optional backside illumination technology for quantum efficiency of up to 95%. Primary applications include scientific imaging, medical imaging, spectroscopy, fluorescence imaging, astronomy, high energy physics, and high-end surveillance.
Contact us
Large area design
BSI
HDR
Low noise
GSENSE6060
37MP 10μm 5.4" ROLLING SHUTTER IMAGE SENSOR
GSENSE6060, and its pin-compatible back-thinned version GSENSE6060BSI, are designed with a large imaging area for demanding astronomical and scientific imaging applications. With its top and bottom readout chains consisting of 2×25 LVDS pairs running up to 630MHz, GSENSE6060’s frame rate is up to 44 fps with 12bit ADC, allowing scientists to observe with the never-achieved temporal resolution of large format imagers. The two readout chains also provide the possibility for HDR combination up to 89dB. GSENSE6060 supports up to 4 times correlated multiple sampling (CMS). In CMS mode, both the reset and signal levels of pixel output are sampled for multiple times and summed up for pixel-related noise suppression. The Aluminum Nitride package of GSENSE6060 provides 10x thermal conductivity than the traditional Alumina package, as well as excellent flatness both at the room temperature and deep-cooled temperatures.
  • Key features and Benefits

    Large format scientific CMOS

    Peak QE of 71.6%

    14bit with CMS
  • Package Drawing
  • Block Diagram

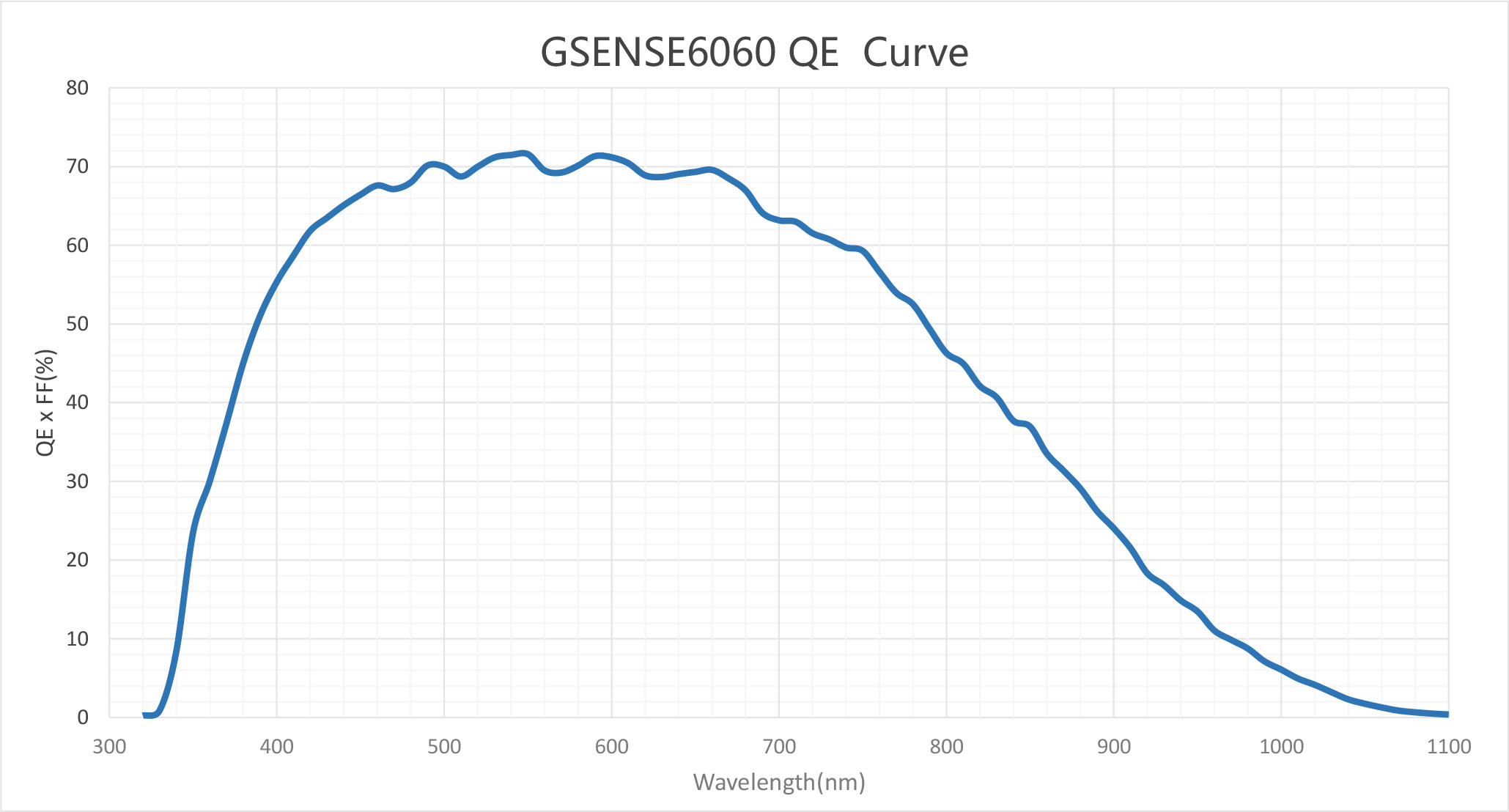

  • QE Curve
GSENSE6060
GSENSE6060
Specifications

  • Resolution

    37 MP

    Nr of Active Pixels

    6144 (H) x 6144 (V)

  • Optical format

    5.4"

    Pixel size

    10 μm x 10 μm

  • photosensitive area

    61.44 mm x 61.44 mm

    Shutter type

    Rolling Shutter

  • Peak QE

    72% @ 550 nm

    Full well capacity

    133 ke‾

  • Parasitic Light Sensitivity

    -

    Temporal noise

    4.6 e‾

  • Dark Current

    0.01 e‾/pixel/s @ -70℃

    Dynamic Range

    89 dB @12 bit HDR

  • Max Frame rate

    44 fps @ 12 bit STD

    Angular response

    -

  • Max. SNR

    48 dB

    ADC

    12/14 bit

  • Output format

    52 ch LVDS

    Channel multiplexing

    -

  • Max. Data rate

    31.5 Gbps

    Chroma

    Mono

  • Power consumption

    5.42 W

    Supply voltage

    6.5V (analog)、1.85V (digital)

  • Package

    250 pins PGA (74.0 mm x 99.0 mm)

    Availability

    Mass Production (MP)

Product Number
  • GSENSE6060-AVM-NPT-AR0
    Monochrome version with microlens, 250-pin PGA ALN package, Uncoated D 263® T eco glass lid with ceramic ring attached to the ALN package with low-residue double-sided tape, Grade 0
  • GSENSE6060-AVM-NPT-AR2
    Monochrome version with microlens, 250-pin PGA ALN package, Uncoated D 263® T eco glass lid with ceramic ring attached to the ALN package with low-residue double-sided tape, Grade 2
  • GSENSE6060-AVM-NPT-AR1
    Monochrome version with microlens, 250-pin PGA ALN package, Uncoated D 263® T eco glass lid with ceramic ring attached to the ALN package with low-residue double-sided tape, Grade 1
  • EVA-6060F-RT12
    Evaluation board Operation mode: HDR mode Lens holder: T-mount Interface: Camera link MDR-MDR
Download
Product Flyer
Datasheet
Appnote
Rohs & Reach
