GMAX Series
GMAX is Gpixel's global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Contact us
GMAX4416
16MP 4.4 μm 1.6" GLOBAL SHUTTER IMAGE SENSOR
GMAX4416 is a 1.6’’ (25.5 mm) optical format CMOS image sensor with 4096 x 4096 (16.7 MP) effective pixels. Using advanced processing technology, the 4.4 μm global shutter pixel achieves a max full well capacity of 14.5 ke‾ and min dark noise of 2.6 e‾, delivering max 74.9 dB linear dynamic range and 41.8 dB SNR. On-chip analog binning increases the sensor full well capacity to 60.7 ke‾ and 47.8 dB SNR. Peak quantum efficiency is 70.5% @ 530 nm and 30% @ 850 nm due to its optimized NIR process. GMAX4416 can reach 80 fps frame rate in 12-bit standard high-speed mode with 32 pairs 600Mbps sub-LVDS. It also supports 2x2 binning mode and a 2x2 binning HDR mode with frame rates of 42 fps and 80 fps respectively. GMAX4416 is housed in 152 pin ceramic μPGA package, 31.70 mm x 30.40 mm outer dimensions.
  • Key features and Benefits

    4.4 μm charge domain global shutter pixel

    16MP resolution

    1:1 aspect ratio

    Binning HDR mode

    Near infrared enhancement

    Maximum frame rate: 80 fps
  • Package Drawing

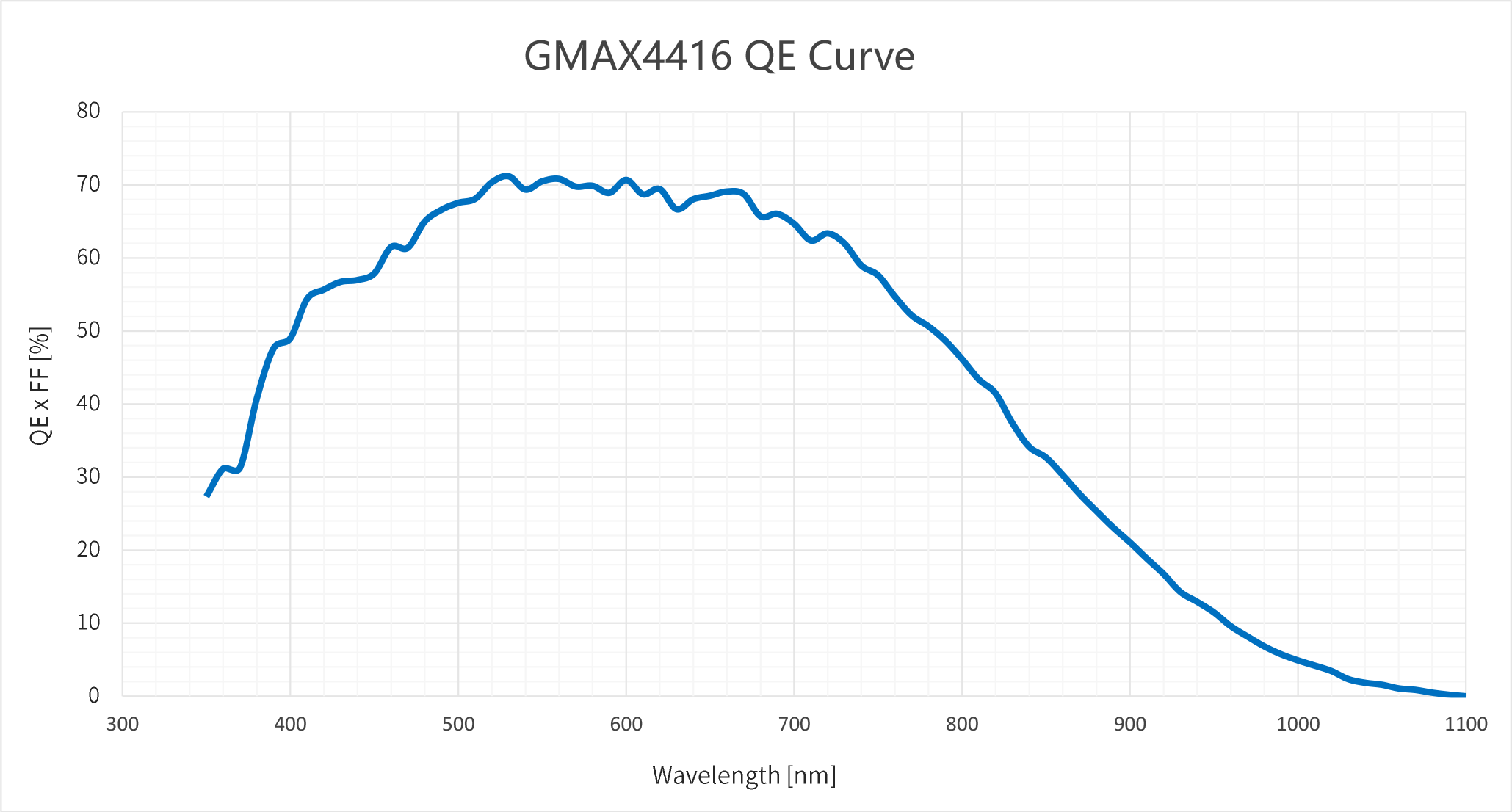

  • QE Curve
GMAX4416
GMAX4416
Specifications

  • Resolution

    16 MP

    Nr of Active Pixels

    4096 (H) x 4096 (V)

  • Optical format

    1.6 " (25.5 mm)

    Pixel size

    4.4 μm x 4.4 μm

  • photosensitive area

    18.0 mm x 18.0 mm

    Shutter type

    Global shutter

  • Peak QE

    70.5% @ 550 nm

    Full well capacity

    14.5 ke‾ @ STD & HDR, 60.0 ke‾ @ Binning HDR

  • Parasitic Light Sensitivity

    -91 dB

    Temporal noise

    2.9 e‾ @ STD, 2.6 e‾ @ HDR, 6.1 e‾ @ Binning HDR

  • Angular response

    > 15 ° (80% response)

    Dark Current

    6.2 e‾/pixel/s @ 35℃ @ STD & HDR, 24.7 e‾/pixel/s @ 35℃ @ Binning_HDR,

  • Max. SNR

    41.6 dB

    Dynamic Range

    68.1 dB @ STD, 74.9 dB @ HDR, 79.9 dB @Binning_HDR

  • Max Frame rate

    80 fps @ STD, 42 fps @ HDR, 80 fps @ Binning_HDR

    ADC

    12-bit

  • Output format

    16 pairs Sub-LVDS

    Channel multiplexing

    16/14/12/10/8/6/4/2/1

  • Max. Data rate

    19.2 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    <1.5 W

    Supply voltage

    3.3V (analog), 1.8V-3.3V (IO), 1.2V (digital)

  • Package

    152 pins μPGA (31.7 mm x 34.0 mm)

    Availability

    Demo grade samples

Product Number
  • GMAX4416-AVM-NUT-BUD
    Monochrome, with microlens, ceramic 152 pins μPGA, Sealed D 263® T eco glass with AR coating. 80 fps @ HS mode, 42 fps @HDR/Binning mode. Demo Grade.
  • GMAX4416-AVC-NUT-BUD
    Bayer color, with microlens, ceramic 152 pins μPGA, Sealed D 263® T eco glass with AR coating. 80 fps @ HS mode, 42 fps @HDR/Binning mode. Demo Grade.
Download
Product Flyer
Application
Automation & Inspection
Learn more
