GL Series
The GL sensor family from Gpixel comprises a wide range of horizontal resolutions, ranging from 2k to 16k, with line rates of up to 200 kHz. These sensors feature pixel sizes of 3.5 µm, 5 µm, 7 µm, and 14 µm, providing a comprehensive selection to suit diverse line scan applications.
Contact us
GL3504
2K/4K C-MOUNT GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR
GL3504 is a line scan image sensor suitable for small format camera integration with C mount lens, the sensor contains two lines with 3.5um pixel and four lines with 7um pixel. GL3504 could run up to 172kHz with 7um pixel line and 84kHz with 3.5um pixel line at 12bit output with single line readout. GL3504 uses on-chip PLL and all required timing is generated by the on-chip sequencer, reducing the amount of external components needed. Output channel multiplexing enables flexibility in FPGA selection. GL3504 enables a cost effective camera solution for demanding inspection applications. GL3504 is assembled with a compact 58-pin CLCC package for fast heat dissipation and high robustness. Both mono and color variances are offered. For color variance, 7um lines are with RGB true color coating and 3.5um lines are with Bayer pattern.
  • Key features and Benefits

    High Speed

    High Dynamic Range

    Low Consumption
  • Package Drawing
  • Block Diagram

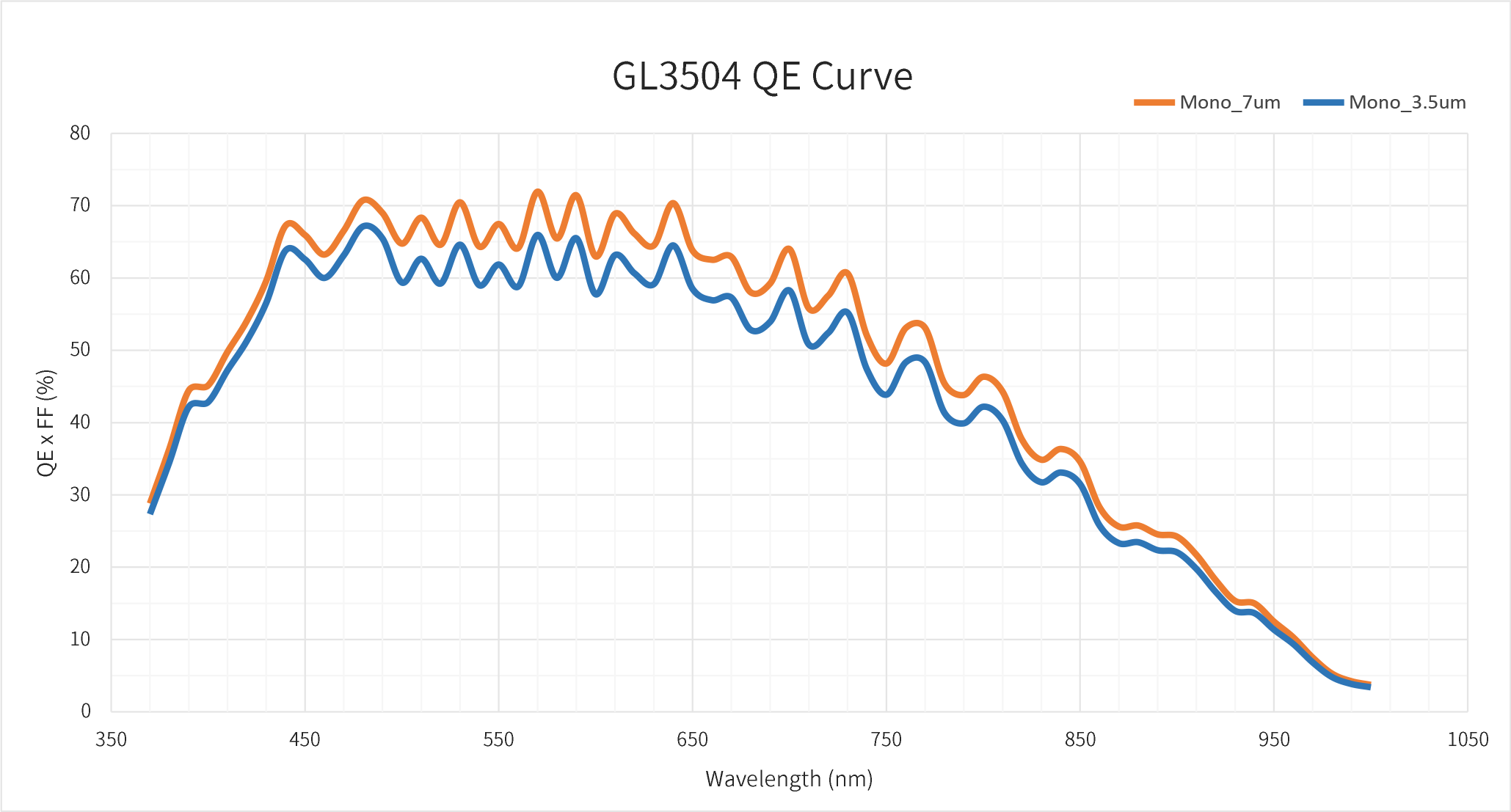

  • QE Curve
GL3504
GL3504
Specifications

  • Resolution

    2.0/4.0 K

    Nr of Active Pixels

    4096 (H) x 2 (V) @ 3.5 μm / 2048 (H) x 4 (V) @ 7 μm

  • Optical format

    14.336 mm

    Pixel size

    3.5 μm x 3.5 μm / 7 μm x 7 μm

  • Full well capacity

    9.3 ke‾

    Temporal noise

    12bit: 4.9e‾ 8bit: 21.2e‾

  • Dynamic Range

    65.5 dB@ 7 μm@12 bit 65.8 dB@ 3.5 μm@12 bit

    Max Line Rate

    172.7 kHz @ 7μm @ 12 bit @ single line 62.7 kHz @ 7μm @ 8 bit @ four line 84.4 kHz @ 3.5μm @ 12 bit @ single line

  • Peak QE

    7um: 71.9% @ 570nm 3.5um: 62.0% @620nm

    Shutter type

    Global shutter

  • Angular response

    20°(87% response)

    Photosensive area

    14.336 mm

  • Parasitic Light Sensitivity

    -

    Dark Current

    2.1 ke‾/pixel/s @ 63℃ @ 7 μm, 12 bit; 0.6 ke‾/pixel/s @ 50℃ @ 7 μm, 8 bit; 0.5 ke‾/pixel/s @ 64℃ @ 3.5 μm, 12 bit;

  • Max. SNR

    39.7 dB

    ADC

    8/12 bit

  • Output format

    6 ch Sub-LVDS

    Channel multiplexing

    6/3/2/1

  • Max. Data rate

    5.472 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    < 1.0 W

    Supply voltage

    3.3 V (analog)、2.5 V-3.3 V (IO)、2.1 V (digital)

  • Package

    CLCC 58 pins (22.3 mm x 10.6 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GL3504-BVM-NCN- AU1
    Support 7um pixel array，monochrome, no microlens, ceramic 58-pin CLCC, sealed D263® T eco glass without AR coating.
  • GL3504-CVM-NCN- AU1
    Support 7um and 3.5um pixel arrays, monochrome, no microlens, ceramic 58-pin CLCC, sealed D263® T eco glass without AR coating.
  • GL3504-BVC-NCN- AU1
    Support 7um pixel array，color version, no microlens, ceramic 58-pin CLCC, sealed D263® T eco glass without AR coating.
  • GL3504-CVC-NCN- AU1
    Support 7um and 3.5um pixel arrays, color version, no microlens, ceramic 58-pin CLCC, sealed D263® T eco glass without AR coating.
Download
Product Flyer
Datasheet
Application
Automation & Inspection
Learn more
