GSENSE Series
The GSENSE series is a world leading scientific CMOS image sensor family, designed with correlated multiple sampling for extreme low noise, true HDR for high dynamic range and optional backside illumination technology for quantum efficiency of up to 95%. Primary applications include scientific imaging, medical imaging, spectroscopy, fluorescence imaging, astronomy, high energy physics, and high-end surveillance.
Contact us
Large area design
BSI
HDI
Low noise
GSENSE4040BSI
16.8 MP 9 μm 3.3" ROLLING SHUTTER IMAGE SENSOR
GSENSE4040BSI is a BSI CMOS image sensor of 16.8MP (4096 x 4096) resolution with 9 μm × 9 μm pixel size, and a photosensitive area of 36.8 mm x 36.8 mm (52 mm diagonal). Using dual gain HDR operation mode, 85 dB is achieved with 39k e¯ full well capacity and 2.3 e¯ readout noise. 18 pairs of LVDS channels running at 600 MHz per channel support full-resolution imaging at a frame rate of 24 fps. GSENSE4040BSI is assembled in 140-pin PGA ceramic package with a removable glass lid. This sensor is pin compatible with GSENSE4040FSI for fast and easy integration
  • Key features and Benefits

    Large format BSI scientific CMOS

    Low readout noise
  • Package Drawing
  • Block Diagram

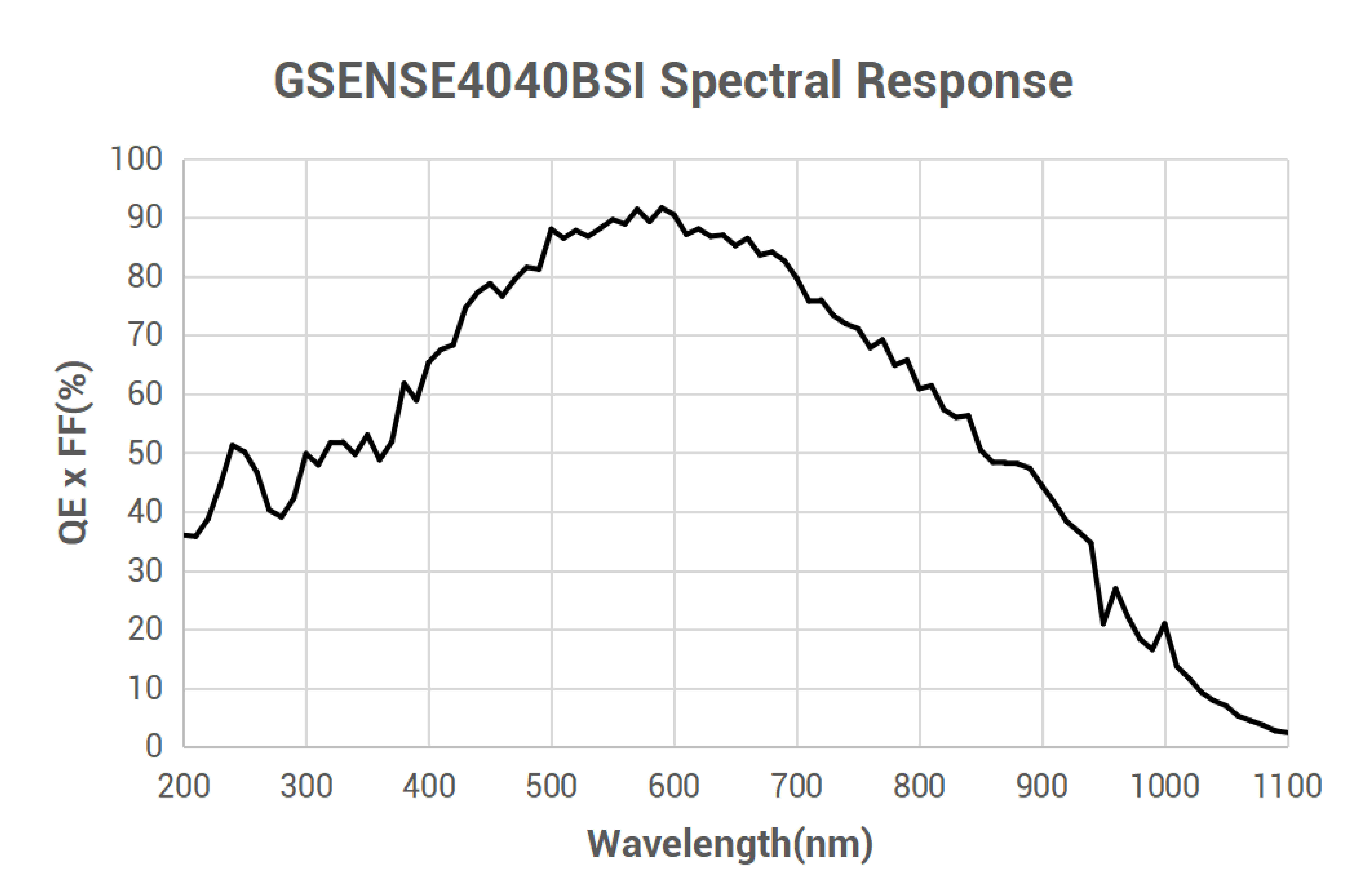

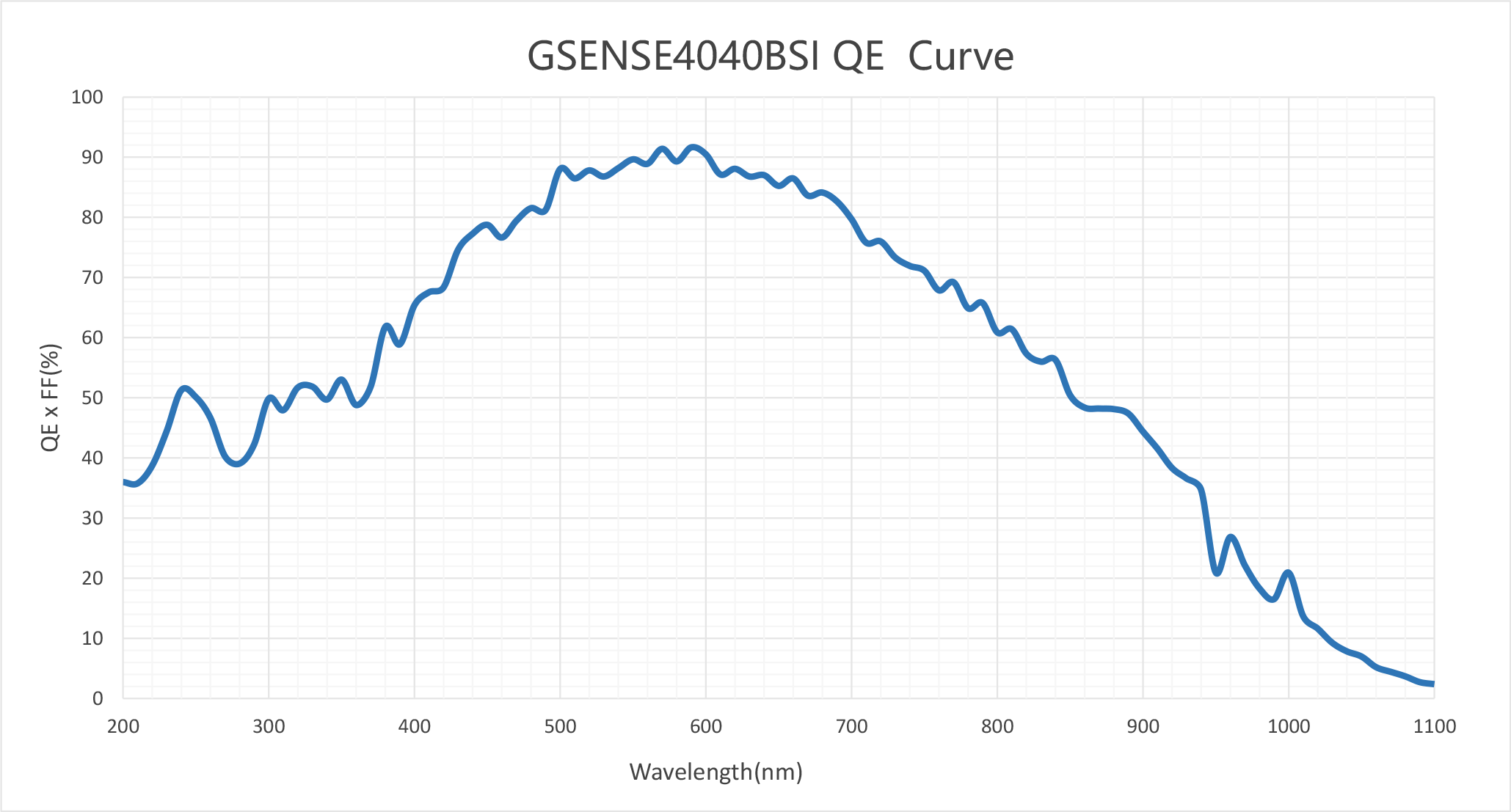

  • QE Curve
GSENSE4040BSI
GSENSE4040BSI
Specifications

  • Resolution

    16.8 MP

    Nr of Active Pixels

    4096 (H) x 4096 (V)

  • Optical format

    3.3"

    Pixel size

    9 μm x 9 μm

  • photosensitive area

    36.864 mm x 36.864 mm

    Shutter type

    Rolling Shutter

  • Peak QE

    90% @ 550 nm

    Full well capacity

    39 ke‾

  • Temporal noise

    2.3 e‾

    Dark Current

    0.04 e‾/pixel/sec @ -40 °C

  • Dynamic Range

    85 dB

    Max Frame rate

    24 fps

  • Max. SNR

    45.9 dB

    Parasitic Light Sensitivity

    -

  • Angular response

    -

    ADC

    12 bit

  • Output format

    18 ch LVDS

    Channel multiplexing

    -

  • Max. Data rate

    10.8 Gbps

    Chroma

    Mono

  • Supply voltage

    3.3V (analog)、1.8V(digital)

    Package

    140 pins PGA (51.5 mm x 53.0 mm)

  • Power consumption

    <1.4 W

    Availability

    Engineering Samples (ES)

Product Number
  • GSENSE4040BSI-BBM-NPN-AR0
    Monochrome, no microlens, Ceramic 140 pins PGA, Removable D 263® T eco glass with no AR coating, Grade 0
  • GSENSE4040BSI-BBM-NPN-AR2
    Monochrome, no microlens, Ceramic 140 pins PGA, Removable D 263® T eco glass with no AR coating, Grade 2
  • GSENSE4040BSI-BBM-NPN-BB1
    Monochrome no microlens, Ceramic 140 pins PGA, Sealed D 263® T eco glass with AR coating, Grade 1
  • GSENSE4040BSI-BBM-NPN-AR1
    Monochrome, no microlens, Ceramic 140 pins PGA, Removable D 263® T eco glass with no AR coating, Grade 1
  • GSENSE4040BSI-BBM-NPN-BB0
    Monochrome no microlens, Ceramic 140 pins PGA, Sealed D 263® T eco glass with AR coating, Grade 0
  • GSENSE4040BSI-BBM-NPN-BB2
    Monochrome no microlens, Ceramic 140 pins PGA, Sealed D 263® T eco glass with AR coating, Grade 2
  • EVA-4040B-RT12
    Evaluation board Operation mode: HDR mode Lens holder: T-mount Interface: Camera link MDR-MDR
