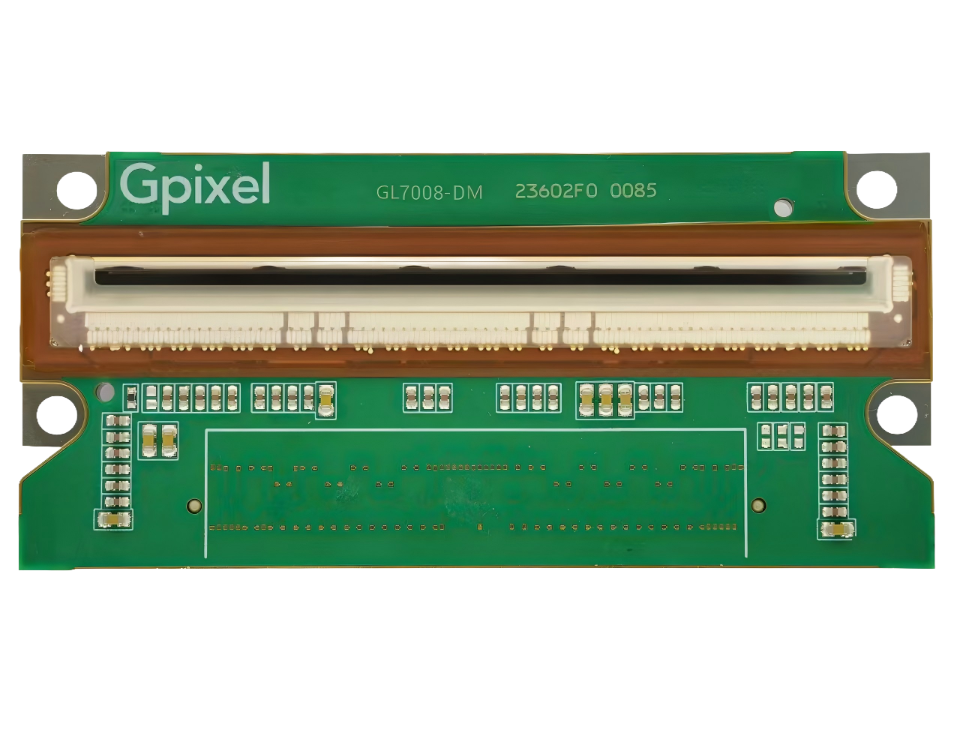

GL7008
8K 7 μm RESOLUTION GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR
GL7008 is a global shutter line scan image sensor with 7 μm square pixel and 8192 horizontal pixels resolutions. The sensor’s 12-bit ADC transmits data over 25 pairs of Sub-LVDS at line rate up to 200 kHz. GL7008 is offered in both color and monochrome versions. The monochrome sensor supports single and dual line modes with optimal sensitivity. The color sensor supports 3-line true color and 4-line RGBW multispectral output. The exposure time of each line can be individually adjusted by an external trigger. The line spacing of the sensor is equivalent to the pixel size to satisfy the requirements of line frequency matching. At full speed, the power consumption of GL7008 is around 4.4 W. The sensor adopts a COB package with WCu heat sink for optimal heat dissipation during high-speed scanning.
  • Key features and Benefits

    Individual exposure control for each color line

    External Trigger

    Channel Multiplexing

    On Chip PLL

    On Chip Sequencer

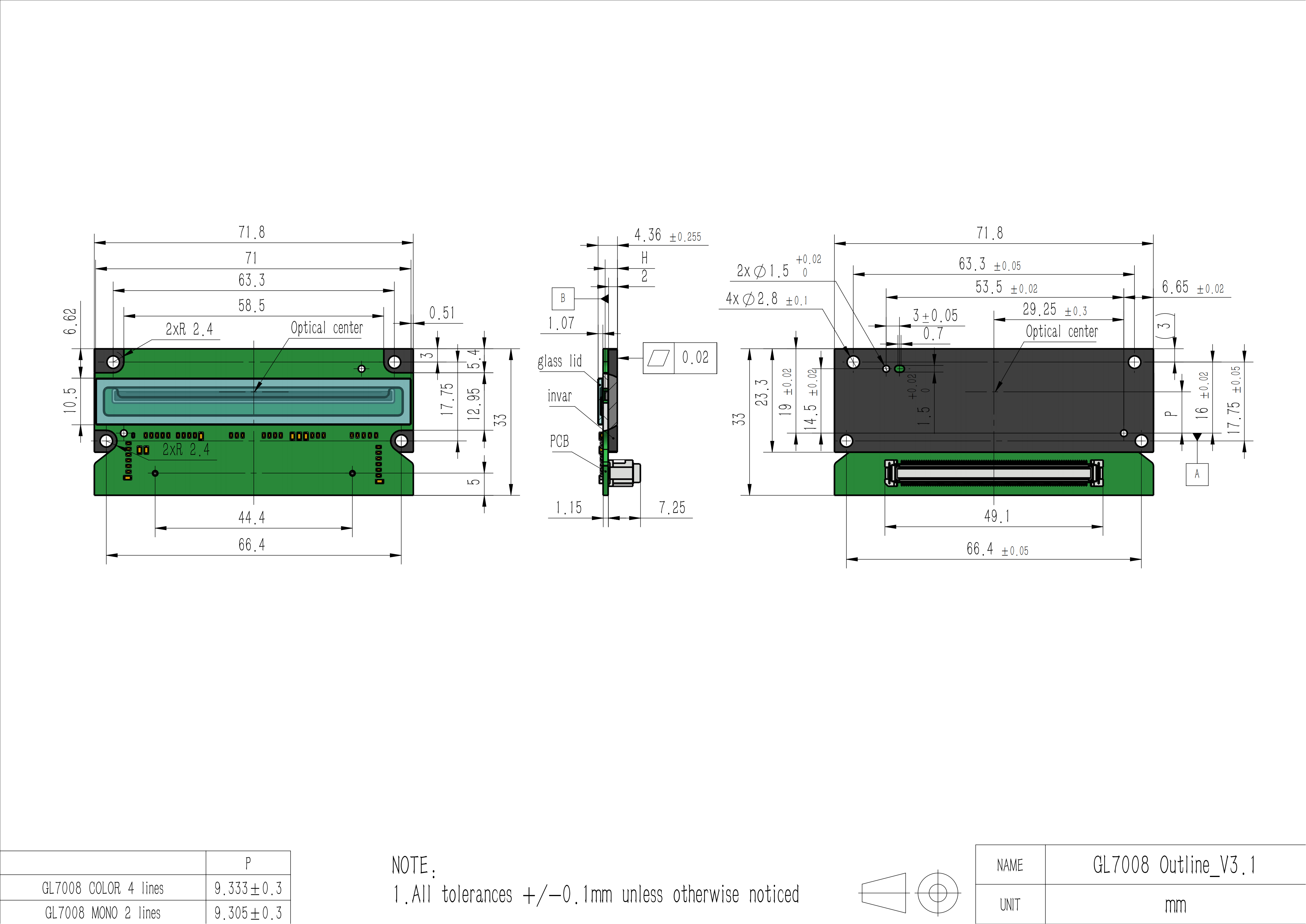

  • Package Drawing
  • Block Diagram

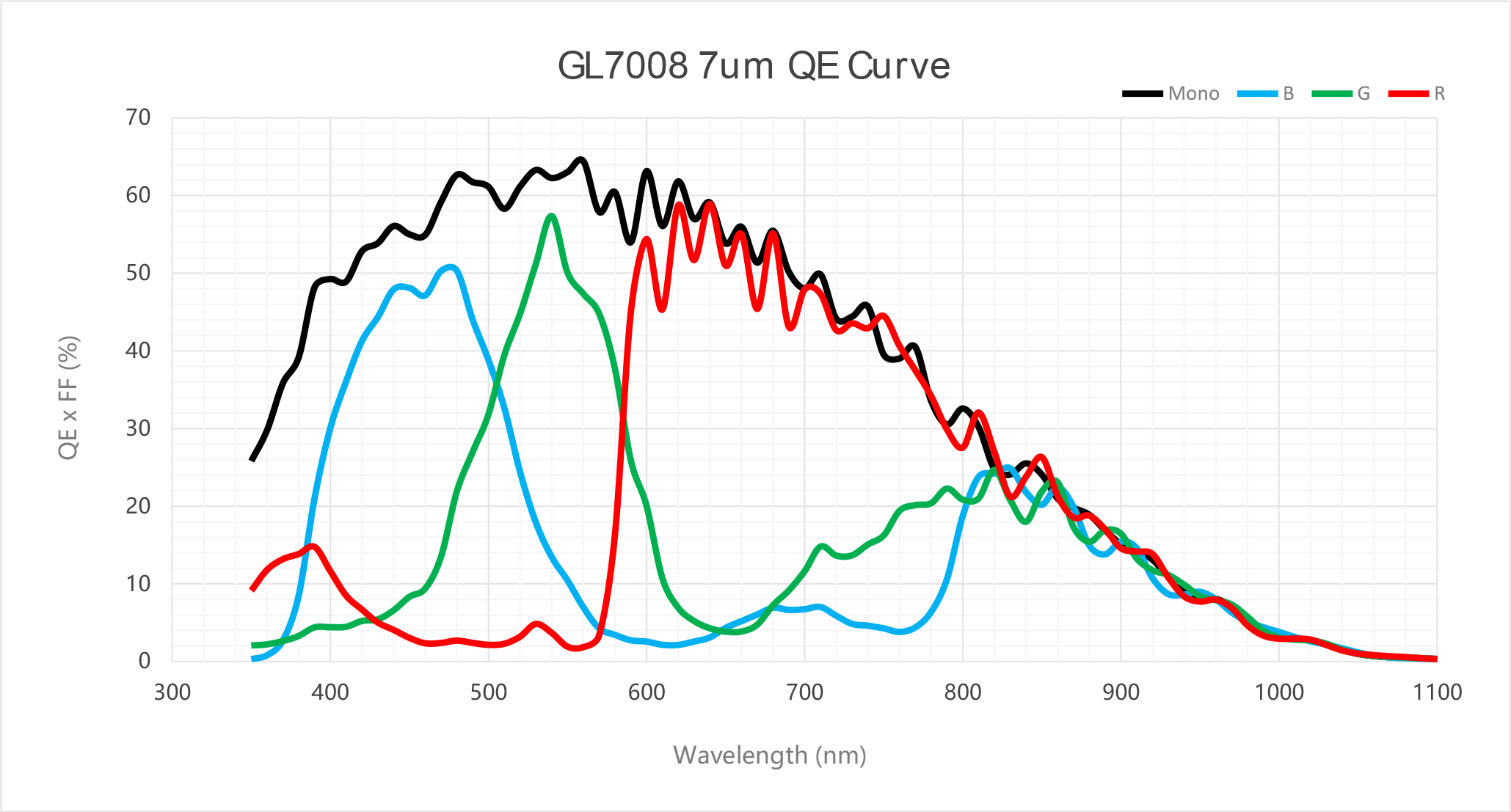

  • QE Curve
GL7008
GL7008
Specifications

  • Resolution

    8 K

    Nr of Active Pixels

    8192 (H) x 4 (V)

  • Optical format

    57.344 mm

    Pixel size

    7 μm x 7 μm

  • Full well capacity

    10.0 ke‾

    Temporal noise

    6.8 e‾

  • Dynamic Range

    63.0 dB

    Max Line Rate

    200k fps @ single line, 100k fps @ dual line

  • Peak QE

    73.0% @ 530 nm

    Shutter type

    Global shutter

  • ADC

    12 bit

    Angular response

    20° (85% response)

  • Photosensive area

    57.344 mm

    Parasitic Light Sensitivity

    -

  • Dark Current

    0.4 ke‾/s/pix @ 44℃

    Max. SNR

    40 dB

  • Output format

    25 ch sub-LVDS

    Channel multiplexing

    25/13/7/4

  • Max. Data rate

    24 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    4.4 W

    Supply voltage

    3.3 V (analog), 1.8 V (digital), 1.8 V-3.3 V (I/O)

  • Package

    168 Pins COB (71.8 mm x 32.0 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GL7008-AVC-NON-AU1
    Color, without microlens, COB 168 pins connector, Sealed D263® T glass without AR coating, Grade 1
  • GL7008-AVM-QON-AU1
    Monochrome, without microlens, COB 168 pins connector, Sealed D263® T glass without AR coating, Grade 1
  • GL7008-AVM-NON-AU1
    Monochrome, without microlens, COB 168 pins connector, Sealed D263® T glass without AR coating. Grade 1
