GMAX Series
GMAX is Gpixel's global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Contact us
GMAX4002
2.4 MP 4 μm 1/1.7" GLOBAL SHUTTER CMOS IMAGE SENSOR
GMAX4002 is a 1/1.7" optical format image sensor with 2048 x 1200 effective pixels. Featuring an advanced charge domain global shutter pixel, GMAX4002 operates with true CDS for low noise and high dynamic range. Gpixel’s Red Fox technology is employed to deliver enhanced QE for NIR applications. GMAX4002 is configurable through I2C. It integrates both Sub-LVDS and MIPI interfaces, for frame rates of 344 fps and 166 fps respectively. GMAX4002 supports 2×2 on-chip binning to achieve higher sensitivity and faster frame rate. It includes an on-chip sequencer and OTP functions.Assembled with 74-pin CLCC package, GMAX4002 enables a cost-effective camera solution, easy integration and high-reliability mass production.
  • Key features and Benefits

    NIR enhanced

    Low noise global shutter

    On-chip sequencer

    MIPI and Sub-LVDS Data Interfaces

    One Time Programmable (OTP) Memory

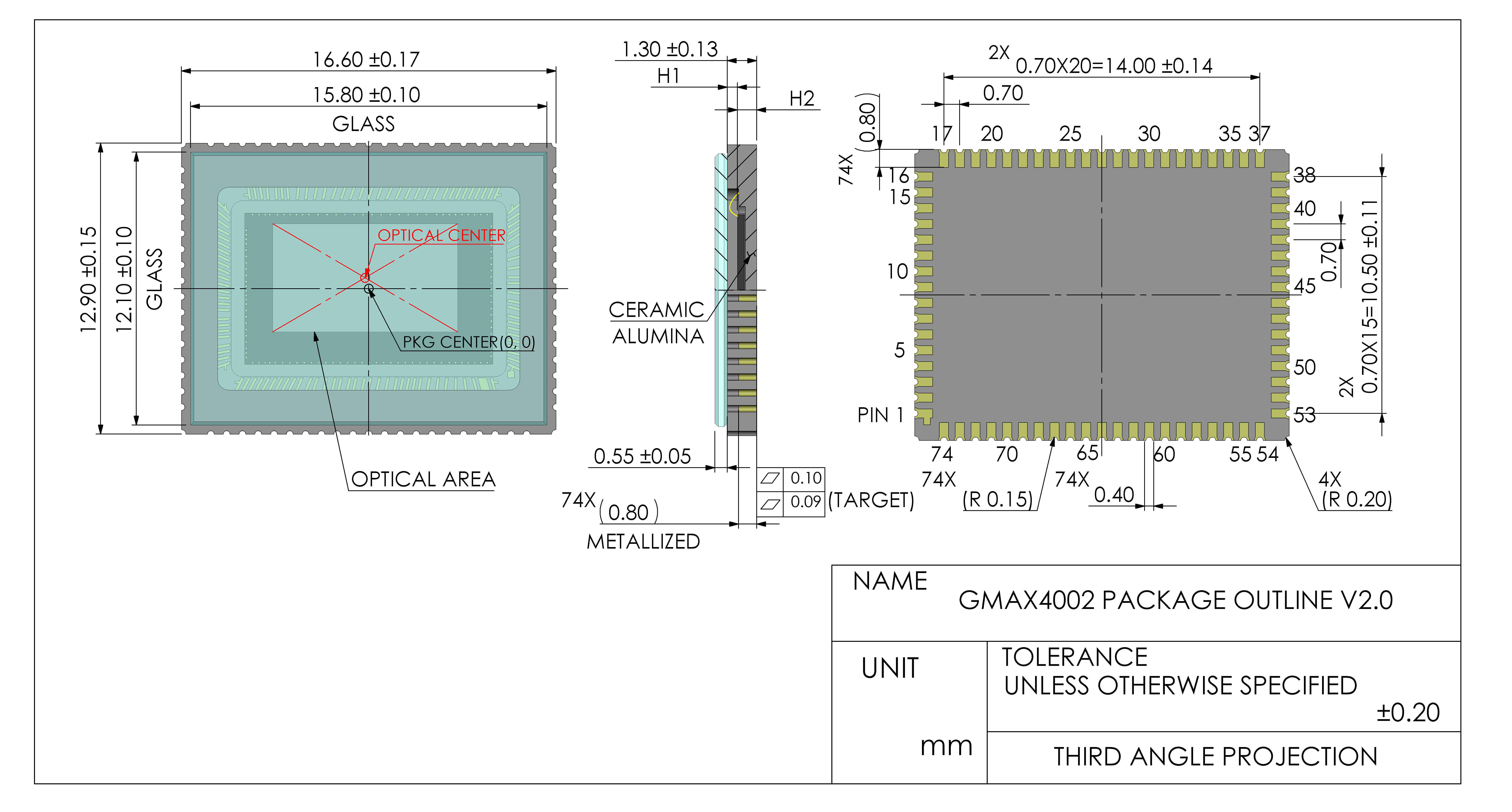

  • Package Drawing
  • QE Curve
GMAX4002
GMAX4002
Specifications

  • Resolution

    2.5MP

    Nr of Active Pixels

    2048 (H) x 1200 (V)

  • Optical format

    1/1.7″

    Pixel size

    4.0 μm x 4.0 μm

  • photosensitive area

    8.2 mm x 4.8 mm (9.5 mm diameter)

    Shutter type

    Global shutter

  • Peak QE

    73.7% @ 550 nm

    Full well capacity

    11.6 ke‾

  • Parasitic Light Sensitivity

    -92.0 dB

    Temporal noise

    2.6 e‾

  • Angular response

    > 17 degree (80% response)

    Dark Current

    8.3 e‾/pixel/s @ 37℃

  • Max. SNR

    40.7 dB

    Dynamic Range

    68.0 dB @ 12 bit, 64.4 dB @ 10 bit

  • Max Frame rate

    344 fps @ 10 bit

    ADC

    10/12 bit

  • Output format

    8 ch sub-LVDS , 4 ch MIPI

    Channel multiplexing

    8/4/2/1 @ sub-LVDS, 4/2/1 @ MIPI

  • Max. Data rate

    9.60 Gbps

    Chroma

    Mono,Mono (NIR enhanced),RGB Color

  • Power consumption

    < 0.5 W

    Supply voltage

    3.3V (analog), 1.8V – 3.3V (IO), 1.2V (digital)

  • Package

    CLCC 74-pins (16.6 mm x 12.9 mm)

    Availability

    Demo grade samples

Product Number
  • GMAX4002-AVM-HCV-AUD
    Full resolution Microlens, ceramic 74 pins LCC, Sealed D 263® T eco glass without AR coating. 344fps @ 10bit 8 x 1.2G Sub-LVDS. Demo grade Serial number GMAX4002-AM-H
  • GMAX4002-AVM-NCV-AUD
    Full resolution Microlens, ceramic 74 pins LCC, Sealed D 263® T eco glass without AR coating. 229fps @ 10bit 8 x 800M Sub-LVDS 195fps @ 12bit 8 x 800M Sub-LVDS 166fps @ 10bit 4 x 1.2G MIPI Demo grade Serial number GMAX4002-AM
  • GMAX4002W-AVM-NCV-AUD
    1312 (H) x 1200 (V) Microlens, ceramic 74 pins LCC, Sealed D 263® T eco glass without AR coating, 229fps @ 10bit 8 x 800M Sub-LVDS 195fps @ 12bit 8 x 800M Sub-LVDS 166fps @ 10bit 4 x 1.2G MIPI Demo grade Serial number GMAX4002-AM-W
  • GMAX4002-AVC-HCV-AUD
    Full resolution Microlens, ceramic 74 pins LCC, Sealed D 263® T eco glass without AR coating. 344fps @ 10bit 8 x 1.2G Sub-LVDS. Demo grade Serial number GMAX4002-AC-H
  • GMAX4002-AVC-NCV-AUD
    Full resolution Microlens, ceramic 74 pins LCC, Sealed D 263® T eco glass without AR coating. 229fps @ 10bit 8 x 800M Sub-LVDS 195fps @ 12bit 8 x 800M Sub-LVDS 166fps @ 10bit 4 x 1.2G MIPI Demo grade Serial number GMAX4002-AC
  • GMAX4002W-AVC-NCV-AUD
    1312 (H) x 1200 (V) Microlens, ceramic 74 pins LCC, Sealed D 263® T eco glass without AR coating, 229fps @ 10bit 8 x 800M Sub-LVDS 195fps @ 12bit 8 x 800M Sub-LVDS 166fps @ 10bit 4 x 1.2G MIPI Demo grade Serial number GMAX4002-AC-W
  • GMAX4002B-AVM-NCV-AUD
    1024 (H) x 600 (V) Microlens, ceramic 74 pins LCC, Sealed D 263® T eco glass without AR coating, 884fps @ 10bit 8 x 800M Sub-LVDS Demo grade Serial number GMAX4002-AM-B
Download
Product Flyer
Datasheet
Rohs & Reach
Reliability Report
