GMAX Series
GMAX is Gpixel's global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Contact us
Global Shutter
1/1.7"-Medium
2.4MP-152MP
High Speed
GMAX2518
18 MP 2.5 μm 1" GLOBAL SHUTTER IMAGE SENSOR
GMAX2518 has an optical format of 1" and features 18 MP (4508 × 4096) Global Shutter pixels based on the proven GMAX 2.5 μm architecture, operating with true correlated double sampling (CDS) for low read noise and high dynamic range. In addition, the dual light pipe technology provides excellent PLS and angular response, with 32 pairs of sub-LVDS each run at 960 MHz, the sensor output with maximum 30.72 Gbps data, achieving maximum frame rate of 139 fps in 10 bit output and 64 fps in 12 bit output. The sensor integrates an on-chip sequencer, programmable through SPI, and is designed to be fully pin compatible with GMAX0505, GMAX2509 and GMAX2505 to significantly shorten time to market for camera manufactures. GMAX2518 is assembled in a 19.5 x 20.8 mm 226-pins LGA ceramic package, which is mechanically compatible to fit into an industry standard 29 mm x 29 mm camera housing.
  • Key features and Benefits

    High resolution GS in 1" optical format

    Low noise global shutter

    Pin-compatible with GMAX0505/2509/2505
  • Package Drawing
  • Block Diagram

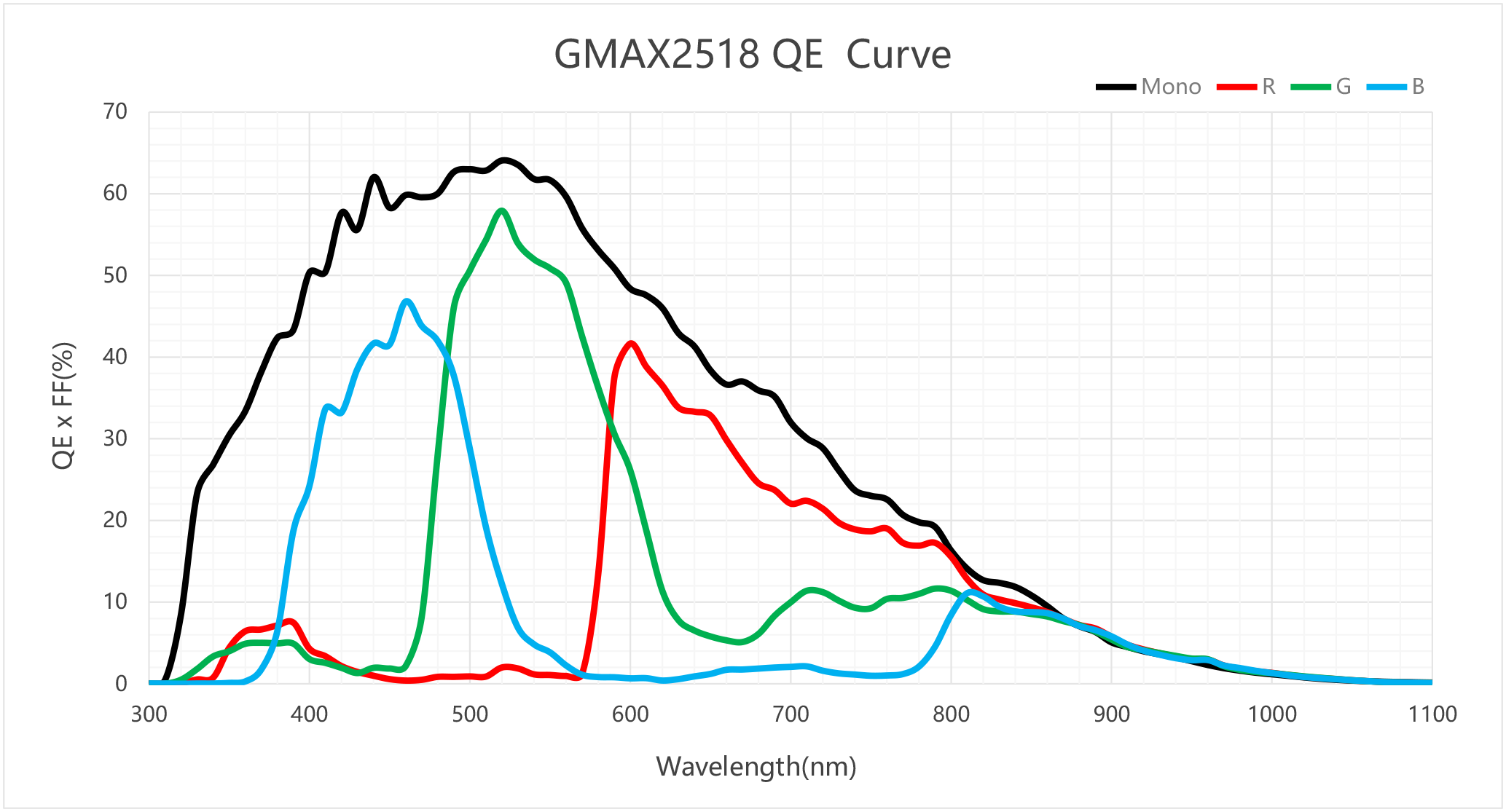

  • QE Curve
GMAX2518
GMAX2518
Specifications

  • Resolution

    18 MP

    Nr of Active Pixels

    4508 (H) x 4096 (V)

  • Optical format

    1″

    Pixel size

    2.5 μm x 2.5 μm

  • photosensitive area

    11.3 mm x 10.2 mm

    Shutter type

    Global shutter

  • Peak QE

    64.0% @ 520 nm

    Full well capacity

    8.0 ke‾

  • Parasitic Light Sensitivity

    -80 dB

    Temporal noise

    1.8 e‾

  • Angular response

    > 12 (80% response)

    Dark Current

    6.5 e‾/pixel/s @ 45℃

  • Max. SNR

    39 dB

    Dynamic Range

    67.0 dB @ 12 bit、61.9 dB @ 10 bit

  • Max Frame rate

    139 fps @ 10 bit

    ADC

    10/12 bit

  • Output format

    32 ch sub-LVDS

    Channel multiplexing

    32/16/12/8/4/2

  • Max. Data rate

    30.72 Gbps

    Chroma

    Mono & RGB Color

  • Power consumption

    <1.2 W @ 12 bit、<1.2 W @ 10 bit

    Supply voltage

    3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)

  • Package

    226 pins LGA (20.8 mm x 19.5 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX2518-AVM-HLT-AU1
    Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 139fps @ 10bit 32 x Sub-LVDS Grade 1
  • GMAX2518-AVM-NLT-AU1
    Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 64fps @ 12bit 16 x Sub-LVDS Grade 1
  • GMAX2518-AVC-HLT-AU1
    Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 139fps @ 10bit 32 x Sub-LVDS Grade 1
  • GMAX2518-AVM-HLT-AU2
    Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 139fps @ 10bit 32 x Sub-LVDS Grade 2
  • GMAX2518-AVM-NLT-AU2
    Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. Normal speed version, 64fps @ 12bit 16 x Sub-LVDS Grade 2
  • GMAX2518-AVC-HLT-AU2
    Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating. High speed version, 139fps @ 10bit 32 x Sub-LVDS Grade 2
  • GMAX2518-AVC-NLT-AU1
    Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263® T glass with no AR coating. Normal speed version, 64fps @ 12bit 16 x Sub-LVDS Grade 1
  • GMAX2518-AVC-NLT-AU2
    Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263® T glass with no AR coating. Normal speed version, 64fps @ 12bit 16 x Sub-LVDS Grade 2
