GMAX Series
GMAX is Gpixel’s global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Global Shutter
1/1.7"-Medium
2.4MP-152MP
High Speed
GMAX2509
9 MP 2.5 μm 2/3" GLOBAL SHUTTER CMOS IMAGE SENSOR
GMAX2509 achieves more than 65% peak QE and excellent angular response. Thanks to the latest light pipe technology, more than -80dB shutter efficiency can be achieved. The sensor supports both 10bit and 12bit output, with frame rate up to 290fps and 121fps. It is assembled in a ceramic Land Grid Array (LGA) package, allowing easy integration and mass production. GMAX2509 is pin-compatible with GMAX0505, GMAX2505 and GMAX2518, where GMAX0505 is a 25MP (5120×5120) 1.1" sensor, GMAX2505 is a 5MP (2600×2160) 1/2" sensor, and GMAX2518 is a 18MP (4508×4096) 1" sensor. All four sensors are designed with the same 2.5μm global shutter pixel architecture and same sequencer operation, allowing reduced system costs and R&D cost for customers.
  • Key features and Benefits

    High resolution GS in 2/3" optical format

    High data throughput > 26 Gbps

    Low noise global shutter

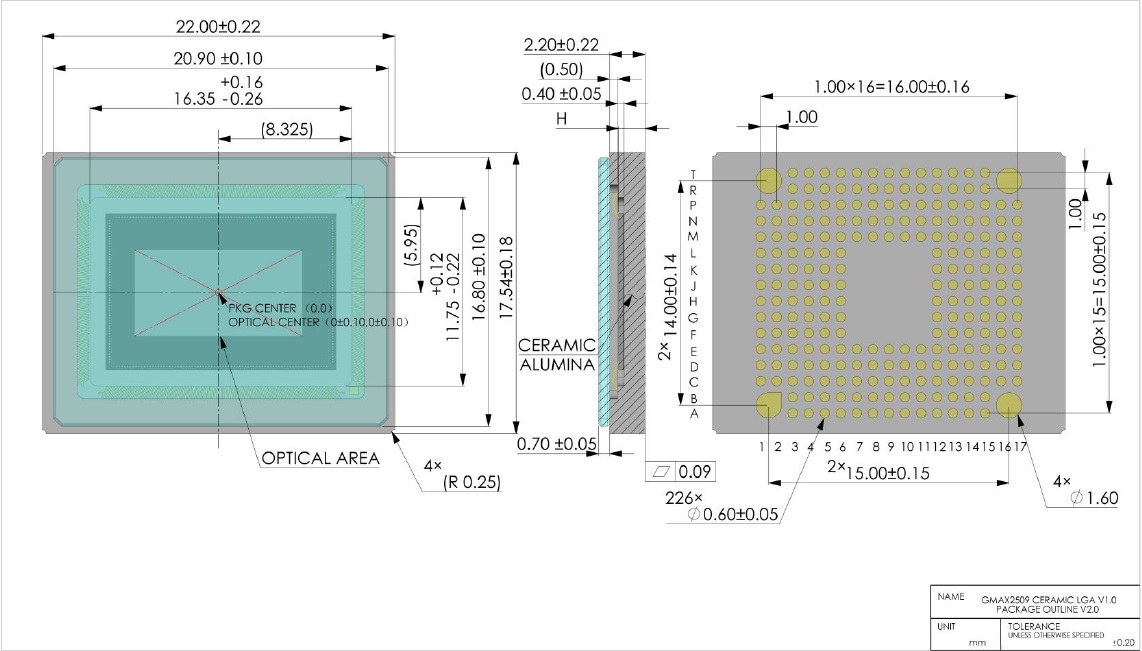

  • Package Drawing
  • Block Diagram

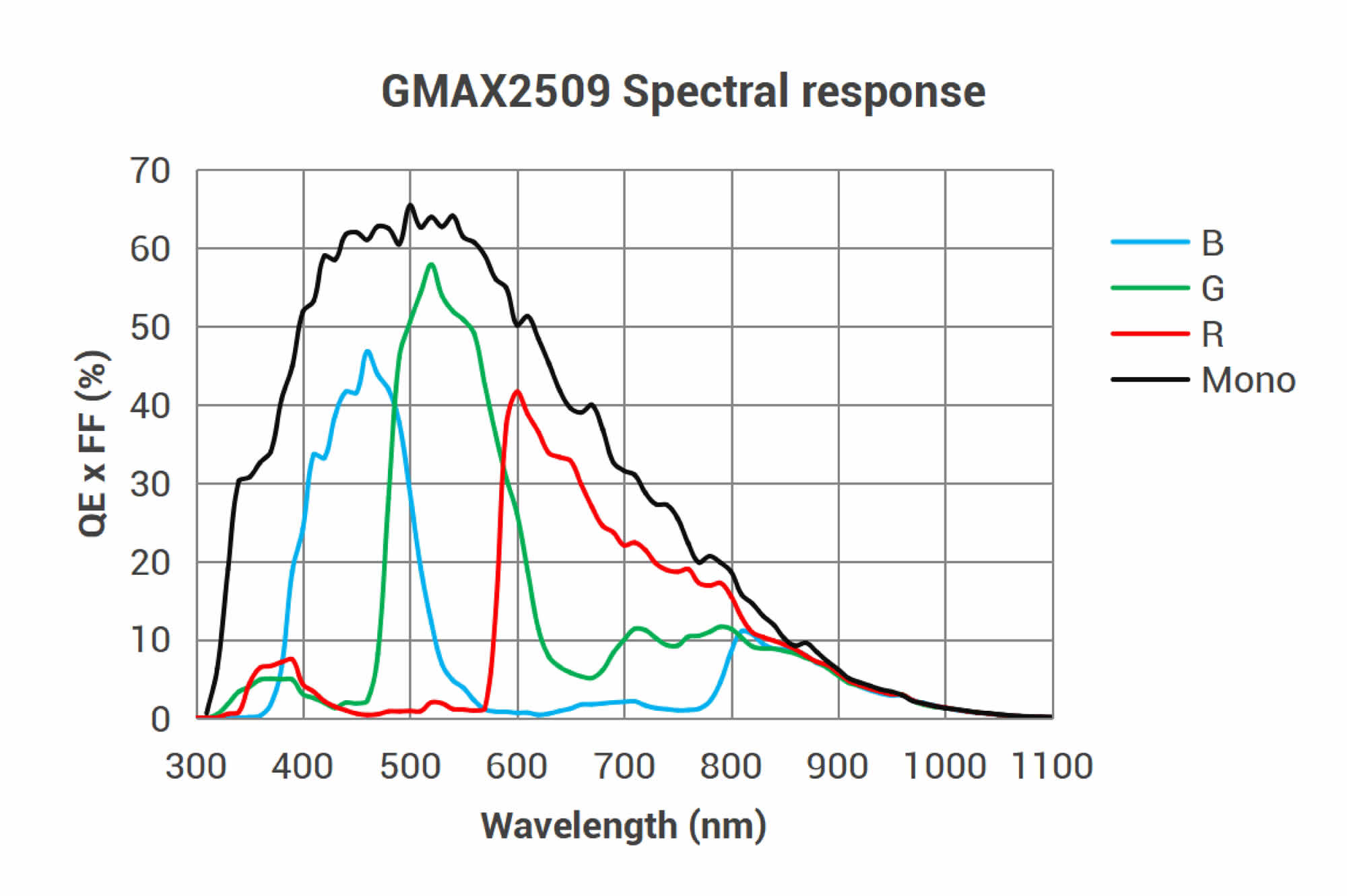

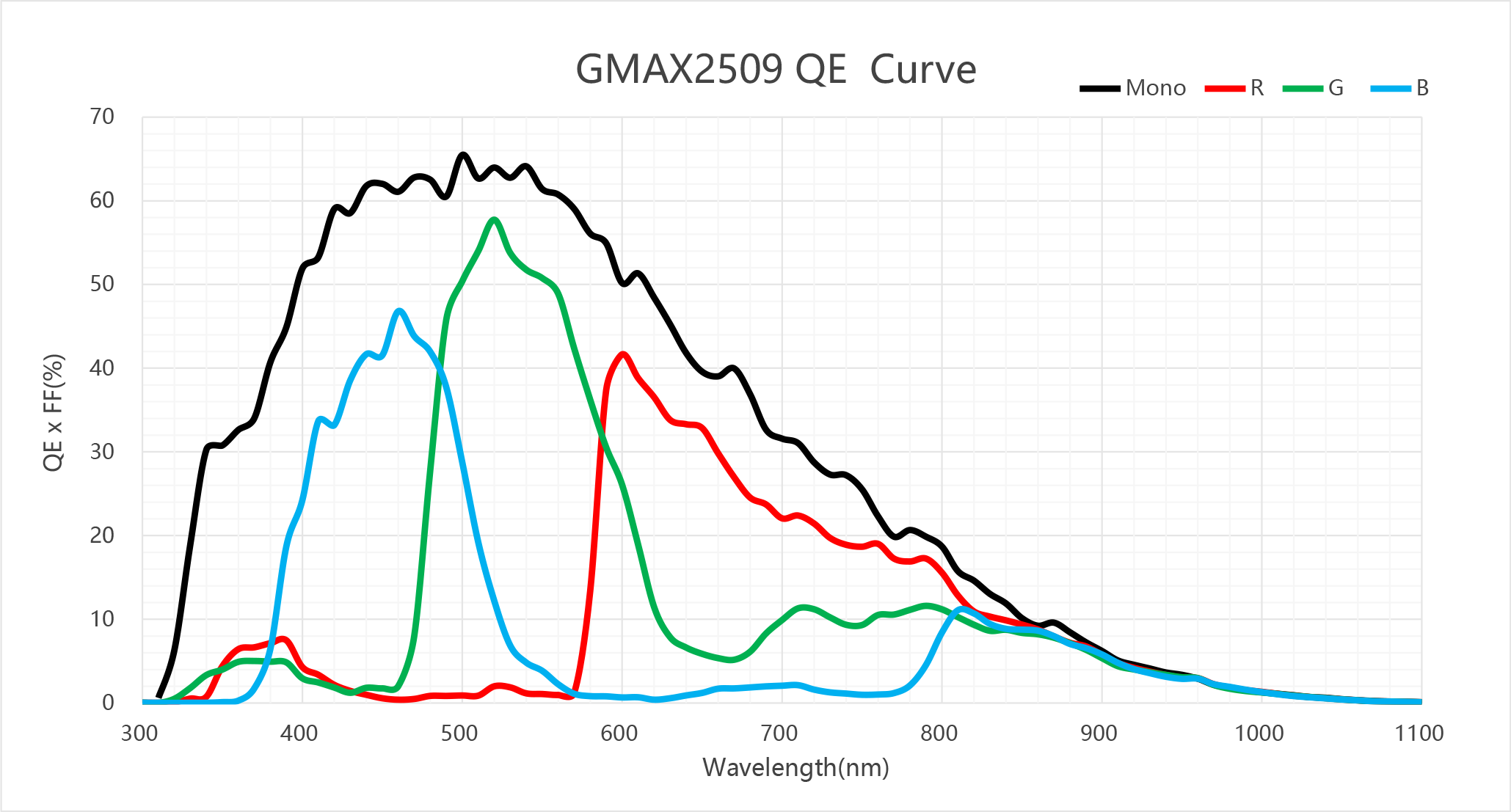

  • QE Curve
GMAX2509
GMAX2509
Specifications
  • Resolution

    9 MP

    Nr of Active Pixels

    4200 (H) x 2160 (V)

  • Optical format

    2/3″

    Pixel size

    2.5 μm x 2.5 μm

  • photosensitive area

    10.5 mm x 5.4 mm

    Shutter type

    Global shutter

  • Peak QE

    65.5% @ 500 nm

    Full well capacity

    6.7 ke‾

  • Parasitic Light Sensitivity

    -80.0 dB

    Temporal noise

    1.8 e‾

  • Angular response

    > 13 (80% response)

    Dark Current

    1.2 e‾/pixel/s @ 30℃

  • Max. SNR

    38.2 dB

    Dynamic Range

    65.5 dB @ 12 bit、62.1 dB @ 10 bit

  • Max frame rate

    290 fps @ 10 bit

    ADC

    10/12 bit

  • Output format

    32 ch sub-LVDS

    Channel multiplexing

    32/16/12/8/4/2

  • Max. Data rate

    30.72 Gbps

    Chroma

    Mono & RGB Color

  • Power consumption

    <0.9 W @ 12 bit 、 <1.2 W @ 10 bit

    Supply voltage

    3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)

  • Package

    226 pins LGA (20.3 mm x 17.5 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX2509-BVM-HST-AU1
    GMAX2509-LGA2; Monochrome, microlens, High speed version, 290fps @ 10bit 32 x Sub-LVDS. Ceramic 226 pins LGA, sealed D 263® T eco glass with no AR coating, Grade 1
  • GMAX2509-BVC-HST-AU1
    GMAX2509-LGA2; Bayer color, microlens, High speed version, 290fps @ 10bit 32 x Sub-LVDS. Ceramic 226 pins LGA, sealed D 263® T eco glass with no AR coating, Grade 1
  • E-GMAX2509-02-1
    Evaluation board Operation mode: 10 bit mode; Lens holder: C-mount; Interface: USB 3.0
  • GMAX2509-BVM-NST-AU1
    GMAX2509-LGA2; Monochrome, microlens, Normal speed version, 121fps @ 12bit 16 x Sub-LVDS. Ceramic 226 pins LGA, sealed D 263® T eco glass with no AR coating, Grade 1
  • GMAX2509-BVC-NST-AU1
    GMAX2509-LGA2; Bayer color, microlens, Normal speed version, 121fps @ 12bit 16 x Sub-LVDS. Ceramic 226 pins LGA, sealed D 263® T eco glass with no AR coating, Grade 1
  • E-GMAX2509-02-1
    Evaluation board Operation mode: 12 bit mode; Lens holder: C-mount; Interface: USB 3.0
Download
Product Flyer
Datasheet
