GSENSE6510BSI
10.2MP 6.5 μm 1.9" SCIENTIFIC CMOS IMAGE SENSOR
GSENSE6510BSI is a 3200 x 3200 (10.2 MP) resolution image sensor with industry-standard 6.5 μm x 6.5 μm pixel and large 29.4 mm diagonal for increased throughput in microscopy applications compared to 19 mm sCMOS devices. With a peak QE of 95% and read noise of 0.7 e‾ median, the sensor achieves exceptional signal-to-noise in extreme low light applications. The sensor offers five imaging modes. In 12-bit mode, the sensor delivers 62.3 dB of dynamic range with a read noise floor or 1.3 e‾ at 88 fps. In 11-bit HDR mode, the sensor uses dual-gain readout to achieve 78.8 dB of dynamic range with a read noise of 1.8 e‾ at the same 83 fps. Additionally, the sensor offers two high-speedmodes, an 8-bit mode reaching 500 fps and an 11-bit mode reaching 166fps. A 12-bit low noise mode achieves 0.7 e‾ read noise.
  • Key features and Benefits

    BSI

    High sensitivity

    Low noise

    Dual Gain HDR

    High frame rate

  • Package Drawing

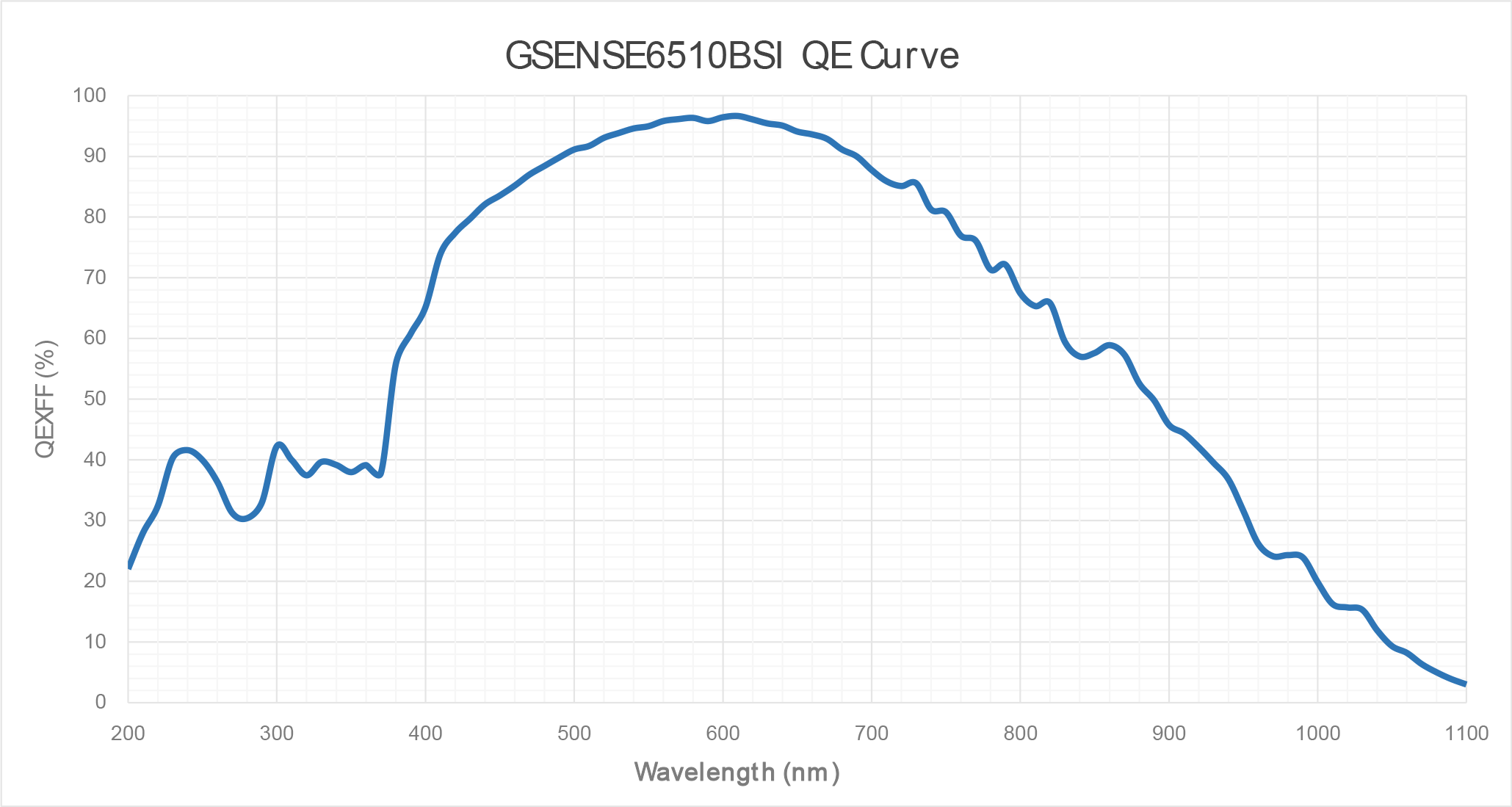

  • QE
GSENSE6510BSI
GSENSE6510BSI
Specifications
  • Resolution

    10.2 MP

    Nr of Active Pixels

    3200 (H) x 3200(V)

  • Optical format

    1.83"

    Pixel size

    6.5 μm x 6.5 μm

  • photosensitive area

    20.8 mm x 20.8 mm

    Shutter type

    Rolling Shutter

  • Peak QE

    95% Peak QE @ 610nm

    Full well capacity

    21 ke‾

  • Temporal noise

    0.7 e‾

    Dark Current

    0.2 e‾/pixel/s @ -10℃

  • Dynamic Range

    78.8 dB

    Max Frame rate

    500 fps @ 8bit

  • Max. SNR

    -

    Parasitic Light Sensitivity

    -

  • Angular response

    -

    ADC

    8/11/12 bit

  • Output format

    72 pairs LVDS

    Channel multiplexing

    72/24/12

  • Max. Data rate

    69.12 Gbps @ 8 bit

    Chroma

    Mono

  • Power consumption

    <5 w @ 8 bit <2.7 w @ 12 bit

    Supply voltage

    3.6V (analog)、2V (digital)

  • Package

    284 pins LGA (44.4 mm x 34.2 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GSENSE6510BSI-BBM-NLN-AR1
    BSI image sensor Removable D 263® T eco glass lid without AR coating on both sides.
