GMAX3412
12MP 3.4 μm 1.1" GLOBAL SHUTTER CMOS IMAGE SENSOR
GMAX3412 is a 1.1’’ optical format CMOS image sensor with 4096 x 3072 effective pixels with frame rates up to 128/60 fps in 10/12-bit mode with sub LVDS interface and 30 fps over the alternative 4 MIPI D-PHY channels. Based on a high-performance 3.4 µm charge domain global shutter pixel, GMAX3412 achieves a max full well capacity of 9 ke‾ and min dark noise of 1.8 e‾, delivering max 67.9 dB linear dynamic range. Red Fox technology delivers QE of 75% @ 540 nm, and a NIR QE of 33% @850 nm. GMAX3412 is housed in 176 pin ceramic LGA package, 22.93 mm x 19.39 mm outer dimensions, and pin-compatible to GMAX3405. GMAX3412 is configurable through I2C or SPI, and supports features such as multislope HDR and short exposure time modes making it an ideal solution for an easy integration into cost-sensitive applications in machine vision, industrial bar code reading, logistics, and traffic.
  • Key features and Benefits

    12MP resolution

    Charge domain electronic global shutter

    High speed and good PLS and angular response

    NIR enhance

    Multi-slope HDR

    One Time Programmable(OTP) Memory
  • Package Drawing

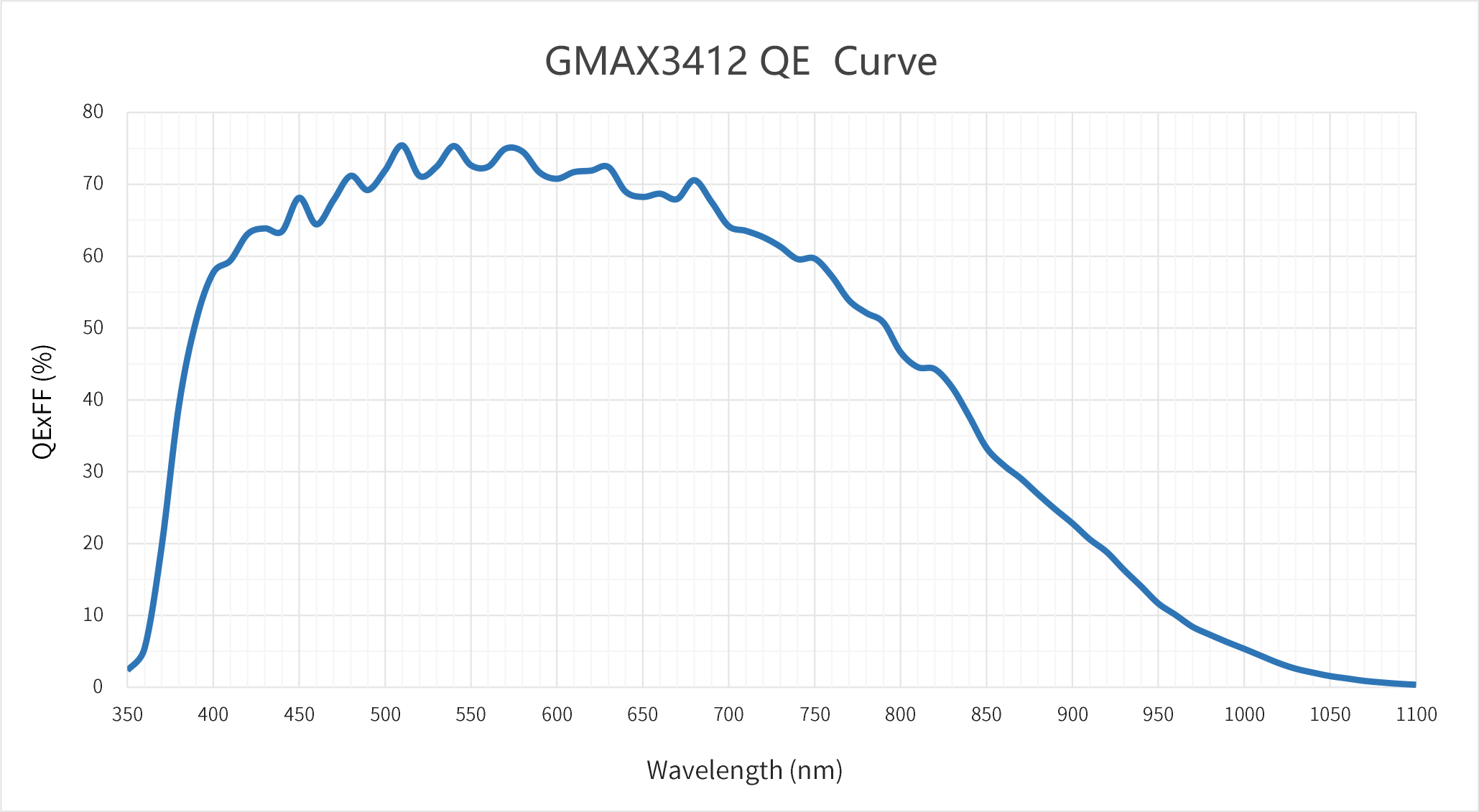

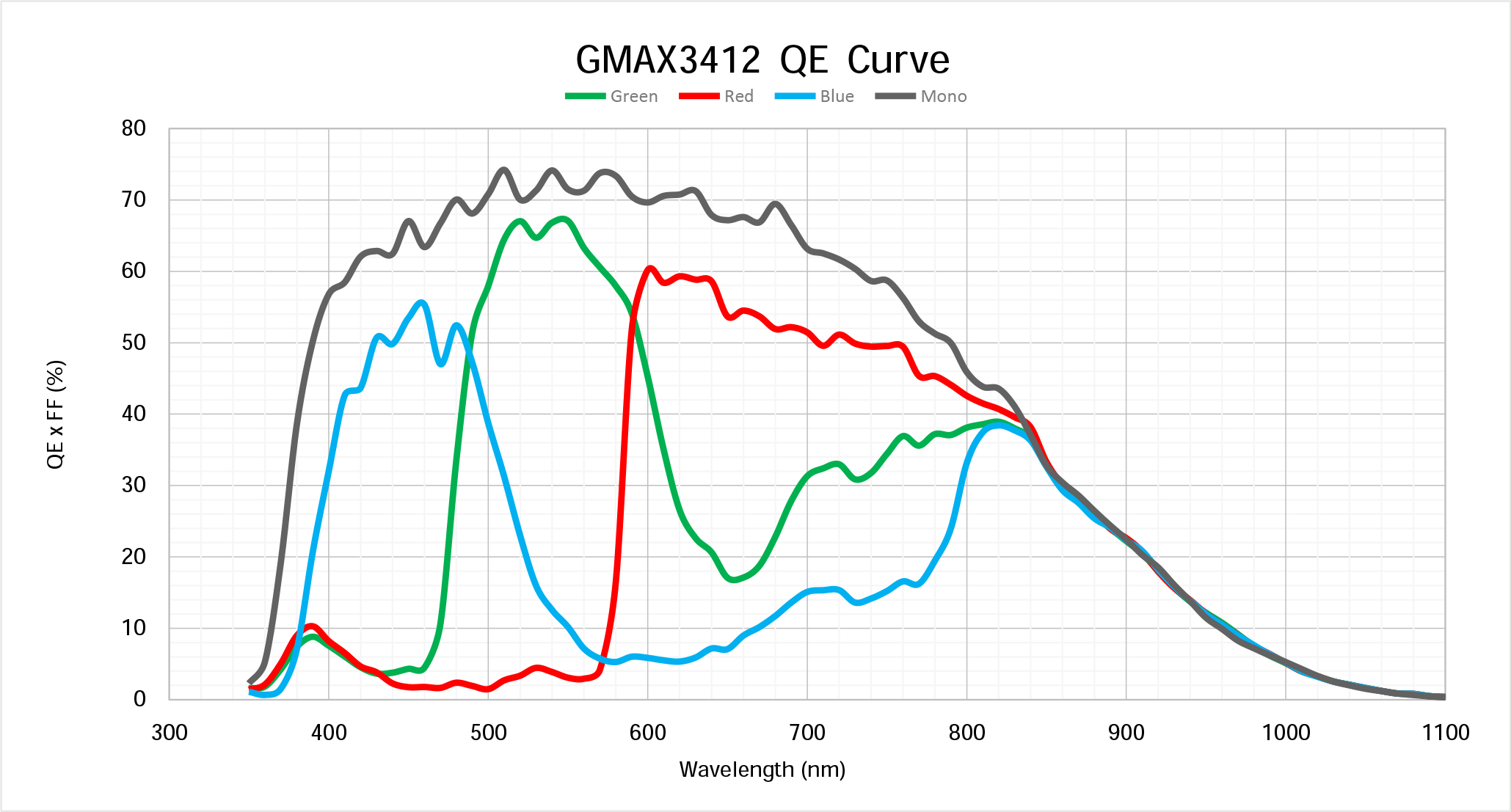

  • QE Curve
GMAX3412
GMAX3412
Specifications

  • Resolution

    12 MP

    Nr of Active Pixels

    4096 (H) x 3072 (V)

  • Optical format

    1.1″

    Pixel size

    3.4 μm x 3.4 μm

  • photosensitive area

    14.0 mm x 10.5 mm

    Shutter type

    Global shutter

  • Peak QE

    75% @ 540 nm

    Full well capacity

    9.0 ke‾ @ 12-bit, 8.0 ke‾ @ 10-bit

  • Parasitic Light Sensitivity

    -88 dB

    Temporal noise

    1.8 e‾ @ 12-bit 3.3 e‾ @ 10-bit

  • Angular response

    > 15 ⁰ (80% response)

    Dark Current

    6.5 e‾ /s @ 35°C

  • Max. SNR

    39.5 dB @ 12-bit, 39.0 dB @ 10-bit

    Dynamic Range

    67.9 dB @ 12-bit, 61.9 dB @ 10-bit

  • Max Frame rate

    128 fps @LVDS @ 10 bit, 60 fps @LVDS @ 12 bit, 30 fps @ MIPI @ 12 bit

    ADC

    10/12 bit

  • Output format

    16 ch sub-LVDS ; 4 lanes MIPI

    Channel multiplexing

    16/14/12/10/8/6/4/2/1

  • Max. Data rate

    19.2 Gbps @Sub-LVDS 4.8 Gbps @ MIPI

    Chroma

    Mono (NIR enhanced), RGB Color

  • Power consumption

    ＜1.5 W

    Supply voltage

    3.3V/3.6V (analog), 1.8V-3.3V (IO), 1.2V (digital)

  • Package

    176 pins LGA (22.93 mm x 19.39 mm)

    Availability

    Demo grade samples

Product Number
  • GMAX3412-AVM-NLV-BUD
    Monochroma, micro-lens, ceramic 176 pins LGA, Sealed D 263® T eco glass with AR coating. Demo grade. 128 fps @ 10bit 16 x Sub-LVDS 60 fps @ 12bit 16 x Sub-LVDS 30 fps @ 12bit 4 x MIPI
  • LBW-GMAX3412S-U3V
    GMAX3412 demo kit, U3V interface.
  • GMAX3412-AVC-NLV-BUD
    Bayer RGB, micro-lens, ceramic 176 pins LGA, Sealed D 263® T eco glass with AR coating. Demo grade. 128 fps @ 10bit 16 x Sub-LVDS 60 fps @ 12bit 16 x Sub-LVDS 30 fps @ 12bit 4 x MIPI
Download
Product Flyer
Datasheet
Rohs & Reach
