Resolution

43 MP

Nr of Active Pixels

7915 (H) x 5436 (V)

Optical format

APS-C

Pixel size

2.8μm x 2.8μm

photosensitive area

22.16 mm x 15.22 mm

Shutter type

Global shutter

Peak QE

61.7% (mono with microlens)

Full well capacity

7.6ke‾

Parasitic Light Sensitivity

<-70 dB

Temporal noise

1.6 e‾

Angular response

> 8° (80% response)

Dark Current

1 e‾/pixel/sec @ 33°C

Dynamic Range

66 dB

Max Frame rate

17 fps@12 bit

Max. SNR

-

ADC

12 bit

Output format

9 ch sub-LVDS

Channel multiplexing

9 ch sub-LVDS

Max. Data rate

9.0 Gbps

Chroma

Mono,RGB Color

Power consumption

1 W

Supply voltage

3.3V (analog), 1.35V(digital)

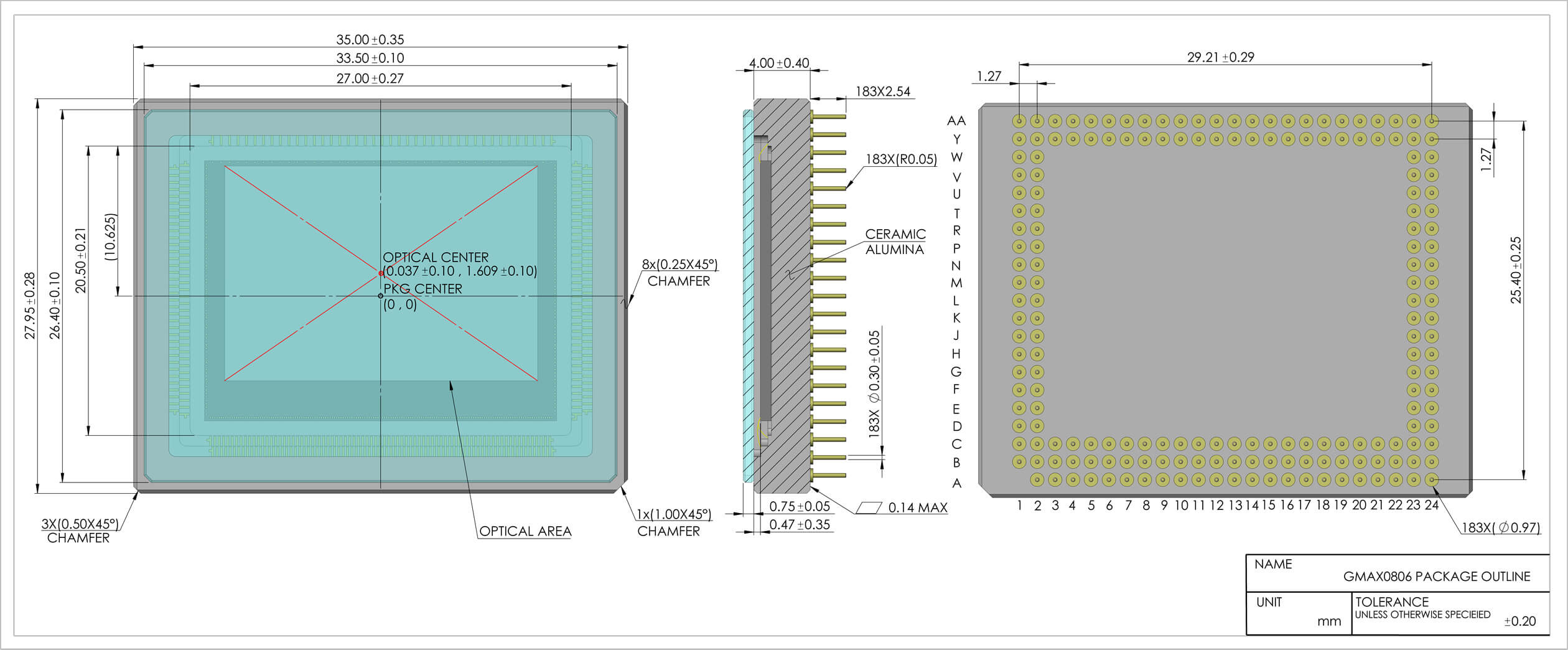

Package

183 pins micro-PGA (27.95 mm x 35.00 mm)

Availability

Discontinued
