High Speed
High Resolution
TDI
Resolution
8 K
Nr of Active Pixels
8322 (H) x 16 (V)
Optical Format
41.61 mm
Pixel Size
5 μm x 5 μm
Full Well Capacity
17.0 ke‾ (11 bit, dual line) 15.0 ke‾ (10 bit, quad line)
Temporal Noise
13.0 e‾ (11 bit, dual line) 17.0 e‾ (10 bit, quad line)
Dynamic Range
62.0 dB (11 bit, dual line) 58.9 dB (10 bit, quad line)
Max Line Rate
200k fps (11 bit, dual line) 100k fps (10 bit, quad line)

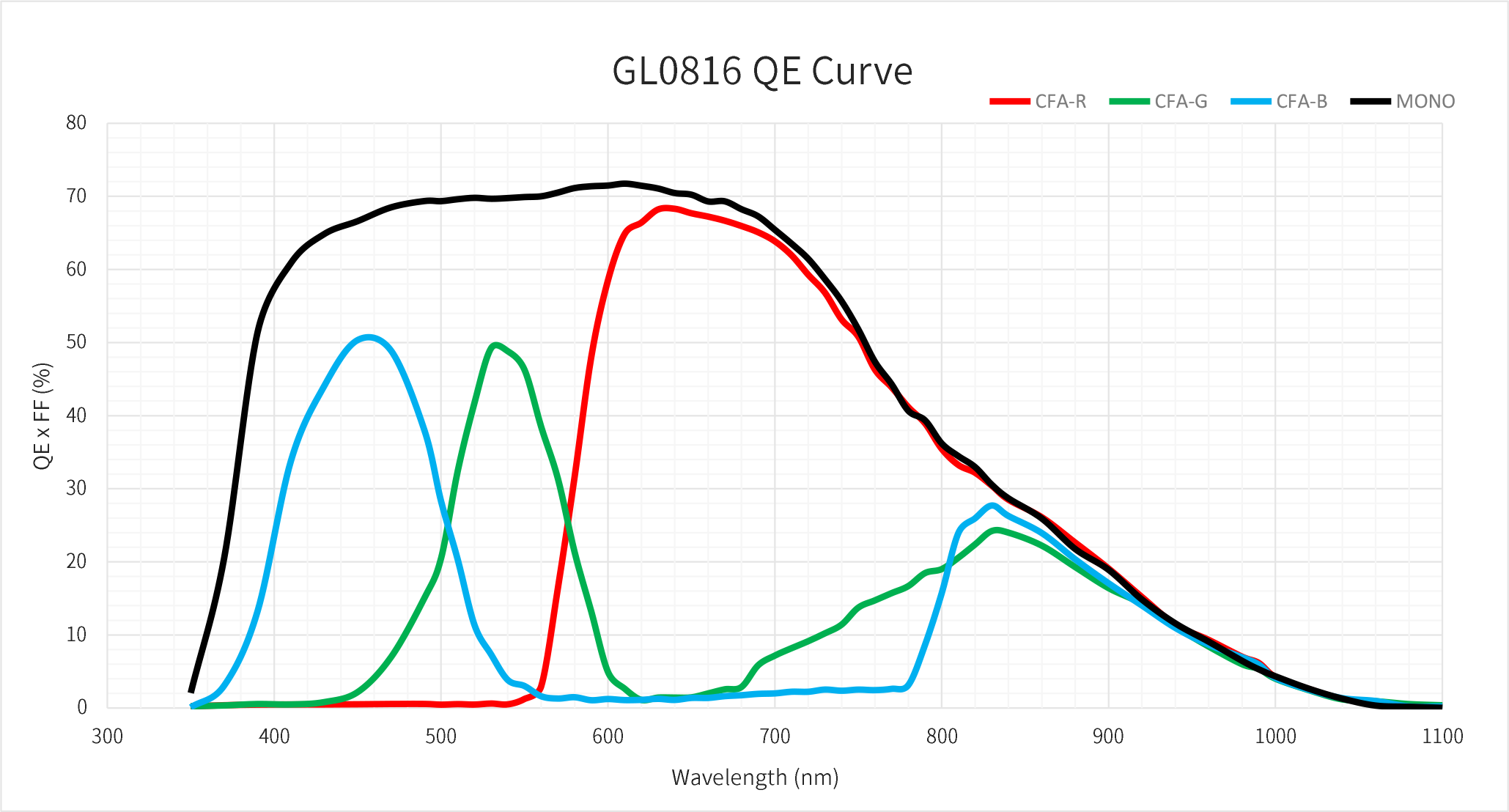

Peak QE
> 71% (600 nm)
Shutter Type
Global Shutter
Angular Response
>15° (85% response)
Photosensive Area
41.61 mm
Max. SNR
42 dB
Dark Current
6 ke‾/pixel/s (76℃,11 bit) 25 ke‾/pixel/s (76℃,10 bit)
ADC
10/11 bit
Output Format
66 ch Sub-LVDS
Chroma
Mono, RGB Color
Power Consumption
< 4 W
Supply Voltage
3.3 V (analog) 2 V (digital/LVDS) 2.2 V (ADC)
Package
258 pins μPGA (55.8 mm x 18.1 mm)
Max. Data Rate
800 Mbps
Availability
Mass Production (MP)
