GMAX3412

12 MP 3.4 μm 1.1" GLOBAL SHUTTER CMOS IMAGE SENSOR

GMAX3412 is a 1.1" optical format CMOS image sensor with 4096 x 3072 effective pixels with frame rates up to 128/60 fps in 10/12-bit mode with sub LVDS interface and 30 fps over the alternative 4 MIPI D-PHY channels. Based on a high-performance 3.4 µm charge domain global shutter pixel, GMAX3412 achieves a max full well capacity of 9 ke‾ and min dark noise of 1.8 e‾, delivering max 67.9 dB linear dynamic range. Red Fox technology delivers QE of 75% (540 nm), and a NIR QE of 33% (850 nm). GMAX3412 is housed in 176 pins ceramic LGA package, 22.93 mm x 19.39 mm outer dimensions, and pin-compatible to GMAX3405.
GMAX3412 is configurable through I²C or SPI, and supports features such as multislope HDR and short exposure time modes making it an ideal solution for an  easy integration into cost-sensitive applications in machine vision, industrial bar code reading, logistics, and traffic.

Key Features and Benefits

12 MP Resolution

Charge Domain Electronic Global Shutter

High Speed and Good PLS and Angular Response

NIR Enhance

Multi-Slope HDR

One Time Programmable(OTP) Memory
Package Drawing

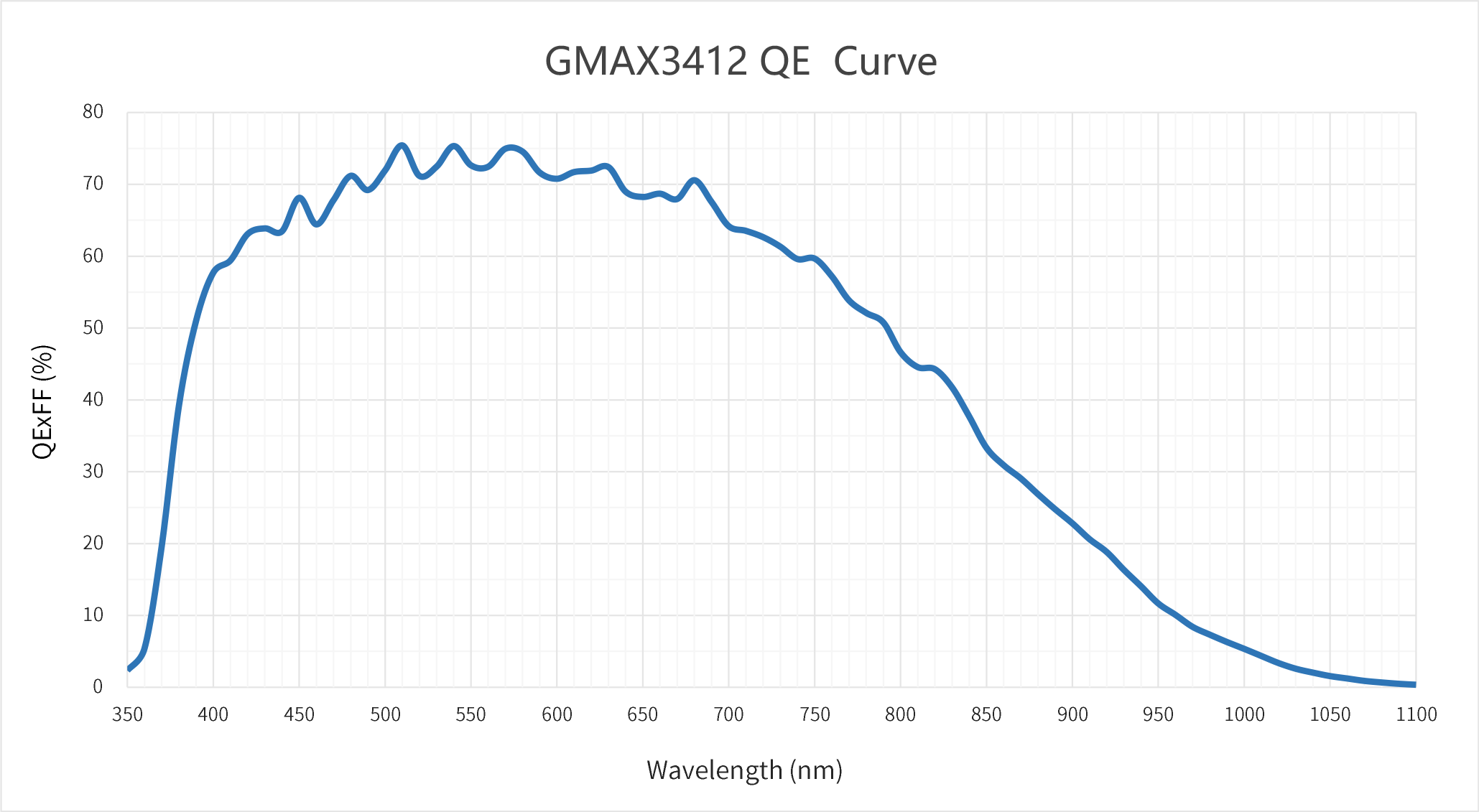

QE Curve

GMAX3412

产品指标

Resolution

12 MP

Nr of Active Pixels

4096 (H) x 3072 (V)
Optical Format

1.1″

Pixel Size

3.4 μm x 3.4 μm
Photosensitive Area

14.0 mm x 10.5 mm

Shutter Type

Global Shutter
Peak QE

75% (540 nm)

Full Well Capacity

9.0 ke‾ (12 bit, PGA gain x1.0)
Parasitic Light Sensitivity

-88 dB

Temporal Noise

3.6 e‾ (12 bit, PGA gain x1.0)
Angular Response

> 15 ⁰ (80% response)

Dark Current

6.5 e‾ /s (35°C)
Max. SNR

39.5 dB (12 bit) 39.0 dB (10 bit)

Dynamic Range

67.9 dB (12 bit, PGA gain x1.0)
Max Frame Rate

150 fps

ADC

10/12 bit
Output Format

16 ch sub-LVDS 4 lanes MIPI

Channel Multiplexing

16/14/12/10/8/6/4/2/1 (Sub-LVDS) 4 (MIPI)
Max. Data Rate

20.48 Gbps

Chroma

Mono (NIR enhanced), RGB Color
Power Consumption

< 1.5 W

Supply Voltage

3.3V/3.6V (analog), 1.8V-3.3V (IO), 1.2V (digital)
Package

176 pins LGA (22.93 mm x 19.39 mm)

Availability

Mass Production (MP)

产品编码

GMAX3412-AVM-NLV-BUD

Monochroma, micro-lens, ceramic 176 pins LGA, Sealed D 263^® T eco glass with AR coating. 128 fps (10 bit, 16 x Sub-LVDS),60 fps (12 bit, 16 x Sub-LVDS),30 fps (12 bit, 4 x MIPI). Demo grade.
GMAX3412-AVM-NLV-BU1

Monochroma, micro-lens, ceramic 176 pins LGA, Sealed D 263^® T eco glass with AR coating. 60 fps (12 bit, 16 x Sub-LVDS),30 fps (12 bit, 4 x MIPI) .Grade 1.
GMAX3412-AVM-HLV-BU1

Monochroma, micro-lens, ceramic 176 pins LGA, Sealed D 263^® T eco glass with AR coating. 150 fps (10 bit, 16 x Sub-LVDS),60 fps (12 bit, 16 x Sub-LVDS),30 fps (12 bit, 4 x MIPI) .Grade 1.

GMAX3412-AVC-NLV-BUD

Bayer RGB, micro-lens, ceramic 176 pins LGA, Sealed D 263^® T eco glass with AR coating. 128 fps (10 bit, 16 x Sub-LVDS),60 fps (12 bit, 16 x Sub-LVDS),30 fps (12 bit, 4 x MIPI) .Demo grade.
GMAX3412-AVC-NLV-BU1

Bayer RGB, micro-lens, ceramic 176 pins LGA, Sealed D 263^® T eco glass with AR coating. 60 fps (12 bit, 16 x Sub-LVDS),30 fps (12 bit, 4 x MIPI ) .Grade 1.
GMAX3412-AVC-HLV-BU1

Bayer RGB, micro-lens, ceramic 176 pins LGA, Sealed D 263^® T eco glass with AR coating. 150 fps (10 bit, 16 x Sub-LVDS),60 fps (12bit, 16 x Sub-LVDS),30 fps (12 bit, 4 x MIPI) .Grade 1.
