GLR1402BSI-M

2048 pixels, 14 μm x 350 μm RESOLUTION LINE SCAN CMOS IMAGE SENSOR

GLR1402BSI-M is a single-line linear sensor image sensor with rectangular pixels designed for spectroscopy, OCT, encoder and various other image reading applications.
GLR1402BSI-M has 2048 pixels in 1 row, with a pixel size of 14 μm x 350 μm, yielding an impressive max. 176 ke‾ full well capacity and boasting a mere 3.1 e‾ of noise.
Data is read out at 14 bits per pixel with 80 dB of dynamic range, or by combining two 12 bit pixel reads, high and low gain, to achieve a maximum dynamic range of 95.1 dB. GLR1402BSI-M supports both sLVDS and CMOS data outputs, customer can switch different data channels with 12 bit / 14 bit based on demand.

Key Features and Benefits

Back Side Illuminated (BSI) Pixels

High Sensitivity

High Speed: up to 29 kHz

Dual Gain HDR

UV Version QE 70.4% (280 nm)

12/14 bit ADC

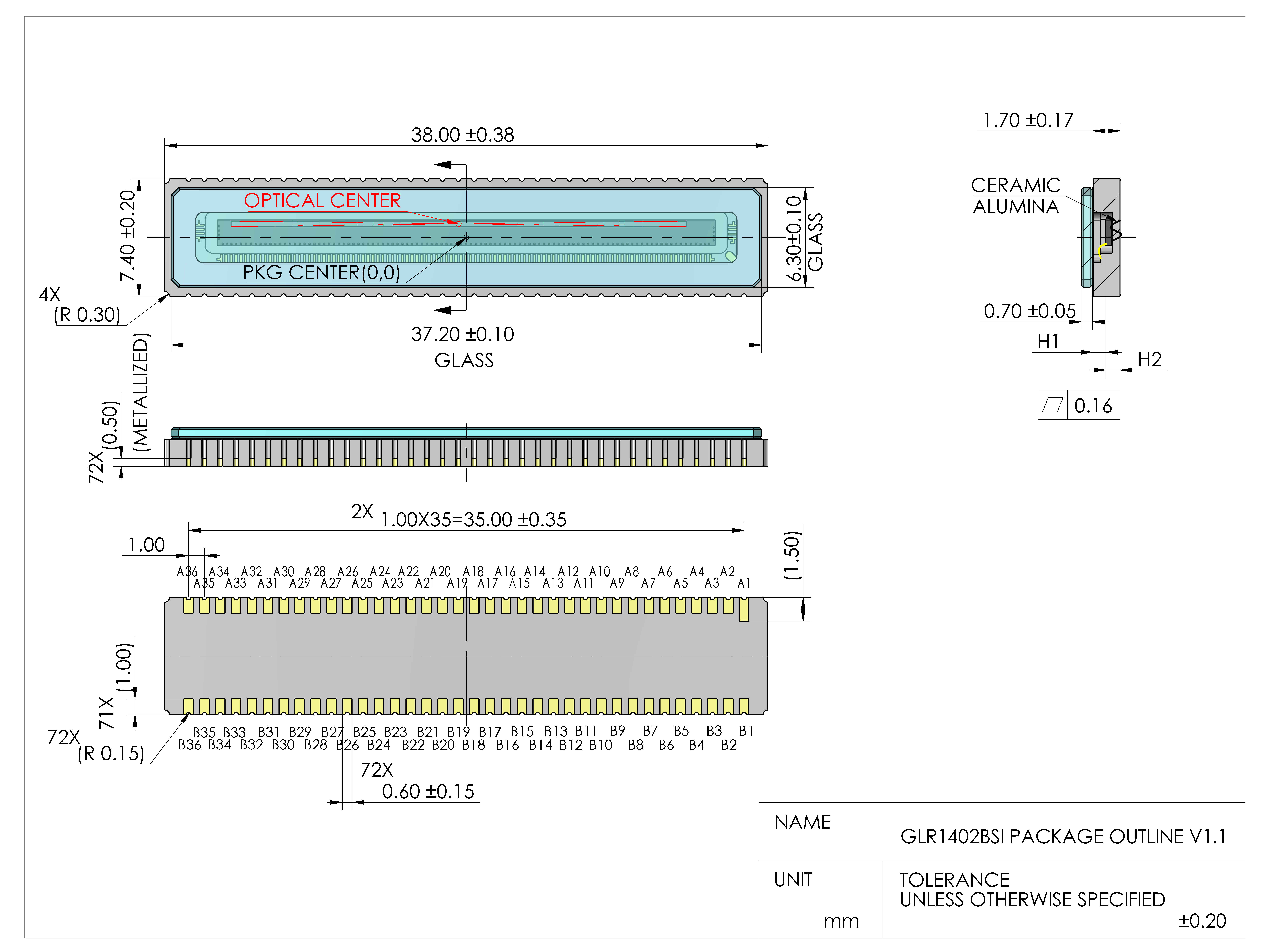

Package Drawing

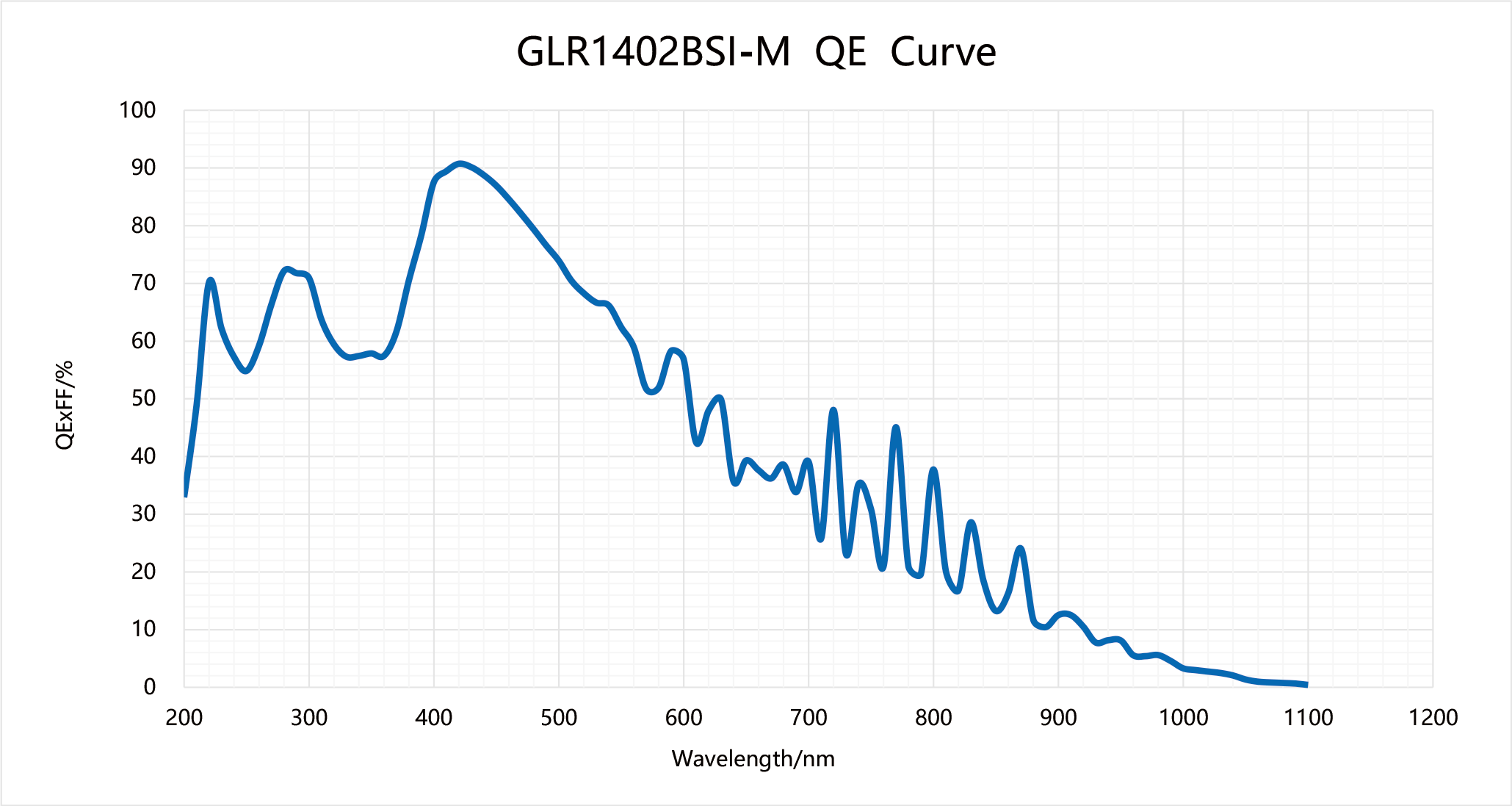

QE Curve

GLR1402BSI-M

产品指标

Resolution

2 K

Nr of Active Pixels

2048 (H) x 1 (V)
Optical Format

28.672 mm

Pixel Size

14 μm x 350 μm
Full Well Capacity

176 ke⁻

Temporal Noise

3.1 e⁻ (HDR HG) 44.7 e⁻ (HDR LG)
Max Line Rate

29 kHz

Peak QE

90.7% (420 nm)
Shutter Type

Global Shutter

Dynamic Range

95.1 dB
Photosensive Area

28.672 mm x 0.35 mm

Dark Current

3.8 ke‾/s/pix
Max. SNR

52 dB

ADC

12/14 bit
Output Format

4 ch Sub-LVDS CMOS parallel output

Channel Multiplexing

Sub-LVDS 4/2/1
Max. Data Rate

2.4 Gbps (Sub-LVDS) 600 Mbps (CMOS)

Chroma

Mono
Power Consumption

< 350 mW

Supply Voltage

3.6 V (Analog) 1.5 V (Digital) 1.8 - 3.3 V (IO)
Package

CLCC 72 pins with quartz glass lid (38.0 mm x 7.4 mm)

Availability

Engineering Samples (ES)
