Sub-LVDS Output Format
On-chip 12 bit ADC with Dynamic Range of 72 dB
Line Rate up to 71.9 kHz
Resolution
1024 (H) x 1 (V)
Nr of Active Pixels
1024 (H) x 1 (V)
Optical Format
12.8 mm
Pixel Size
12.5 μm x 12.5 μm
Full Well Capacity
120 ke‾ (12 bit, HG) 1.6 Me‾ (12 bit, LG)
Temporal Noise
88 e‾ (12 bit, HG) 400 e‾ (12 bit, LG)
Dynamic Range
62 dB (12 bit, HG) 72 dB (12 bit, LG)
Max Line Rate
71.9 kHz
Peak QE
75% (1550 nm)
Shutter Type
Global Shutter
Photosensitive Area
12.8 mm x 12.5 μm
PRNU
< 2%
ADC
12 bit
Output Format
2 x Sub-LVDS
Channel Multiplexing
2 to 1
Max. Data Rate
1.68 Gbps
Power Consumption
0.45 W
Supply Voltage
3.3 V (analog) 1.5 V (digital) 1.8 V (IO)

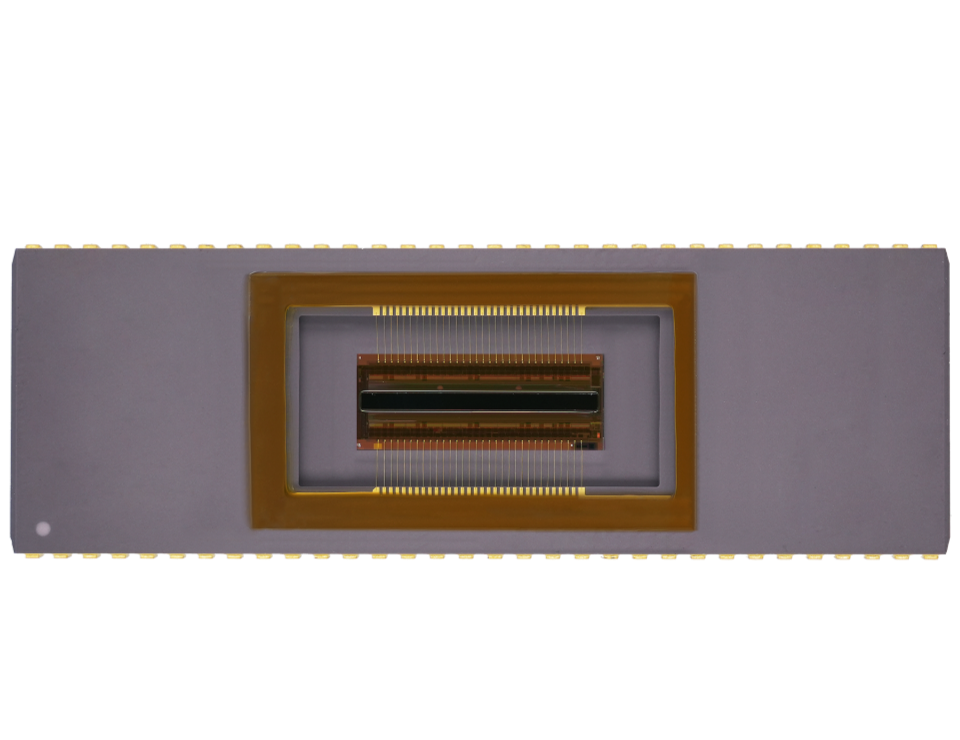

Package
64 pins DIP (57.4 mm x 18.9 mm)
Availability
Engineering Samples (ES)
