2.5 μm Global Shutter Pixel
High Resolution GS in 1/2″ Optical Format
High Data Throughput up to 19.2 Gbps
Low Noise Global Shutter
Good PLS and CRA
Resolution
5.6 MP
Nr of Active Pixels
2600 (H) x 2160 (V)
Optical Format
1/2″
Pixel Size
2.5 μm x 2.5 μm
Photosensitive Area
6.5 mm x 5.4 mm
Shutter Type
Global Shutter

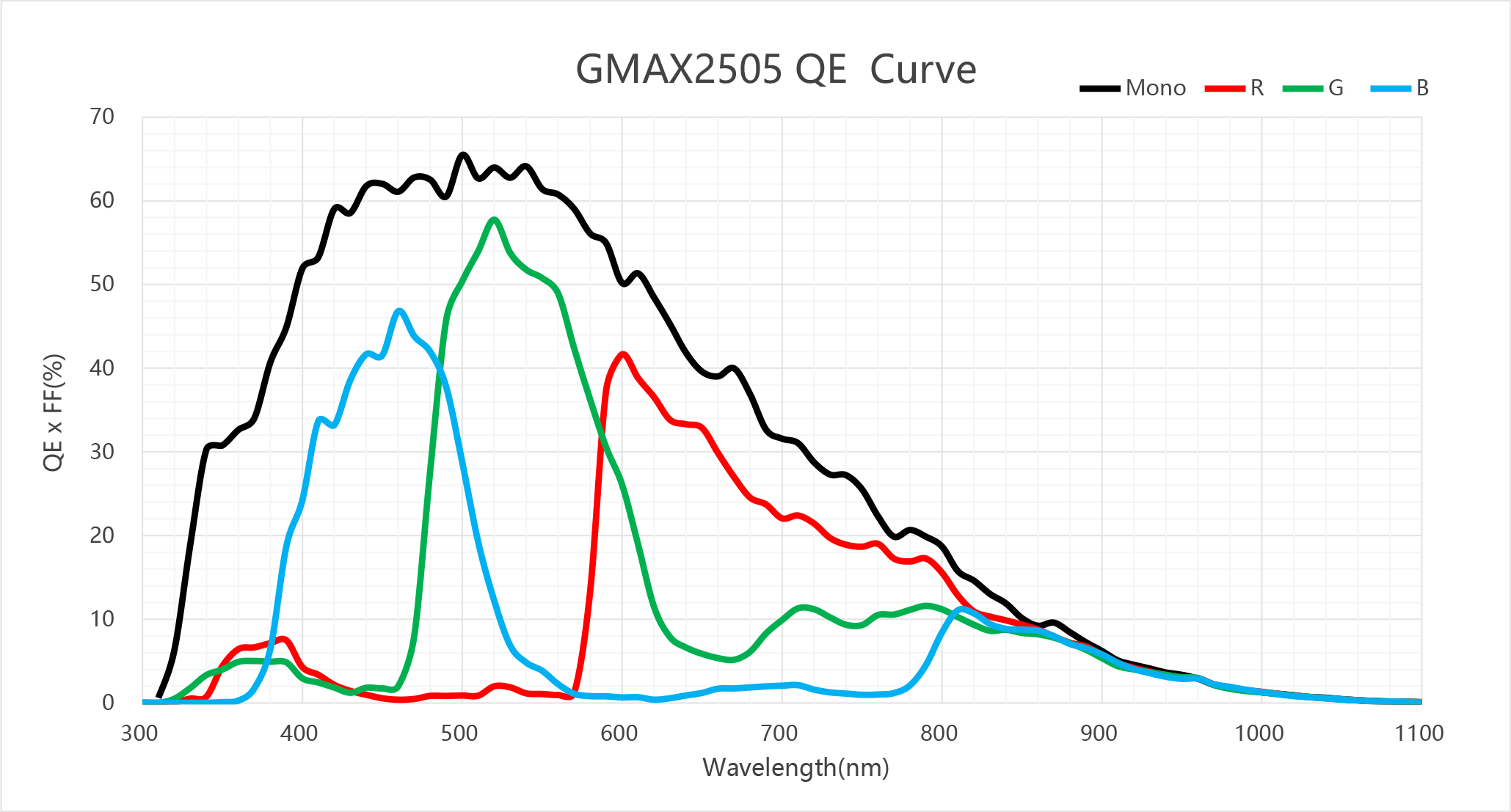

Peak QE
65.5% (500 nm)
Full Well Capacity
6.7 ke⁻ ( PGA gain 1.0x)
Parasitic Light Sensitivity
-80.0 dB
Temporal Noise
1.8 e⁻ (12 bit,PGA gain 4x) 3.9 e⁻ (10 bit,PGA gain 2x)
Angular Response
>13° (80% response)
Dark Current
1.2 e⁻/pixel/s (30℃)
Max. SNR
38.2 dB (PGA gain 1.0x)
Dynamic Range
65.5 dB (12 bit,PGA gain 2x) 62.1 dB (10 bit,PGA gain 2x)
Max Frame Rate
290 fps (10 bit) 121 fps (12 bit)
ADC
10/12 bit
Output Format
20 ch sub-LVDS
Channel Multiplexing
20/10/8/6/4/2
Max. Data Rate
19.20 Gbps
Power Consumption
< 0.6 W (12 bit) < 0.9 W (10 bit)
Supply Voltage
3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)
Package
226 pins LGA (19.0 mm x 17.5 mm)
Chroma
Mono & RGB Color
Availability
Mass Production (MP)
