GMAX3265

65 MP 3.2 μm 2.3" GLOBAL SHUTTER IMAGE SENSOR

Featured with the latest generation 3.2 μm charge-domain global shutter pixel and 65 MP (9344 x 7000) resolution, GMAX3265 is the leading-edge image sensor with 37.4 mm diagonal for high resolution machine vision and industrial inspection applications. This new generation pixel operates with true correlated double sampling (CDS), allowing low read noise and high dynamic range. In addition, the dual light pipe technology provides excellent PLS and angular response.
GMAX3265 is offered in high speed version and normal speed version. High speed version delivers 71 fps at 10 bit output, normal speed version delivers 31 fps at 12 bit output. The superior resolution and frame rate significantly increases the system throughput for industrial inspection applications, such as semiconductor, PCB, AOI or display inspection. The sensor integrates an on-chip sequencer, programmable through SPI, shortening time-to-market for camera manufactures. GMAX3265 is assembled with 239-pins micro-PGA ceramic package for reliability and good heat dissipation and a double-sided ARC D263 glass lid.

Key Features and Benefits

3.2 μm Global Shutter Pixel

Image Diagonal: 37.4 mm

On Chip Sequencer and SPI Control

Excellent Resolution and Significant Frame Rate

High Speed and Good PLS
Package Drawing

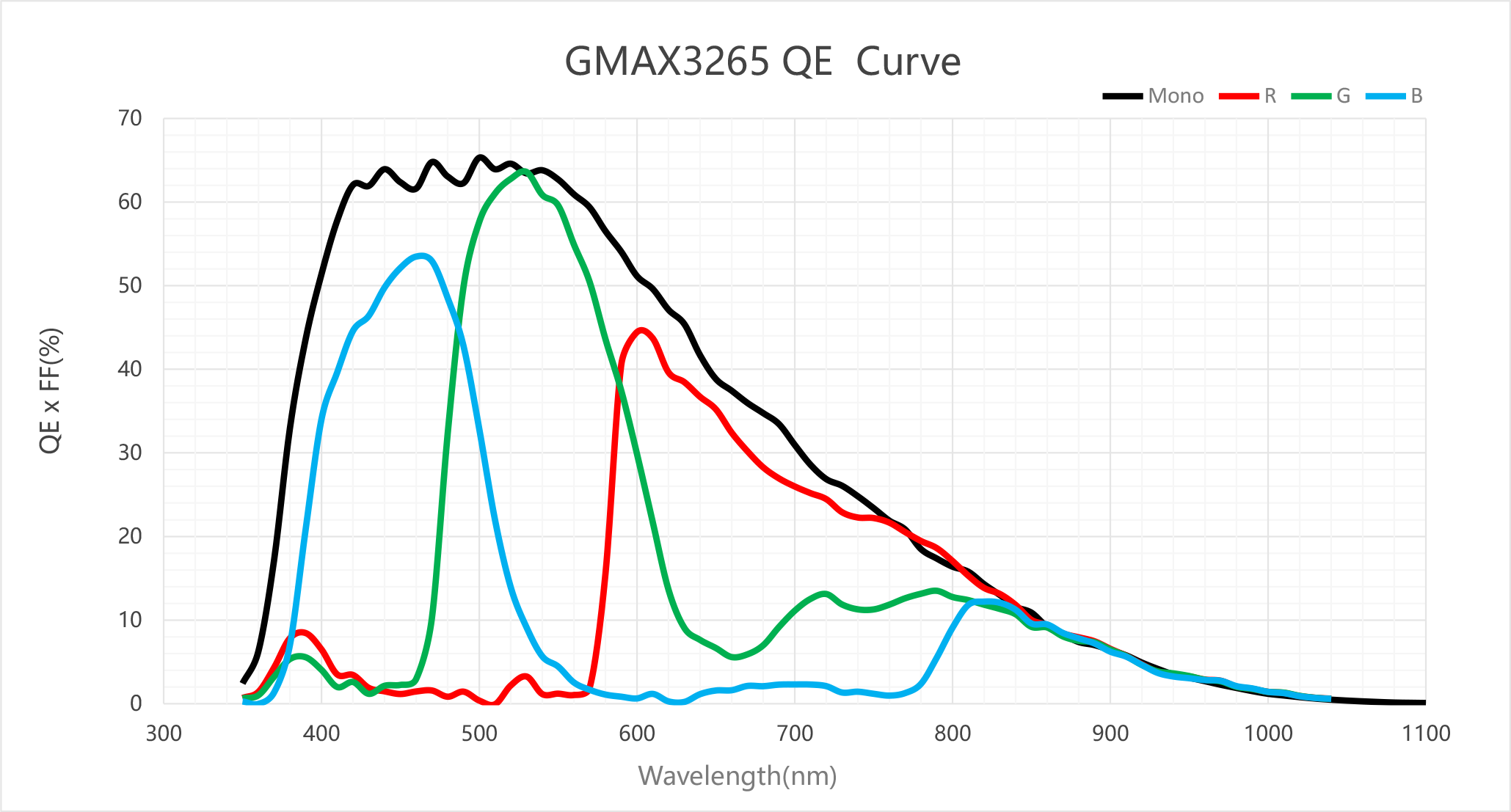

QE Curve

GMAX3265

产品指标

Resolution

65 MP

Nr of Active Pixels

9344 (H) x 7000 (V)
Optical Format

2.3″

Pixel Size

3.2 μm x 3.2 μm
Photosensitive Area

29.9 mm x 22.4 mm

Shutter Type

Global Shutter
Peak QE

65.3% (500 nm)

Full Well Capacity

10.6 ke⁻ (PGA gain 0.75x)
Parasitic Light Sensitivity

-83.5 dB

Temporal Noise

1.9 e⁻ (12 bit, PGA gain 6x) 7.5 e⁻ (10 bit, PGA gain 1.25x)
Angular Response

> 15⁰ (80% response)

Dark Current

5.3 e⁻/pixel/s (40℃)
Max. SNR

40.2 dB

Dynamic Range

66.0 dB (12 bit, PGA gain 1.25x) 62.3 dB (10 bit, PGA gain 1.25x)
Max Frame Rate

71 fps (10 bit) 31 fps (12 bit)

ADC

10/12 bit
Output Format

56 ch sub-LVDS

Channel Multiplexing

56/28/14/8/7/4/2/1
Max. Data Rate

50.40 Gbps

Chroma

Mono, RGB Color
Power Consumption

< 2.1 W (12 bit) < 2.3 W (10 bit)

Supply Voltage

3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)
Package

239 pins uPGA (41.8 mm x 35.8 mm)

Availability

Mass Production (MP)

产品编码

GMAX3265-BVM-HUT-BU1

Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. High speed version, 71 fps (10 bit, 56 x LVDS), Grade 1.
GMAX3265-BVM-HUT-BU3

Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. High speed version, 71 fps (10 bit, 56 x LVDS), Grade 3.
GMAX3265-BVM-NUT-BU2

Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. Normal speed version, 31 fps (12 bit, 28 x LVDS), Grade 2.

GMAX3265-BVM-HUT-BU2

Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. High speed version, 71 fps (10 bit, 56 x LVDS), Grade 2.
GMAX3265-BVM-NUT-BU1

Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. Normal speed version, 31 fps (12 bit, 28 x LVDS), Grade 1.
GMAX3265-BVM-NUT-BU3

Monochrome, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. Normal speed version, 31 fps (12 bit, 28 x LVDS), Grade 3.

GMAX3265-BVC-HUT-BU1

Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. High speed version, 71 fps (10 bit, 56 x LVDS), Grade 1.
GMAX3265-BVC-NUT-BU1

Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. Normal speed version, 31 fps (12 bit, 28 x LVDS), Grade 1.
GMAX3265-BVM-HUT-BR2

Monochrome, with microlens, ceramic 239 pins μPGA, Removable D 263^® T eco glass with AR coating. High speed version, 71 fps (10 bit, 56 x LVDS), Grade 2.

GMAX3265-BVC-HUT-BU2

Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. High speed version, 71 fps (10 bit, 56 x LVDS), Grade 2.
GMAX3265-BVC-NUT-BU2

Bayer color, with microlens, ceramic 239 pins μPGA, Sealed D 263^® T eco glass with AR coating. Normal speed version, 31 fps (12 bit, 28 x LVDS), Grade 2.
GMAX3265-BVM-NUT-BR2

Monochrome, with microlens, ceramic 239 pins μPGA, Removable D 263^® T eco glass with AR coating. Normal speed version, 31 fps (12 bit, 28 x LVDS), Grade 2.
