GSPRINT系列
The GSPRINT series is Gpixel’s high-speed global shutter product family, including the 21 MP GSPRINT4521. The GSPRINT technology will be used to expand the sizes and resolutions available in the family over the next year.
立即咨询
Global Shutter
High Speed
2 MP - 21 MP
Low Noise
GSPRINT4521
21 MP 4.5 μm 1.84" GLOBAL SHUTTER HIGH SPEED IMAGE SENSOR
GSPRINT4521 is a 21 MP (5120 x 4096) APS sized (29.5 mm diameter) high speed, global shutter image sensor designed with the latest 4.5 μm charge domain global shutter pixel. It achieves 32 ke‾, less than 3 e‾ rms read noise and > 69 dB dynamic range, optionally increased to 81 dB with a dual gain HDR mode. Its state-of-the-art 65 nm CIS process allows the sensor to use on-chip charge binning, further increasing FWC and almost quadrupling frame rate. GSPRINT4521 will be offered in two speed variants. The full speed variant consists of 160 pairs sub-LVDS channels running at 1.2 Gbps which delivers a stunning 1000 fps in single gain operation at 8 bit per pixel and full resolution, and more than 3500 fps with a ROI of 1024 rows in a dedicated 3D laser profiling mode. These unique features make it an ideal solution for demanding imaging in high-end applications such as high speed 4K video, industrial inspection, motion analysis and life science imaging.
  • Key Features and Benefits

    High Frame Rate

    Low Noise Global Shutter

    Dual Gain HDR Mode
  • Package Drawing

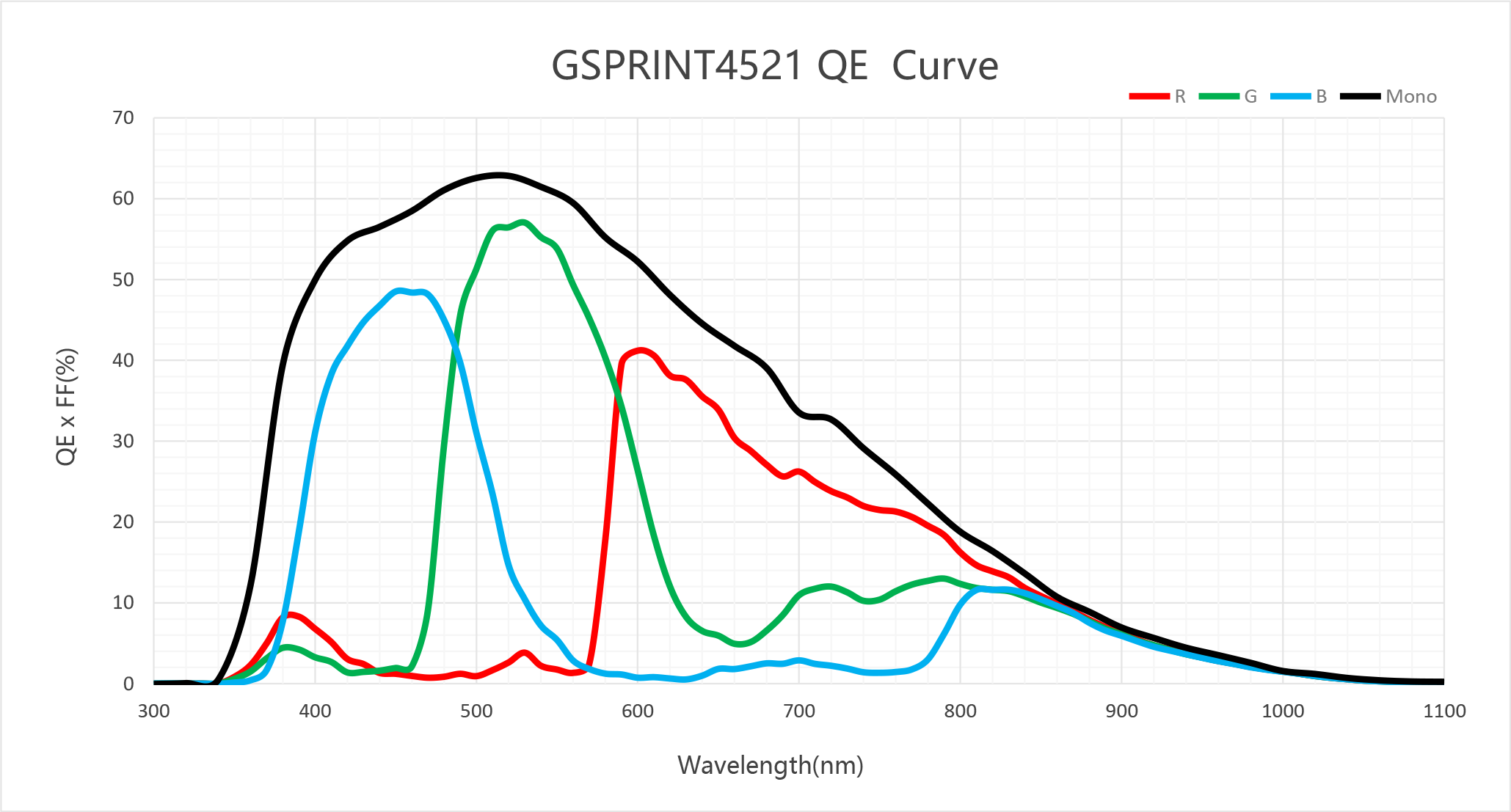

  • QE Curve
GSPRINT4521
GSPRINT4521
产品指标

  • Resolution

    21 MP

    Nr of Active Pixels

    5120 (H) x 4096 (V)

  • Optical Format

    1.84" (APS-C)

    Pixel Size

    4.5 μm x 4.5 μm

  • Photosensitive Area

    23.04 mm x 18.43 mm

    Shutter Type

    Global Shutter

  • Peak QE

    > 63% (500 nm)

    Full Well Capacity

    32 ke‾

  • Parasitic Light Sensitivity

    < -86 dB

    Temporal Noise

    3.5 e‾

  • Angular Response

    17°(80% response)

    Dark Current

    11.4 e‾/pixel/s (50℃)

  • Max. SNR

    45 dB

    Dynamic Range

    68 dB (12 bit)

  • Max Frame Rate

    1000 fps (8 bit) 500 fps (10 bit) 250 fps (12 bit)

    ADC

    8/10/12 bit

  • Output Format

    160 ch Sub-LVDS

    Channel Multiplexing

    160/156/152/…/4 (any multiple of 4)

  • Max. Data Rate

    192 Gbps

    Chroma

    Mono,RGB Color

  • Power Consumption

    6 W

    Supply Voltage

    3.3 V (analog) 1.8 V (I/O) 1.2 V (digital)

  • Package

    454 pins μPGA (42.0 mm x 42.0 mm)

    Availability

    Engineering Samples (ES)

产品编码
  • GSPRINT4521-BVM-NUT-BU1
    Monochrome, with microlens, 454 pins uPGA package, dual sided ARC D263® Teco cover glass, Normal speed, 250 fps (12 bit 56 channels), 500 fps (10 bit 96 channels),Grade 1
  • GSPRINT4521-BVM-HUT-BU1
    Monochrome, with microlens, 454 pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000 fps (8 bit 160 channels), 500 fps (10 bit 96 channels), 250 fps (12 bit 56 channels),Grade 1
  • GSPRINT4521-BVC-NUT-BU1
    Color, with microlens, 454 pins uPGA package, dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps (12 bit 56 channels), 500 fps (10 bit 96 channels),Grade 1
  • GSPRINT4521-BVM-NUT-BU2
    Monochrome, with microlens, 454 pins uPGA package, dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps (12 bit 56 channels), 500 fps (10 bit 96 channels),Grade 2
  • GSPRINT4521-BVM-HUT-BU2
    Monochrome, with microlens, 454 pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000 fps (8 bit 160 channels), 500 fps (10 bit 96 channels), 250 fps (12 bit 56 channels),Grade 2
  • GSPRINT4521-BVC-NUT-BU2
    Color, with microlens, 454 pins uPGA package, dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps (12 bit 56 channels), 500 fps (10 bit 96 channels),Grade 2
  • GSPRINT4521-BVC-HUT-BU1
    Color, with microlens, 454 pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000 fps (8 bit 160 channels), 500 fps (10 bit 96 channels), 250 fps (12 bit 56 channels),Grade 1
  • GSPRINT4521-BVM-NUT-BR2
    Monochrome, with microlens, 454 pins uPGA package, removable dual sided ARC D 263® T eco cover glass, Normal speed, 250 fps (12 bit 56 channels), 500 fps (10 bit 96 channels),Grade 2
  • GSPRINT4521-BVQ-NUT-BU2
    QuadBayer, with microlens, 454 pins uPGA package, dual sided ARC D263 ® T eco cover glass. Normal speed version, 975 fps fast binning (12 bit 56 channels),Grade 2
  • GSPRINT4521-BVC-HUT-BU2
    Color, with microlens, 454 pins uPGA package, dual sided ARC D 263® T eco cover glass, High speed, 1000 fps (8 bit 160 channels), 500 fps (10 bit 96 channels), 250 fps (12 bit 56 channel),Grade 2
  • GSPRINT4521-BVQ-NUT-BU1
    QuadBayer, with microlens, 454 pins uPGA package, dual sided ARC D263 ® T eco cover glass. Normal speed version, 975 fps fast binning (12 bit 56 channels),Grade 1
  • GSPRINT4521-BVQ-HUT-BU1
    QuadBayer, with microlens, 454 pins uPGA package, dual sided ARC D263 ® T eco cover glass. High speed version, 3675 fps fast binning (8 bit 160 channels),Grade 1
  • GSPRINT4521-BVQ-HUT-BU2
    QuadBayer, with microlens, 454 pins uPGA package, dual sided ARC D263 ® T eco cover glass. High speed version, 3675 fps fast binning (8 bit 160 channels),Grade 2
