GSENSE2011
2MP 6.5 μm 1" ROLLING SHUTTER IMAGE SENSOR
GSENSE2011 is a 2Mega pixel resolution scientific CMOS image sensor, capable of operating with either global or rolling shutter. Featured with six transistor (6T) pixel design on a 6.5 μm pitch, the sensor has a very low readout noise of 2.1 e¯ in rolling shutter HDR mode with max. frame rate is 81 fps in 12bit rolling HDR mode. Sensor’s HDR mode is based on dual gain HDR, meaning sensor outputs two images with Low gain setting and High gain setting after each exposure, combining the two images off-chip with HDR construction algorithm allow up to 87 dB dynamic range. The sensor also supports 653 fps Global DDS mode with trade-off on readout noise. These features make GSENSE2011 an ideal sensor for various applications.
  • Key features and Benefits

    Scientific CMOS

    Peak QE of 72%

    Low noise, low power for long exposure modes
  • Package Drawing

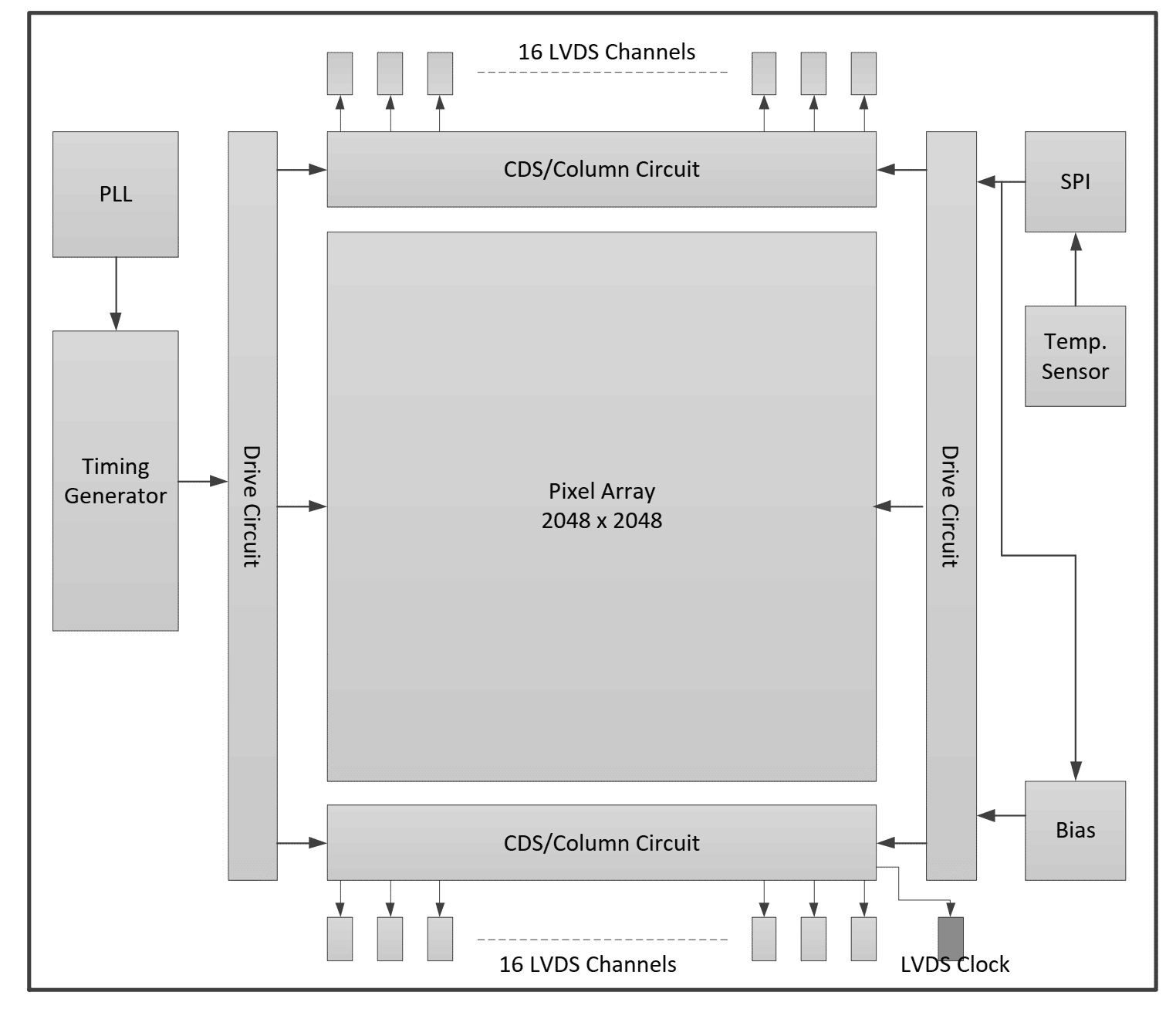

  • Block Diagram

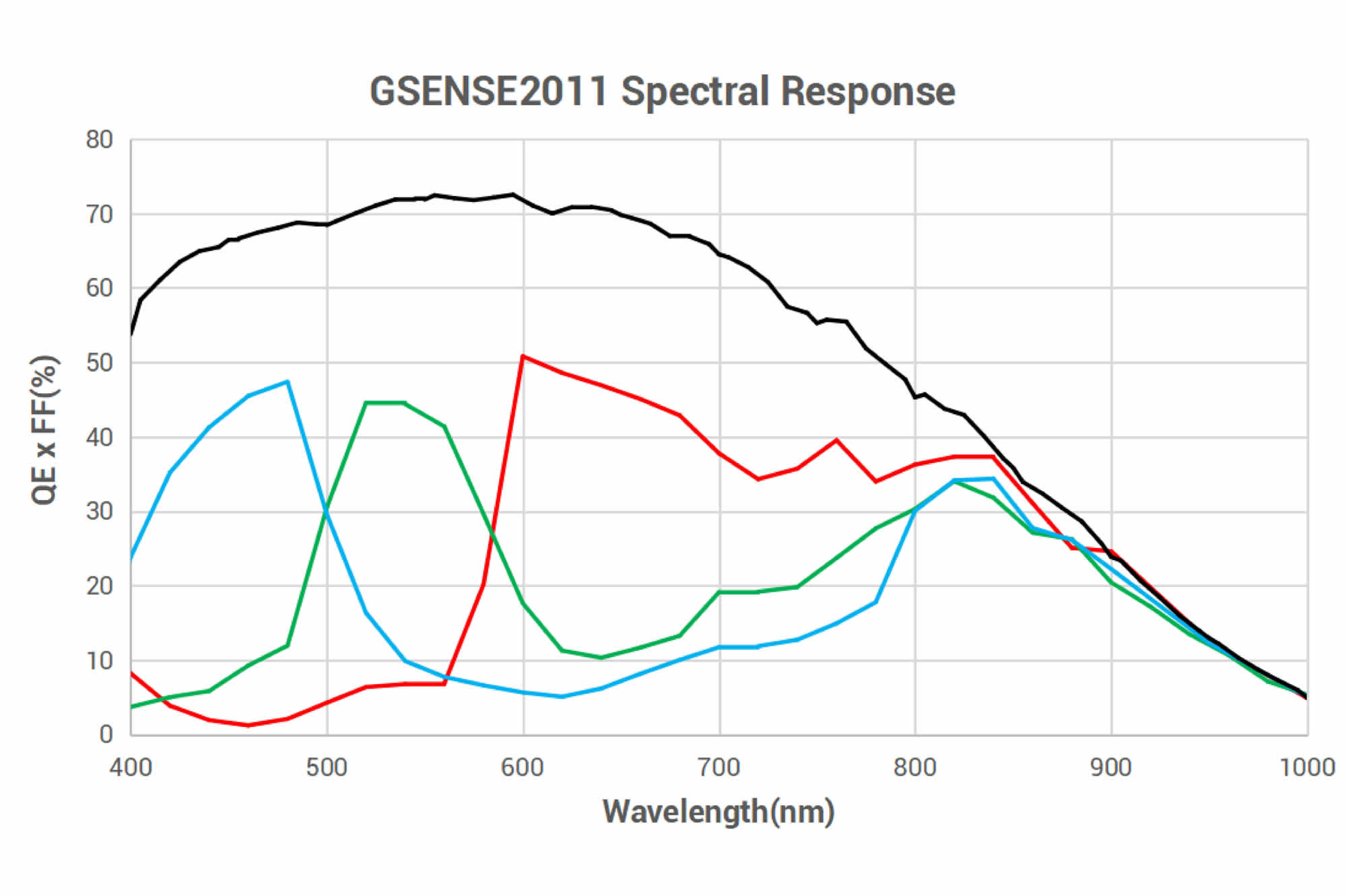

  • QE Curve
GSENSE2011
GSENSE2011
Specifications

  • Resolution

    2.0 MP

    Nr of Active Pixels

    2048 (H) x 1152 (V)

  • Optical format

    1”

    Pixel size

    6.5 μm x 6.5 μm

  • photosensitive area

    13.3 mm x 7.5 mm

    Shutter type

    Rolling & Global

  • Peak QE

    72% @ 595 nm

    Full well capacity

    45 ke‾

  • Parasitic Light Sensitivity

    -

    Temporal noise

    2.1 e‾

  • Dark Current

    13 e‾/pixel/s @ 30℃

    Dynamic Range

    86.6 dB

  • Max Frame rate

    653 fps @ GS DD, 81 fps @ RS HDR

    Angular response

    -

  • Max. SNR

    46 dB

    ADC

    12 bit

  • Output format

    8 ch LVDS@RS HDR、32 ch LVDS@GS DDS

    Max. Data rate

    4.8 Gbps

  • Chroma

    Mono, RGB Color

    Power consumption

    ＜811 mW

  • Supply voltage

    3.3V (analog)、2.0V (digital)

    Package

    153 pins μPGA (26.1 mm x 23.5 mm)

  • Availability

    Mass Production (MP)

Product Number
  • GSENSE2011-BVC-NUY-BB1
    RGB Bayer color version, normal microlens, 153-pin micro-PGA package, Sealed D 263® T eco glass with AR coating on both sides, Grade 1
  • GSENSE2011-BVM-NUY-BB1
    Monochrome, normal microlens, 153-pin micro-PGA package, Sealed D 263® T eco glass with AR coating on both sides, Grade 1
  • EVA-2020F-XC10
    Evaluation board Operation mode: HDR mode Lens holder: C-mount Interface: USB 3.0
  • GSENSE2011-BVC-NUY-BB2
    RGB Bayer color version, normal microlens, 153-pin micro-PGA package, Sealed D 263® T eco glass with AR coating on both sides, Grade 2
  • GSENSE2011-BVM-NUY-BB2
    Monochrome, normal microlens, 153-pin micro-PGA package, Sealed D 263® T eco glass with AR coating on both sides, Grade 2
  • EVA-2020F-RC12
    Evaluation board Operation mode: DDS mode Lens holder: C-mount Interface: USB 3.0
Download
Product Flyer
Datasheet
Appnote
Rohs & Reach
PCN
