Changchun, China — March 23, 2026 — Gpixel today announced the GLR1002BSI-S, a next-generation 2K back-side-illuminated (BSI) CMOS line-scan image sensor engineered to raise the bar in Optical Coherence Tomography (OCT) and advanced spectroscopy. Built around the most demanding OCT requirements, GLR1002BSI-S combines high-speed readout up to 250 kHz, exceptional NIR sensitivity with 58% QE at 850 nm, and a rectangular 10 × 200 µm pixel optimized for precise optical alignment. Its modern BSI global-shutter architecture, high full-well capacity, low noise, and true 14 bit output provide a substantial leap in interferometric image quality over traditional FSI line-scan solutions used in OCT today.

Optical Coherence Tomography (OCT) is a non-invasive, high-resolution imaging technique widely adopted in ophthalmology and dermatology, and increasingly deployed across industrial inspection tasks such as battery-film measurement, coating-uniformity analysis, and weld-quality assessment. By capturing fine structural detail through interferometric depth sensing, OCT places strict demands on sensor alignment stability, NIR responsivity, and signal integrity. The GLR1002BSI-S meets these requirements with its 2411 × 1 resolution and 10 × 200 µm OCT-optimized rectangular pixel.

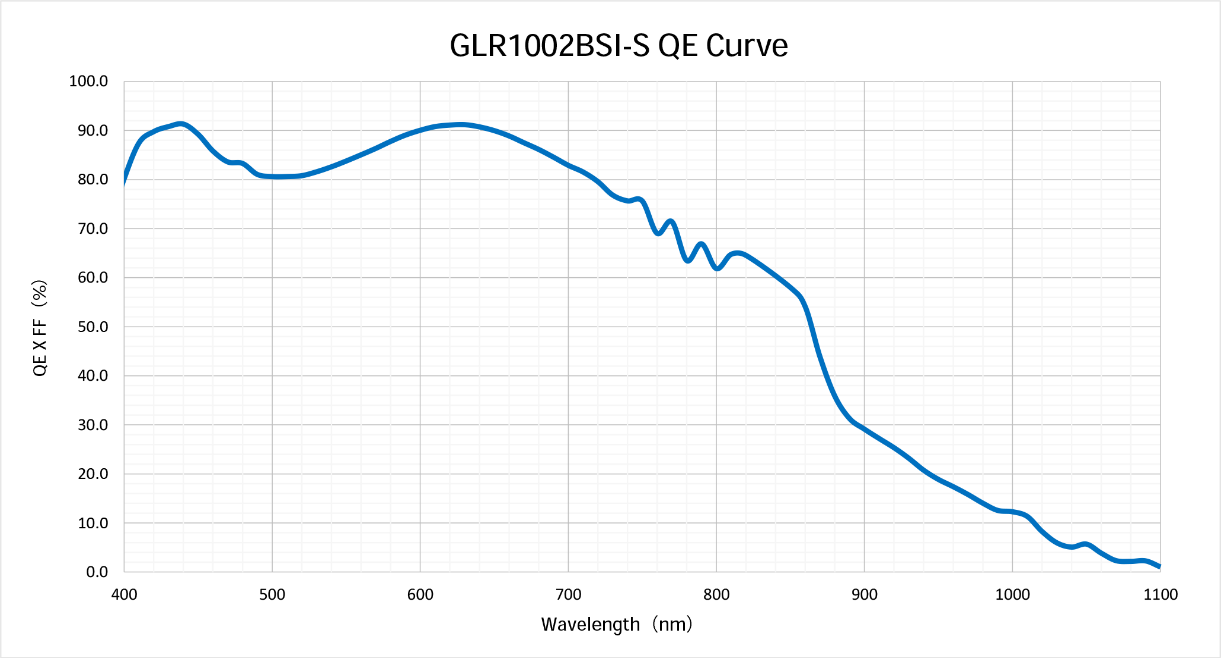

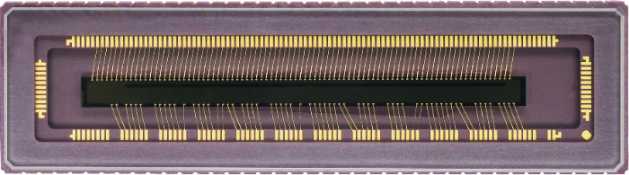

To support both high-speed imaging and precision diagnostics, the sensor incorporates an advanced BSI pixel architecture delivering peak QE of 91% at 440 nm and 58% QE at 850 nm, complemented by a 155 ke‾ full-well capacity, low read noise, and true 12 /14 bit output for wide dynamic range and high-contrast fringe reconstruction. High line rates are enabled by Sub-LVDS outputs running at 1.2 GHz with <450 mW power consumption, providing an optimal balance of speed and efficiency for medical and industrial OCT engines. The device is housed in a ceramic CLCC package with a double-sided AR-coated glass lid, featuring a compact 40 mm × 11 mm footprint designed for precise optical alignment and stable mechanical integration.

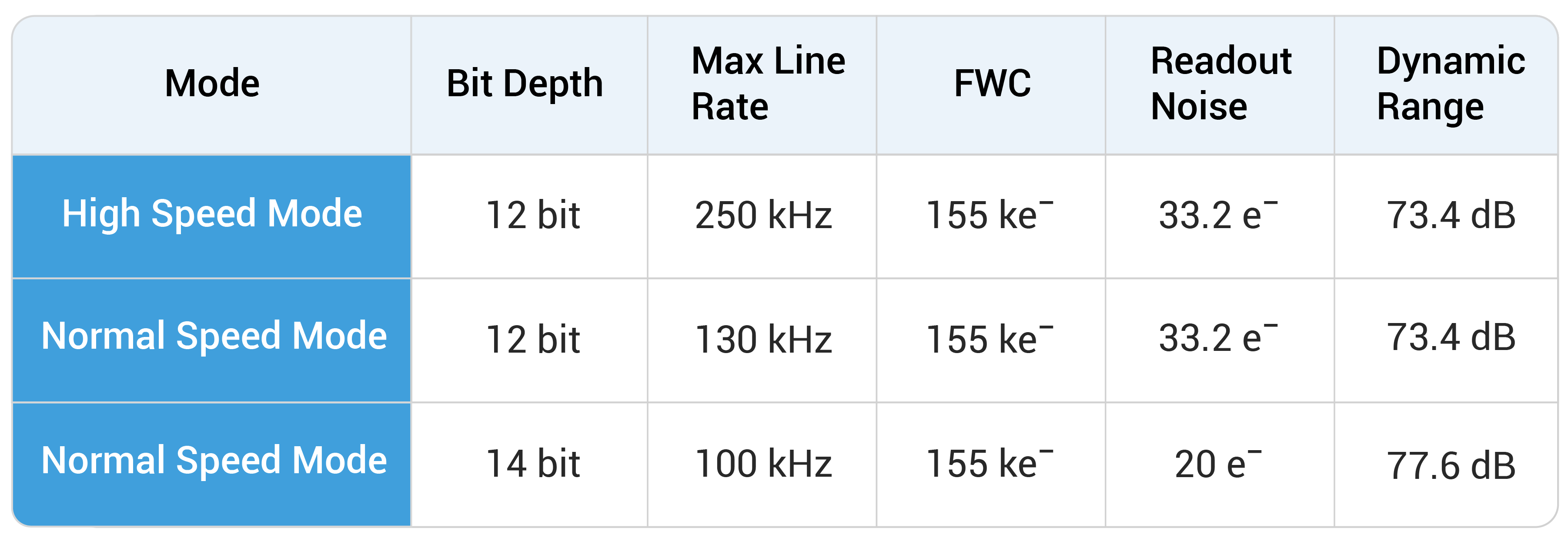

To accommodate different performance and throughput targets, the GLR1002BSI-S supports three selectable readout modes:

Engineering samples and evaluation boards for the GLR1002BSI-S are now available for ordering.
For details on availability, lead times, or evaluation options, please contact your Gpixel sales representative.

About Gpixel

Gpixel delivers high-performance off-the-shelf and custom CMOS image sensors for scientific, industrial, professional, and medical imaging markets. Headquartered in Changchun, China, with subsidiaries in Hangzhou, Dalian, Antwerp (Belgium), and Tokyo (Japan), Gpixel provides advanced imaging solutions and dedicated support to customers worldwide.
